KYOCERA Replaceable-Tip Drill 0.453 to 0.472″ Dia THD11184

Kyocera

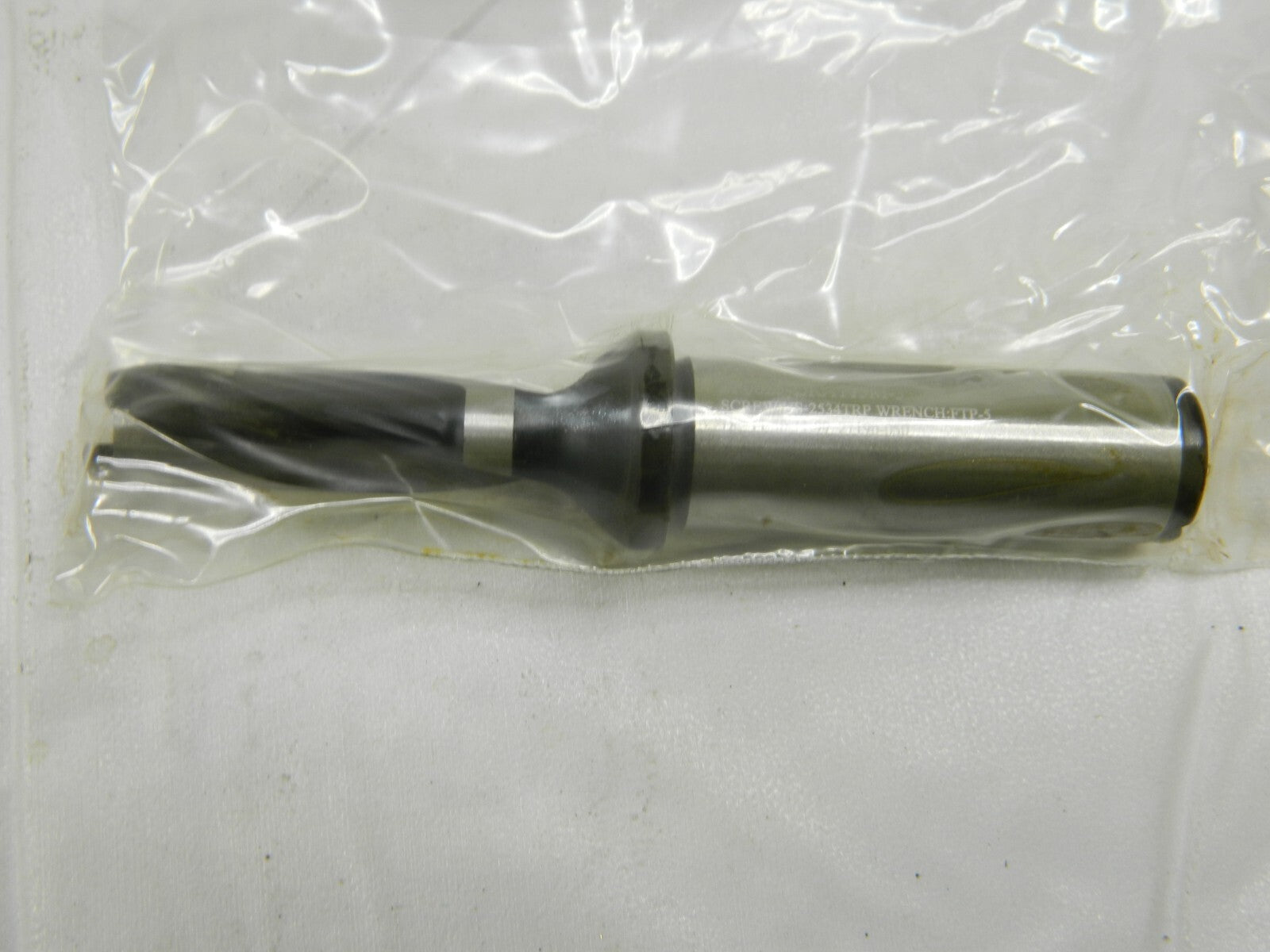

Replaceable-Tip Drill

MSRP: $150.00

• Minimum Drill Diameter (Decimal Inch) 0.4530
• Maximum Drill Diameter (Decimal Inch) 0.4720
• Drill Depth by Diameter Ratio 3xD
• Maximum Drill Depth (Decimal Inch) 1.4170
• Shank Type Flange
• Insert Style DA
• Shank Diameter (Inch) 5/8
• Shank Diameter (Decimal Inch) 0.6250
• Insert Seat Size 115
• Shank Diameter (mm) 15.88
• Tool Material Steel
• Maximum Drill Depth Range (Decimal Inch) 0.0000 to 1.5000
• Compatible Insert Style DA
• Compatible Insert Size Code 080
• Overall Length (Decimal Inch) 4.0000
• Series Magic Drill DRA
• Toolholder Style SF 3xD
• Shank Length (Decimal Inch) 1.8900
• Tool Application Drilling
• Coolant Through Yes
• Coating/Finish Black Oxide

This item is new and in great condition. SOLD AS IS.

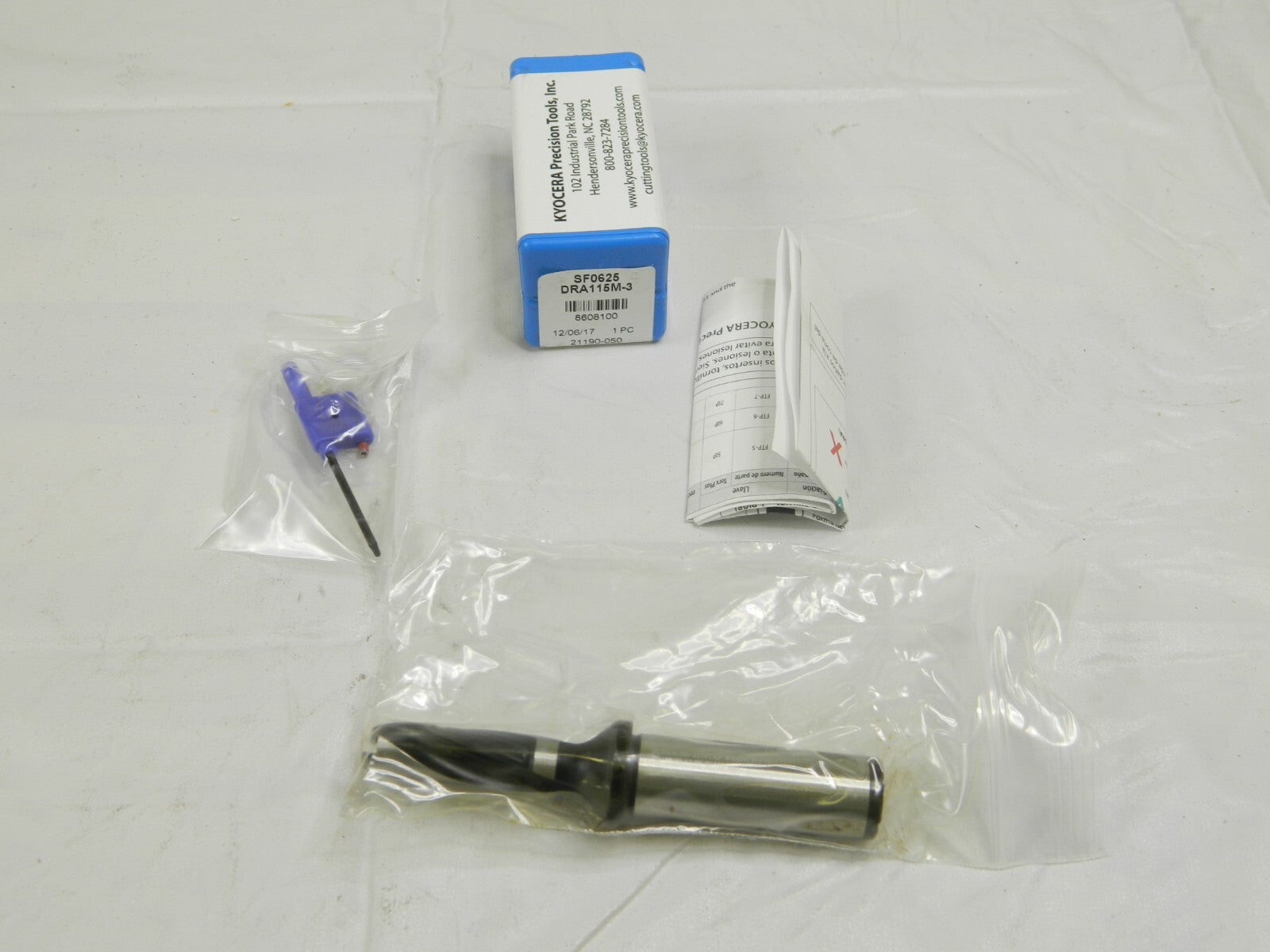

Please review photos, comes as shown.
