Kyocera Internal Grooving Toolholder SIGIVR1615 8802466

MSRP: $120

• EDP Number	8802466
  Shank Width (Decimal Inch)	1.0000"
  Max Depth of Cut (Decimal Inch)	0.1252"
  Max Depth of Cut (mm)	3.18mm
  Cutting Width (Decimal Inch)	0.0618"
  Cutting Width (mm)	1.57mm
  Cutting Width Minimum (Decimal Inch)	0.0618"
  Cutting Width Minimum (mm)	1.57mm
  Cutting Width Maximum (Decimal Inch)	0.0618"
  Cutting Width Maximum (mm)	1.57mm
  Connection Diameter (Decimal Inch)	1.0000"
  Connection Diameter (mm)	25.40mm
  Minimum Bore Diameter (Decimal Inch)	0.7874"
  Minimum Bore Diameter (mm)	20.00mm
  Shank Height (Decimal Inch)	0.9598"
  Shank Height (mm)	24.38mm
  Application	Internal Grooving | Small Parts Machining
  Grooving Type	Internal Grooving
  Hand	Right Hand
  Insert Holding Method	Top Clamp
  Material	Steel

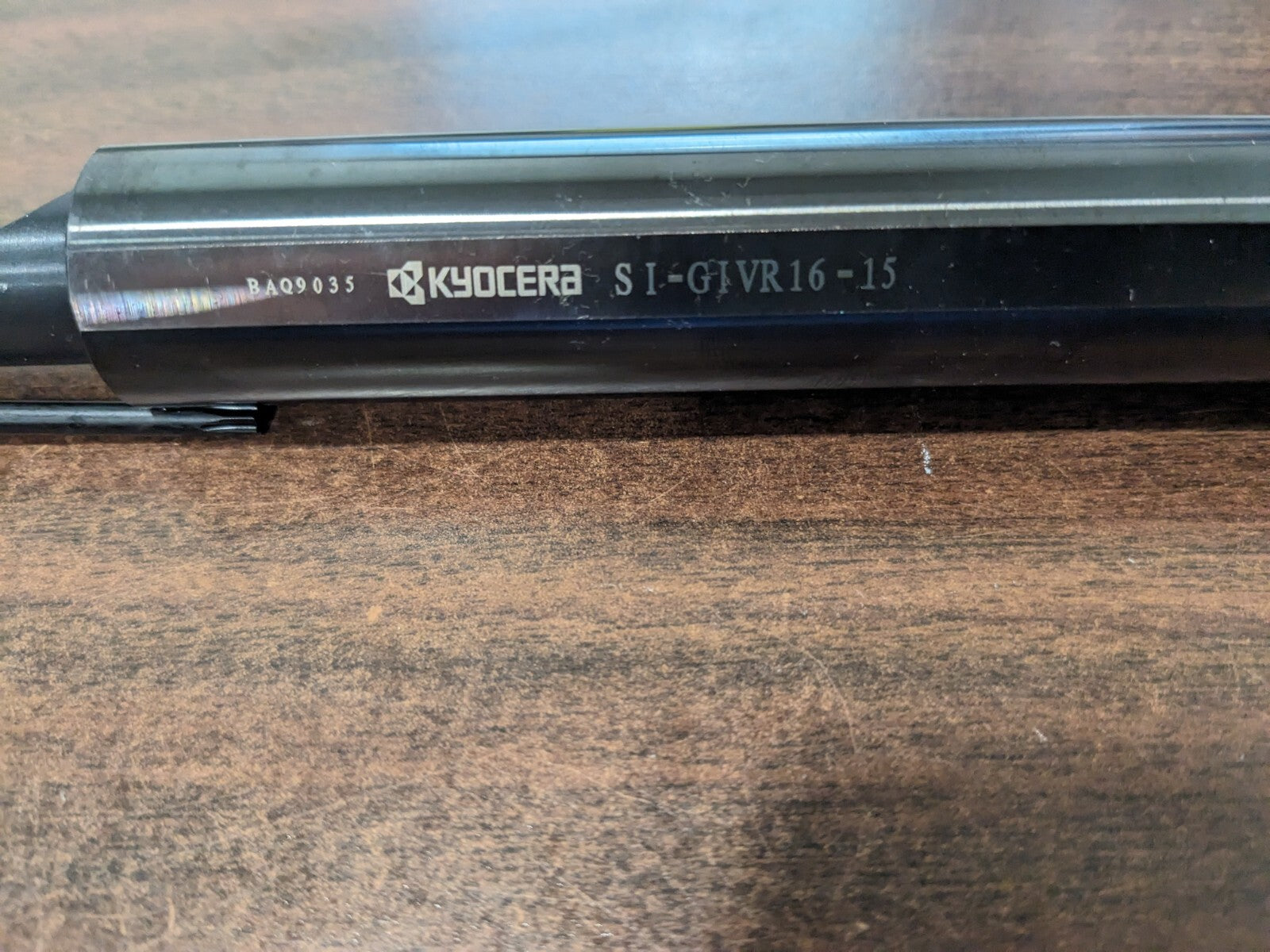

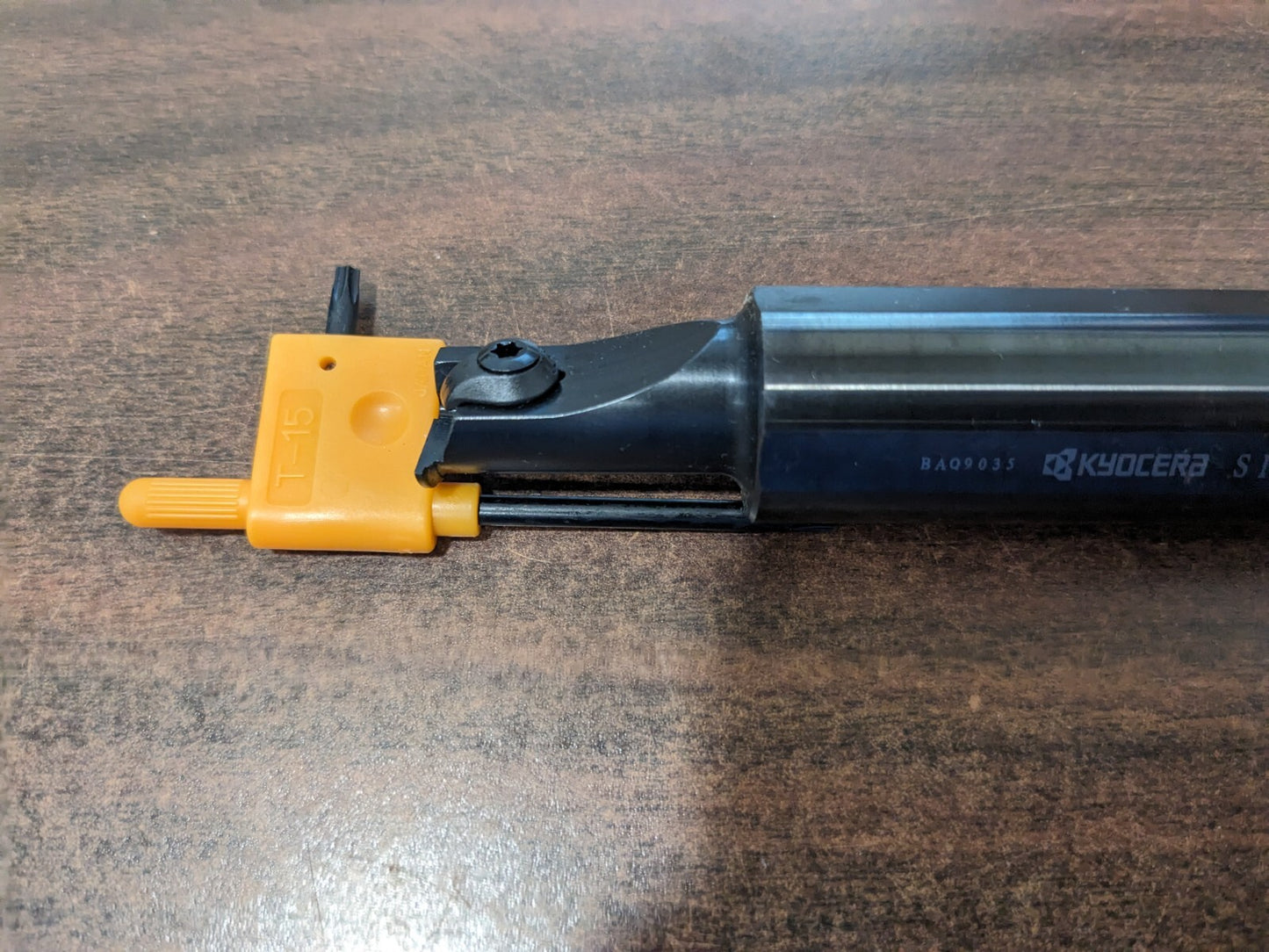

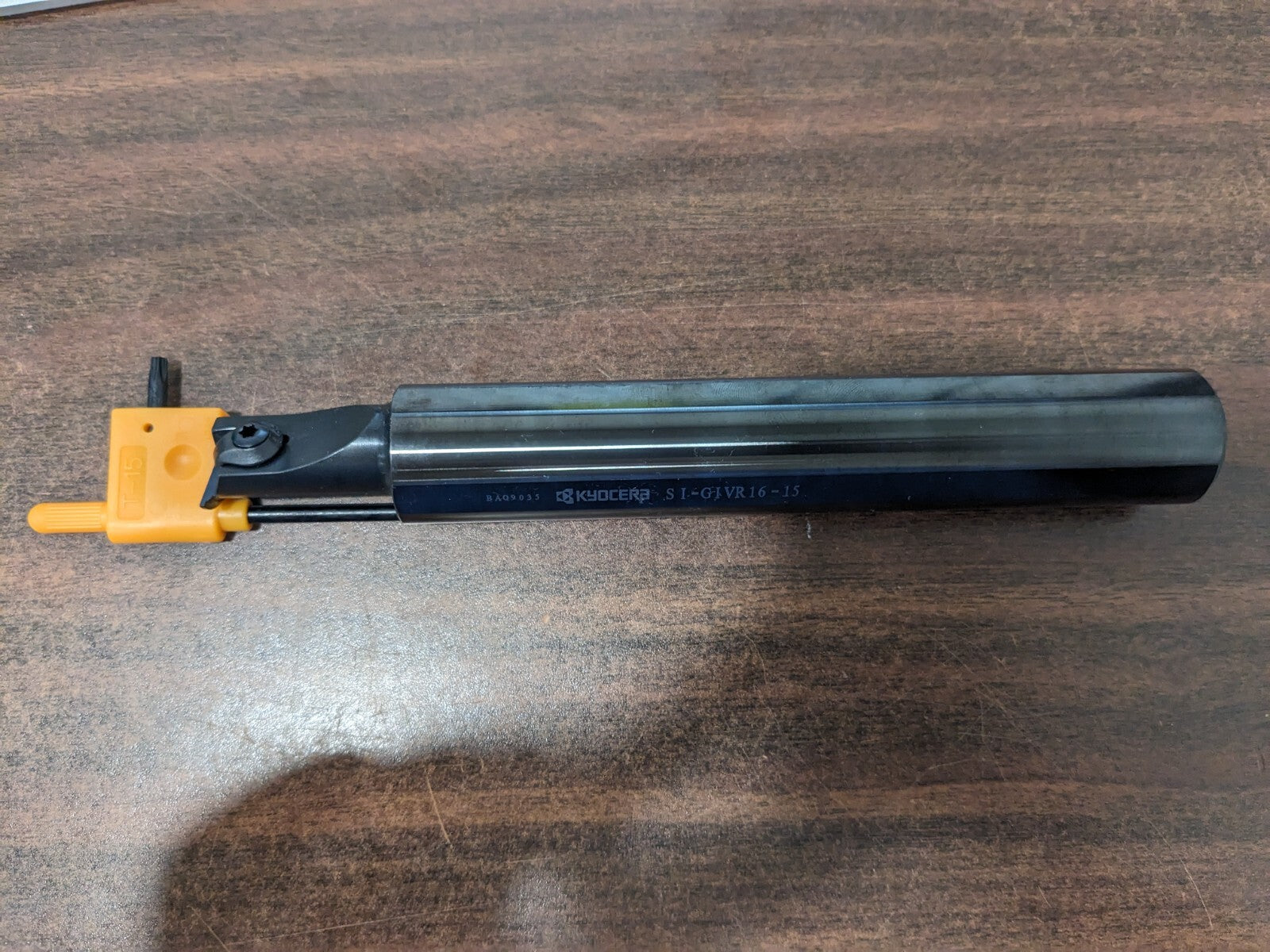

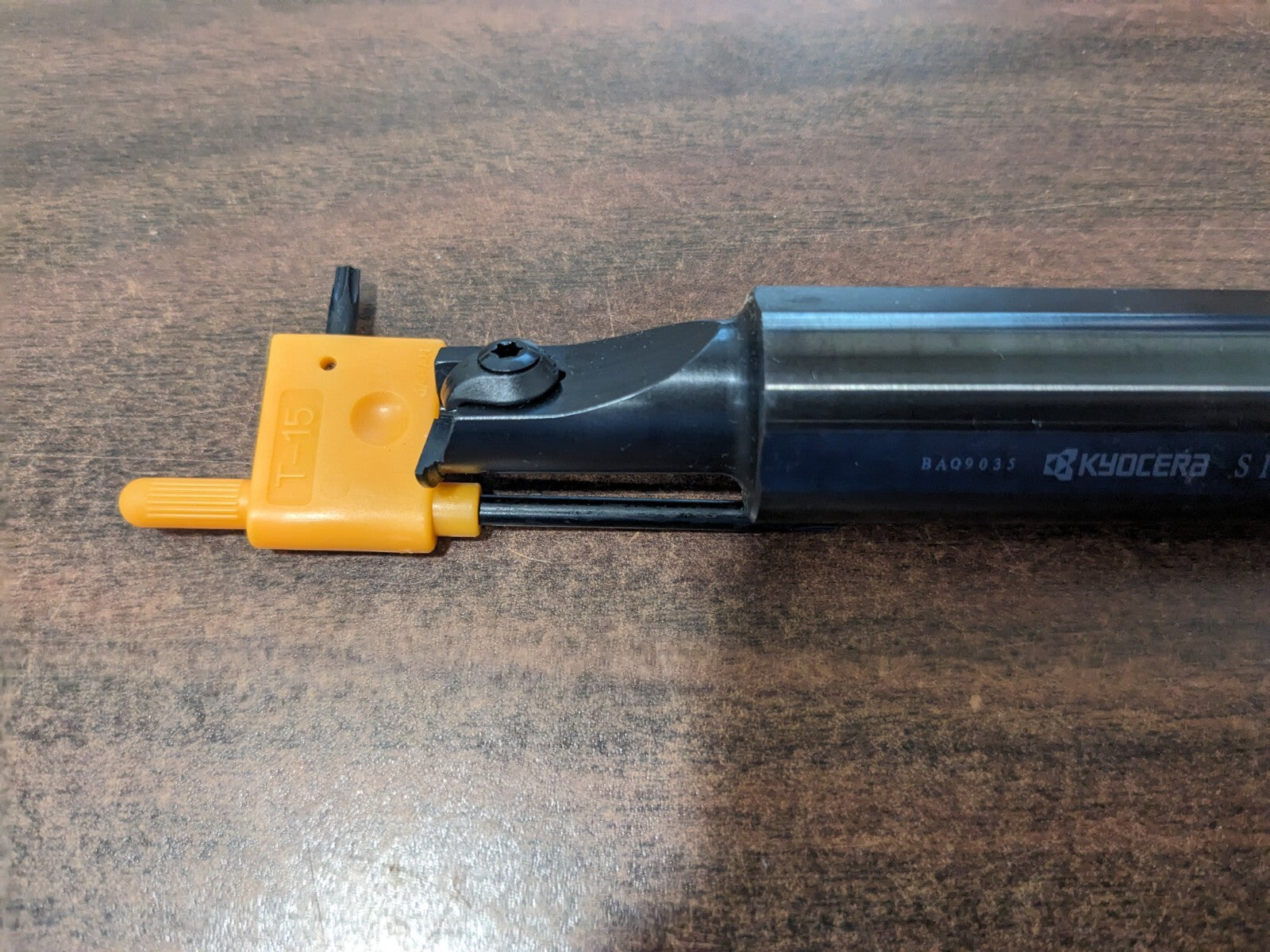

Please review photos, comes as shown.
