KYOCERA Grooving Insert 10pk GDM1516PF PR1535, Solid Carbide TLC10421

MSRP: $200

• Insert Style GDM
• Insert Size Code 1516
• Cutting Width (Decimal Inch) 0.0591
• Cutting Width (mm) 1.50
• Insert Hand Neutral
• Insert Material Carbide
• Manufacturer Grade PR1535
• Corner Radius (Decimal Inch) 0.0011
• Corner Radius (mm) 0.03
• Rake Positive
• Insert Holding Method Clamp
• Insert Size 1516
• Cutting Height (mm) 3.70
• Cutting Height (Decimal Inch) 0.1457
• Multi-use Tool Yes
• Series GD
• Coating Process PVD
• Rake Angle 2.5
• Overall Length (Decimal Inch) 0.6299
• Primary Workpiece Material Superalloys
• Primary Workpiece Material Code S
• Secondary Workpiece Material Stainless Steel
• Secondary Workpiece Material Code M
• Ansi Code GDM1516N003PFPR1535
• Iso Code GDM1516N003PF
• Standards ISO; ANSI
• Manufacturers Catalog Number GDM1516N-003PF
• Insert Thickness (Decimal Inch) 0.0472
• UNSPSC Code 23242105
• Chip Breaker PF
• Coating/Finish MEGACOAT NANO
• Insert Thickness 1.20

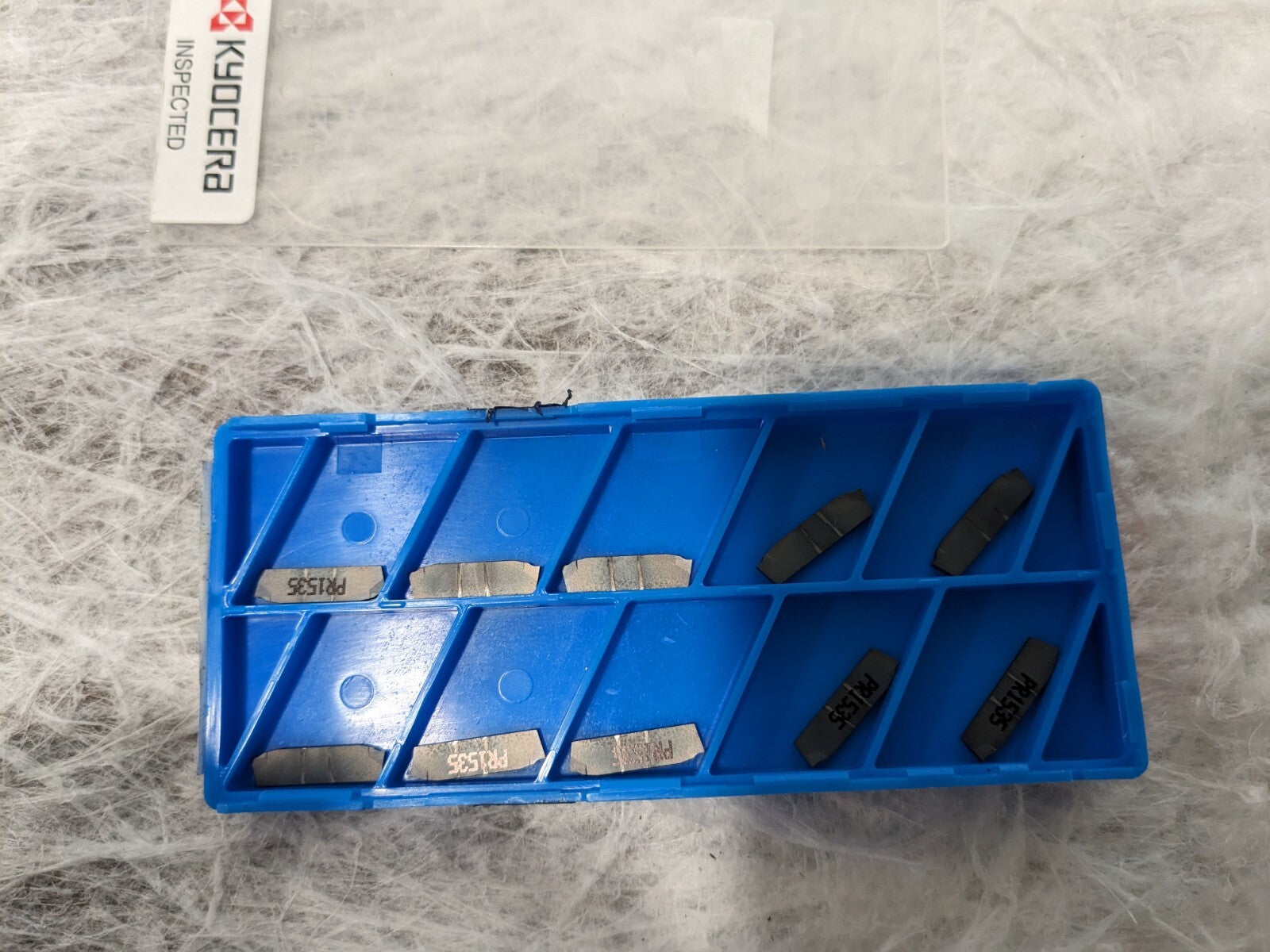

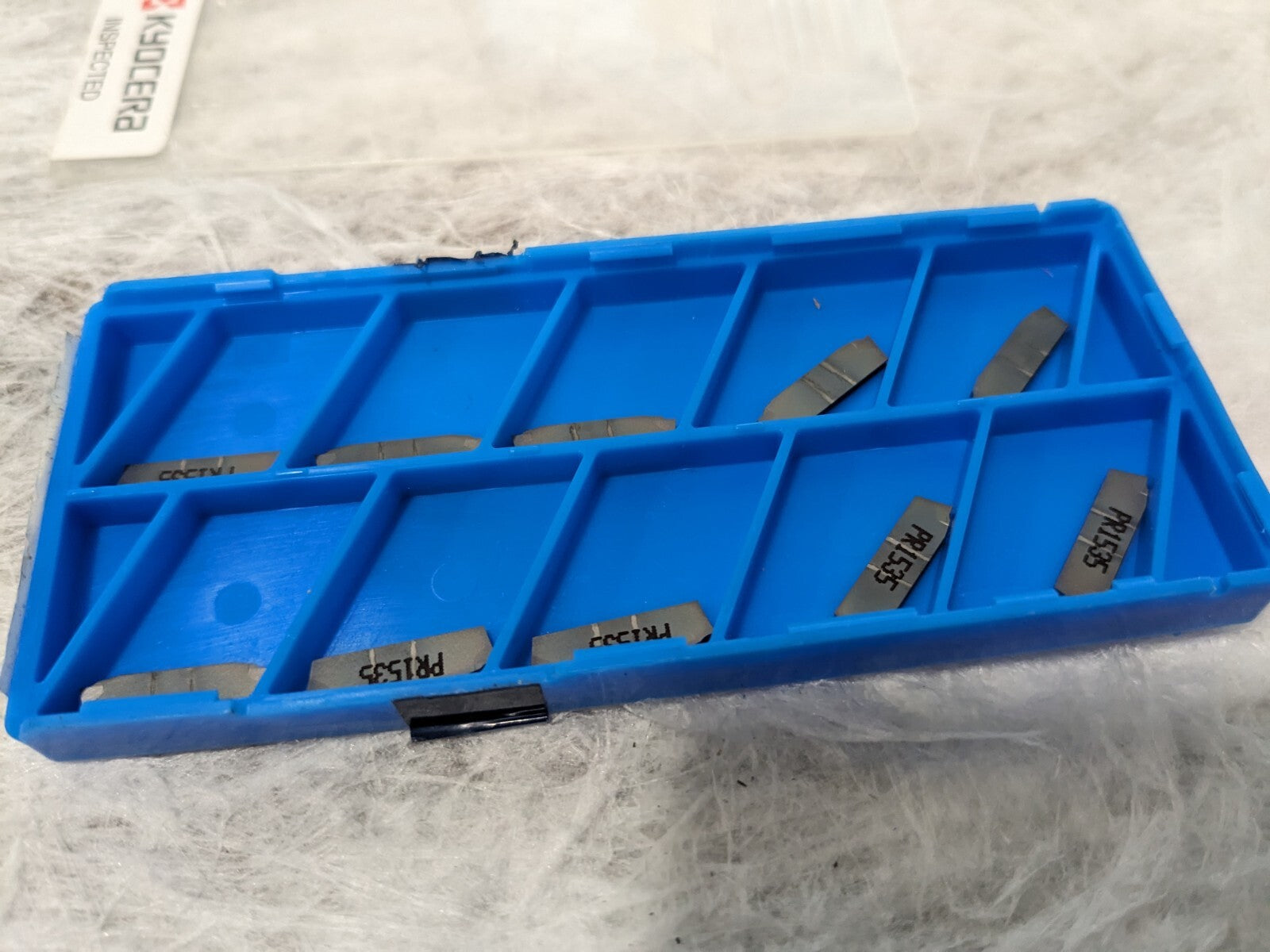

Please review photos, comes as shown.
