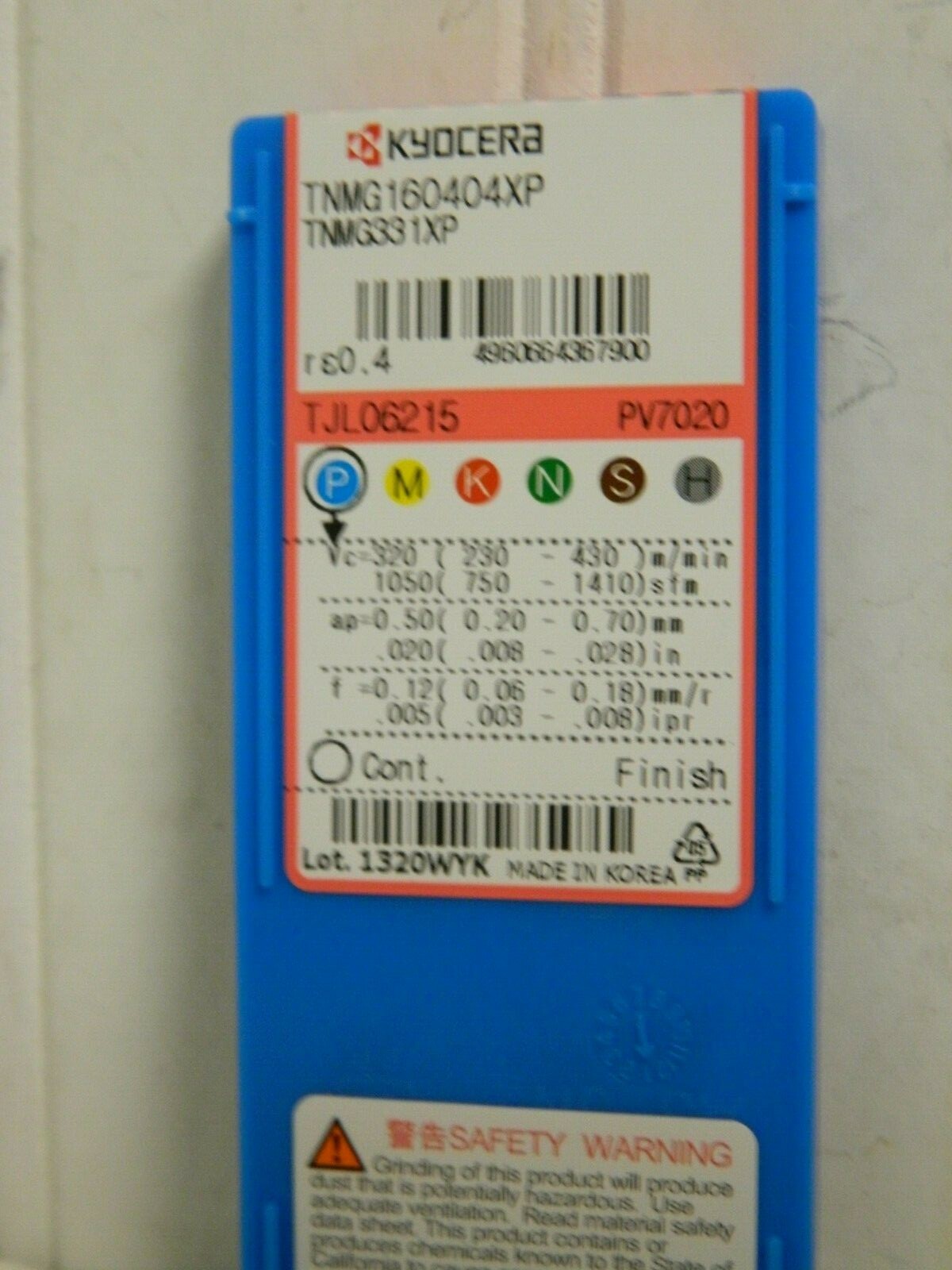

Kyocera Cermet Turning Insert TNMG331 XP Grade PV7020 Qty 10 8808818
Kyocera Cermet Turning Insert TNMG331 XP Grade PV7020 Qty 10 8808818
Regular price
$39.16 USD
Regular price
$80.00 USD
Sale price
$39.16 USD
Shipping calculated at checkout.
Kyocera
MSRP: $80.00
Model: 8808818
Description:
Insert Style: TNMG
Insert Size: 331
Material: Cermet
Inscribed Circle (Decimal Inch) : 0.3750
Inscribed Circle (Inch) : 3/8
Thickness (Inch) : 3/16
Thickness (Decimal Inch) : 0.1875
Thickness (mm) : 4.76
Corner Radius (Inch) : 1/64
Corner Radius (mm) : 0.3969
Corner Radius (Decimal Inch) : 0.0156
Manufacturer's Grade: PV7020
Coating: TiAlN/TiN
Chip Breaker: XP
Hole Diameter (mm): 3.81
Hole Diameter (Decimal Inch): 0.1500
ISO Number: TNMG160404XP
Rake: Negative
Rake Angle: 8
Relief Angle: 0
Coating Process: PVD
Manufacturers Catalog Number: TNMG331XP PV7020
Primary Workpiece Material: P
Included Angle: 60
Cutting Direction: Neutral
Insert Hand: Neutral
Insert Holding Method: Pin & Clamp
Multi Use Application: Turning
MultiUseTool: No
Shape: Triangle

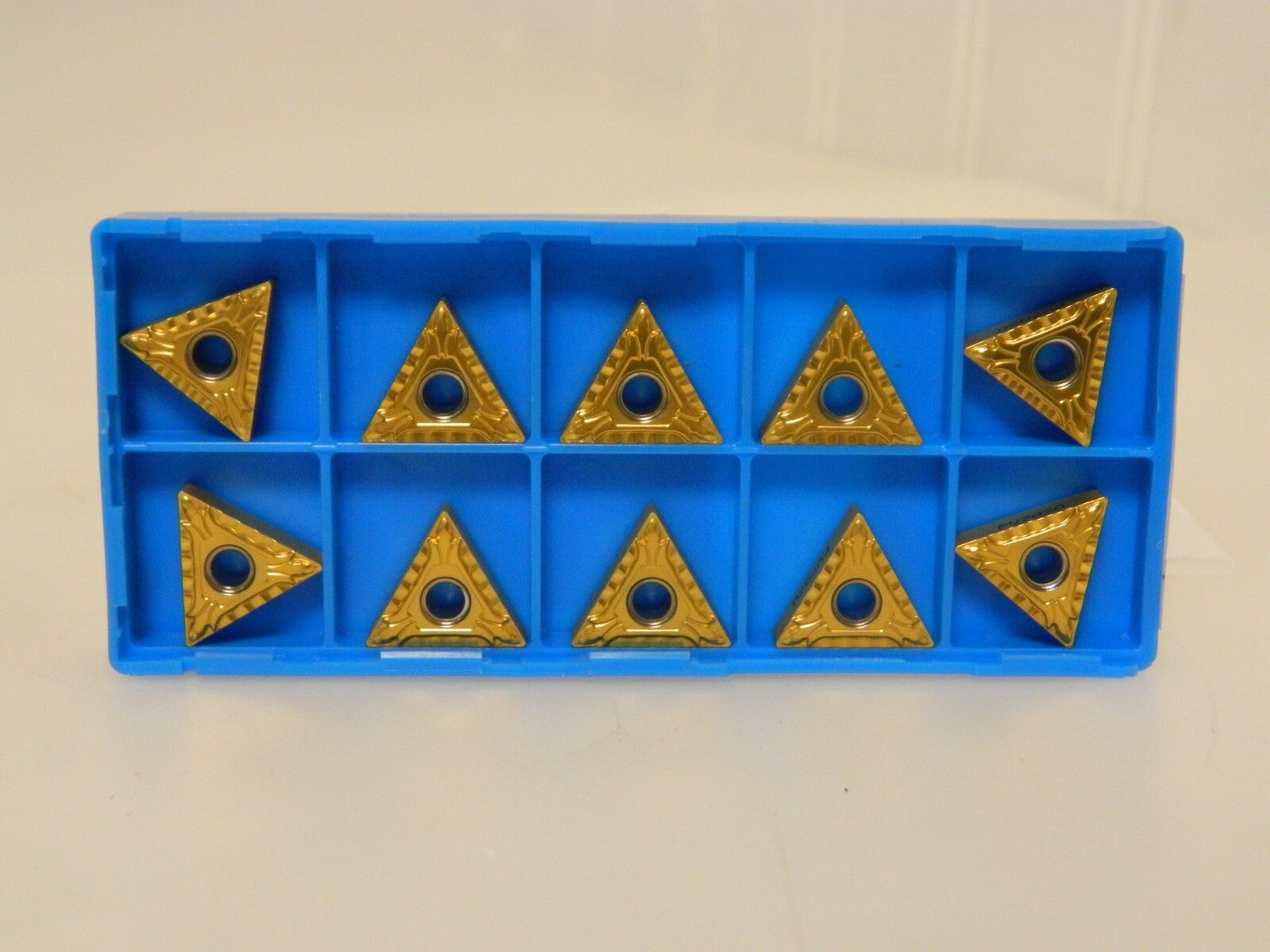

This listing is for One Lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
