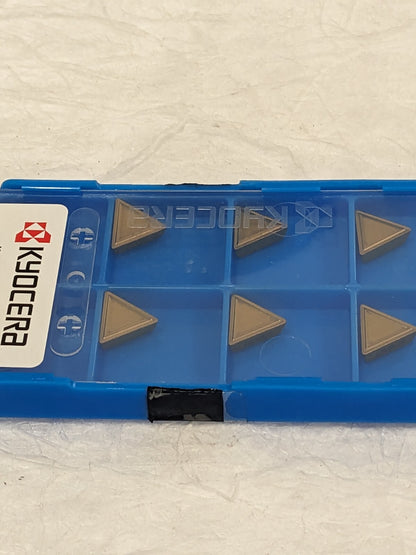

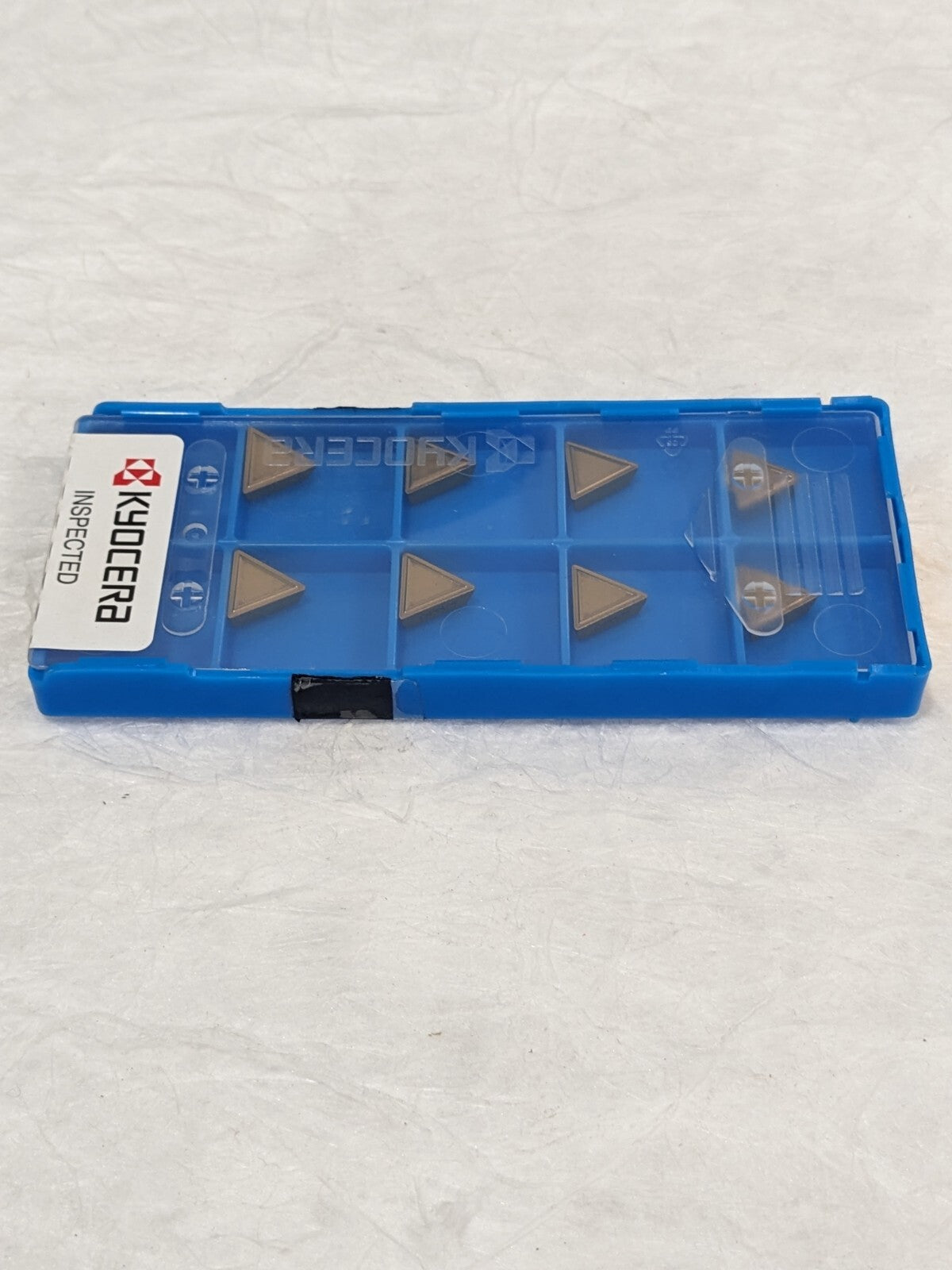

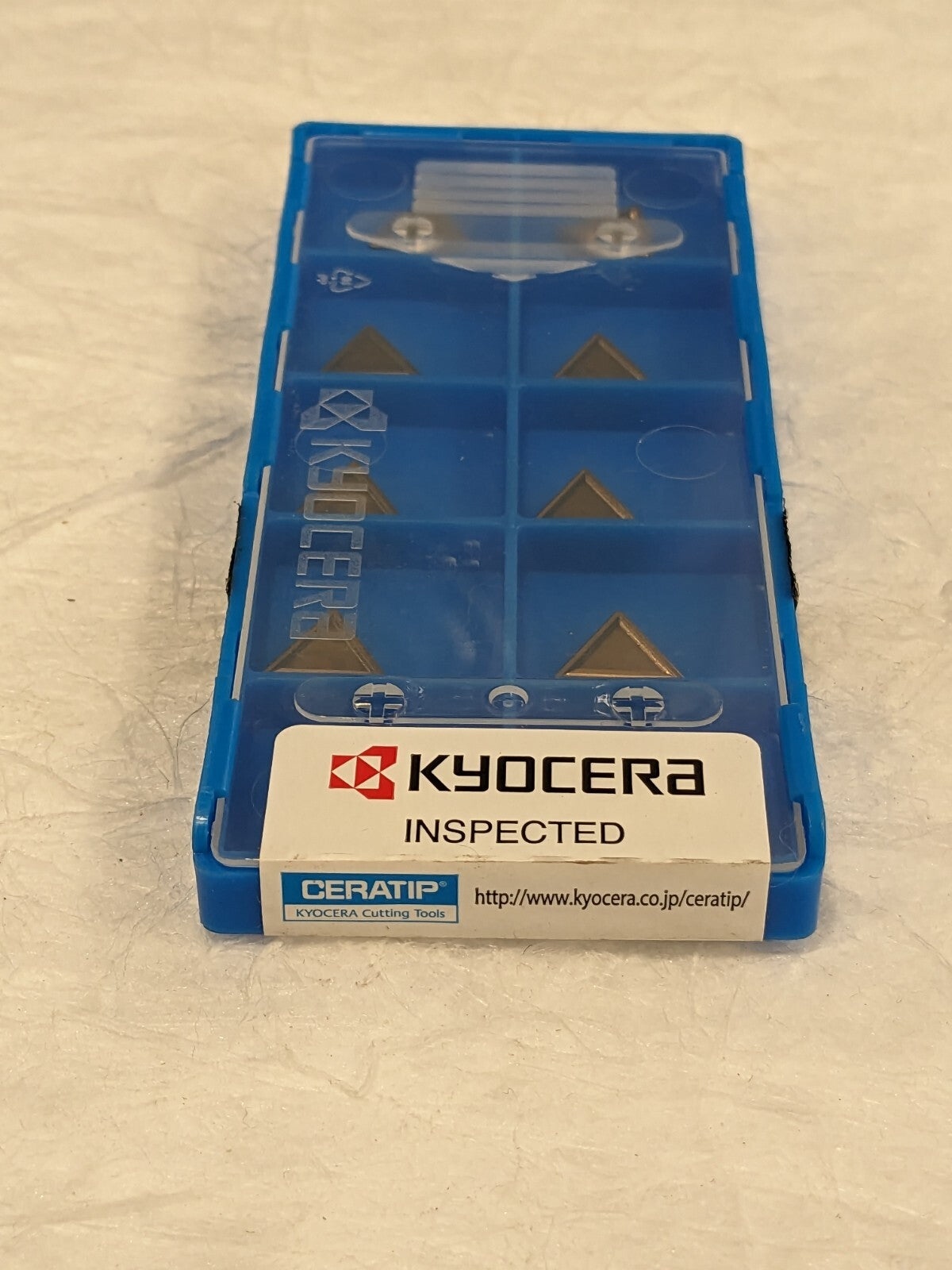

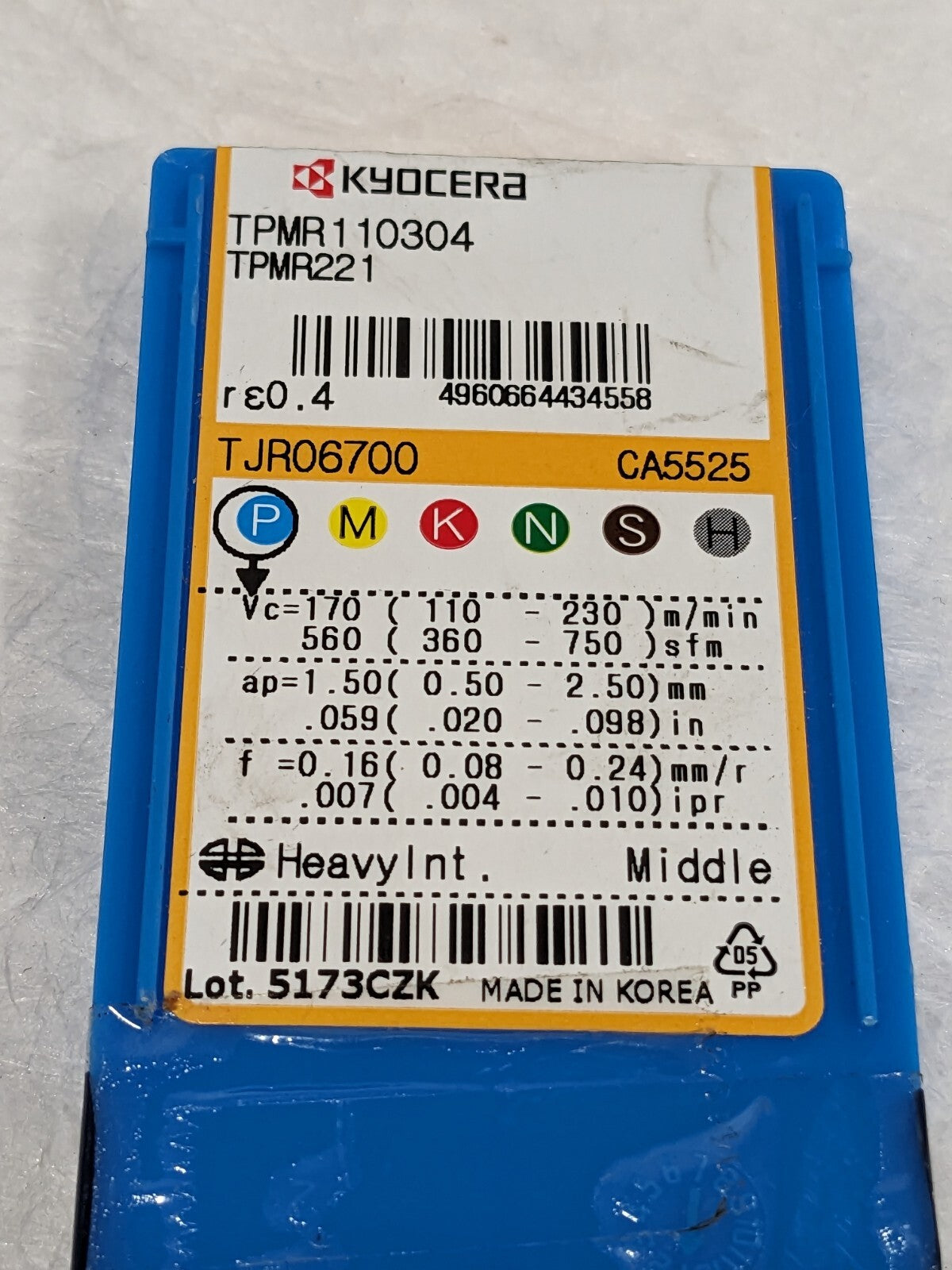

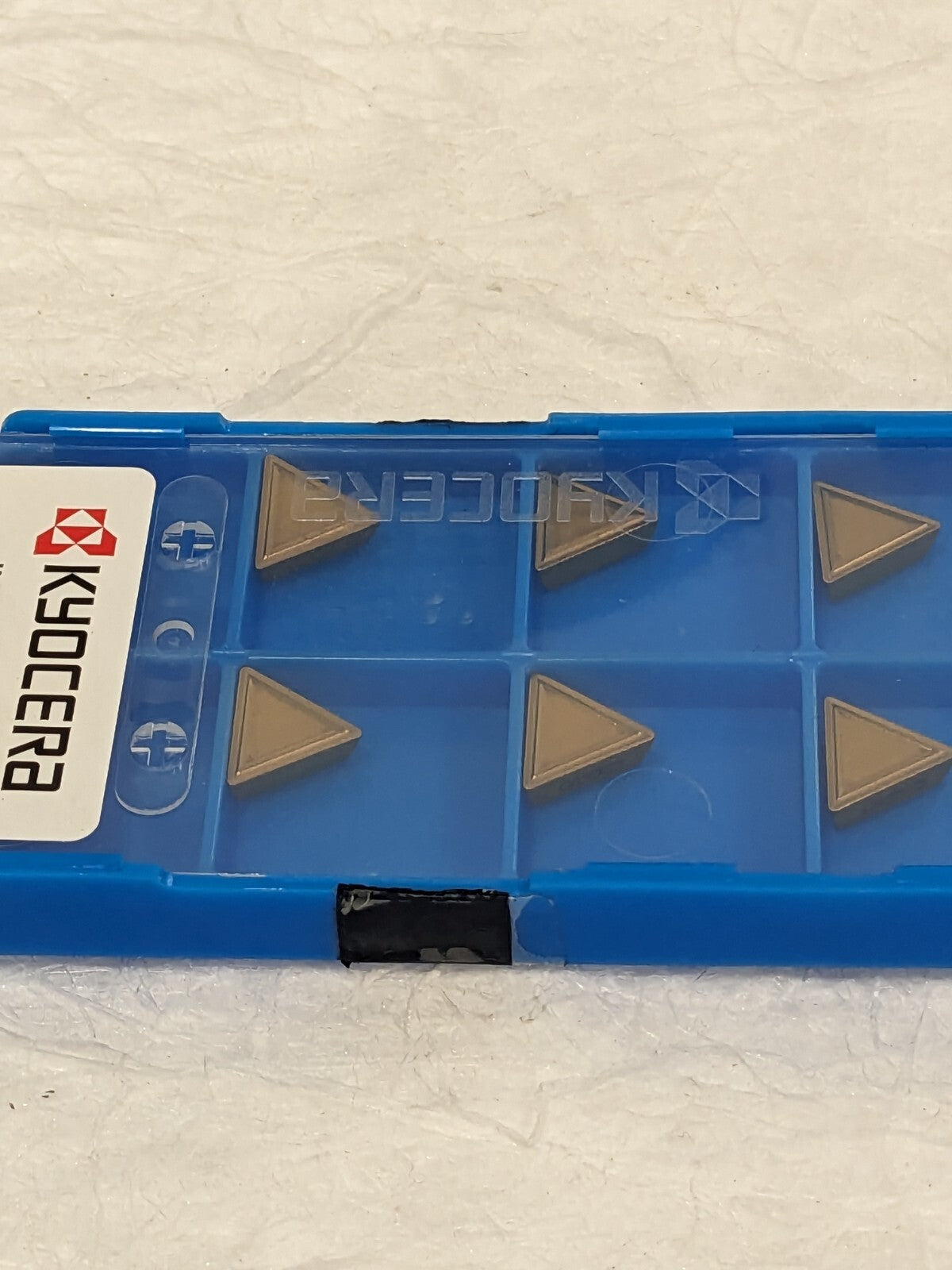

Kyocera Carbide Turning Inserts TPMR110304 CA5525 TPMR221 Qty 10 TJR06700

Kyocera
1 Lot of 10 Inserts

MSRP: $75.00

• Insert Style TPMR
• Insert Size Code 221
• Insert Shape Triangle
• Included Angle 60
• Inscribed Circle (Decimal Inch) 0.2500
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Carbide
• Manufacturer Grade CA5525
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 11
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1250
• Insert Hand Neutral
• Number Of Cutting Edges 3
• Insert Shape Code T
• Corner Radius (Inch) 1/64
• Maximum Depth of Cut (Decimal Inch) 0.1445
• Inscribed Circle (Inch) 1/4
• Insert Holding Method Clamp
• Insert Thickness (Inch) 1/8
• Clearance Code P
• Tolerance Code M
• Series ISOI
• Coating Process CVD
• Length Range (Decimal Inch) 0.4000 - 0.5000
• Rake Positive
• Insert Length (Decimal Inch) 0.4334
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Iso Code TPMR110304
• Standards ISO; ANSI
• Manufacturers Catalog Number TJR06700
• Material Grade P30; P10; P20
• UNSPSC Code 23242105
• Coating Classification CVD
• Industry Standard Number TPMR221CA5525
• Width (Decimal Inch - 4 Decimals) 0.4334
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Back Boring; Copying; Internal Facing; Boring

These items are new and in the original sealed package. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
