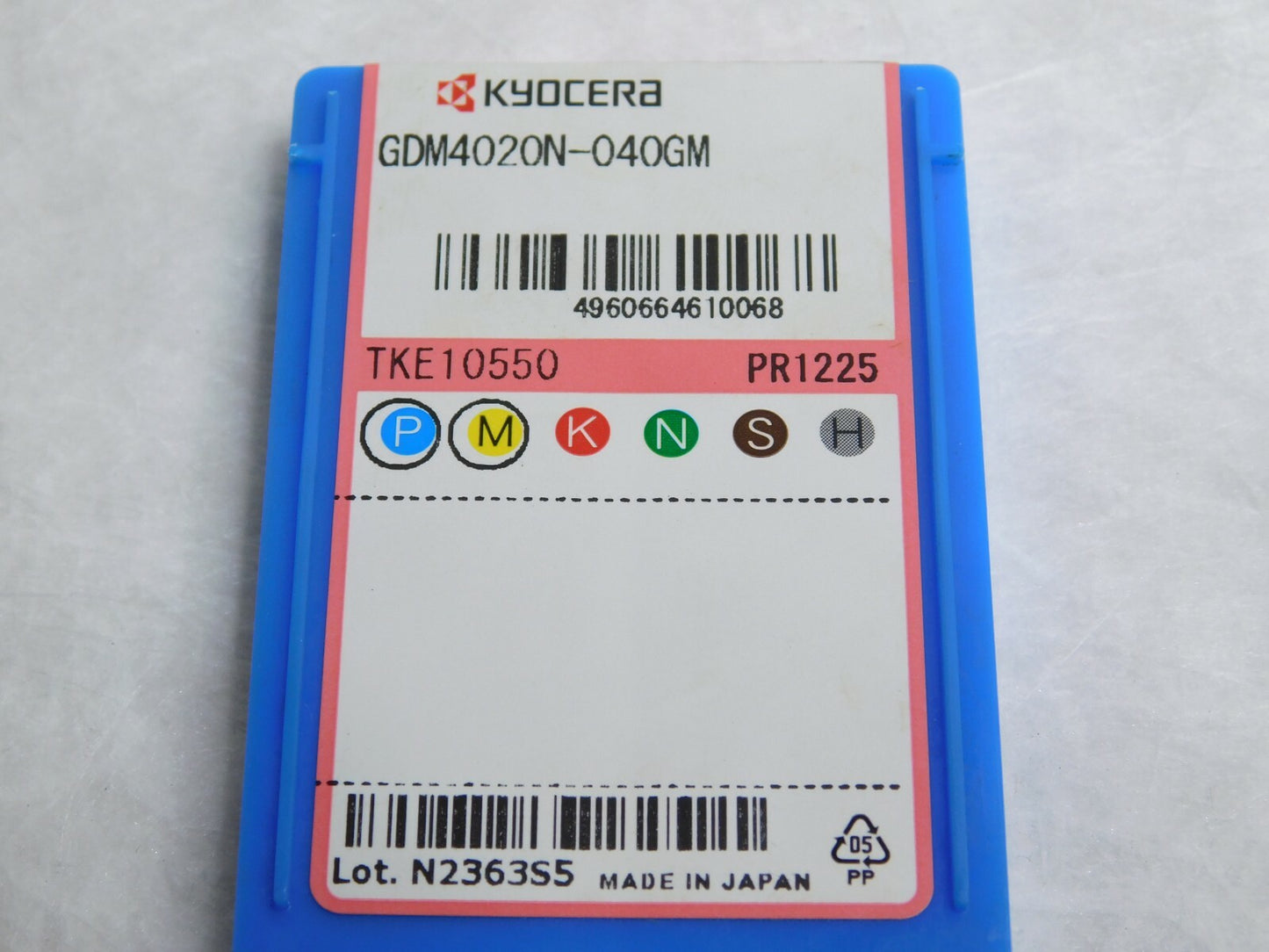

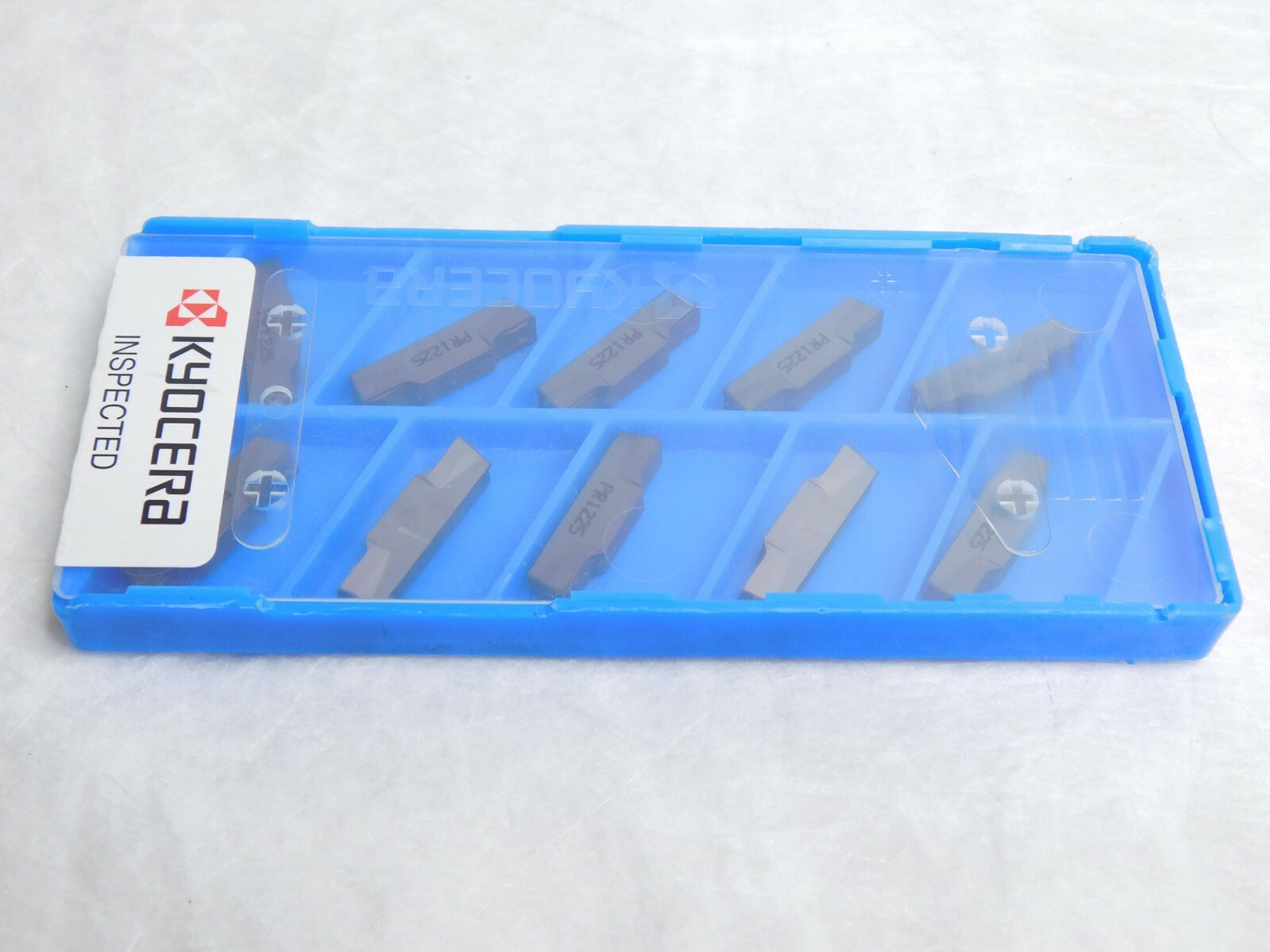

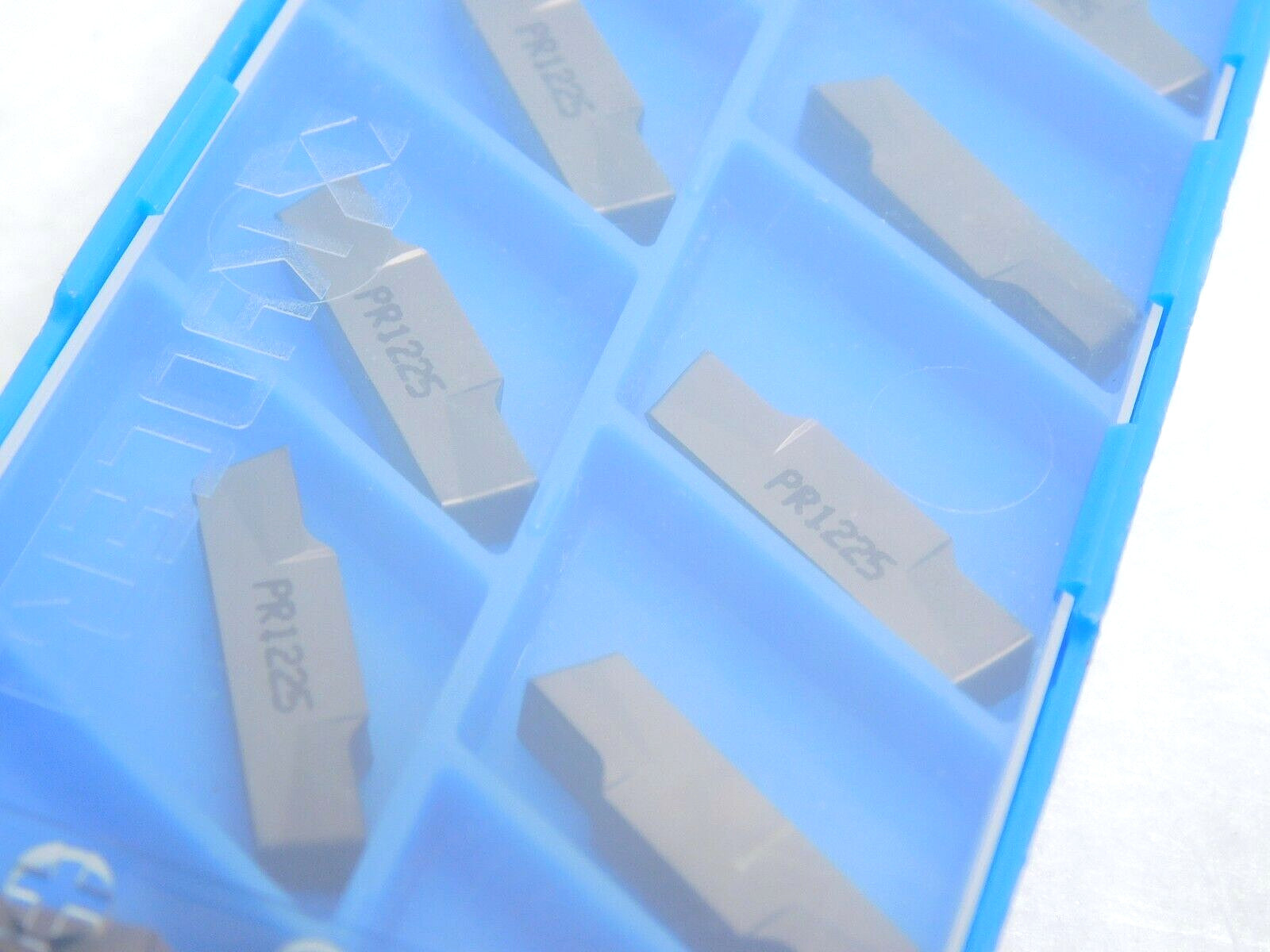

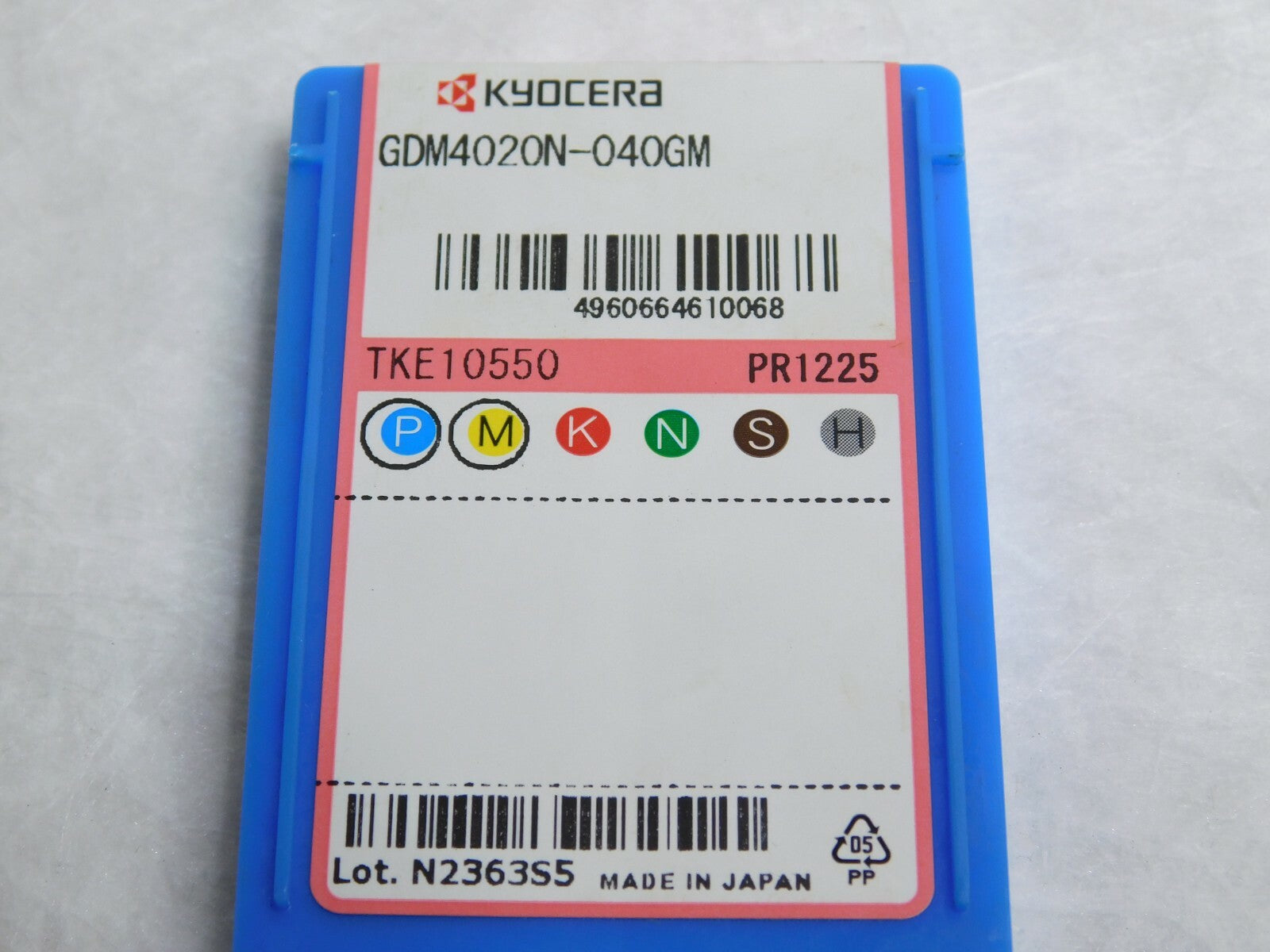

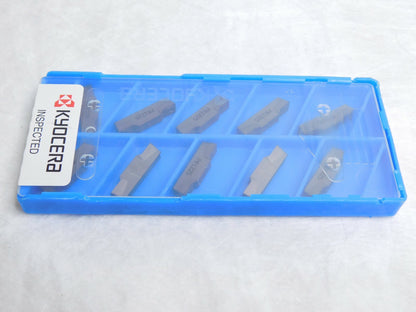

KYOCERA Carbide Grooving Inserts GDM4020N-040GM PR1225 Qty 10 8834580

KYOCERA
Pack of 10 Carbide Grooving Inserts

MSRP: $300

• Insert Style GDM
• Insert Size 4020
• Insert Size Code 4020
• Material Carbide
• Insert Material Carbide
• Cutting Width (mm) 4.00
• Cutting Width (Decimal Inch) 0.1575
• Coated Coated
• Material Grade Micrograin
• Manufacturer's Grade PR1225; PR1225
• Manufacturer Grade PR1225
• Coating Megacoat
• Maximum Depth Of Cut 1.0039 in; 25.5 mm
• Cutting Direction Neutral
• Insert Hand Neutral
• Cutting Height (mm) 4.30
• Cutting Height (Decimal Inch) 0.1693
• Corner Radius 0.015748 in; 0.40 mm
• Chipbreaker GM
• Multi-use Tool Yes
• Cutting Tool Application Grooving
• Coating Process PVD
• Primary Workpiece Material Code P
• Secondary Workpiece Material Code M
• Ansi Code GDM4020N040GMPR1225
• Iso Code GDM4020N040GMPR1225
• Standards ANSI; ISO
• Relief Angle 2?
• Multi-Use Application Cut-Off
• Multi-Use Tool Yes
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.015748
• Coating Process PVD; PVD
• Overall Length (mm) 20.00
• Overall Length (Decimal Inch) 0.7874
• Series GD
• Rake Angle 2?
• Rake Positive
• ISO Number GDM4020N040GMPR1225
• Manufacturers Catalog Number GDM4020N-040GM
• Insert Thickness (Decimal Inch) 0.1299
• Insert Thickness (mm) 3.3000
• Series Number GD

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
