KYOCERA 60° Lead Angle Indexable & Chamfer End Mill THC05847

KYOCERA

60° Lead Angle Indexable & Chamfer End Mill THC05847
MSRP: $135

•

• Cutting Diameter (Decimal Inch) 0.767717
• Cutting Diameter (mm) 19.50
• Minimum Cutting Diameter (mm) 8.00
• Minimum Cutting Diameter (Decimal Inch) 0.314961
• Maximum Cutting Diameter (Decimal Inch) 0.748031
• Maximum Cutting Diameter (mm) 19.00
• Shank Type Flatted
• Shank Diameter (Inch) 0.787402
• Shank Diameter (mm) 20.00
• Compatible Insert Size Code SEKW422FN; SEKW421TN; SEKW421FN; SEMT421C; SEKW422TN
• Number Of Cutter Inserts 1
• Overall Length (mm) 110.00
• Overall Length (Decimal Inch) 4.3307
• Cutting Direction Right Hand
• Insert Style SEKW 421; SEKW 422; SEMT 421
• Series MCSE
• Through Coolant None
• Maximum Depth of Cut (mm) 10.00
• Maximum Depth of Cut (Decimal Inch) 0.3937
• Toolholder Style MCSE
• Functional Length 4.33 in
• Maximum Body Diameter 20 mm; 0.787 in
• Tool Application Slotting
• Number of Cutter Inserts 1
• Insert Holding Method Screw
• Number of Flutes 1
• Head Length (Decimal Inch) 1.5748
• Head Length (mm) 40.00
• Weldon Flat No
• Axial Rake Angle 0
• Radial Rake Angle -3.50
• Shank Length (Decimal Inch) 2.7559
• Shank Length (mm) 70.00
• Complete Insert Compatibility SEMT 421C; SEKW 422TN; SEKW 421TN; SEKW 422FN; SEKW 421FN

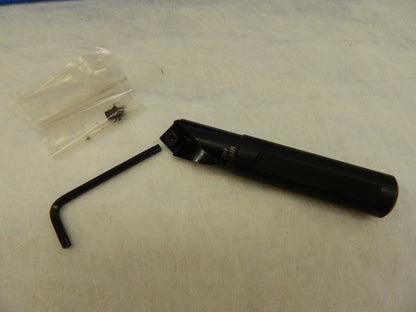

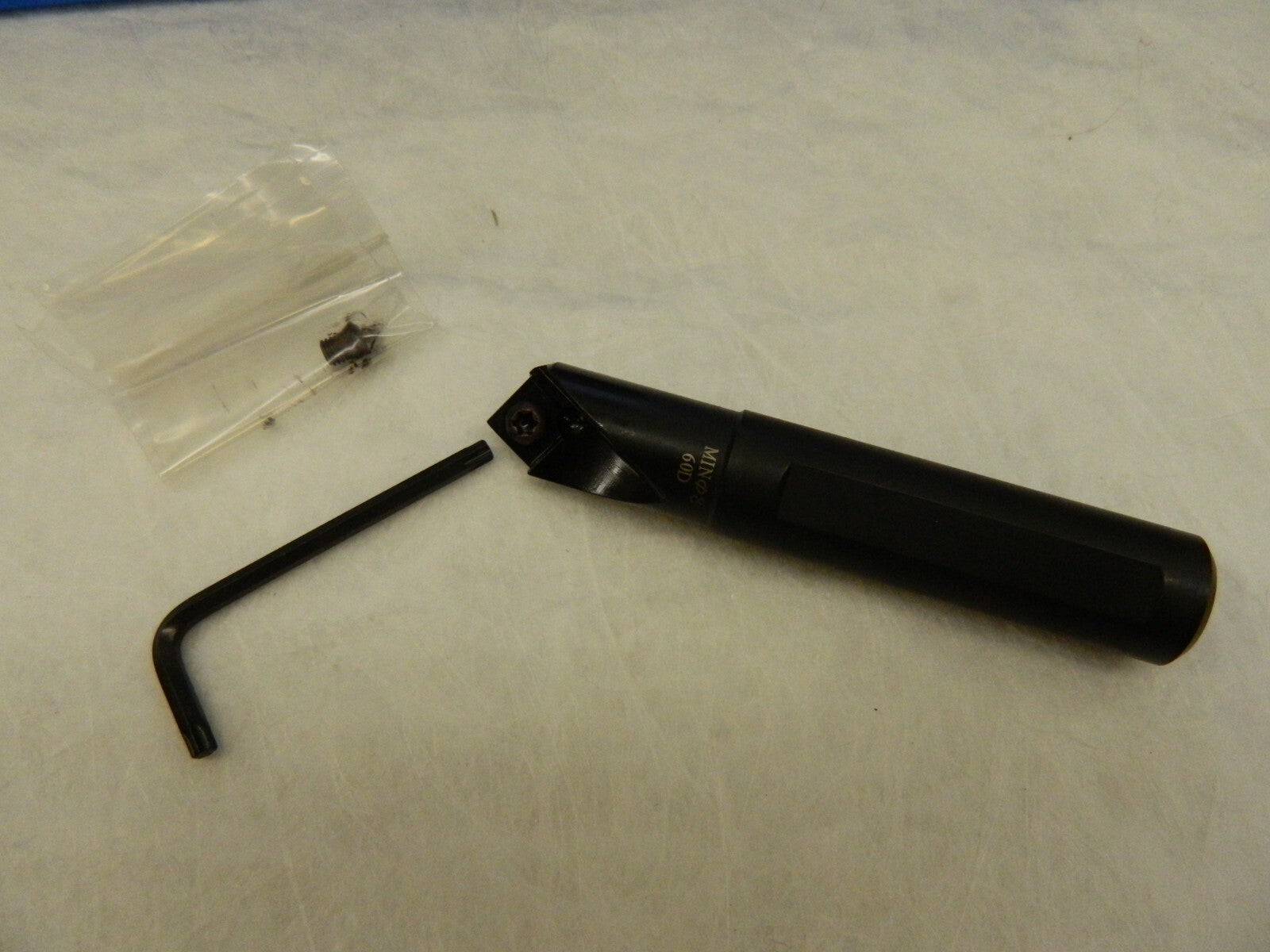

 Please review photos, comes as shown.
