• Thread Length (mm): 16.00 Thread Length (Decimal Inch): 0.6299
• Plunger Projection: 0.2362 in; 6 mm Plunger Diameter (Decimal Inch): 0.2362 in; 6.0000 mm
• Plunger Diameter (mm): 6.00 Thread Size: 1/2-13 in
• Body Length (mm): 28.00 Body Length (Decimal Inch): 1.1024
• Body Length: 28 mm; 1.1024 in Plunger Type: Hardened Locking Pin
• Indexing Plunger Style Code: A Initial End Force: 6 N
• Lock Nut: No Final End Force: 14 N
• Plunger Projection (Decimal Inch): 0.2362 Plunger Projection (mm): 6.00
• Knob Diameter: 25.0000 mm; 0.9843 in Distance Across Nut Flats: 14 mm; 0.5512 in
• Nut Height: 8 mm; 0.315 in Overall Length: 2.0400 in; 51.7000 mm
• Material: Steel Initial End Force (N): 6.00
• Final End Force (N): 14.00 Knob Diameter (mm): 25.00
• Distance Across Nut Flats (mm): 14.00 Distance Across Nut Flats (Decimal Inch): 0.5512
• Nut Height (mm): 8.00 Nut Height (Decimal Inch): 0.3150
• Overall Length (mm): 51.70 Overall Length (Decimal Inch): 2.0354
• UNSPSC Code: 41111926

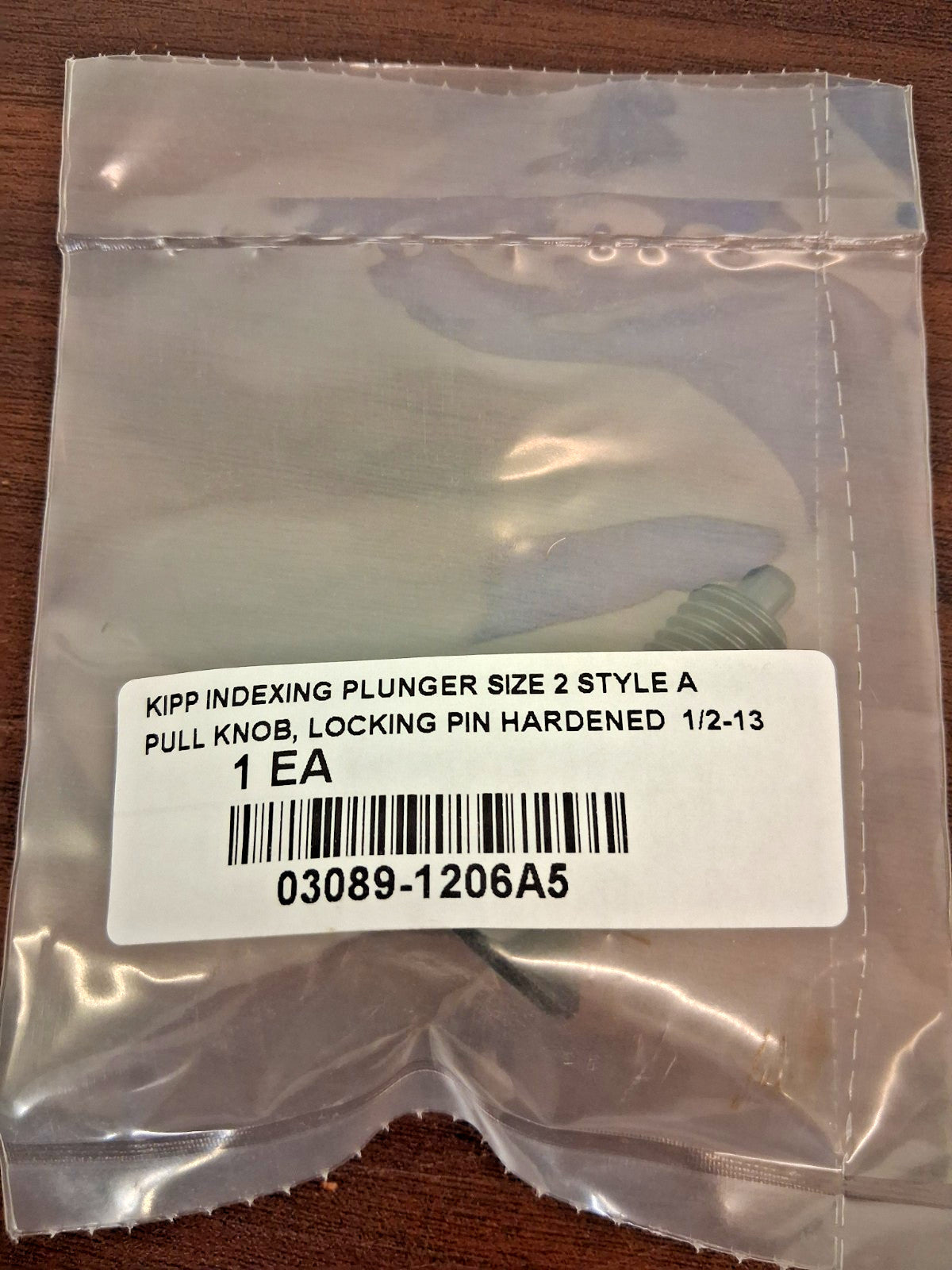

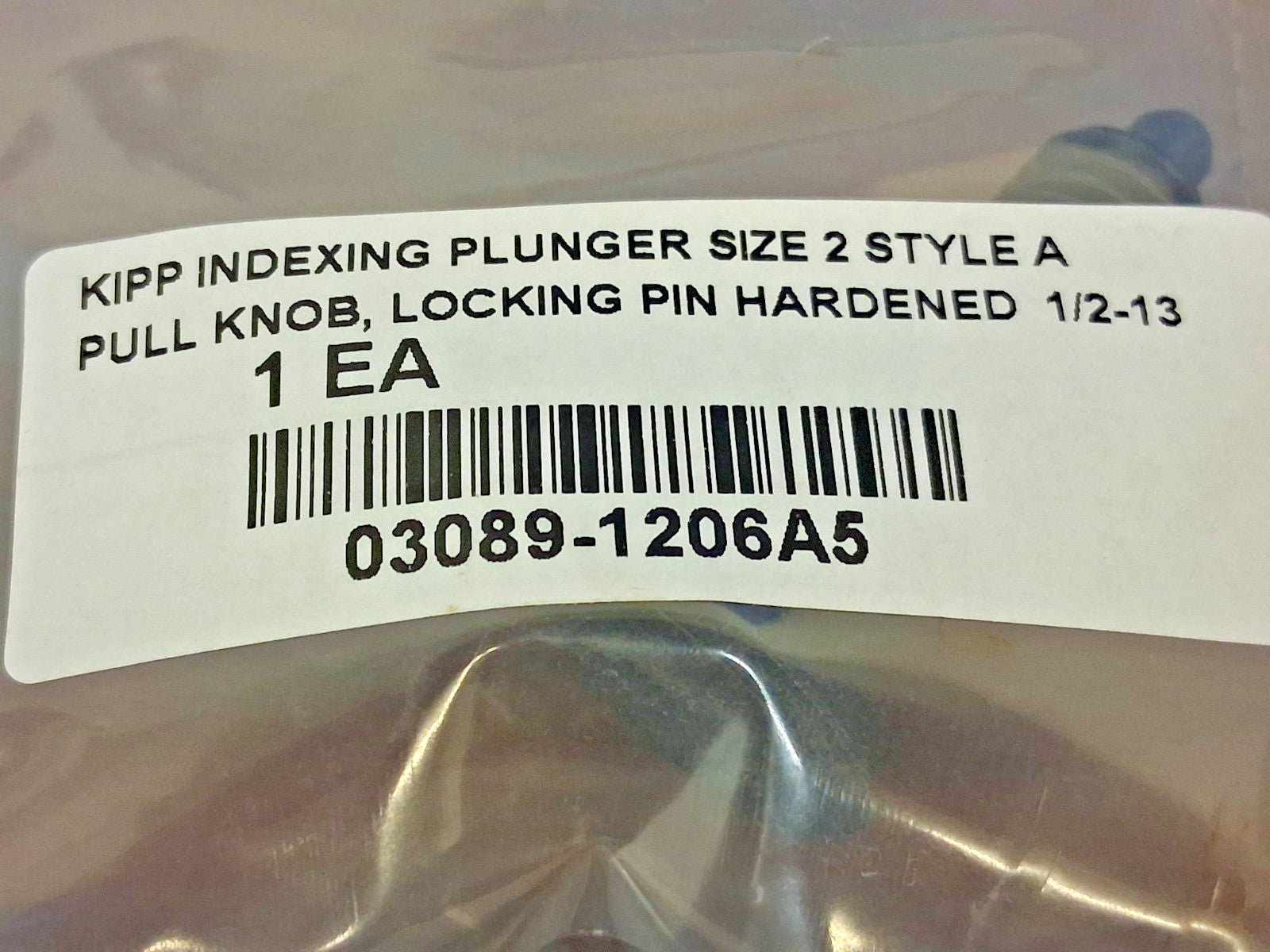

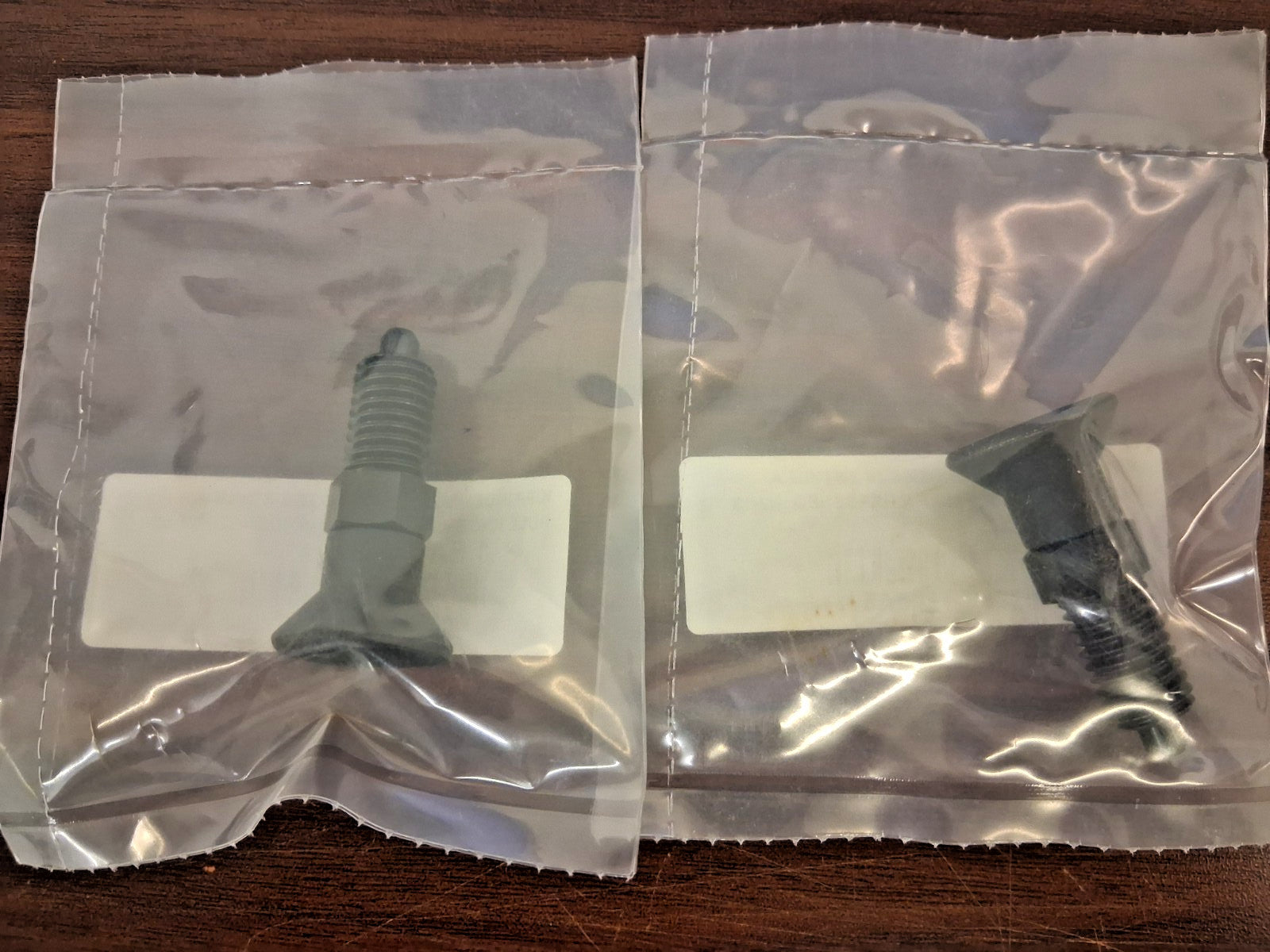

New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included
