Kennametal WNMG433 UN Grade KCK15B Carbide Turning Insert QTY 5 5694883
Kennametal WNMG433 UN Grade KCK15B Carbide Turning Insert QTY 5 5694883
Regular price
$30.00 USD
Regular price
$60.00 USD
Sale price
$30.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal WNMG433 UN Grade KCK15B Carbide Turning Insert QTY 5 5694883
Item Description
MSRP: $60.00
Model: 5694883
Description:
Insert Style WNMG
Insert Size 433
Material Carbide
Length (mm) 8.69
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Manufacturer's Grade KCK15B
Coating TiOCN
Chip Breaker UN
Insert Length (Decimal Inch) 0.3420
Hole Diameter (mm) 5.16
Hole Diameter (Decimal Inch) 0.2031
ISO Number WNMG080412UN
Relief Angle 0
Coating Process CVD
Primary Workpiece Material K
Included Angle 80
Insert Hand Neutral
Series KENLOC
Insert Holding Method Pin & Clamp
Shape Trigon

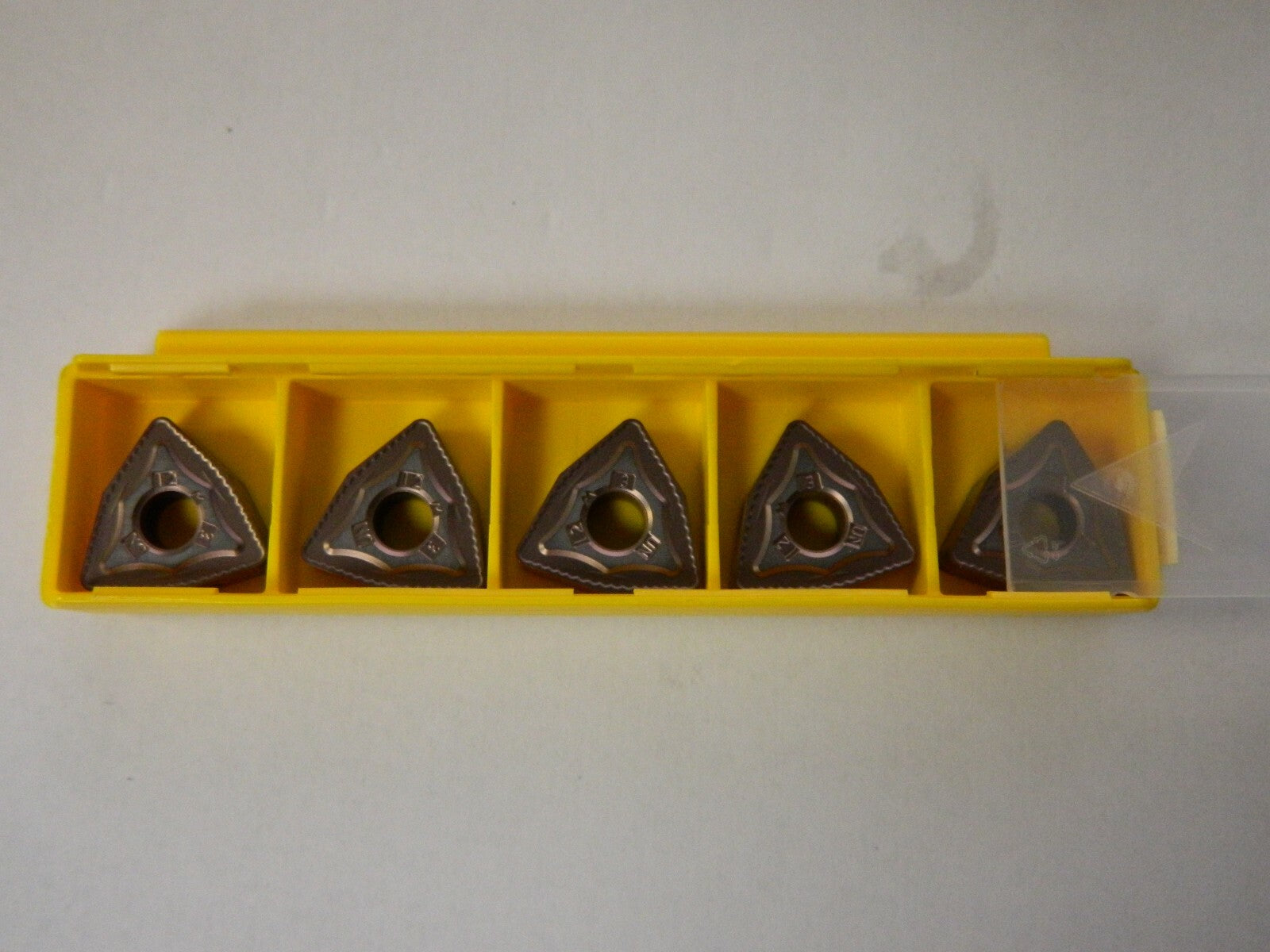

This listing is for One Pack of 5 that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
