Kennametal WNMG433 RP Grade KCK05 Carbide Turning Insert QTY 5 3752125
Kennametal WNMG433 RP Grade KCK05 Carbide Turning Insert QTY 5 3752125
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $60.00
Model: 3752125
Description:
Insert Style WNMG
Insert Size 433
Material Carbide
Length (mm) 8.69
Length (Decimal Inch) 0.3421
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Manufacturer's Grade KCK05
Coating TiCN/Al2O3
Material Grade C3/C4
Chip Breaker RP
Hole Diameter (mm) 5.16
Hole Diameter (Decimal Inch) 0.2031
Rake Positive
Rake Angle 5
Relief Angle 0
Coating Process CVD
Primary Workpiece Material K
Secondary Workpiece Material N
Included Angle 80
Series KENLOC
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Pin & Clamp
Shape Trigon

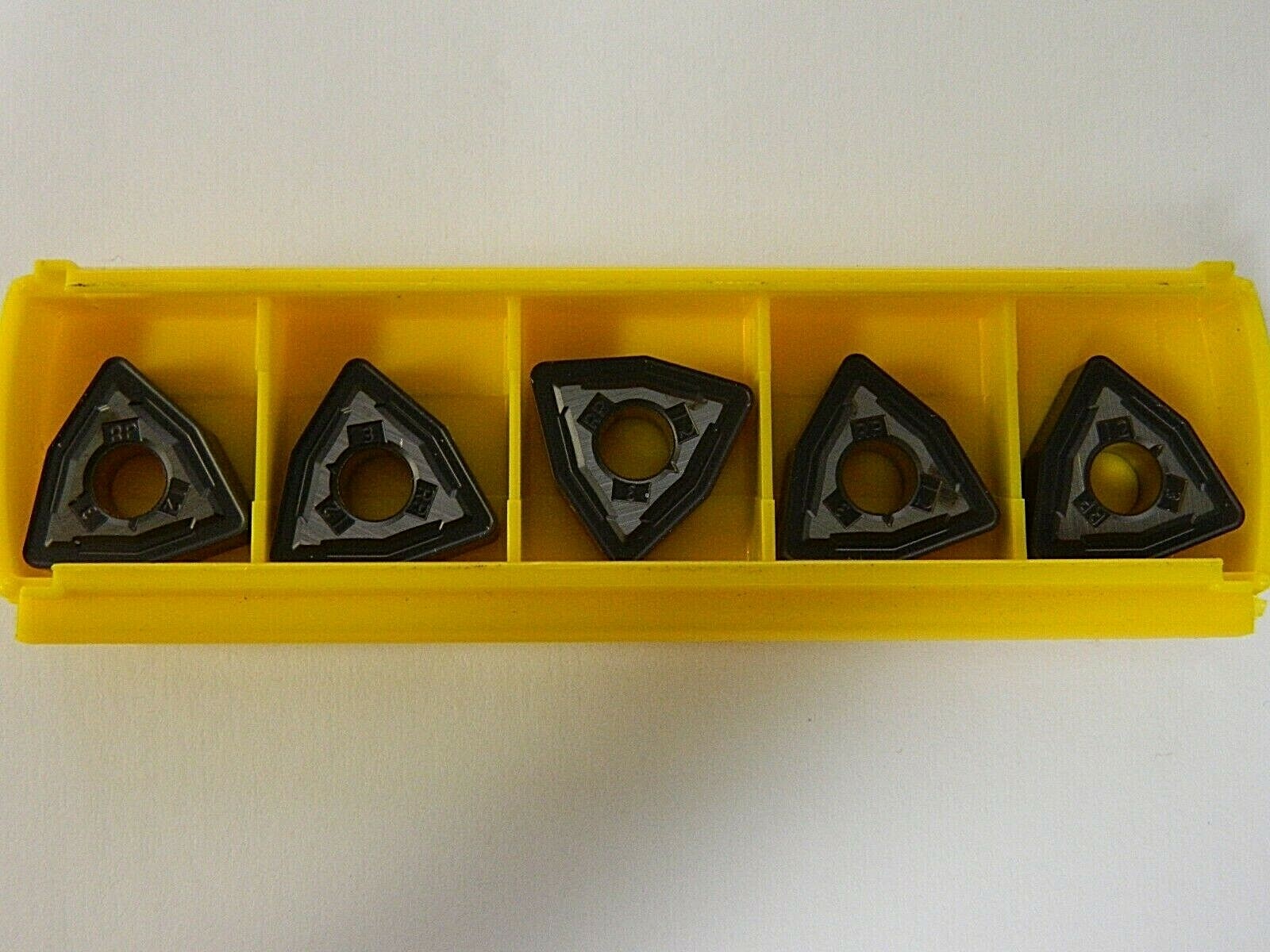

This listing is for One Pack of 5 that is in the picture as well as described. Please ask any questions prior to buying!
