Kennametal WNMG433 MR Grade KCPK05 Carbide Turning Insert QTY 5 5628850
Kennametal WNMG433 MR Grade KCPK05 Carbide Turning Insert QTY 5 5628850
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $60.00
Model: 5628850
Description:
Insert Style WNMG
Insert Size 433
Material Carbide
Length (mm) 8.69
Length (Decimal Inch) 0.3420
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Manufacturer's Grade KCPK05
Coating Al2O3
Chip Breaker MR
Insert Length (Decimal Inch) 0.3420
Hole Diameter (mm) 5.16
Hole Diameter (Decimal Inch) 0.2031
ISO Number WNMG080412MR
Relief Angle 0
Coating Process CVD
Primary Workpiece Material P
Included Angle 80
Insert Hand Neutral
Insert Holding Method Pin & Clamp
Multi Use Application Turning
Shape Trigon

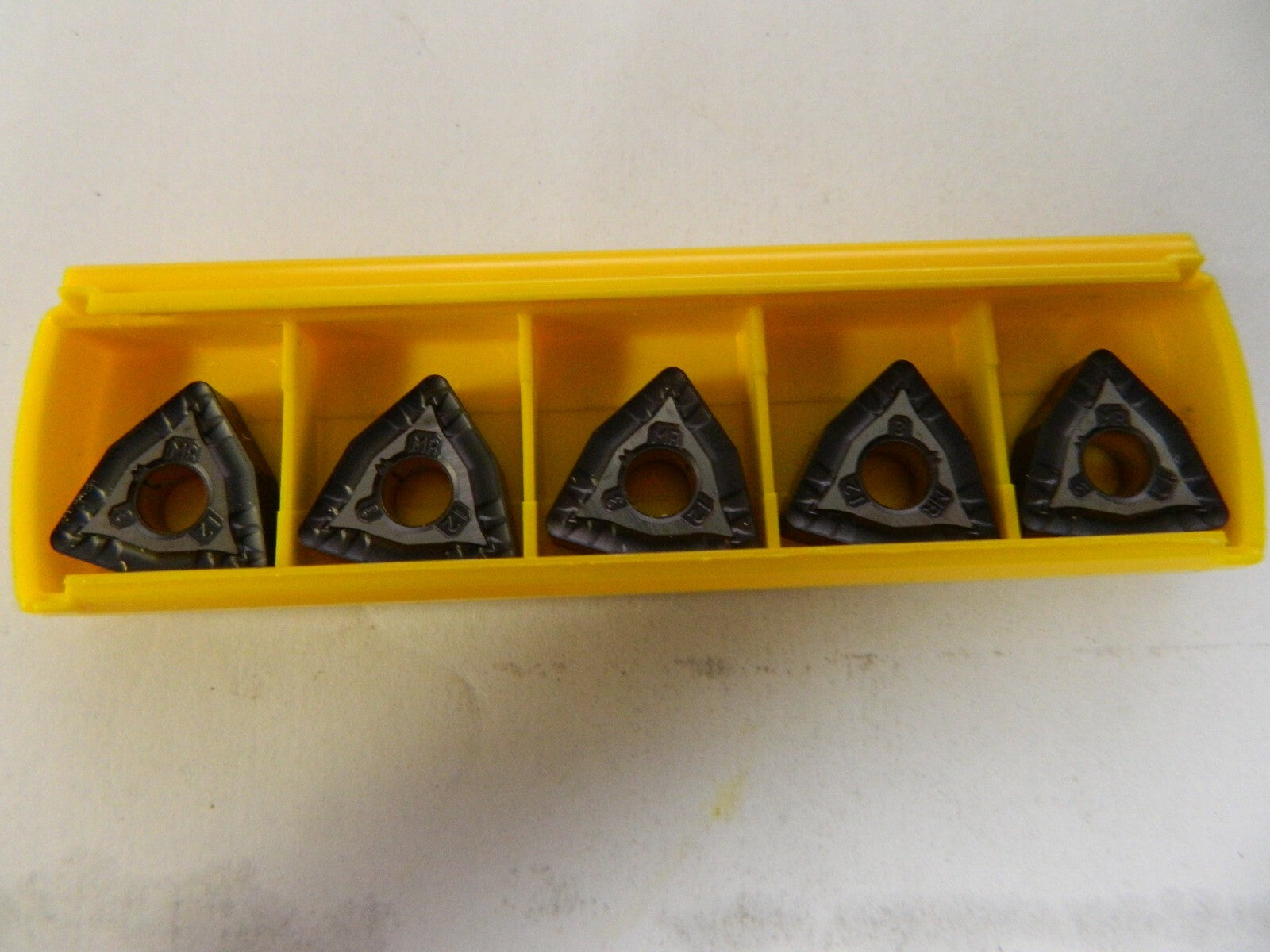

This listing is for One Pack of 5 that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
