Kennametal WNMG433 MR Grade KCP10B Carbide Turning Insert QTY 4 5402964
Kennametal WNMG433 MR Grade KCP10B Carbide Turning Insert QTY 4 5402964
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Kennametal
MSRP: $60.00
Model: 5402964
Description:
Insert Style WNMG
Insert Size 433
Material Carbide
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Manufacturer's Grade KCP10B
Coating TiCN/Al2O3/TiOCN
Chip Breaker MR
Insert Length (Decimal Inch) 0.3420
ISO Number WNMG080412MR
Rake Positive
Relief Angle 0
Coating Process CVD
Primary Workpiece Material P
Secondary Workpiece Material None
Included Angle 80
Series Kenloc
Maximum Depth of Cut (mm) 6.35
Maximum Depth of Cut (Decimal Inch) 0.2500
Insert Holding Method Pin & Clamp
Shape Trigon

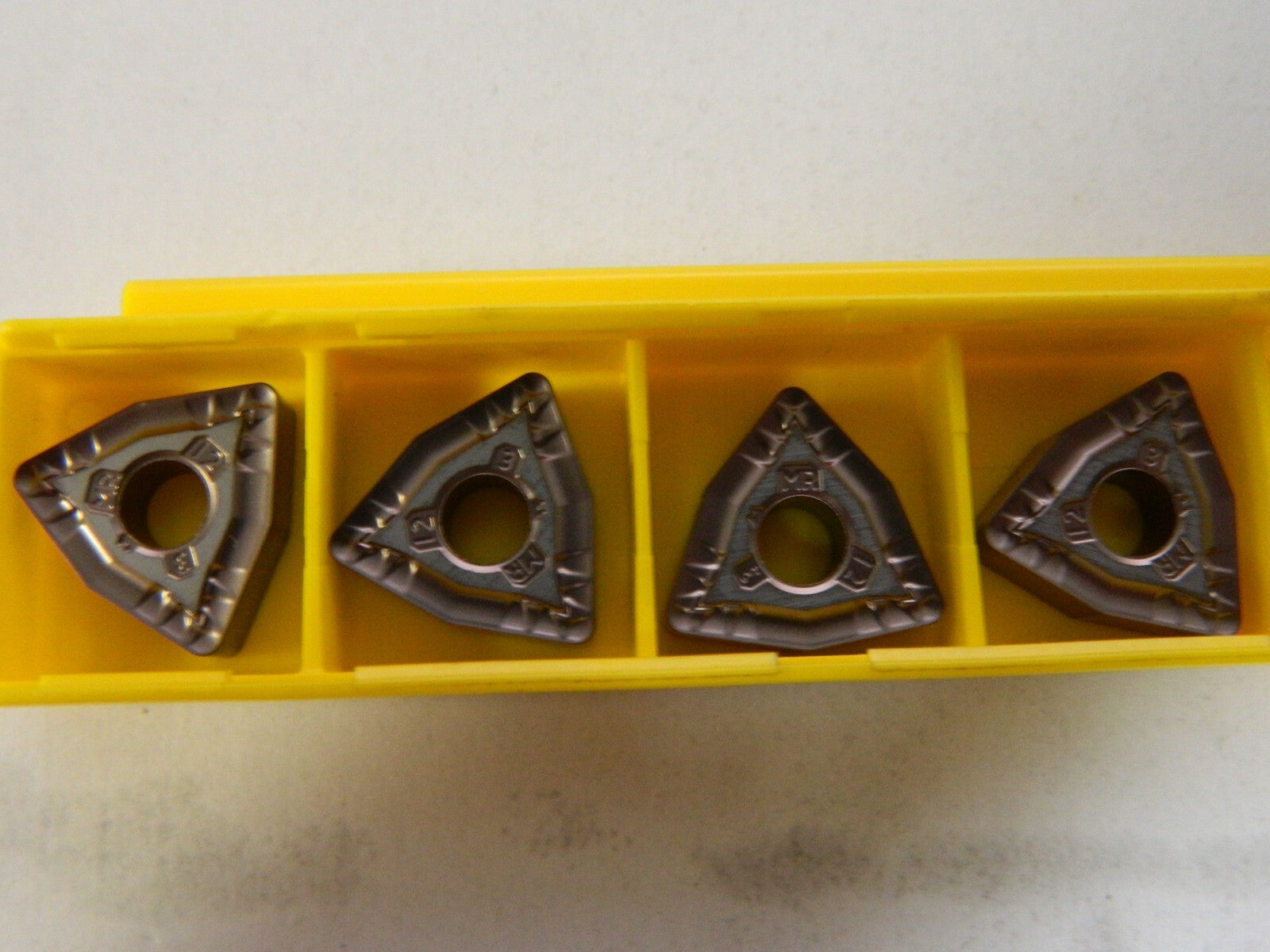

This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
