Kennametal VanadiumHSS Spiral Flute Tap UNF Thread Limit H3 QTY 3 5705428
Kennametal VanadiumHSS Spiral Flute Tap UNF Thread Limit H3 QTY 3 5705428
Regular price
$42.45 USD
Regular price
$90.00 USD
Sale price
$42.45 USD
Shipping calculated at checkout.
Kennametal
MSRP: $90.00
Model: 5705428
Description:
Thread Size (Inch) 7/16-20
Chamfer Plug
Thread Limit H3
Number of Flutes 3
Material Vanadium High Speed Steel
Finish/Coating AlCrTiN
Thread Direction Right Hand
Flute Direction Left Hand
Through Coolant NonThrough Coolant
Overall Length (Decimal Inch) 3.1600
Overall Length (Inch) 3-5/32
Overall Length (mm) 80.30
Helix Angle 10
Thread Standard UNF
Thread Length (Decimal Inch) 0.7100
Thread Length (mm) 18.00
Flute Type Slow Spiral
Series/List T690
Neck Length (Decimal Inch) 0.7800
Tapping Depth (Decimal Inch) 1.4900
Tapping Depth (mm) 38
Shank Diameter (Decimal Inch) 0.3230
Shank Diameter (mm) 8.20
Material Application Nickel Alloys

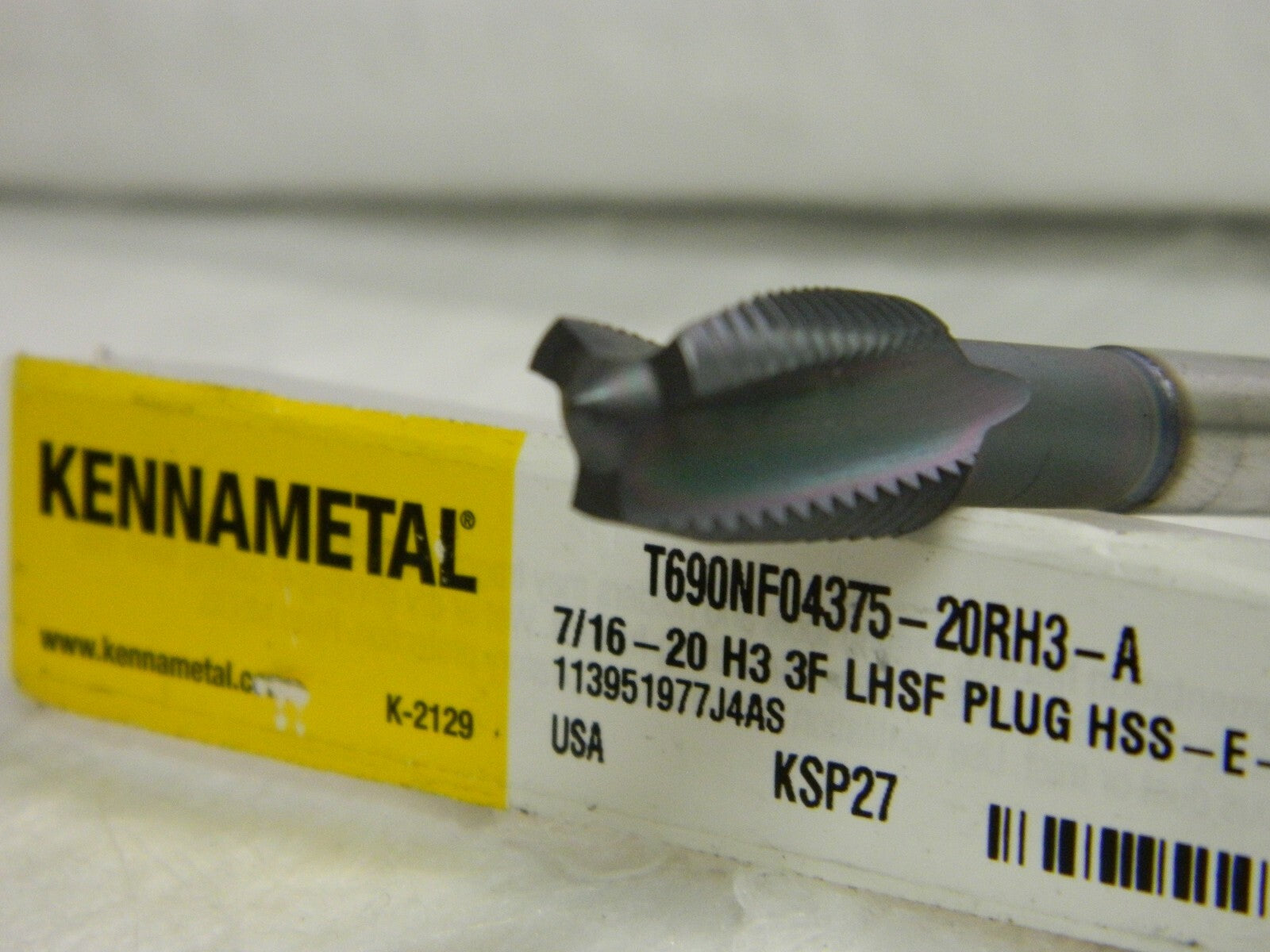

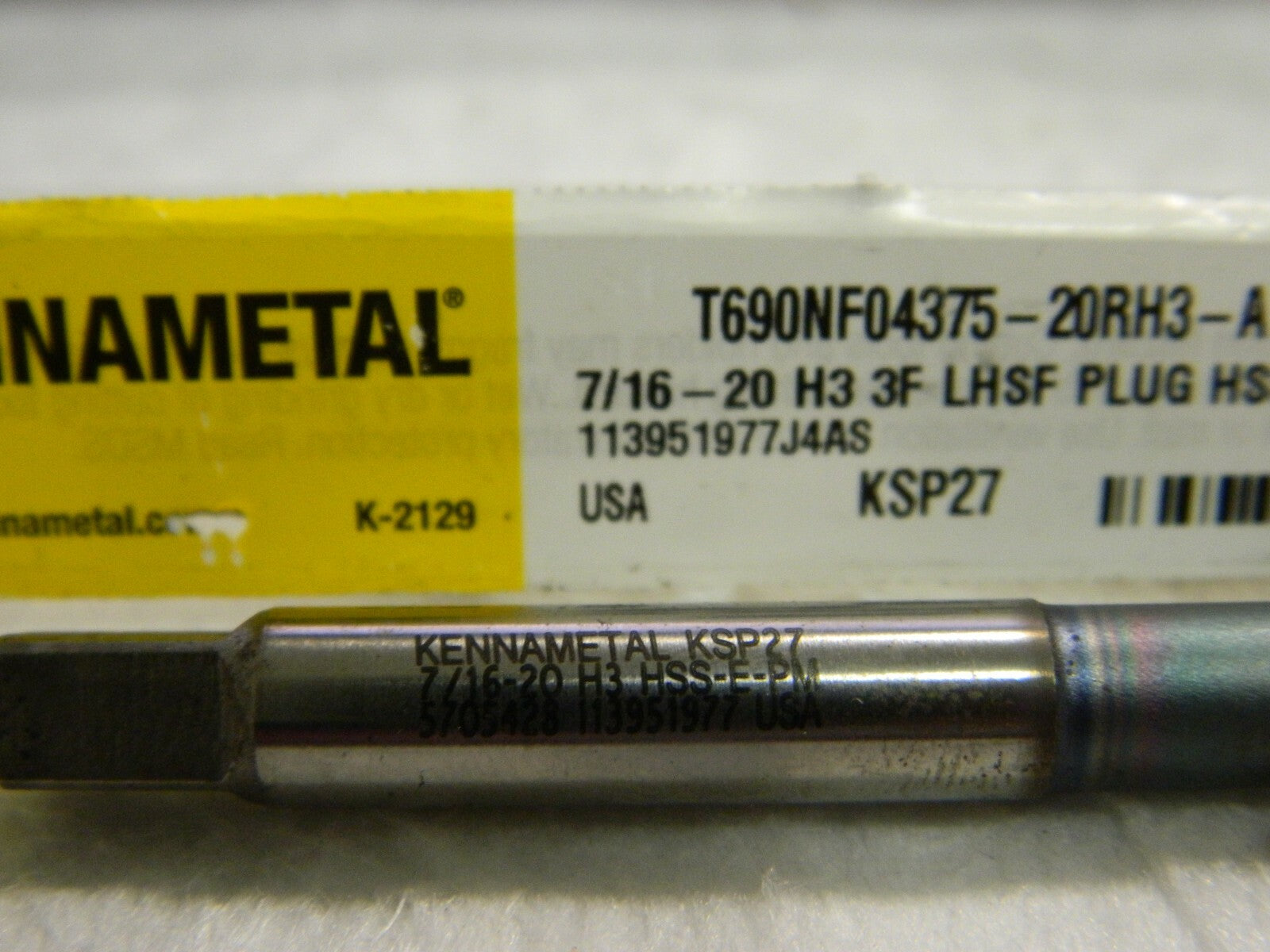

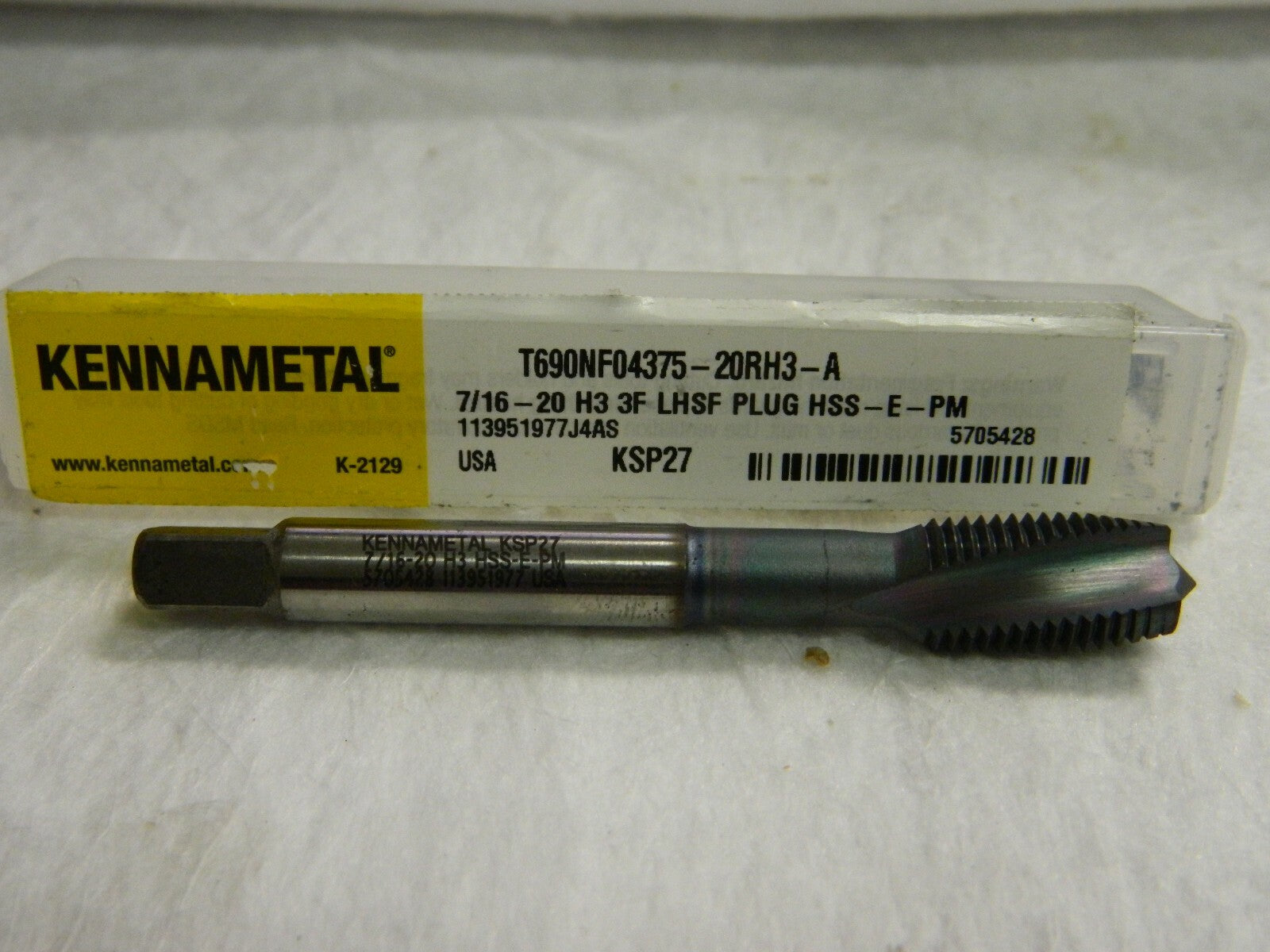

This listing is for One Lot of 3 Taps that is in the picture as well as described. Please ask any questions prior to buying!
