KENNAMETAL Turning Inserts 5pcs : SPG322 K68, Carbide 1182922

KENNAMETAL Turning Inserts 5pcs : SPG322 K68, Carbide 1182922

MSRP: $100

• Relief Angle 11
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 90
• Manufacturer Grade K68
• Coating/Finish Bright/Uncoated
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 1/8
• Insert Thickness (Decimal Inch) 0.1250
• Series KENDEX
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Insert Material Carbide
• Insert Shape Square
• Number Of Cutting Edges 4
• Insert Shape Code S
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Insert Holding Method Clamp
• Width (Inch) 3/8
• Clearance Code P
• Tolerance Code G
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Decimal Inch) 0.3750
• Insert Length (Inch) 3/8
• Primary Workpiece Material Non-Ferrous Metal; Superalloys & Titanium
• Primary Workpiece Material Code S; N
• Standards ISO; ANSI
• Manufacturers Catalog Number 1182922
• Material Grade C3
• Proprietary Coating Designation Uncoated
• Coating Classification Uncoated
• Chip Breaker Flat Top
• Rake Angle 0
• Cutting Edge Style Honed
• Industry Standard Number SPG322
• Width (Decimal Inch - 4 Decimals) 0.375
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• UNSPSC Code 23242105
• Insert Style SPG
• Insert Size Code 322

(Description).

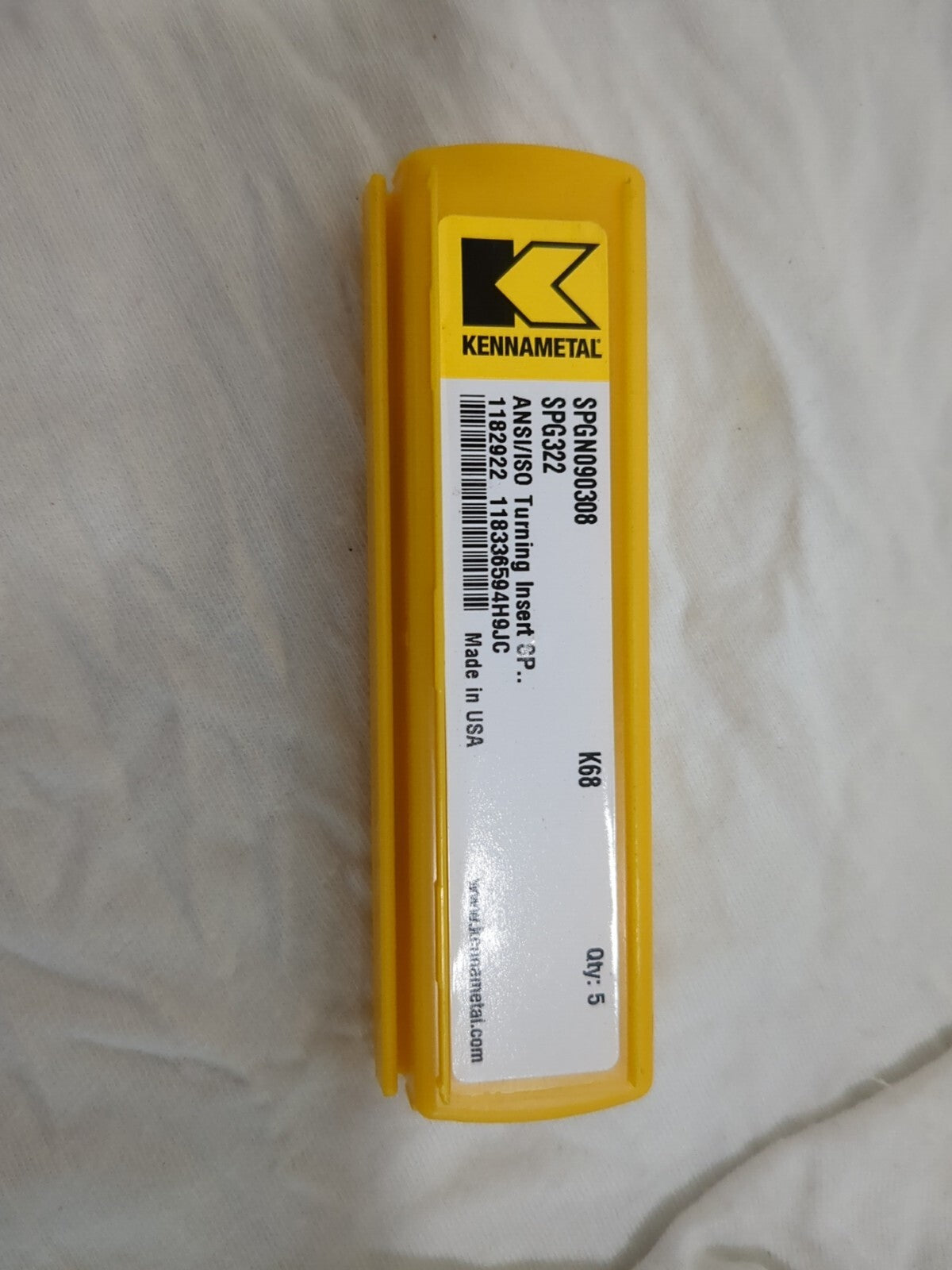

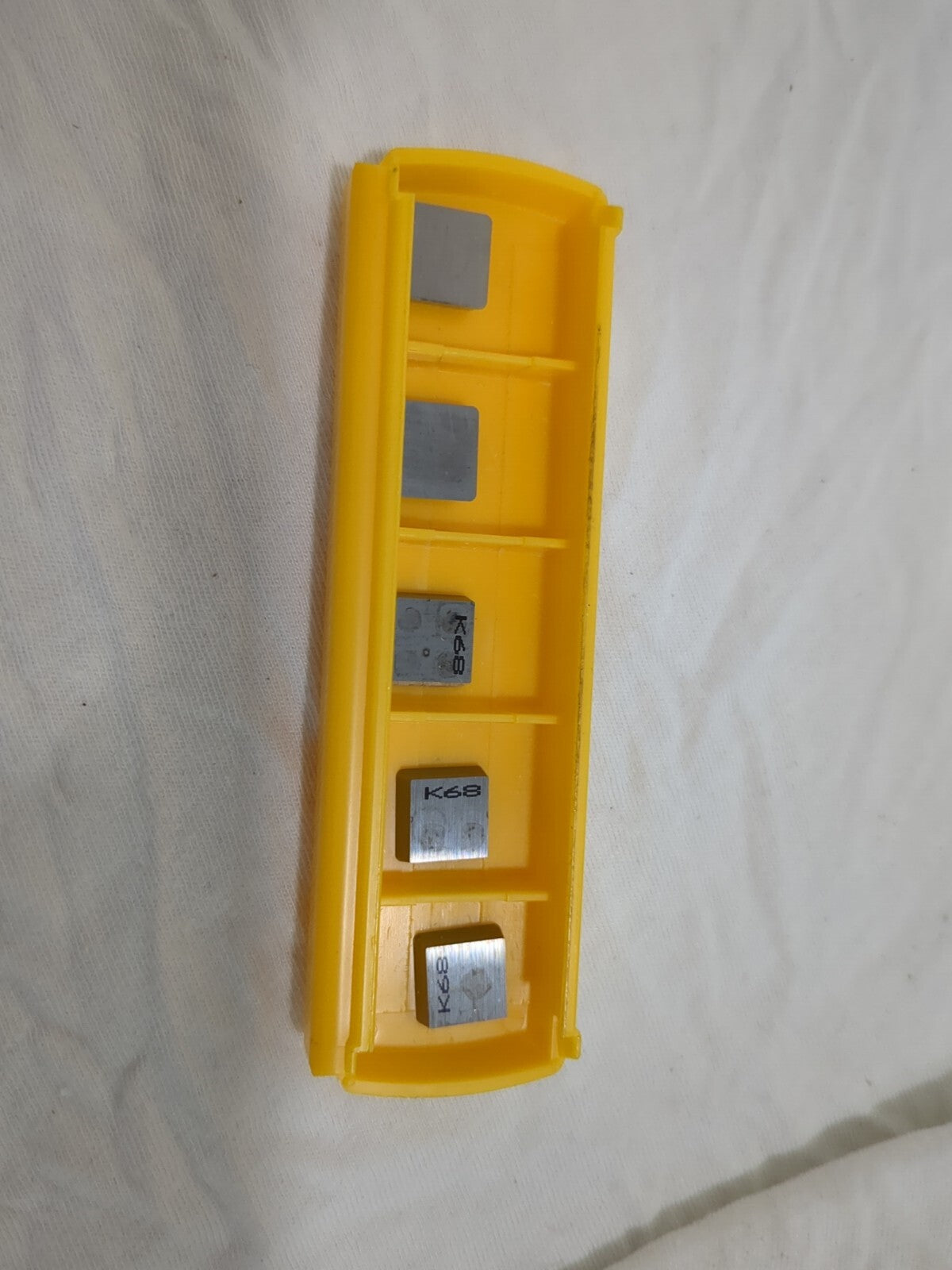

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
