KENNAMETAL Turning Insert: WNMG432RN KCP10, Carbide 3753379

KENNAMETAL Turning Insert: WNMG432RN KCP10, Carbide 3753379

MSRP: $115

• Relief Angle 0
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 80
• Manufacturer Grade KCP10
• Coating/Finish TiCN; Al2O3
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series KENLOC
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Material Carbide
• Insert Shape Trigon
• Number Of Cutting Edges 6
• Insert Shape Code W
• Hole Diameter (Decimal Inch) 0.2031
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Rake Negative
• Insert Length (Decimal Inch) 0.6840
• Insert Length (mm) 8.69
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Standards ISO; ANSI
• Manufacturers Catalog Number 3753379
• Material Grade C3; C7
• Proprietary Coating Designation Multilayer Coating
• Coating Classification CVD
• Chip Breaker RN
• Rake Angle 0
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number WNMG432RN
• Width (Decimal Inch - 4 Decimals) 0.684
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• UNSPSC Code 23242105
• Insert Style WNMG
• Insert Size Code 432

(Description).

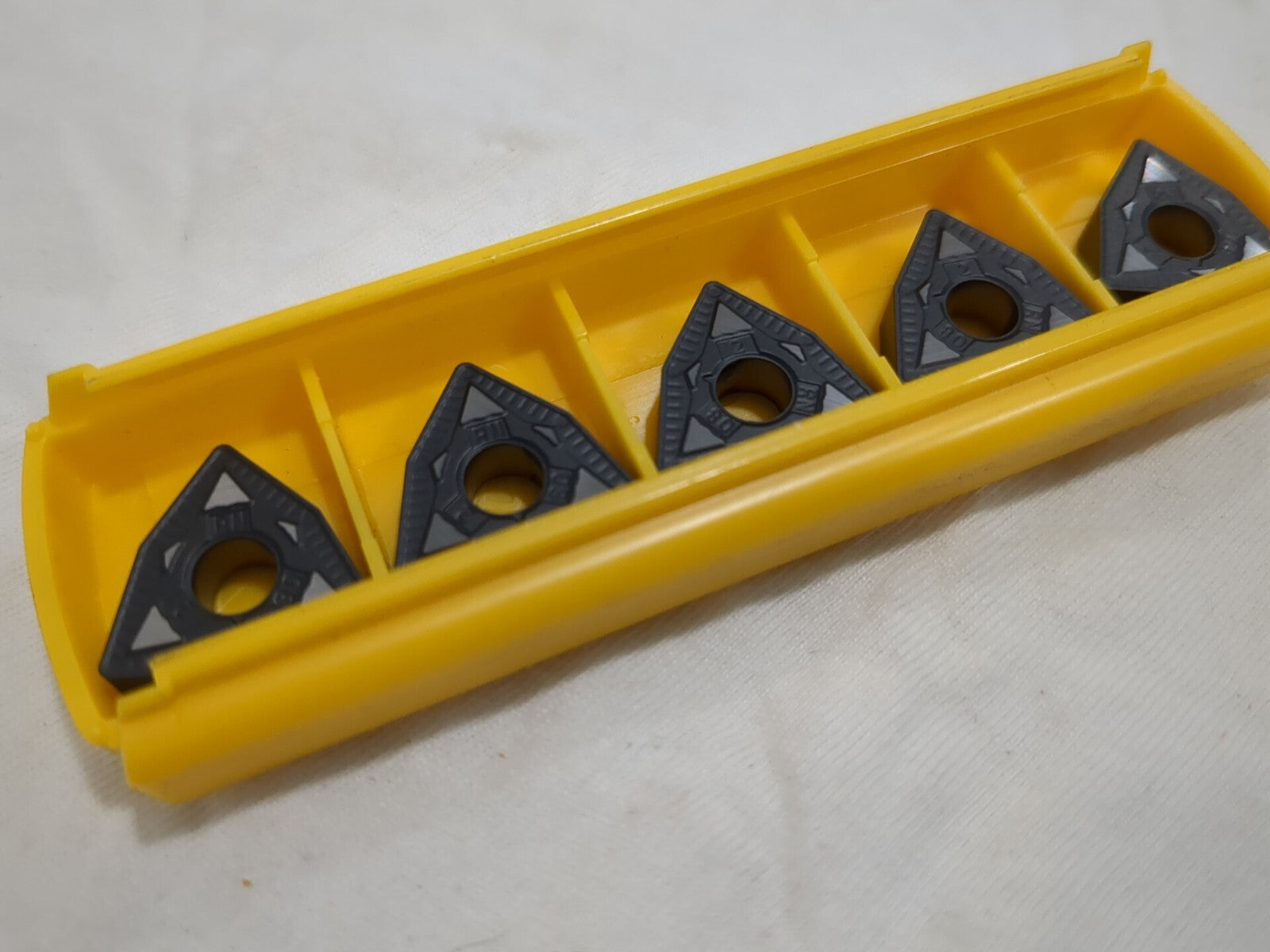

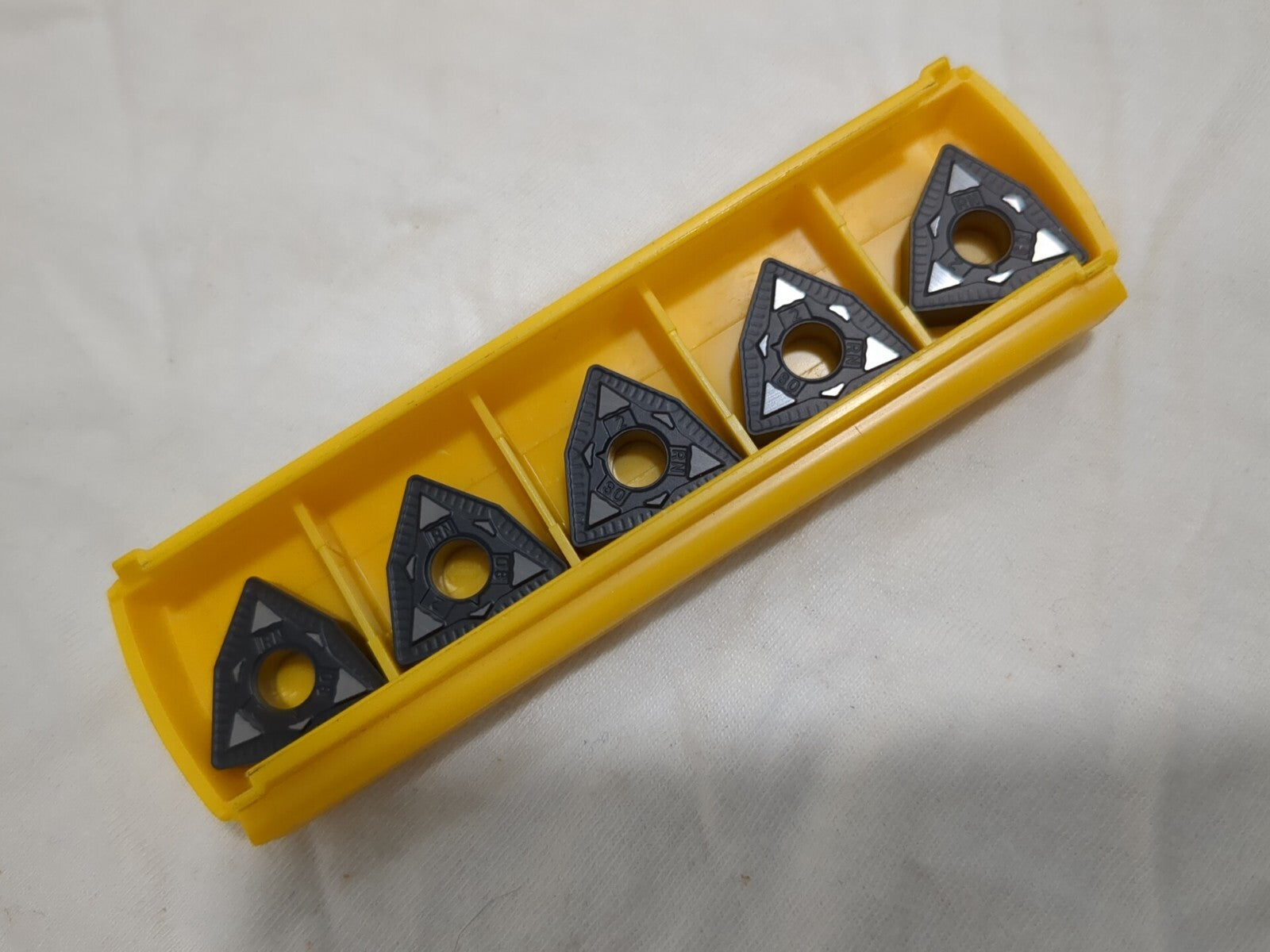

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
