KENNAMETAL Turning Insert: VNMG332RP KCK15, Solid Carbide Qty 5 3752067

Kennametal
1 Lot of 5 Inserts

MSRP: $100.00

• Insert Style VNMG
• Insert Size Code 332
• Insert Shape Diamond 35°
• Included Angle 35 degree
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Carbide
• Manufacturer Grade KCK15
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code V
• Corner Radius (Inch) 1/32
• Hole Diameter (Mm) ( - 0 Decimals) 3.81
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Pin; Clamp
• Width (Inch) 3/8
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series KENLOC
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.3076
• Insert Length (mm) 16.61
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Secondary Workpiece Material Code N
• Standards ISO; ANSI
• Manufacturers Catalog Number 3752067
• Material Grade C3; C4
• Proprietary Coating Designation Multilayer Coating
• UNSPSC Code 23242105
• Coating Classification CVD
• Chip Breaker RP
• Rake Angle 5
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number VNMG332RP
• Width (Decimal Inch - 4 Decimals) 0.375
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring

These items appear to be new and in good condition. SOLD AS IS.

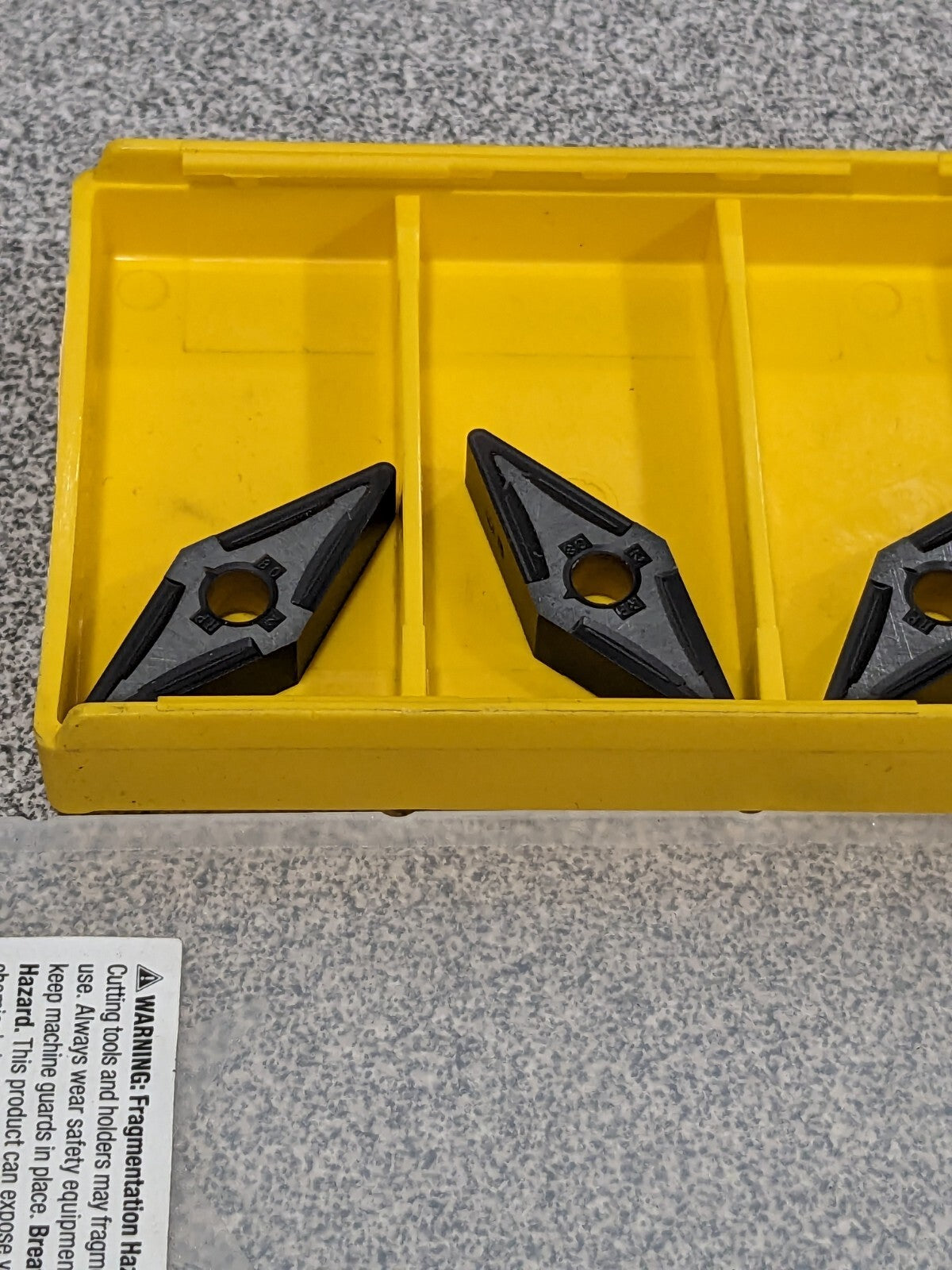

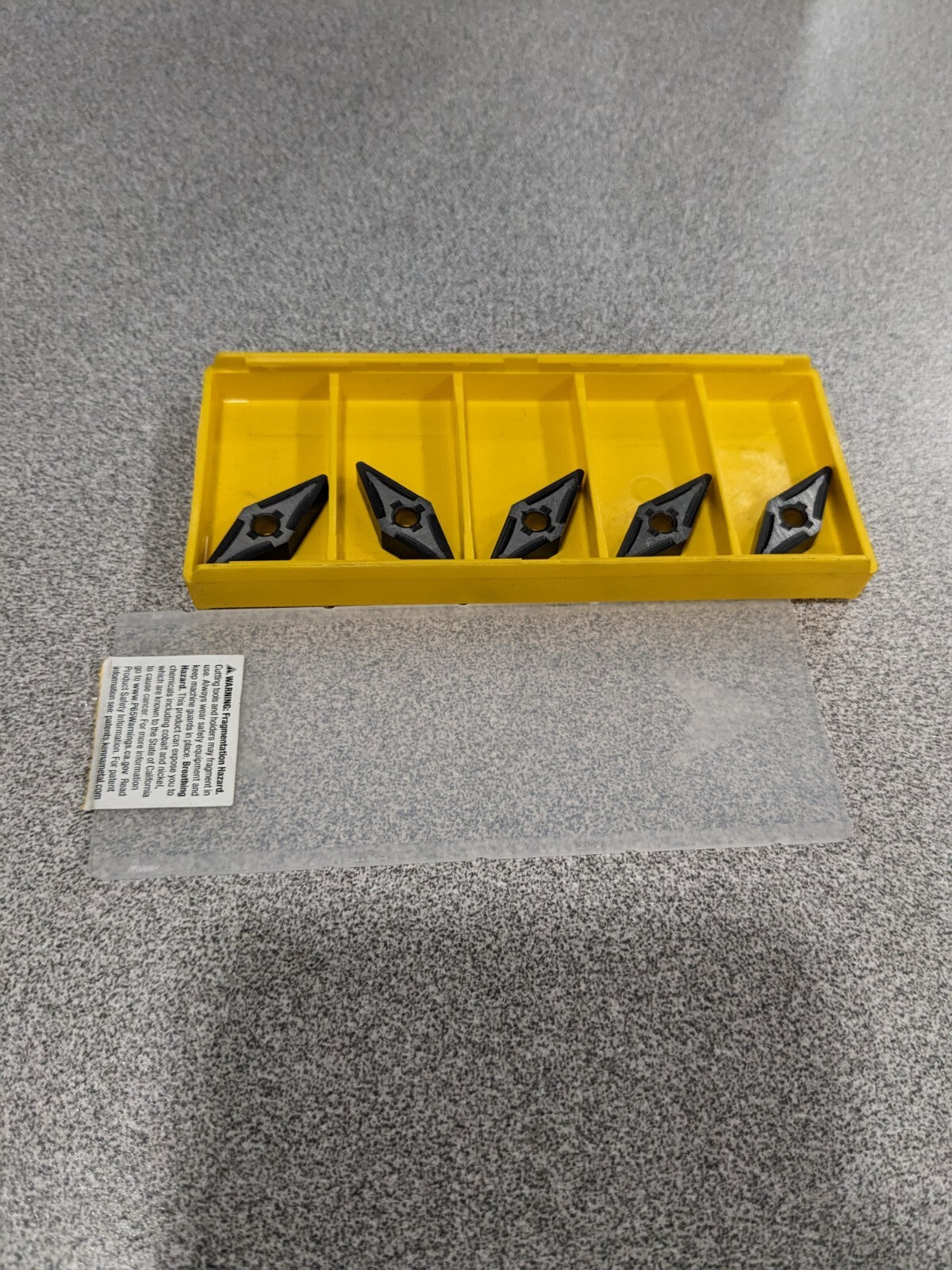

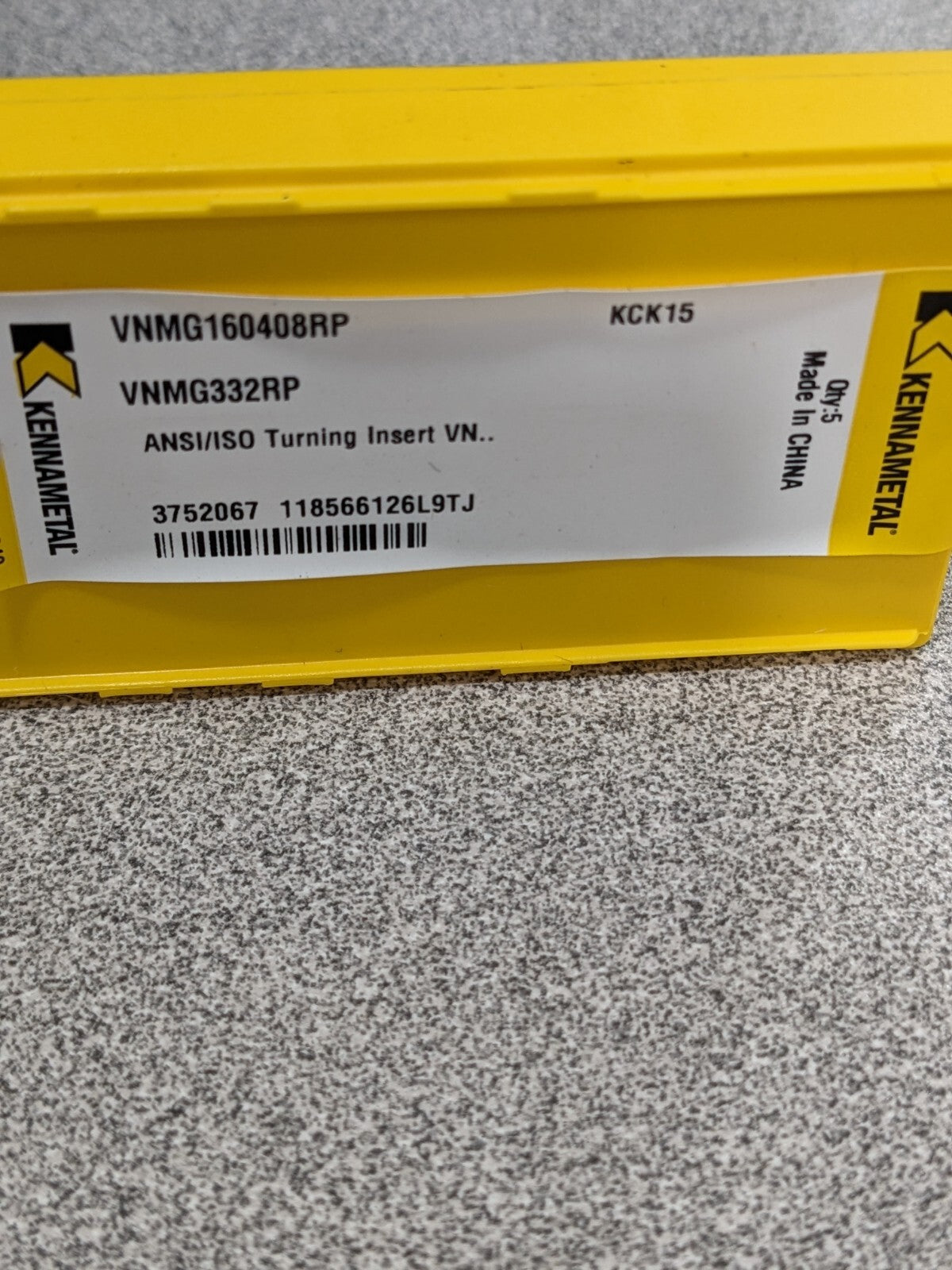

Please review photos, comes as shown.
