KENNAMETAL Turning Insert: TNMG666RP KCM25, Carbide 5pk 3761030

KENNAMETAL Turning Insert: TNMG666RP KCM25, Carbide 5pk 3761030

MSRP: $370

• Insert Style TNMG
• Insert Size Code 666
• Insert Shape Triangle
• Included Angle 60
• Inscribed Circle (Decimal Inch) 0.7500
• Corner Radius (Decimal Inch) 0.0938
• Insert Material Carbide
• Manufacturer Grade KCM25
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.3750
• Insert Hand Neutral
• Number Of Cutting Edges 6
• Insert Shape Code T
• Corner Radius (Inch) 3/32
• Hole Diameter (Mm) ( - 0 Decimals) 7.93
• Hole Diameter (Decimal Inch) 0.3125
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Inscribed Circle (Inch) 3/4
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/8
• Clearance Code N
• Tolerance Code M
• Series KENLOC
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.2992
• Insert Length (mm) 33.00
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; M
• Secondary Workpiece Material Code S
• Standards ISO; ANSI
• Manufacturers Catalog Number 3761030
• Material Grade C1; C2
• Proprietary Coating Designation Multilayer Coating
• UNSPSC Code 23242105
• Coating Classification CVD
• Chip Breaker RP
• Rake Angle 5
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number TNMG666RP
• Width (Decimal Inch - 4 Decimals) 1.2992
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring

(Description).

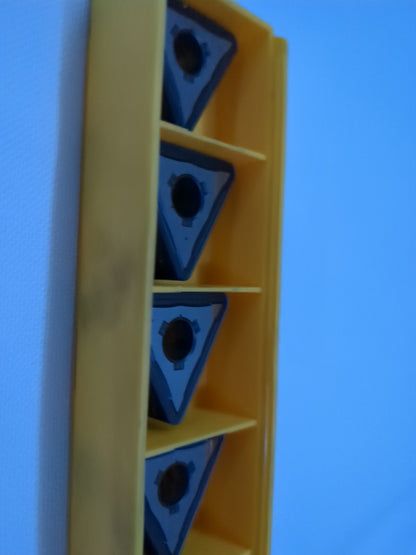

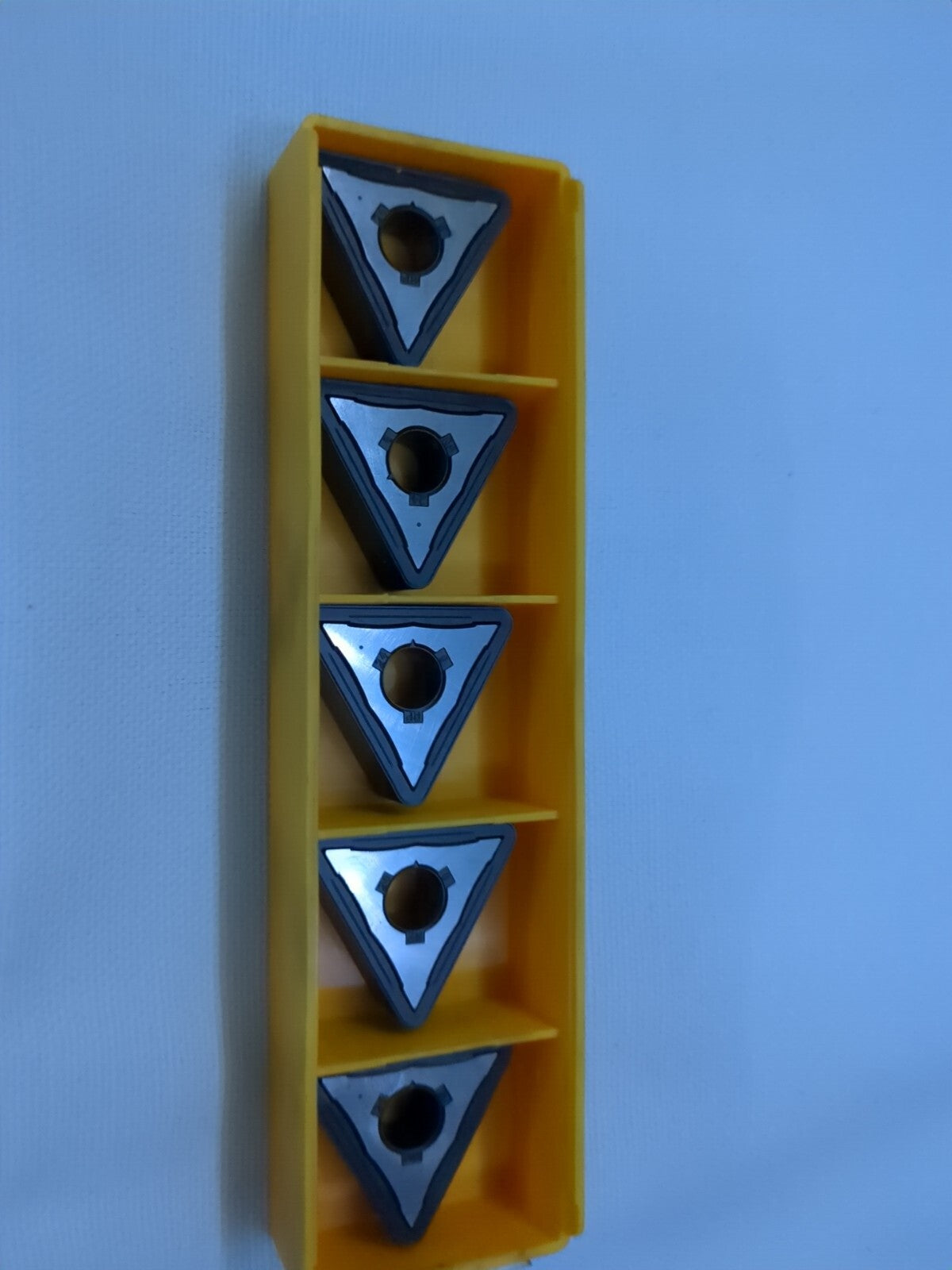

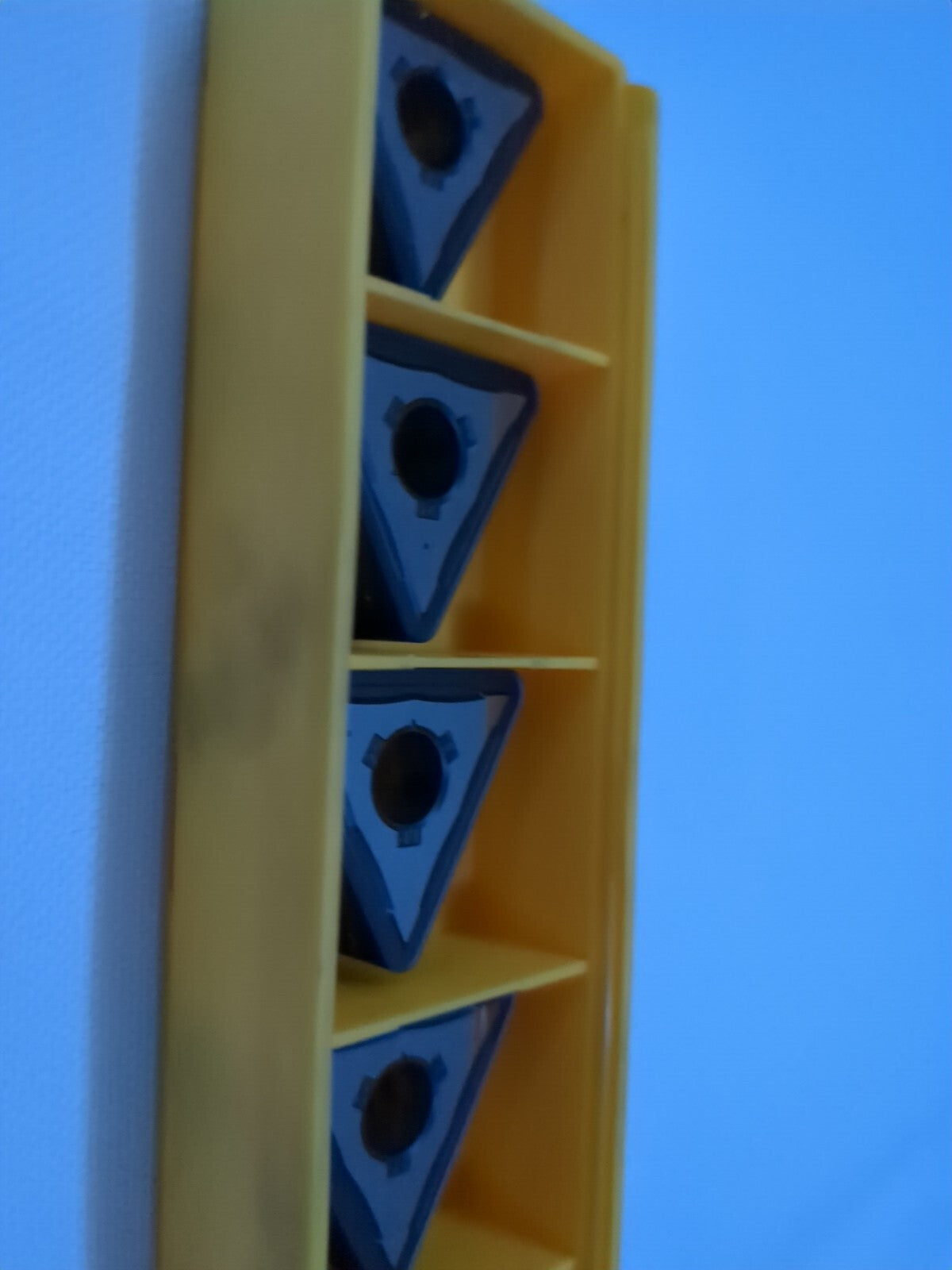

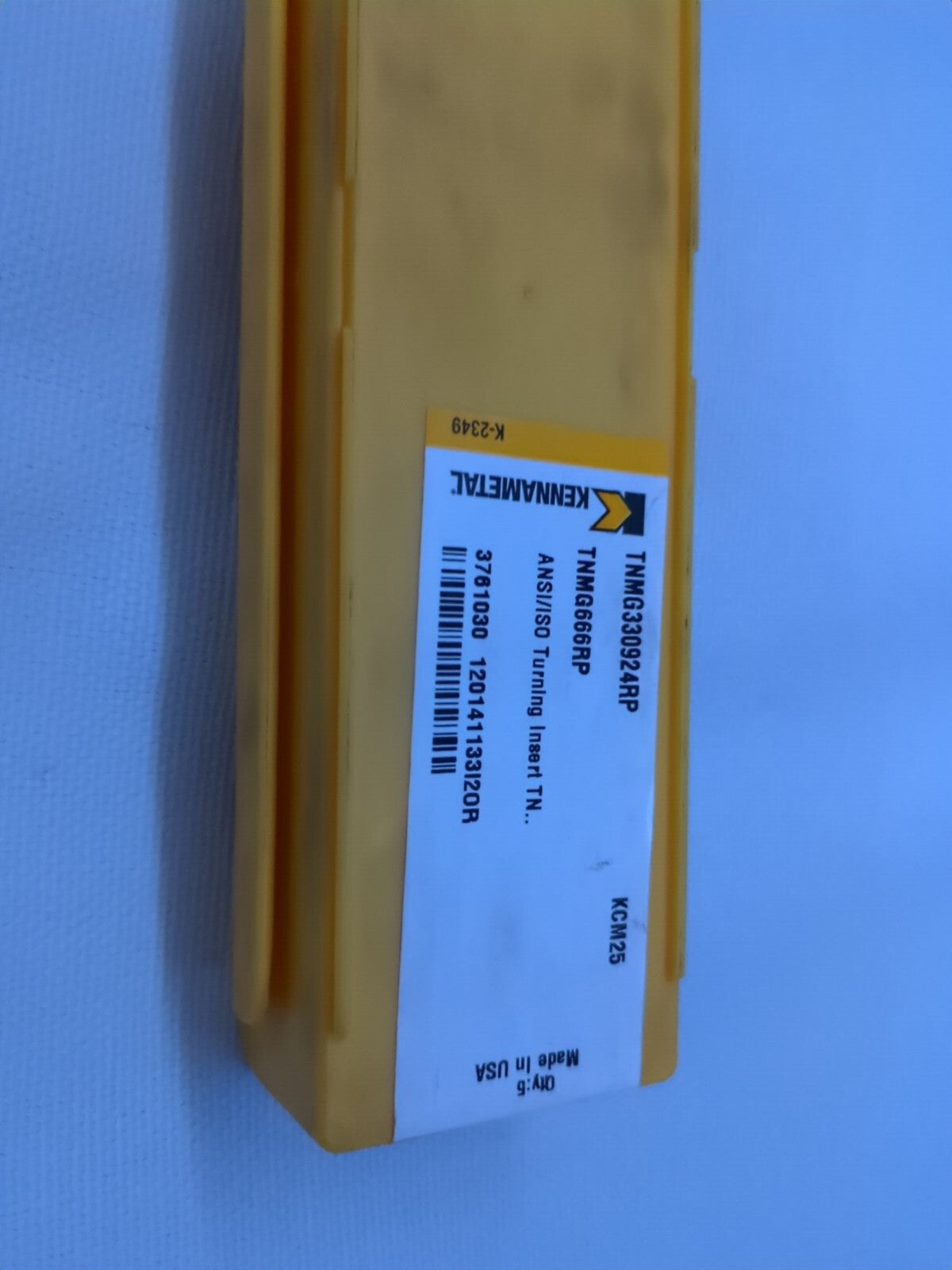

Please review photos, comes as shown.
