KENNAMETAL Turning Insert qty5: TNMG331FP KCM15, Solid Carbide 3758797

KENNAMETAL

 Turning Insert qty5: TNMG331FP KCM15, Solid Carbide 3758797
MSRP: $86

• Insert Style TNMG
• Insert Shape Code T
• Insert Size Code 331
• Insert Shape Triangle
• Coating/Finish TiCN; Al2O3
• Manufacturer Grade KCM15
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Solid Carbide
• Hole Diameter (Mm) ( - 0 Decimals) 3.81
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code N
• Tolerance Code M
• Included Angle 60.0
• Relief Angle 0
• Series KENLOC
• Coating Process CVD
• Length Range (Decimal Inch) 0.6000 - 0.6500
• Rake Positive
• Insert Length (Decimal Inch) 0.6496
• Insert Length (mm) 16.50
• Primary Workpiece Material M
• Secondary Workpiece Material S
• Material Grade C3; C2
• Chip Breaker G
• Rake Angle 15
• Style TNMG331

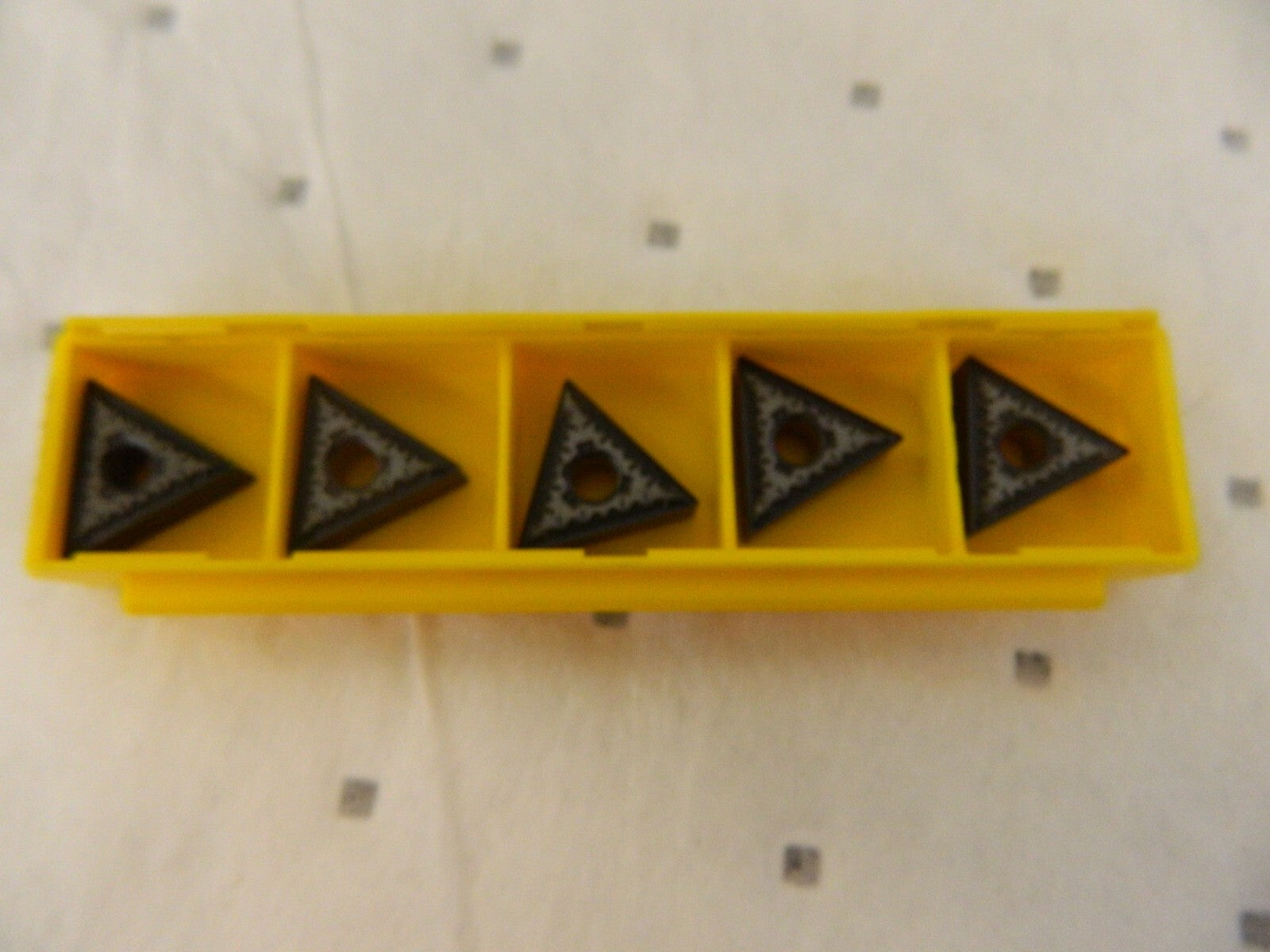

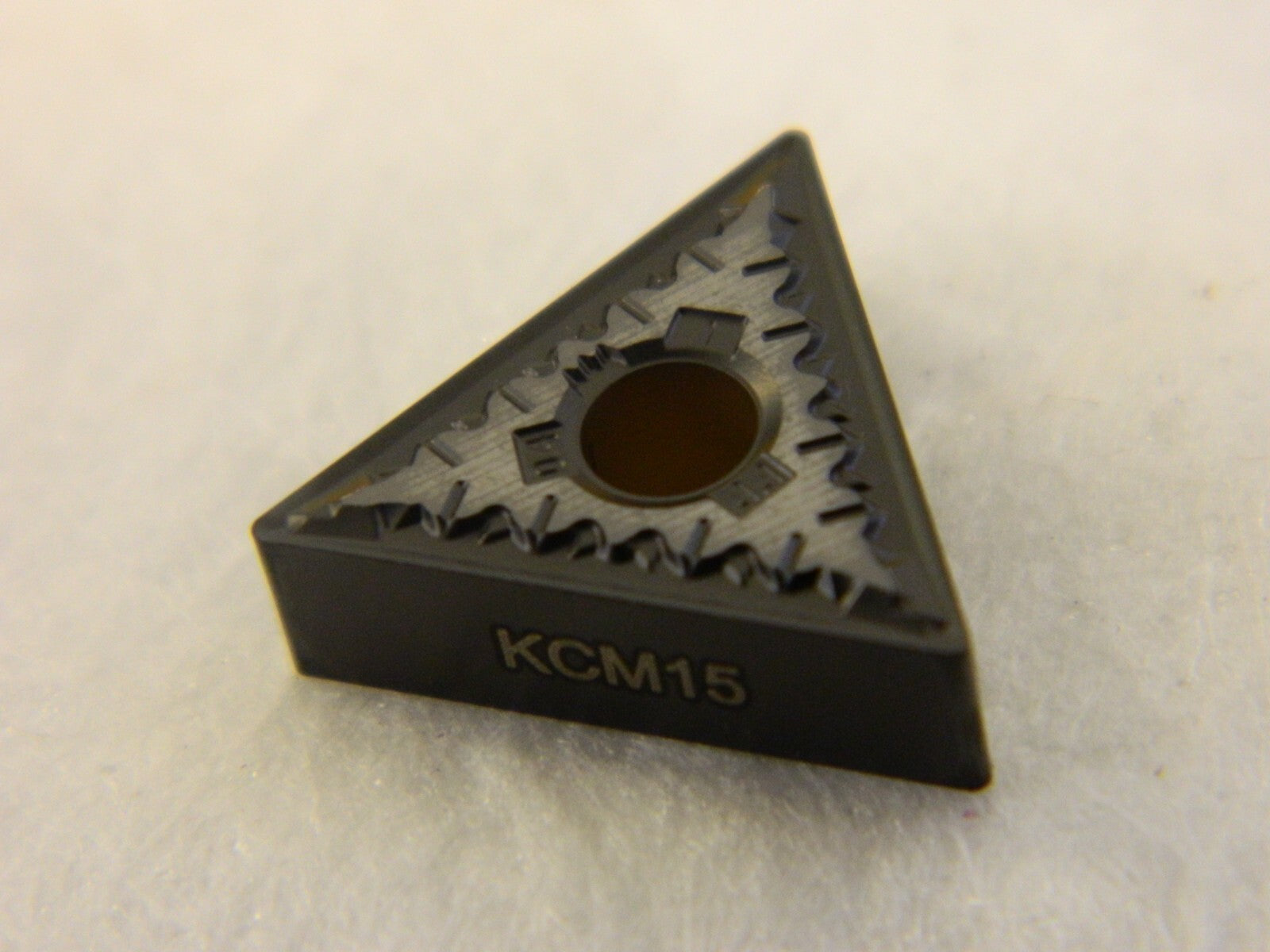

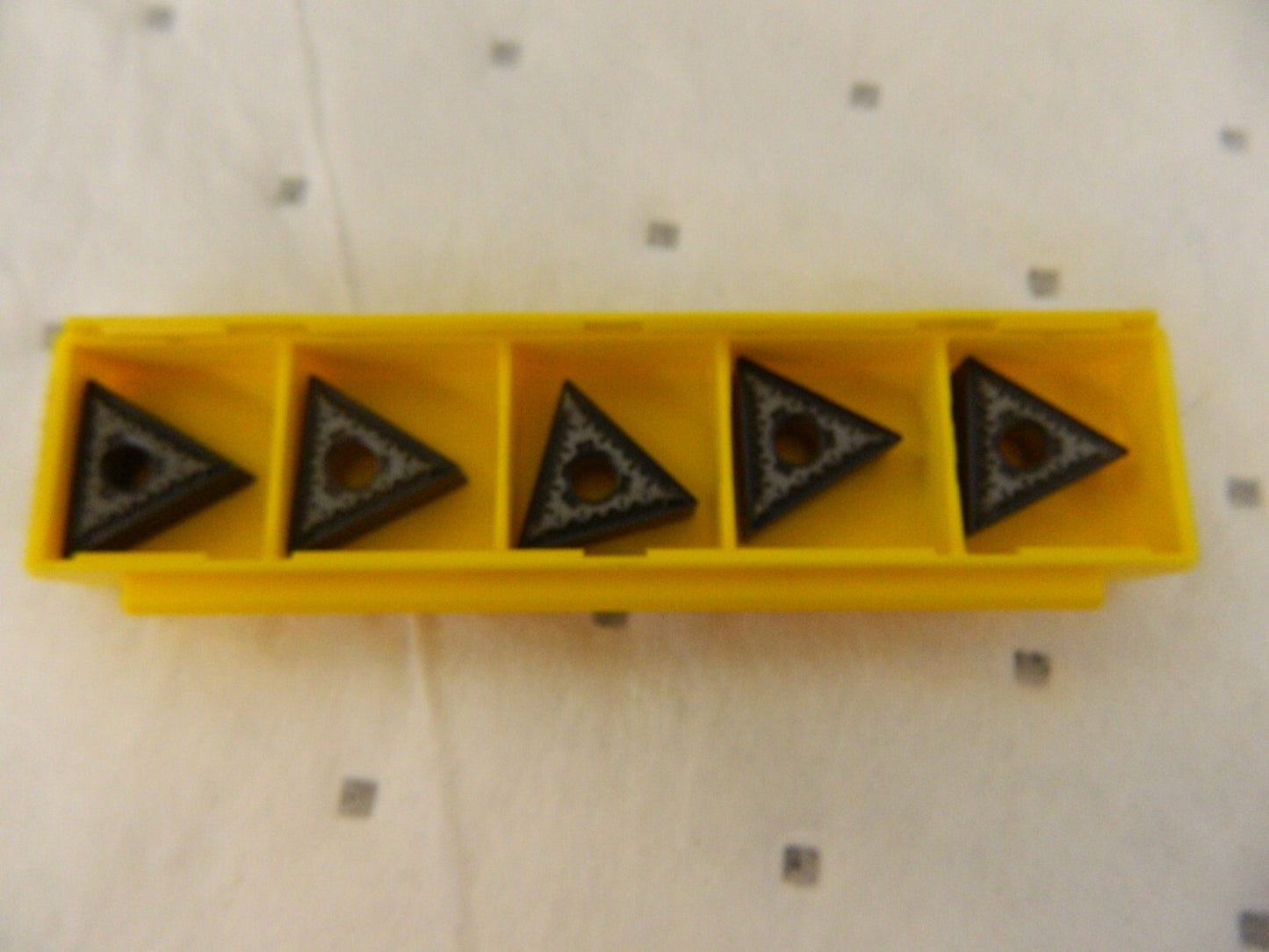

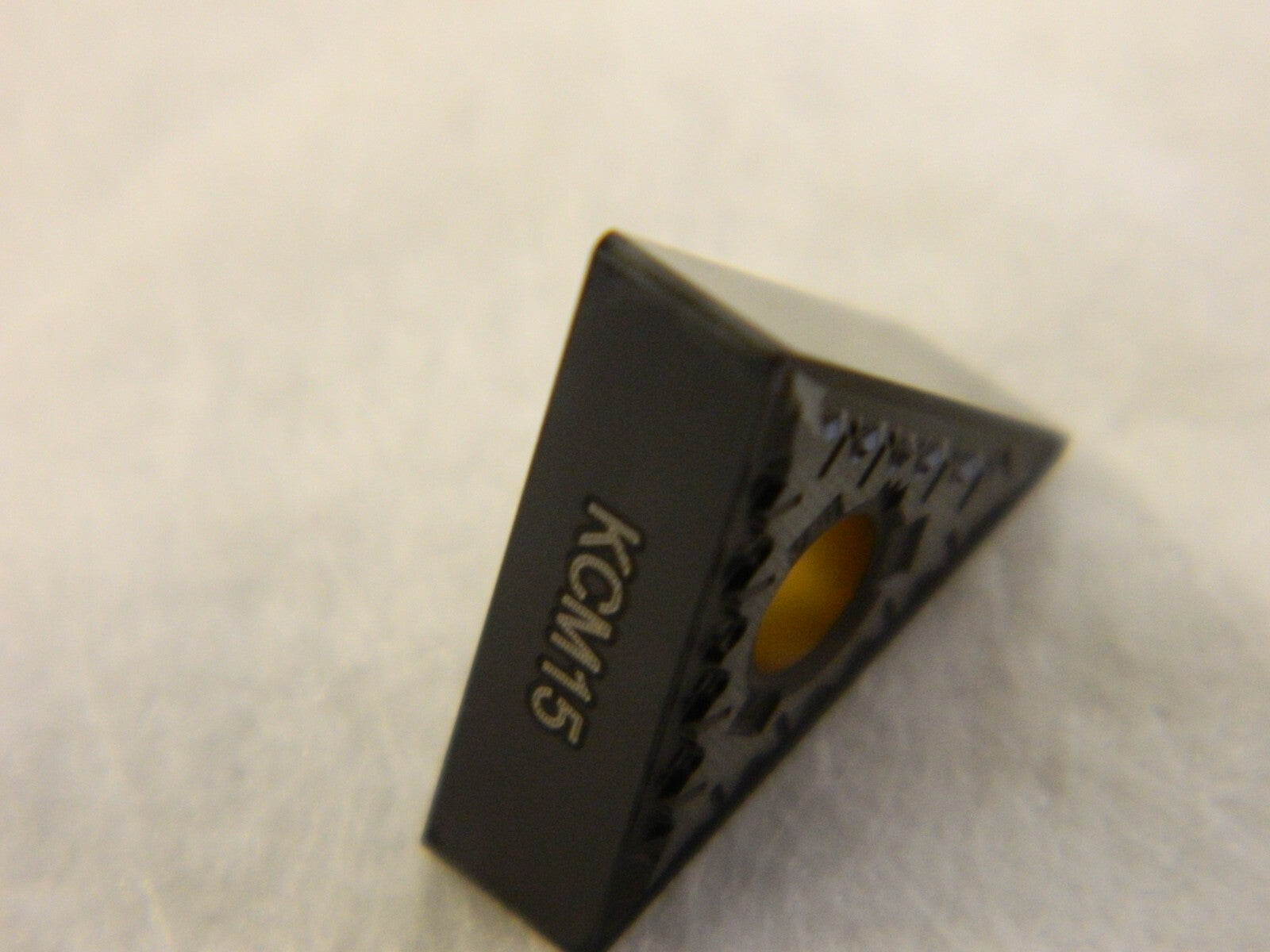

 Please review photos, comes as shown.
