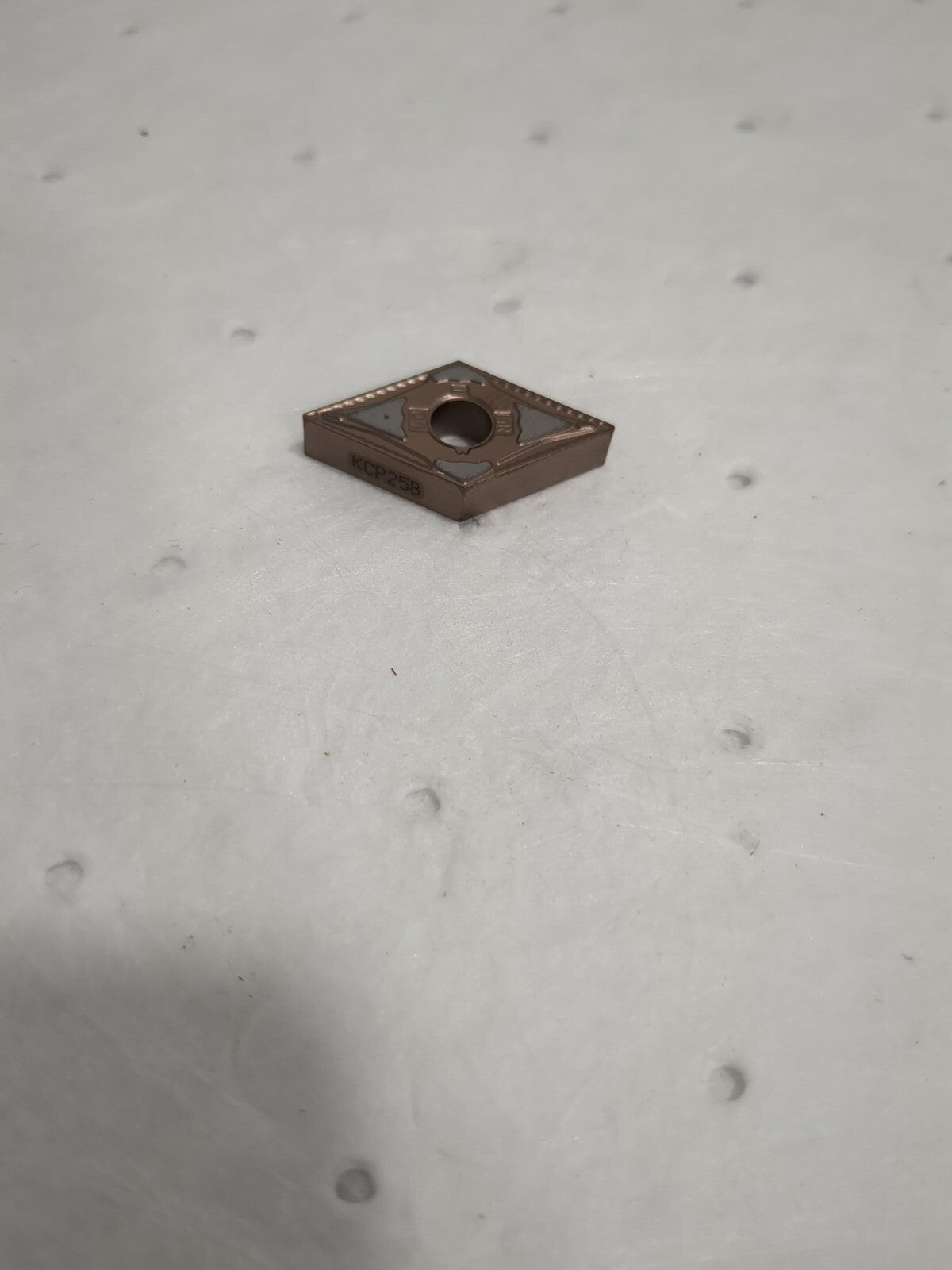

KENNAMETAL Turning Insert: DNMG431MN KCP25B, Carbide 5694120

KENNAMETAL Turning Insert: DNMG431MN KCP25B, Carbide 5694120

MSRP: $30

• ANSI Insert Code DNMG431
• ISO Insert Code DNMG150404
• Relief Angle 0
• Insert Style DNMG
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Included Angle 55
• Manufacturer Grade KCP25B
• Coating/Finish TiOCN; TiCN; Al2O3
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series KENLOC
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Insert Material Carbide
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Chip Breaker Operation Medium Machining; Roughing
• Grade Characteristics Steel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.2031
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Maximum Depth of Cut (Fractional Inch) 13/32
• Maximum Depth of Cut (Decimal Inch) 0.4065
• Insert Holding Method Pin; Clamp
• Width (Inch) 1/2
• Clearance Code N
• Tolerance Code M
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.2208
• Insert Length (mm) 15.50
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; N
• Iso Code DNMG150404MN
• Standards ISO; ANSI
• Manufacturers Catalog Number 5694120
• Material Grade C3; C6; C7; C2
• Proprietary Coating Designation Multilayer Coating
• Coating Classification CVD
• Chip Breaker MN
• Rake Angle 0
• Cutting Edge Style Honed; Chamfered
• Industry Standard Number DNMG431MN
• Width (Decimal Inch - 4 Decimals) 0.5000
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
• ANSI Size Code 431
• ISO Size Code 150404
• UNSPSC Code 23242105
• Insert Size Code 431

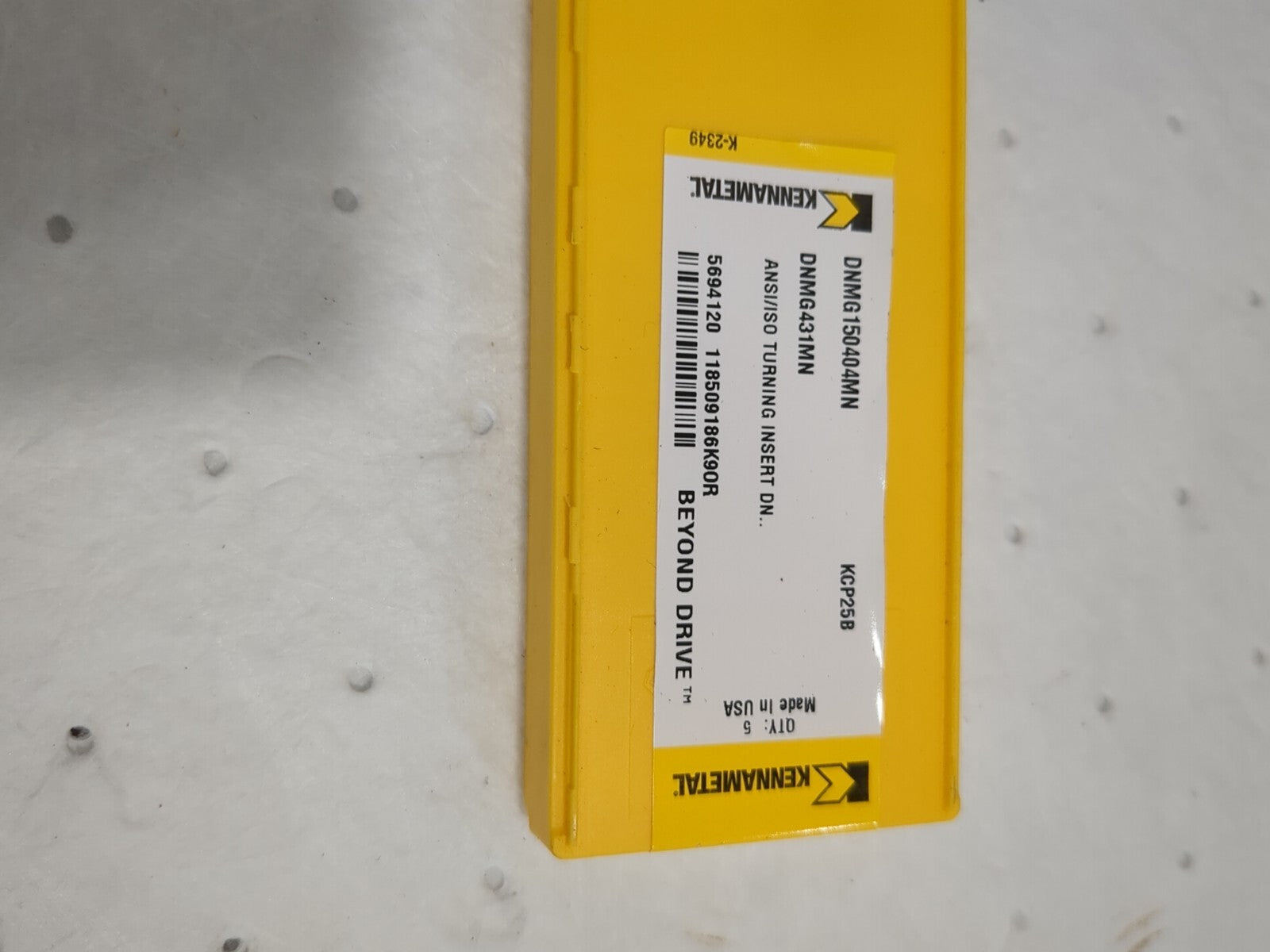

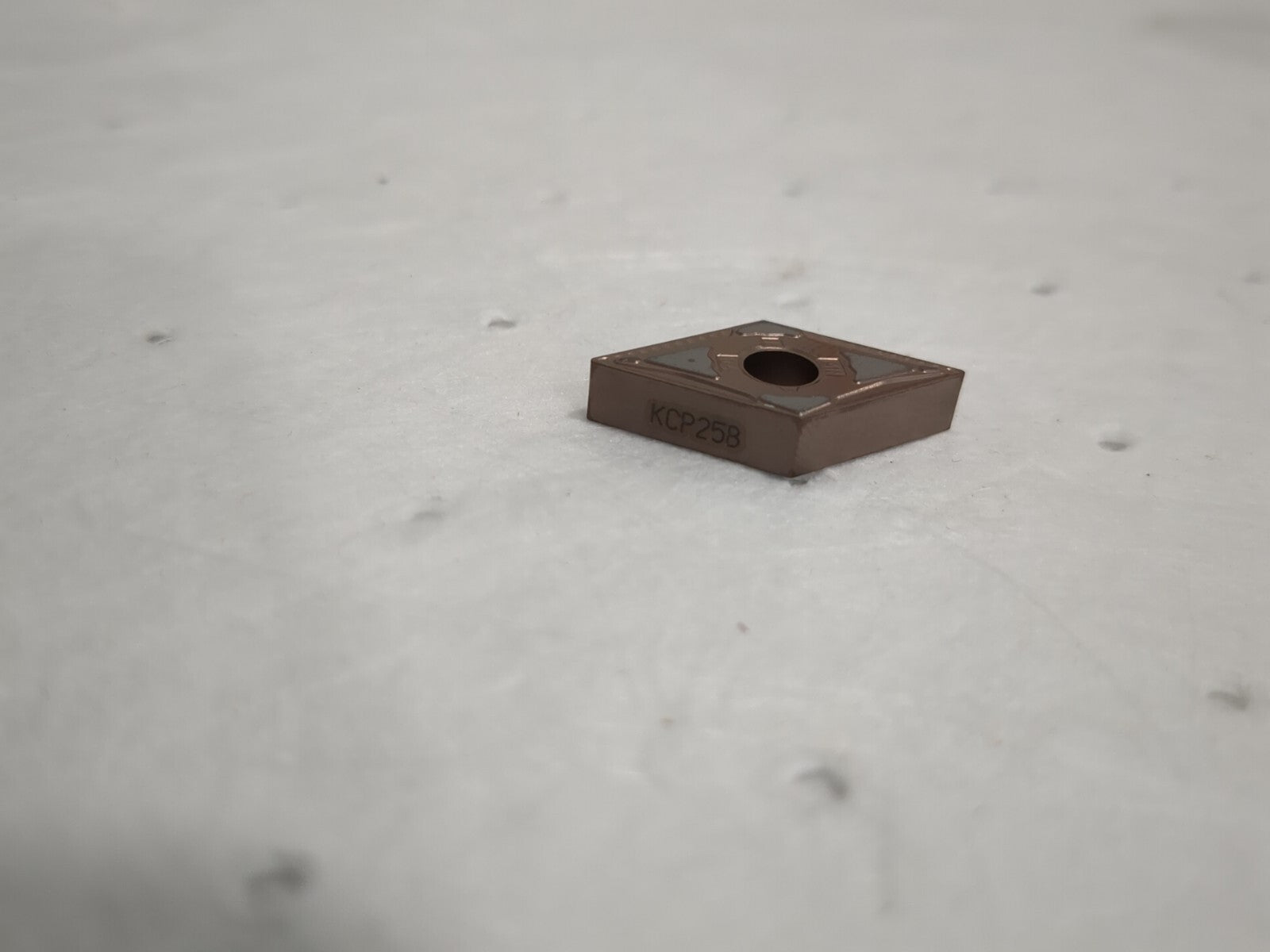

This KENNAMETAL Turning Insert is a high-quality tool designed for efficient performance in metalworking applications. It is made with durable carbide material and has a unit type of "Unit". The insert type is "Turning Insert" and it is manufactured in the United States. The brand is Kennametal and the insert material is carbide. This item is perfect for those in the CNC, metalworking, and manufacturing industry. It is categorized under "Indexable Inserts", "Toolholding", "Workholding & Toolholding", and "Business & Industrial". Get your hands on this reliable turning insert today and take your metalworking projects to the next level.Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
