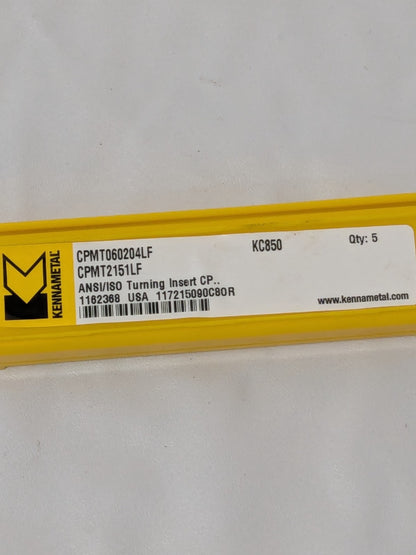

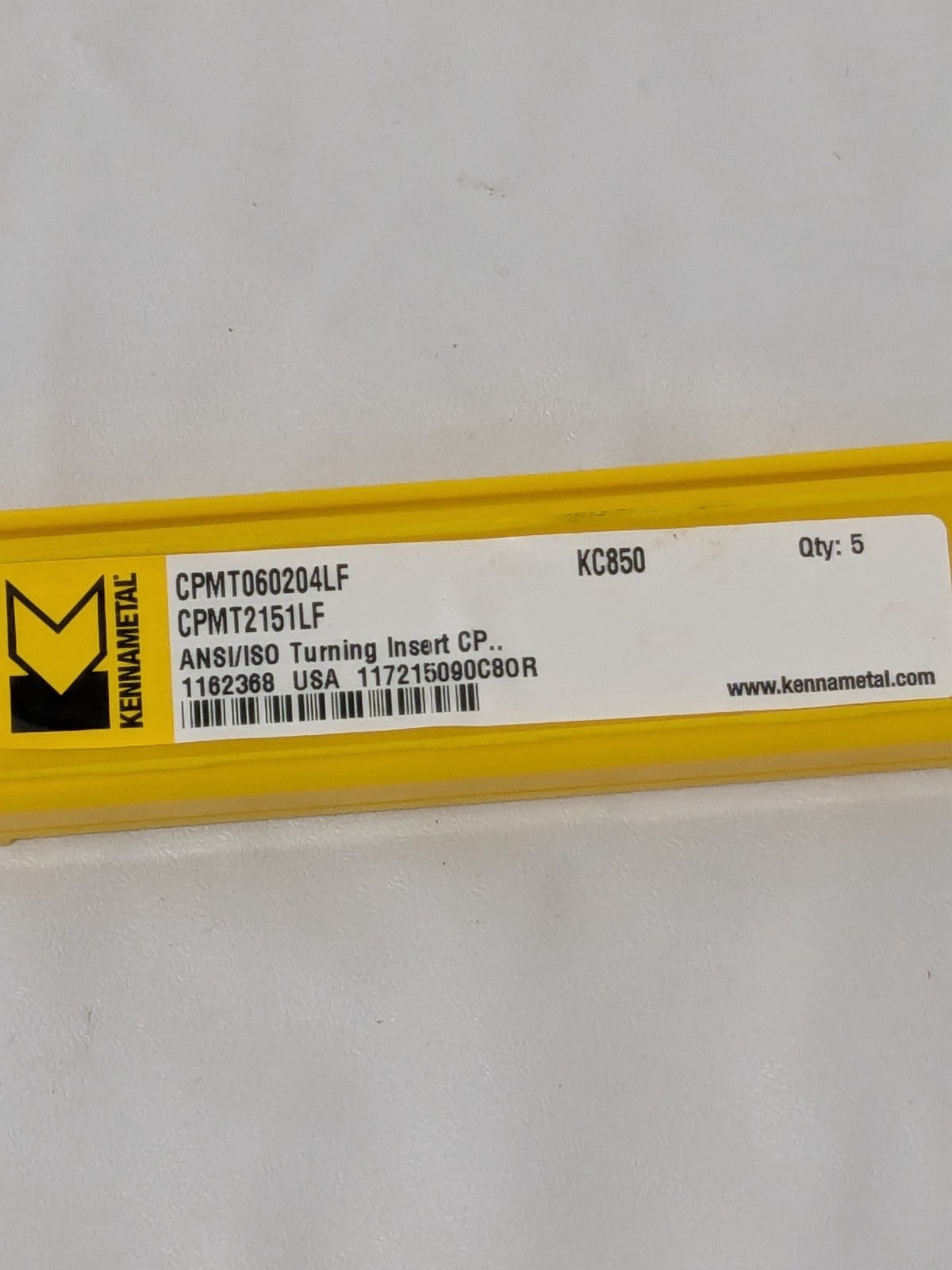

Kennametal Turning Insert: CPMT21.51LF KC850, Carbide Qty 5 1162368

Kennametal
Pack of 5 Inserts

MSRP: $120.00

• Insert Style CPMT
• ANSI Size Code 21.51
• ISO Size Code 060204
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80.00
• Inscribed Circle (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 1/4
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Carbide
• Manufacturer Grade KC850
• Coating/Finish TiCN; TiN; TiC
• Relief Angle 11.000
• Wiper Edge No
• Insert Thickness (Inch) 3/32
• Insert Thickness (Decimal Inch) 0.0938
• Insert Hand Neutral
• Series Screw-On
• Chip Breaker Operation Light Machining; Finishing
• Grade Characteristics Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 2
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.1142
• Hole Diameter (mm) 2.80
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• ANSI Insert Code CPMT21.51
• ISO Insert Code CPMT060204
• Insert Holding Method Screw
• Width (Inch) 1/4
• Clearance Code P
• Tolerance Code M
• Coating Process CVD
• Length Range (Decimal Inch) 0.0000 - 0.3000
• Rake Positive
• Insert Length (Decimal Inch) 0.2539
• Insert Length (mm) 6.45
• Primary Workpiece Material Stainless Steel; Steel
• Primary Workpiece Material Code P; S; K; M
• Secondary Workpiece Material Code K; M
• Standards ISO; ANSI
• Manufacturers Catalog Number 1162368
• Material Grade C5; C6
• Proprietary Coating Designation Multilayer Coating
• Coating Classification CVD
• Chip Breaker LF
• Rake Angle 5
• Cutting Edge Style Honed
• Industry Standard Number CPMT2151LF
• Width (Decimal Inch - 4 Decimals) 0.2500
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• UNSPSC Code 23242105
• Insert Size Code 2151
• Country of Origin UNITED STATES
