Kennametal Turning Insert CNMG643MS KC5010 Carbide 3 pcs 2244888

Kennametal
3 Pieces Turning Insert

MSRP: $230.00

• Insert Style: CNMG
• ANSI Size Code: 643
• ISO Size Code: 190612
• Insert Shape: C - Diamond (Rhombic) 80-Deg
• Included Angle: 80.00
• Inscribed Circle (Decimal Inch): 0.7500
• Inscribed Circle (Inch): 3/4
• Corner Radius (Inch): 3/64
• Corner Radius (Decimal Inch): 0.0469
• Insert Material: Carbide
• Manufacturer Grade: KC5010
• Relief Angle: 0.000
• Wiper Edge: No
• Insert Thickness (Inch): 1/4
• Insert Thickness (Decimal Inch): 0.2500
• Insert Hand: Neutral
• Series: KENLOC
• Chip Breaker Operation: Medium Machining; Roughing
• Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance: Negative
• Number Of Cutting Edges: 4
• Hole Diameter (Decimal Inch): 0.3125
• Hole Diameter (mm): 7.93
• Maximum Depth of Cut (mm): 1.25
• Maximum Depth of Cut (Decimal Inch): 0.0492
• ANSI Insert Code: CNMG643
• ISO Insert Code: CNMG190612
• Insert Holding Method: Pin; Clamp
• Width (Inch): 3/4
• Clearance Code: N
• Tolerance Code: M
• Coating Process: PVD
• Rake: Negative
• Insert Length (Decimal Inch): 0.7616
• Insert Length (mm): 19.34
• Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece
• Material Code: P; S; K; M; N
• Secondary Workpiece Material Code: M
• Standards: ISO; ANSI
• Manufacturers Catalog Number: 2244888
• Material Grade: C3; C4
• Coating Classification: PVD
• Chip Breaker: MS
• Rake Angle: 13
• Cutting Edge Style: Honed
• Industry Standard Number: CNMG643MS
• Width (Decimal Inch - 4 Decimals): 0.7500
• Multi-Use Tool: Yes
• Full Radius: No
• Multi-Use Application: Facing; Turning; Boring
• UNSPSC Code: 23242105

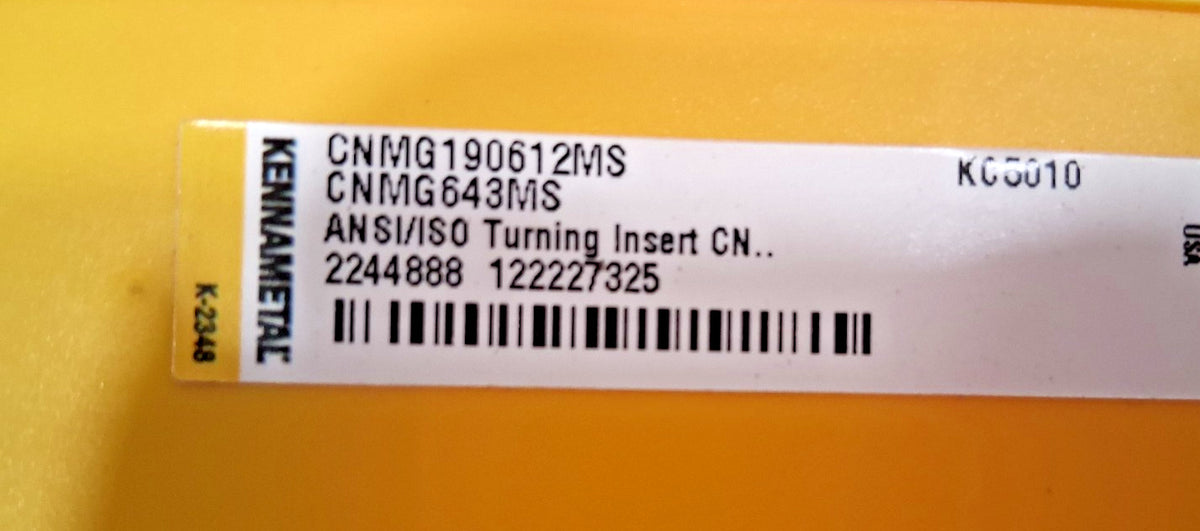

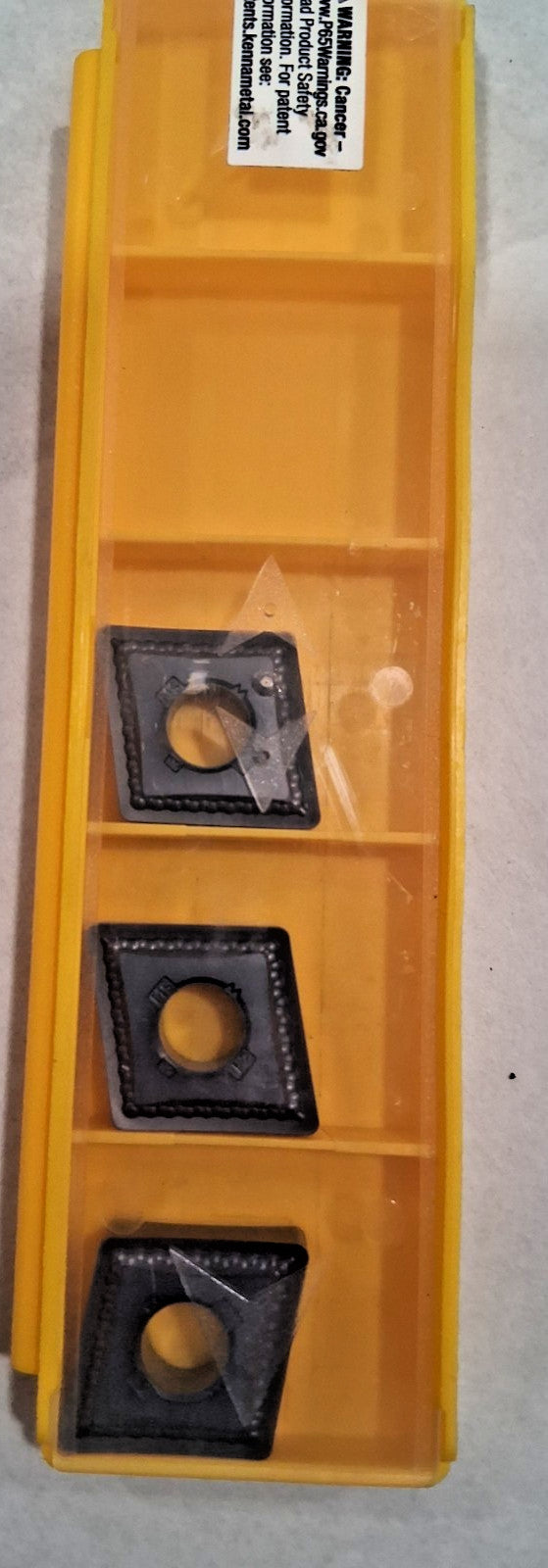

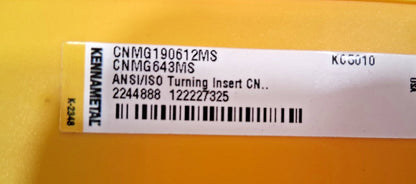

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
