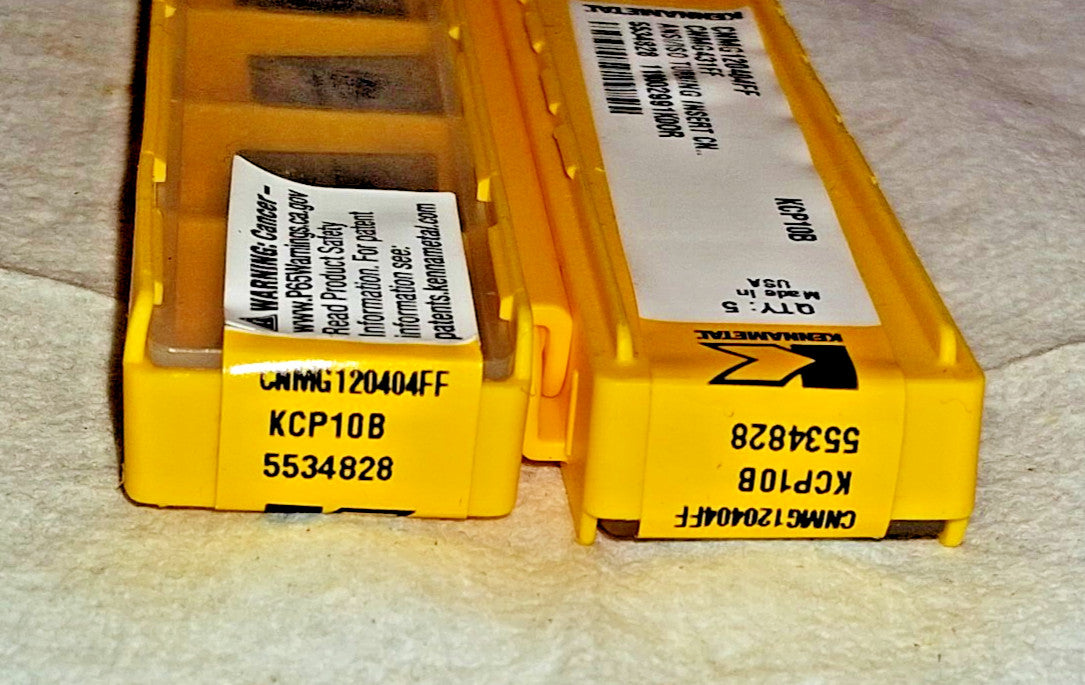

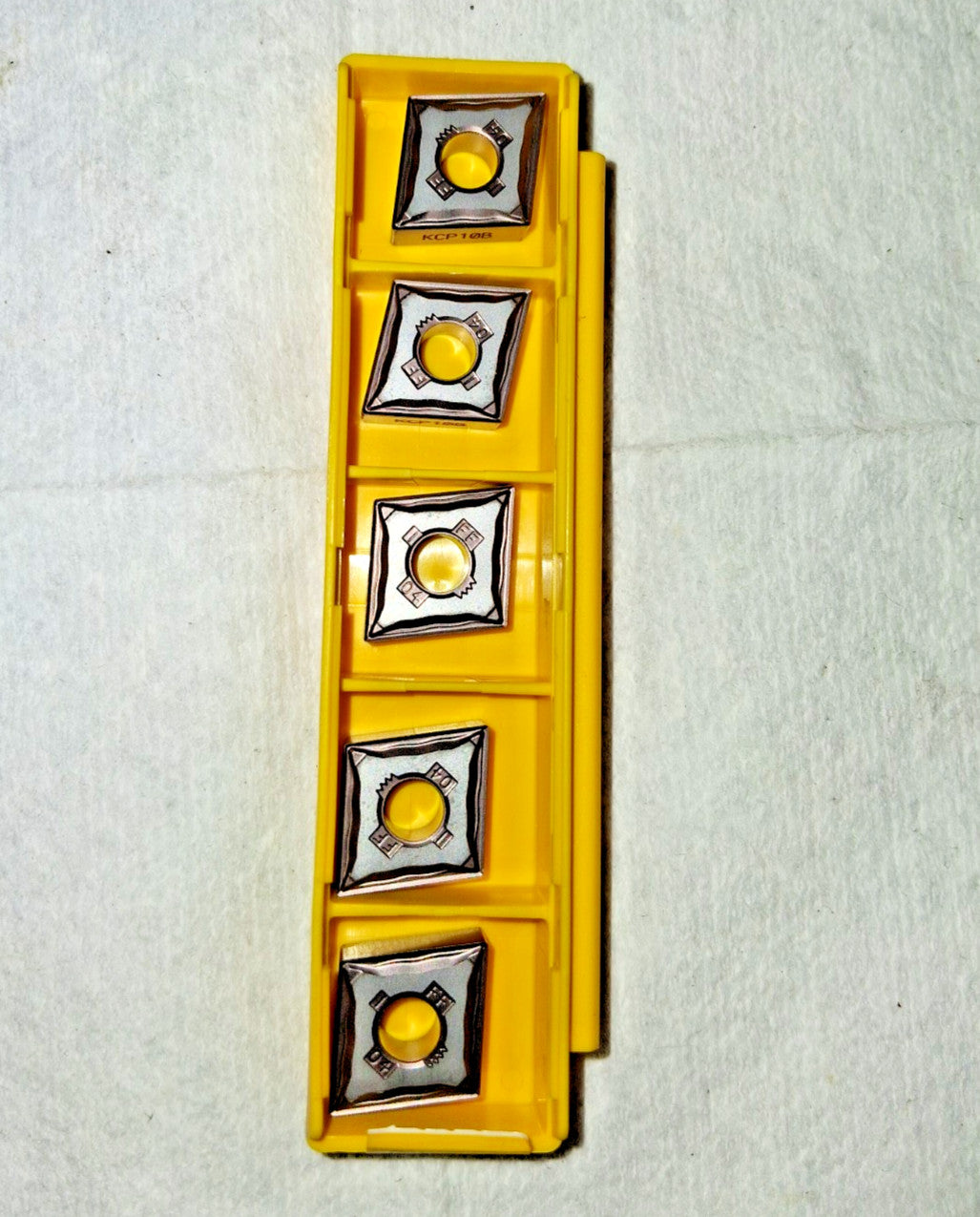

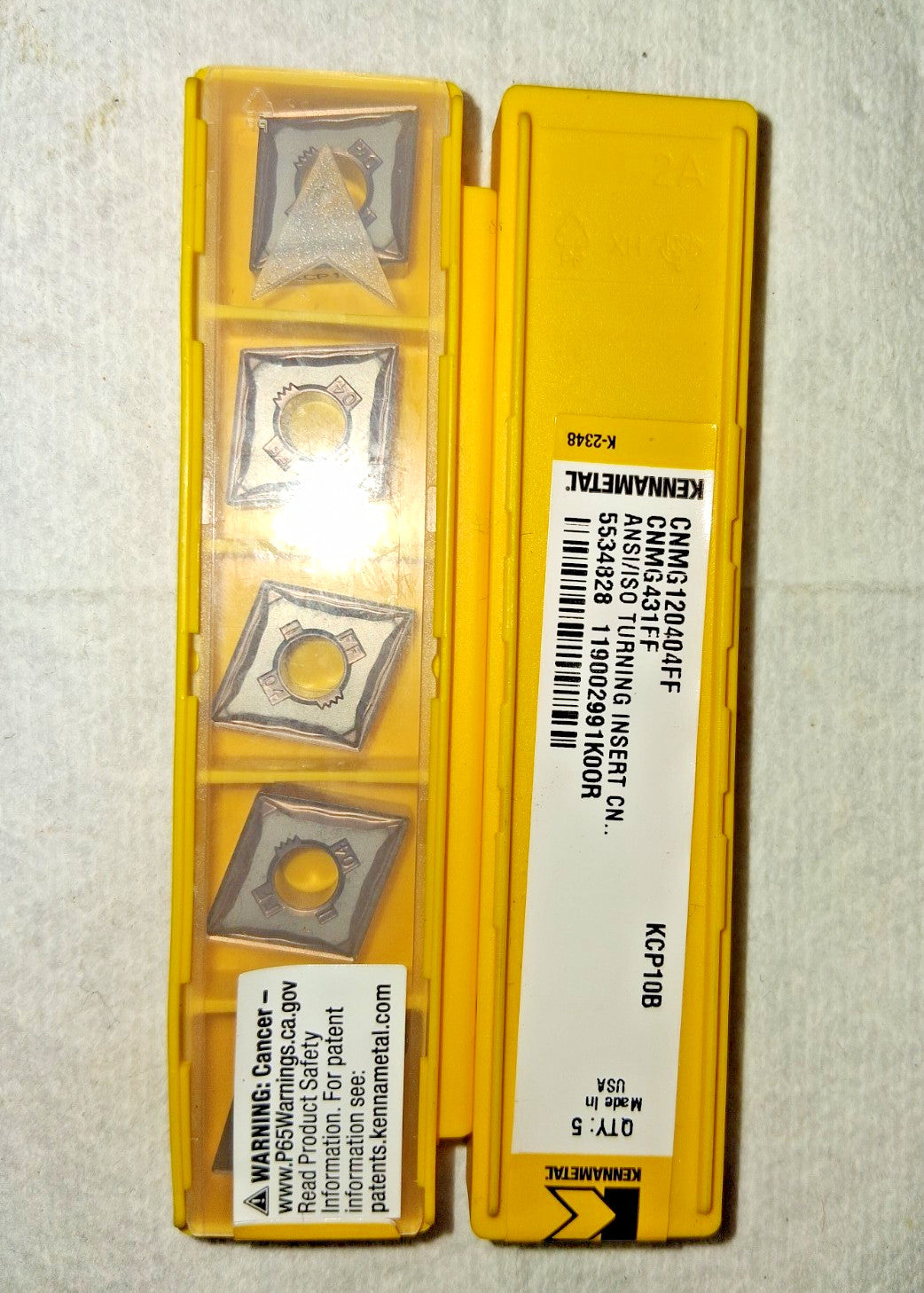

Kennametal Turning Insert CNMG431FF KCP10B Carbide Qty5 5534828

Kennametal
5pc Carbide Turning Insert

MSRP: $150.00

• Insert Style: CNMG
• ANSI Size Code: 431
• ISO Size Code: 120404
• Insert Shape: C - Diamond (Rhombic) 80-Deg
• Included Angle: 80.00
• Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (Inch): 1/2
• Corner Radius (Inch): 1/64
• Corner Radius (Decimal Inch): 0.0156
• Insert Material: Carbide
• Manufacturer Grade: KCP10B
• Relief Angle: 0.000
• Wiper Edge: No
• Insert Thickness (Inch): 3/16
• Insert Thickness (Decimal Inch): 0.1875
• Insert Hand: Neutral
• Series: KENLOC
• Chip Breaker Operation: Finishing
• Grade Characteristics: Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - High Wear-Resistance
• Side Clearance: Negative
• Number Of Cutting Edges: 4
• Hole Diameter (Decimal Inch): 0.2031
• Maximum Depth of Cut (Decimal Inch): 0.1691
• ANSI Insert Code: CNMG431
• ISO Insert Code: CNMG120404
• Insert Holding Method: Pin; Clamp
• Width (Inch): 1/2 Clearance Code: N
• Tolerance Code: M
• Coating Process: MTCVD
• Rake: Negative
• Insert Length (Decimal Inch): 0.5079
• Primary Workpiece Material: Cast Iron; Steel
• Primary Workpiece Material Code: P; N
• Standards: ISO; ANSI
• Manufacturers Catalog Number: 5534828
• Material Grade: C3; C7
• Proprietary Coating Designation: Multilayer Coating
• Coating Classification: CVD
• Chip Breaker: FF
• Rake Angle: 20
• Cutting Edge Style: Honed
• Industry Standard Number: CNMG431FF
• Width (Decimal Inch - 4 Decimals): 0.5000
• Multi-Use Tool: Yes
• Full Radius: No
• Multi-Use Application: Facing; Turning; Boring
• UNSPSC Code: 23242105

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
