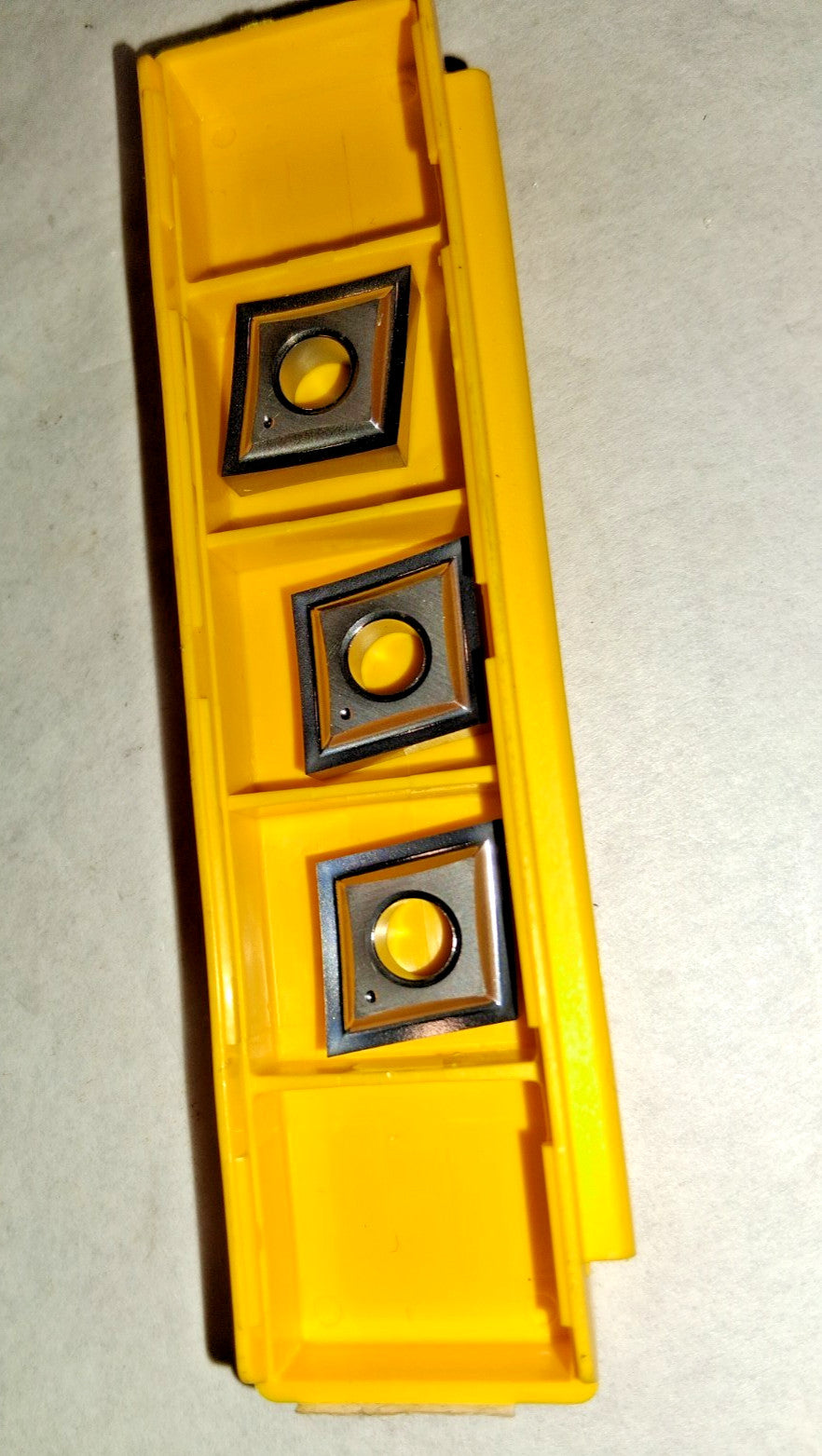

Kennametal Turning Insert CNGP430 KC5410 Carbide 1785715

Kennametal
3pc Turning Insert

MSRP: $135.00

• nsert Style: CNGP
• ANSI Size Code: 430.2
• ISO Size Code: 120401
• Insert Shape: C - Diamond (Rhombic) 80-Deg
• Included Angle: 80.00
• Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (Inch): 1/2
• Corner Radius (Decimal Inch): 0.0039
• Insert Material: Carbide
• Manufacturer Grade: KC5410
• Relief Angle: 0.000
• Wiper Edge: No
• Insert Thickness (Inch): 3/16
• Insert Thickness (Decimal Inch): 0.1875
• Insert Hand: Neutral
• Series: KENLOC
• Chip Breaker Operation: Medium Machining
• Grade Characteristics: Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance: Negative
• Number Of Cutting Edges: 4
• Hole Diameter (Decimal Inch): 0.2031
• Hole Diameter (mm): 5.20
• Maximum Depth of Cut (mm): 1.25
• Maximum Depth of Cut (Decimal Inch): 0.0492
• ANSI Insert Code: CNGP430.2
• ISO Insert Code: CNGP120401
• Insert Holding Method: Pin; Clamp
• Width (Inch): 1/2
• Clearance Code: N
• Tolerance Code: G
• Coating Process: PVD
• Rake: Negative
• Insert Length (Decimal Inch): 0.5077
• Insert Length (mm): 12.90
• Primary Workpiece Material: Non-Ferrous Metal
• Primary Workpiece Material Code: N
• Standards: ISO; ANSI
• Manufacturers Catalog Number: 1785715
• Material Grade: C3; C4
• Proprietary Coating Designation: TiB2
• Coating Classification: PVD
• Chip Breaker: Common
• Rake Angle: 10
• Cutting Edge Style: Honed
• Industry Standard Number: CNGP4302
• Width (Decimal Inch - 4 Decimals): 0.5000
• Multi-Use Tool: Yes
• Full Radius: No
• Multi-Use Application: Facing; Turning; Boring
• UNSPSC Code: 23242105

Please review photos, comes as shown.
