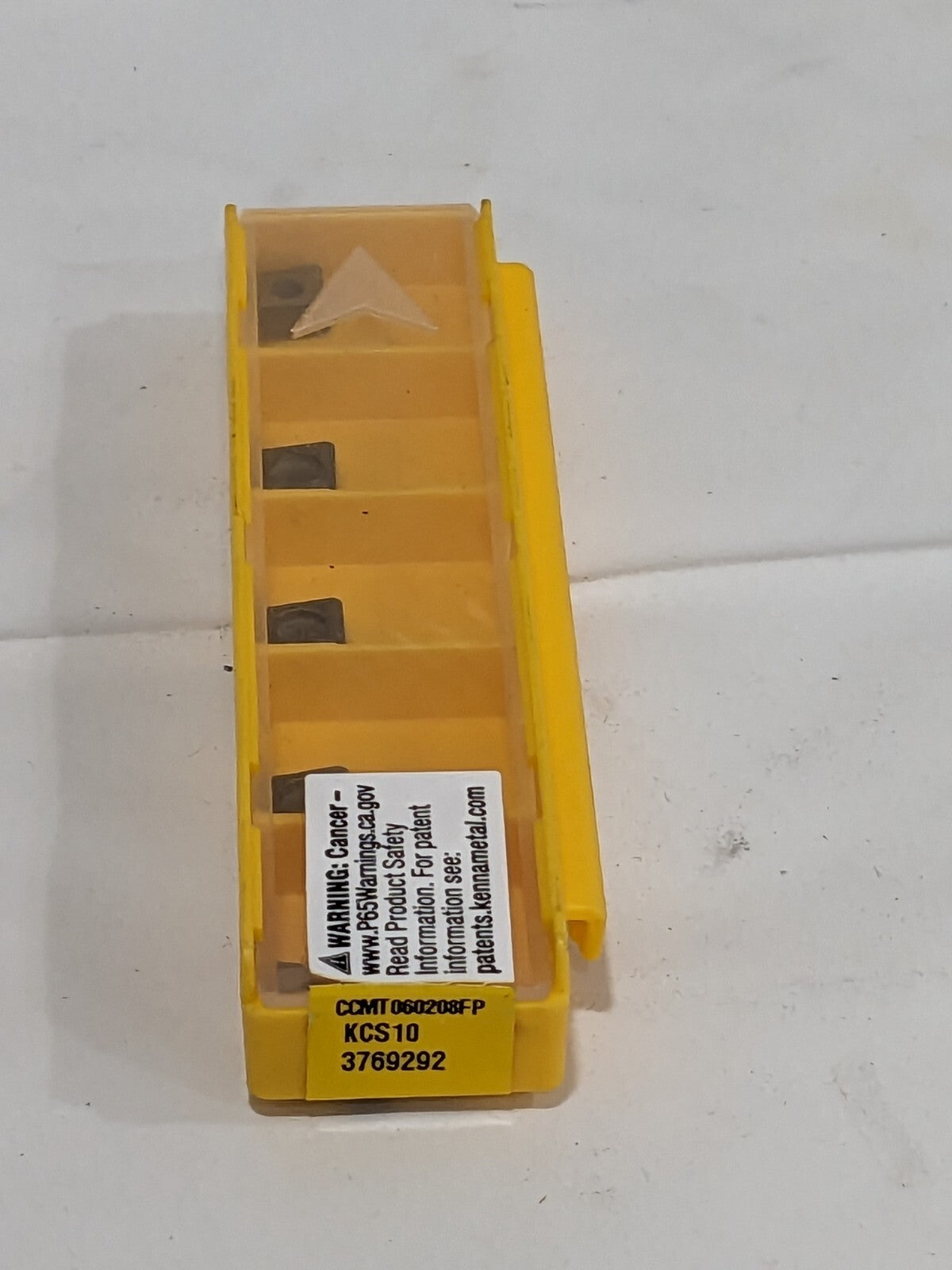

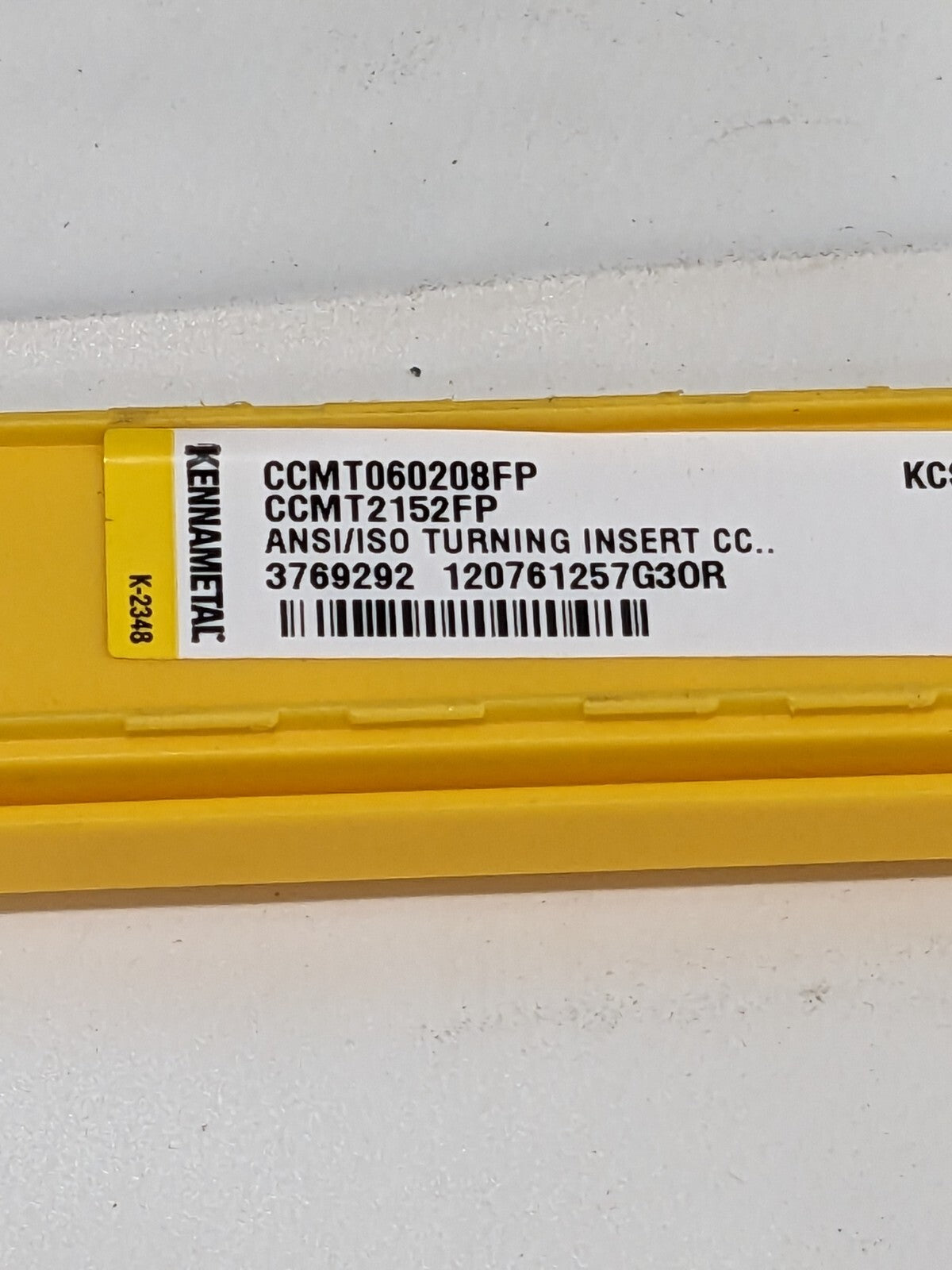

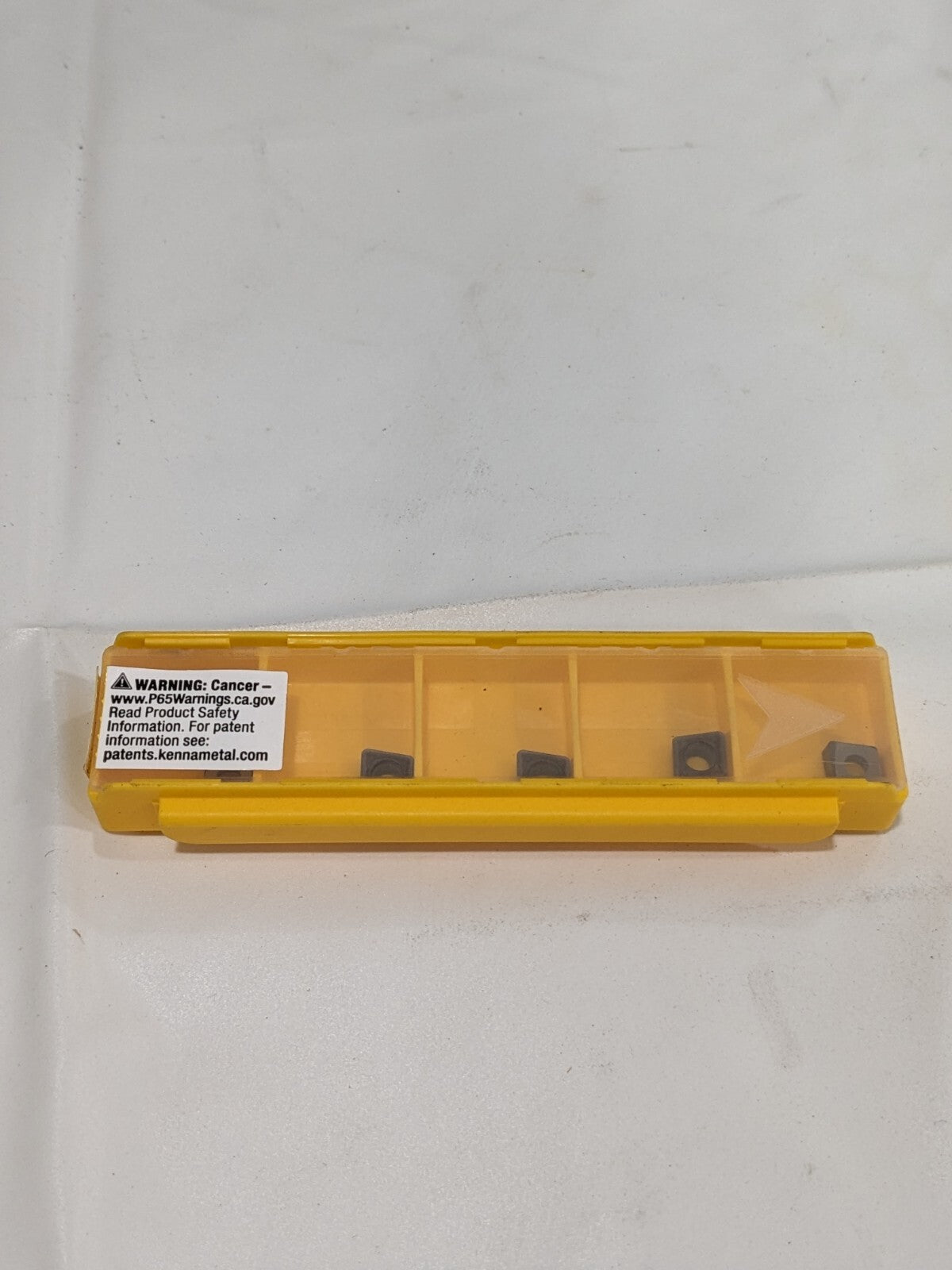

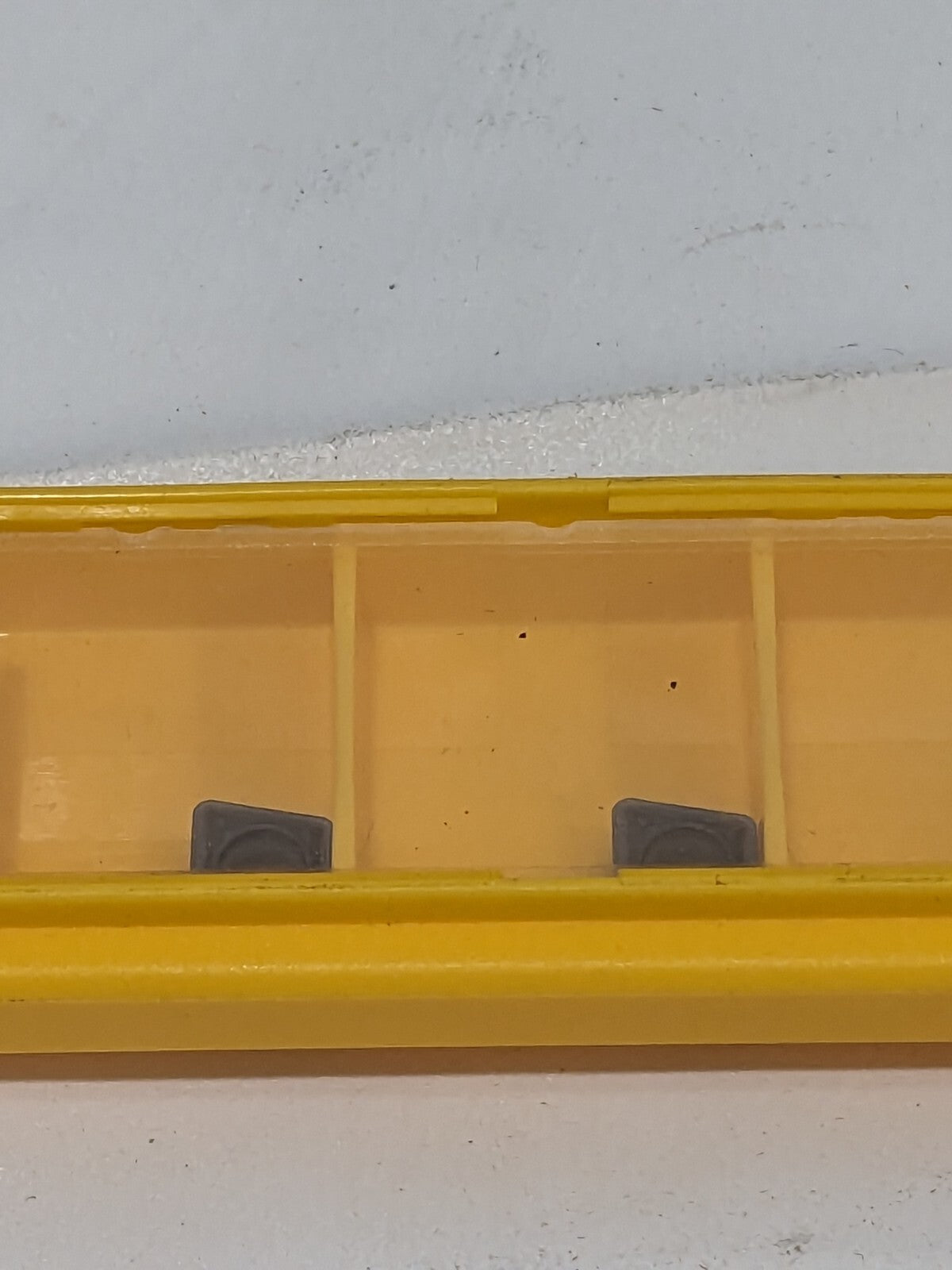

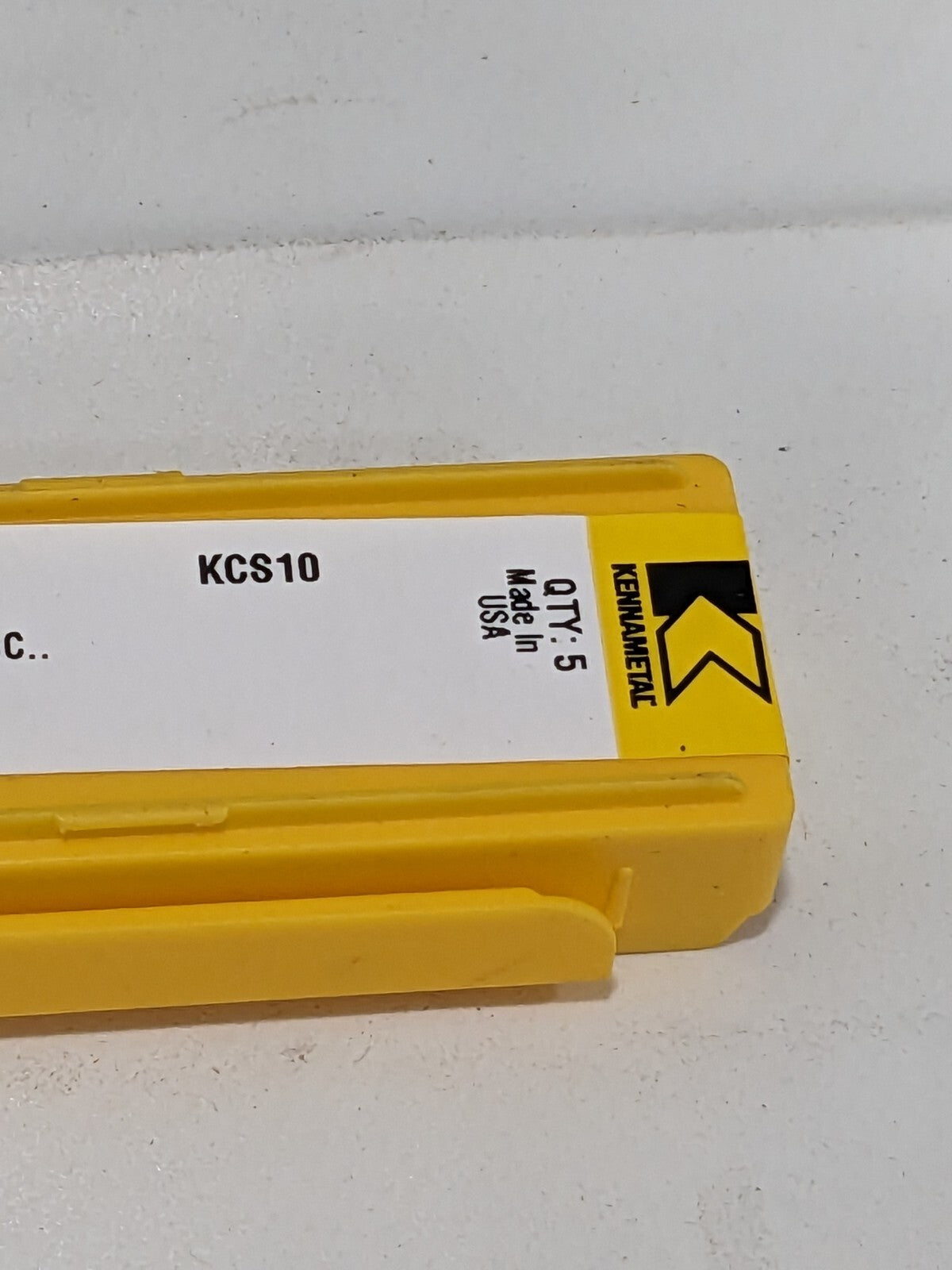

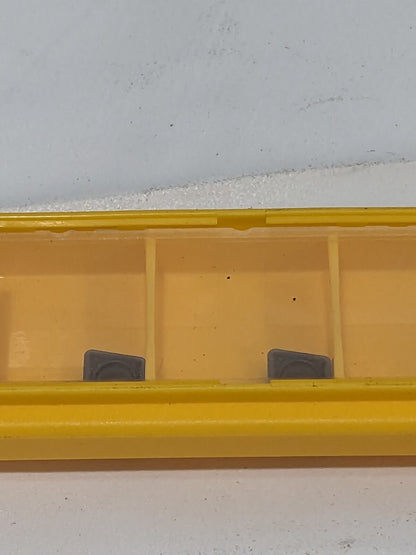

KENNAMETAL Turning Insert: CCMT2152FP KCU10, Carbide Qty 5 3769292

Kennametal
1 Lot of 5 Turning Inserts

MSRP: $100.00

• ANSI Insert Code CCMT2152
• ISO Insert Code CCMT060208
• Relief Angle 7
• Insert Style CCMT
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 80
• Manufacturer Grade KCS10
• Coating/Finish AlTiN
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/32
• Insert Thickness (Decimal Inch) 0.0938
• Series Screw-On
• Inscribed Circle (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 1/4
• Insert Material Carbide
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Chip Breaker Operation Finishing
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 2
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.1102
• Hole Diameter (Mm) ( - 0 Decimals) 2.80
• Maximum Depth of Cut (Decimal Inch) 0.0845
• Insert Holding Method Screw
• Width (Inch) 1/4
• Clearance Code C
• Tolerance Code M
• Coating Process PVD
• Length Range (Decimal Inch) 0.0000 - 0.3000
• Rake Positive
• Insert Length (Decimal Inch) 0.2539
• Insert Length (mm) 6.45
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium
• Primary Workpiece Material Code P; S; H; K; M; N
• Secondary Workpiece Material Code P; K; N
• Standards ISO; ANSI
• Manufacturers Catalog Number 3769292
• Material Grade C3; C4
• Coating Classification PVD
• Chip Breaker FP
• Rake Angle 15
• Cutting Edge Style Honed
• Industry Standard Number CCMT2152FP
• Width (Decimal Inch - 4 Decimals) 0.2500
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• ANSI Size Code 2152
• ISO Size Code 060208
• UNSPSC Code 23242105
• Insert Size Code 2152

These items appear to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
