KENNAMETAL Turning Insert: CCGW3252S0415MT KB1630 3657710

KENNAMETAL

 Turning Insert: CCGW3252S0415MT KB1630 3657710
MSRP: $100

• Insert Style CCGW
• Insert Size Code 32.52
• Insert Shape Diamond
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0312
• Insert Material Polycrystalline Cubic Boron Nitride (PCBN)
• Manufacturer Grade KB1630
• Relief Angle 7
• Insert Thickness (Decimal Inch) 0.1563
• Insert Shape Code C
• Corner Radius (Inch) 1/32
• Hole Diameter (Mm) ( - 0 Decimals) 4.40
• Hole Diameter (Decimal Inch) 0.1730
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0500
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Screw
• Insert Thickness (Inch) 5/32
• Clearance Code C
• Tolerance Code G
• Series Screw-On
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Decimal Inch) 0.3807
• Insert Length (mm) 9.67
• Single or Multi Tipped Multi Tipped
• Chip Breaker W

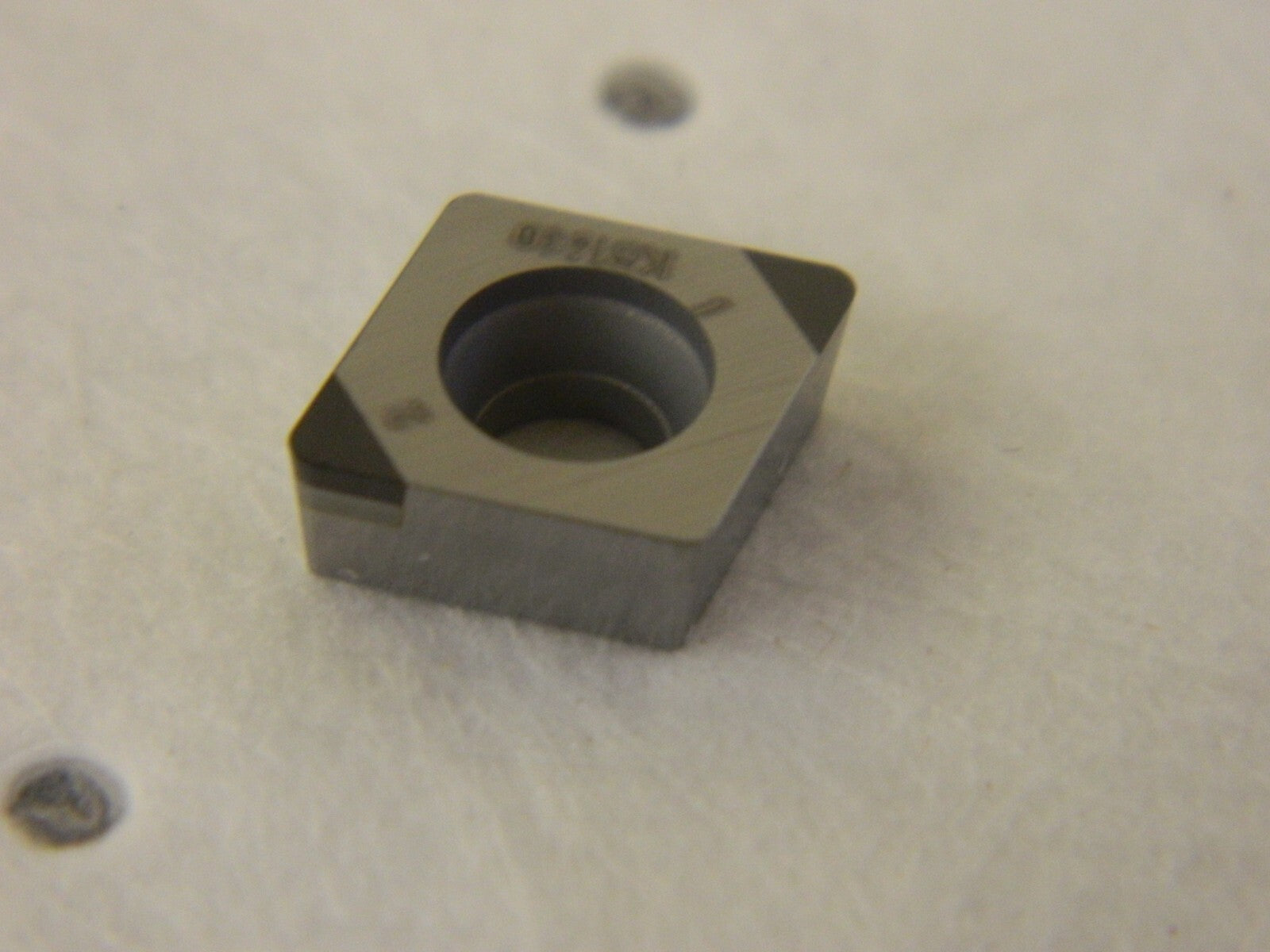

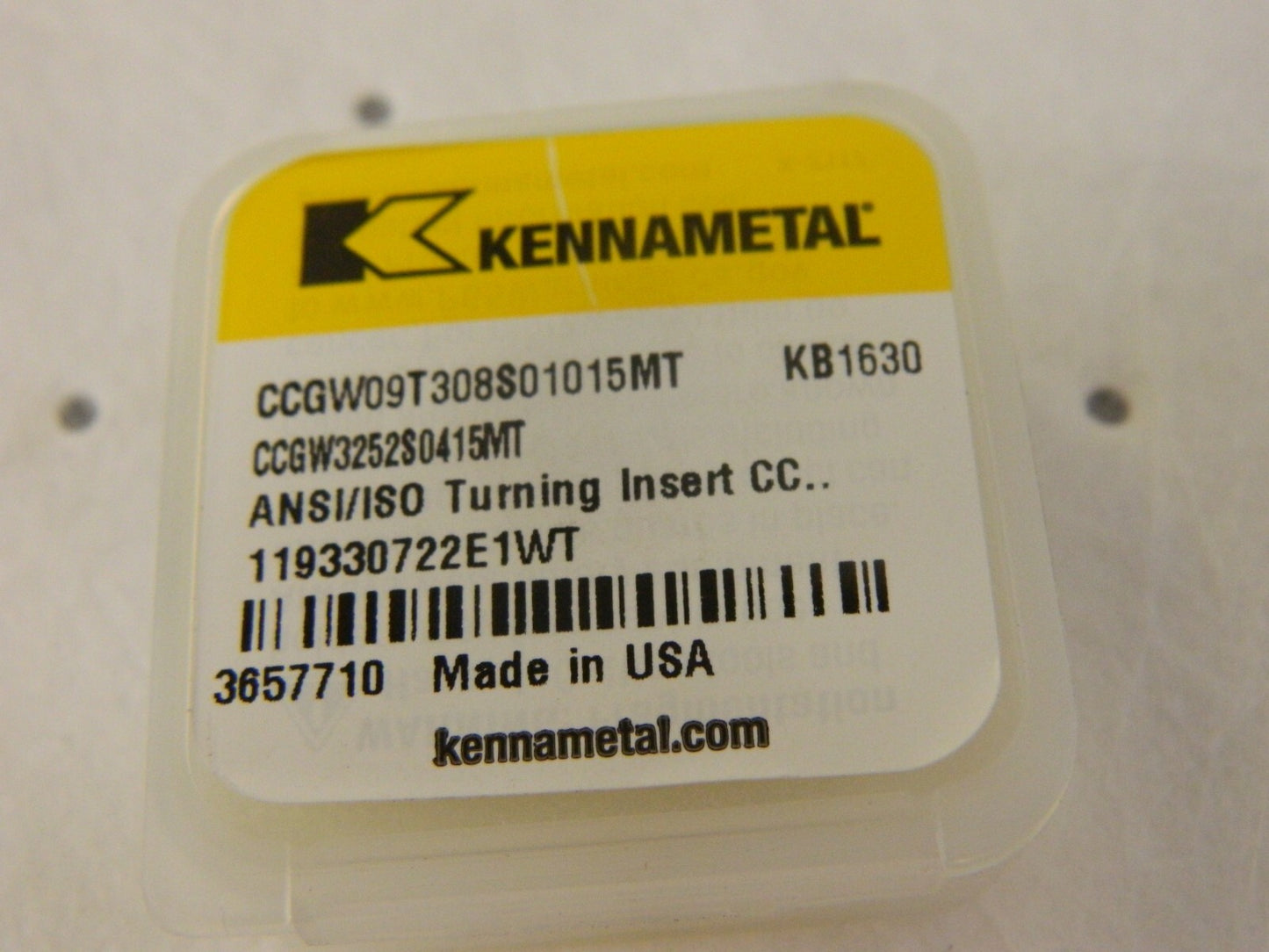

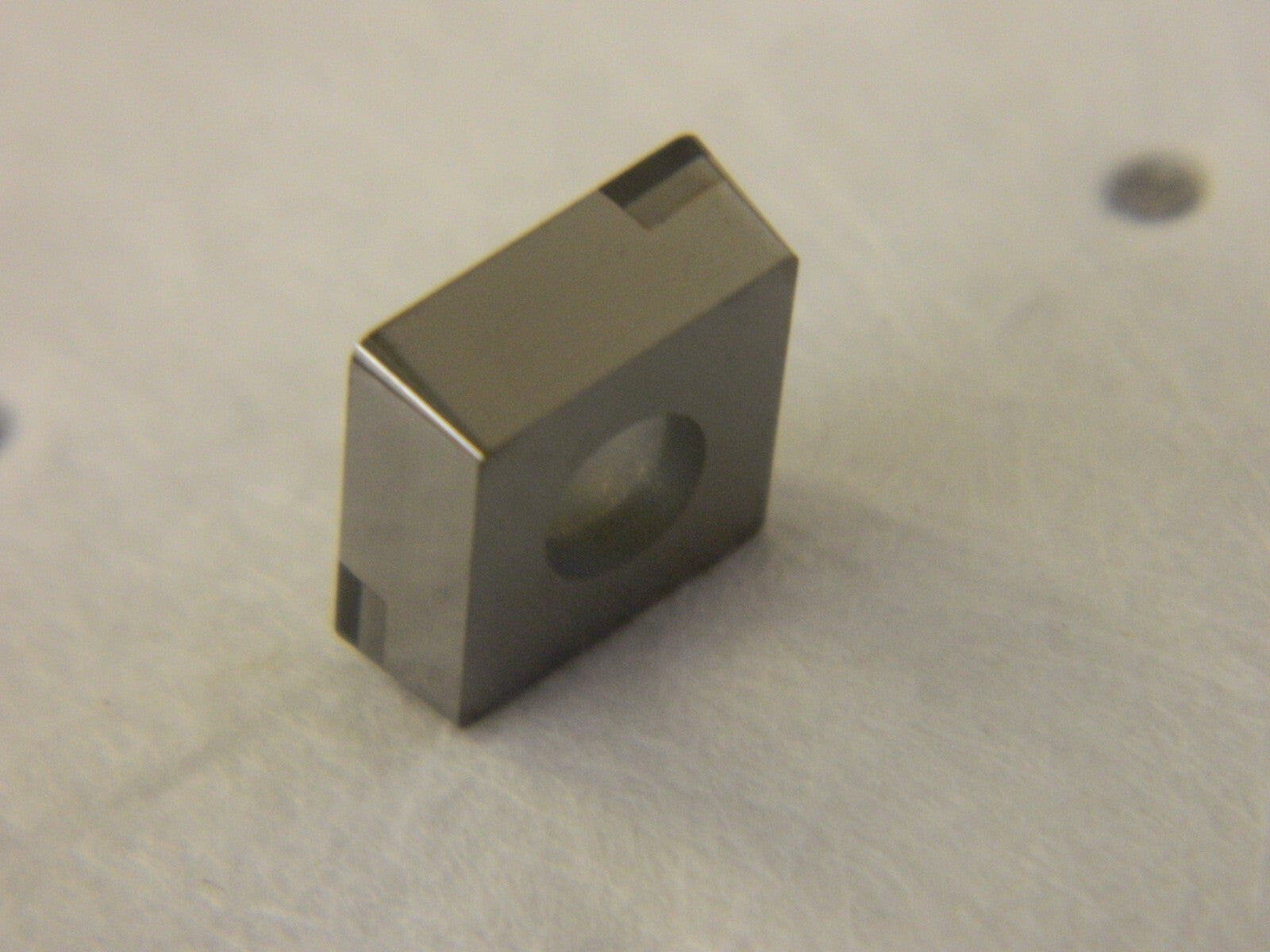

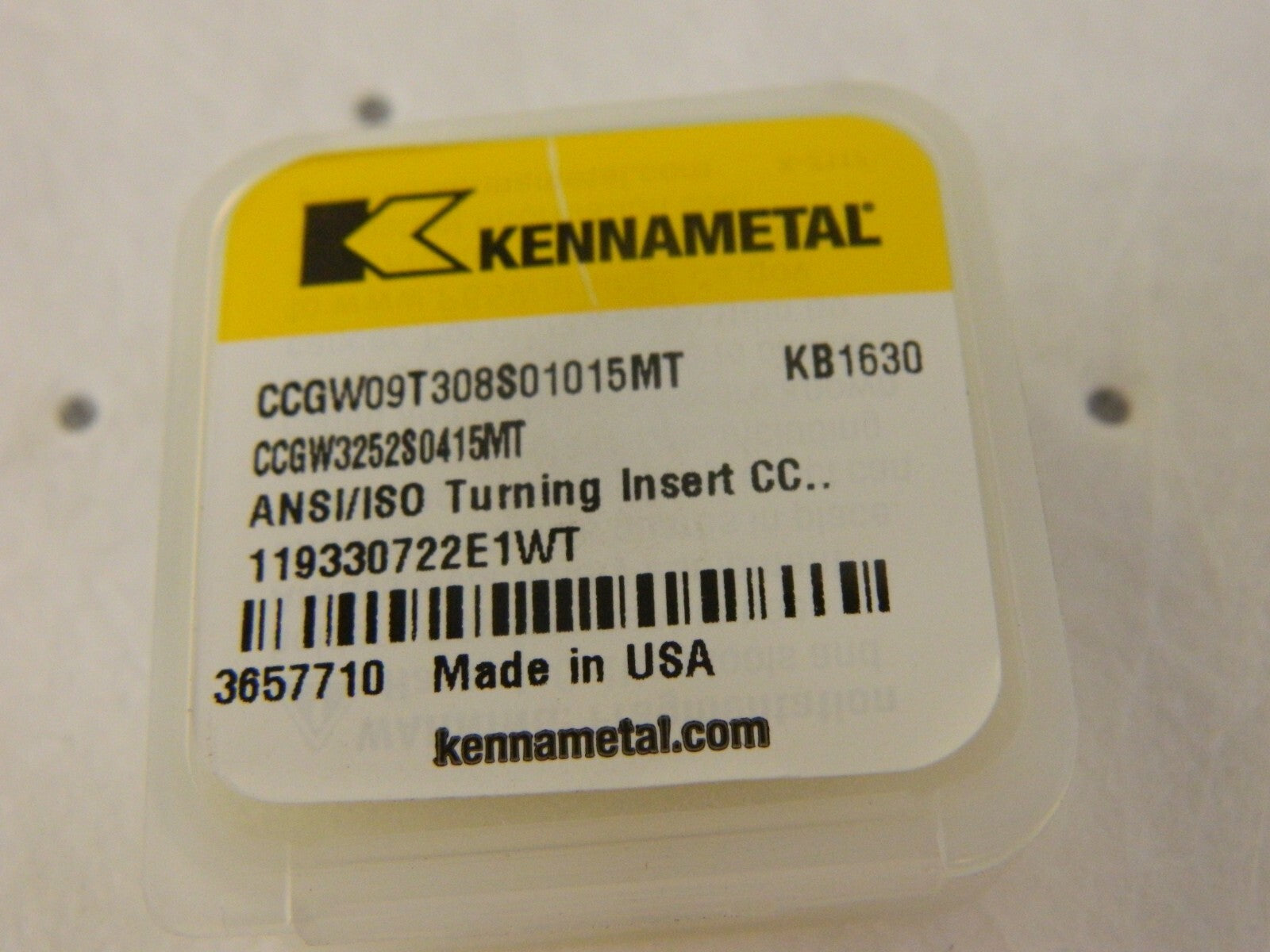

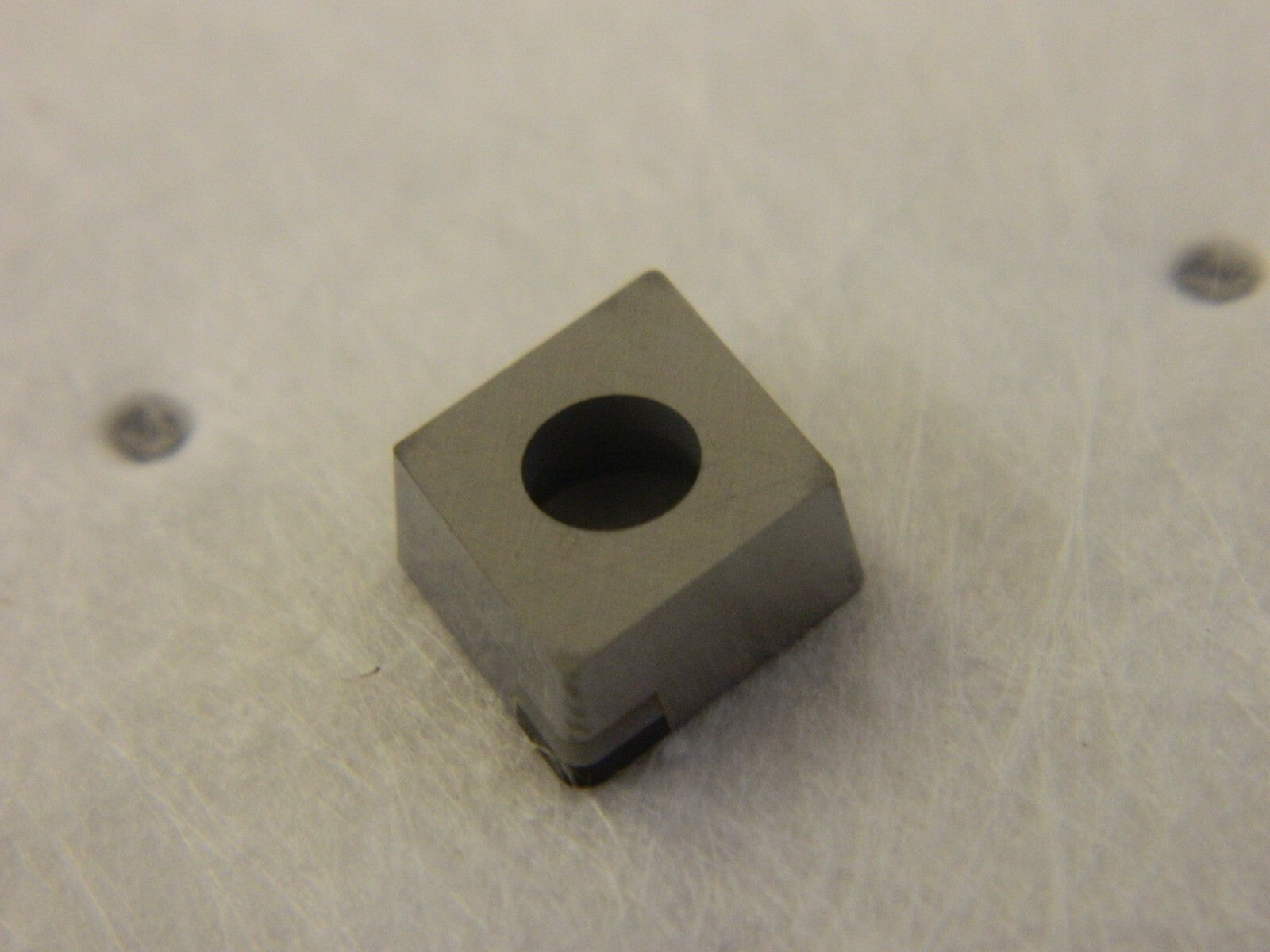

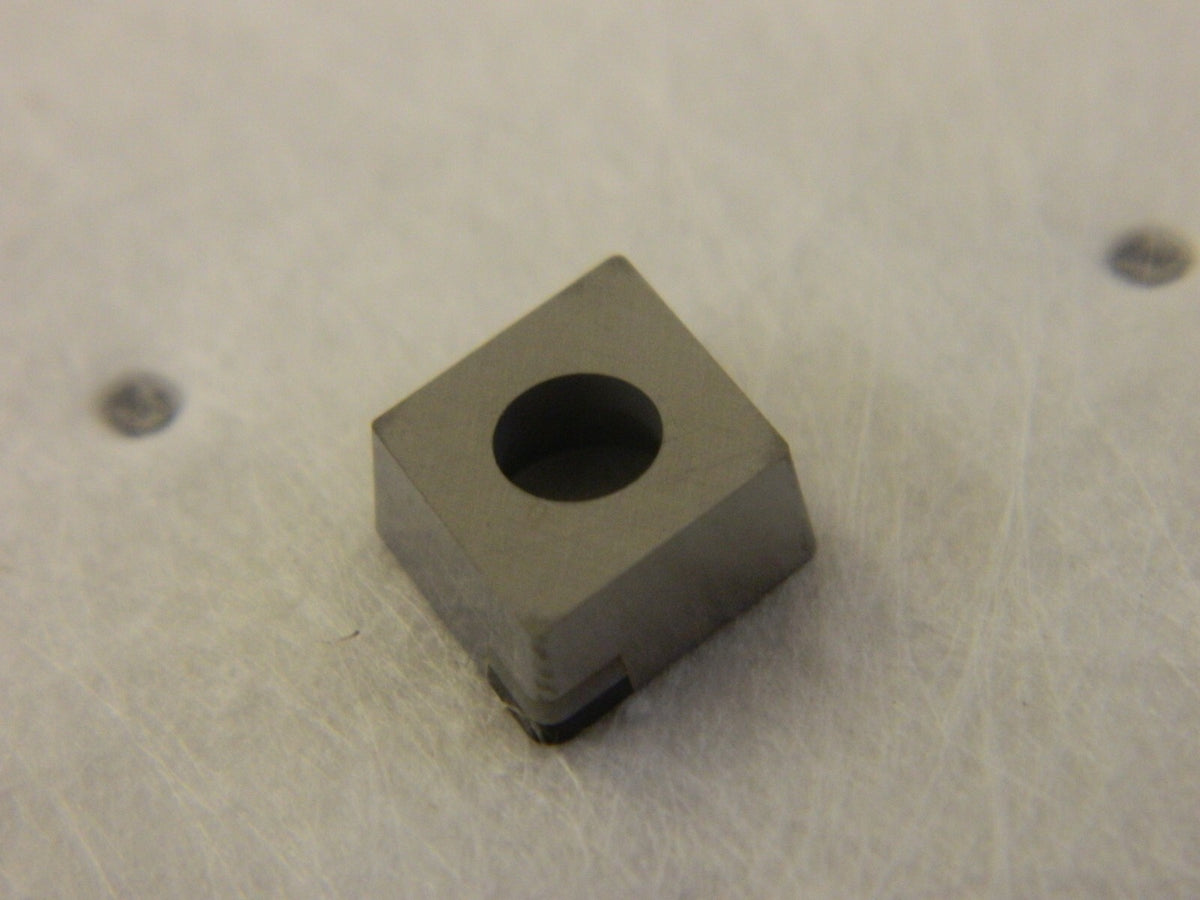

Please review photos, comes as shown.
