KENNAMETAL Turning Insert 5pc: DNMG332MN KCP10B, Carbide 5697965
MSRP: $120

•

• Insert Style DNMG
• Insert Size Code 332
• Insert Shape Diamond
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Carbide
• Manufacturer Grade KCP10B
• Coating/Finish TiOCN; TiCN; Al2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code D
• Corner Radius (Inch) 1/32
• Hole Diameter (Mm) ( - 0 Decimals) 3.81
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (Decimal Inch) 0.3049
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Pin; Clamp
• Width (Inch) 3/8
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series KENLOC
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 0.9156
• Insert Length (mm) 11.63
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Iso Code DNMG110408MN
• Standards ISO; ANSI
• Manufacturers Catalog Number 5697965
• Material Grade C3; C7
• Proprietary Coating Designation Multilayer Coating
• UNSPSC Code 23242105
• Coating Classification CVD
• Chip Breaker MN
• Rake Angle 0
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number DNMG332MN
• Width (Decimal Inch - 4 Decimals) 0.375
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring

(Description).

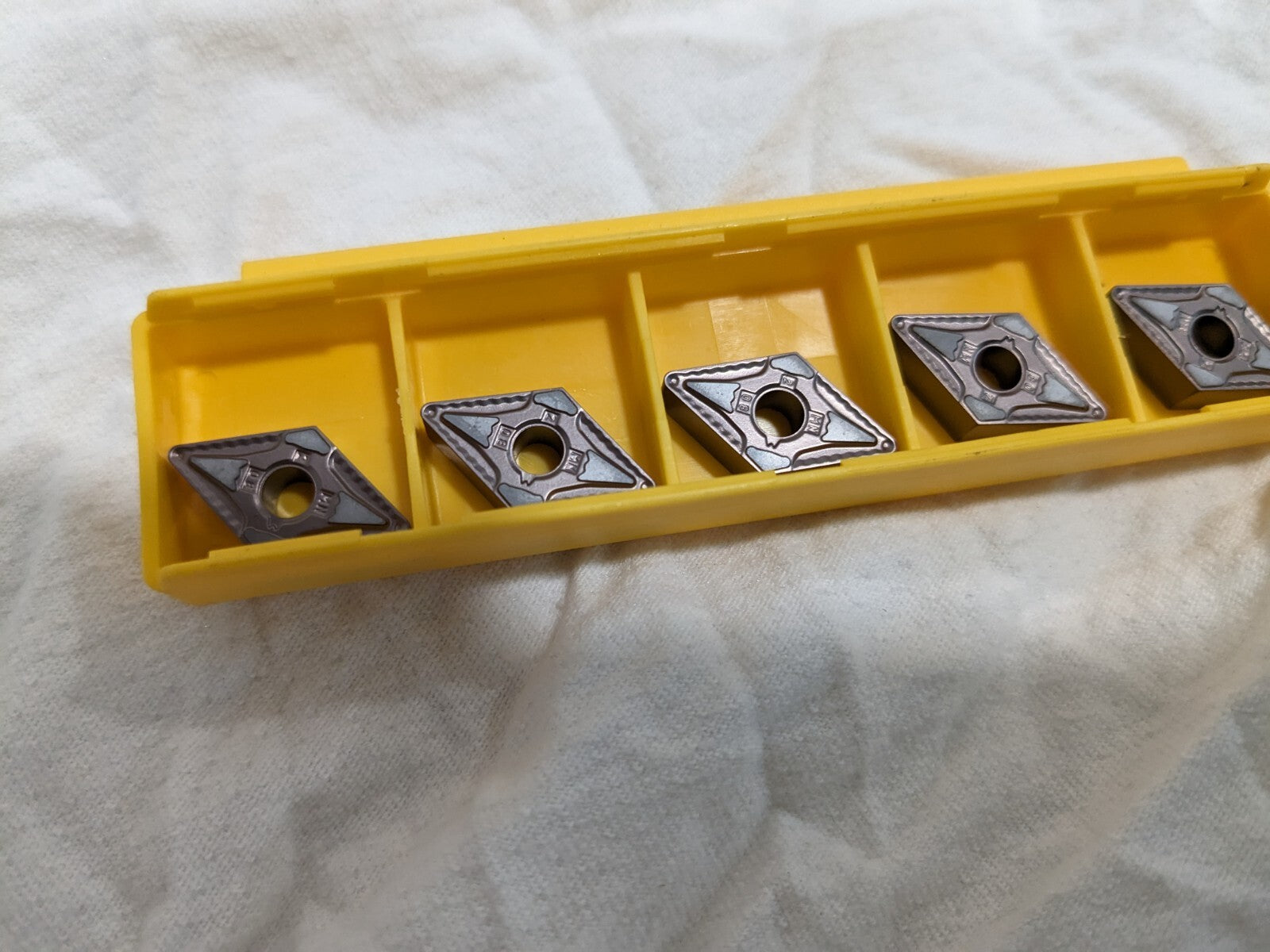

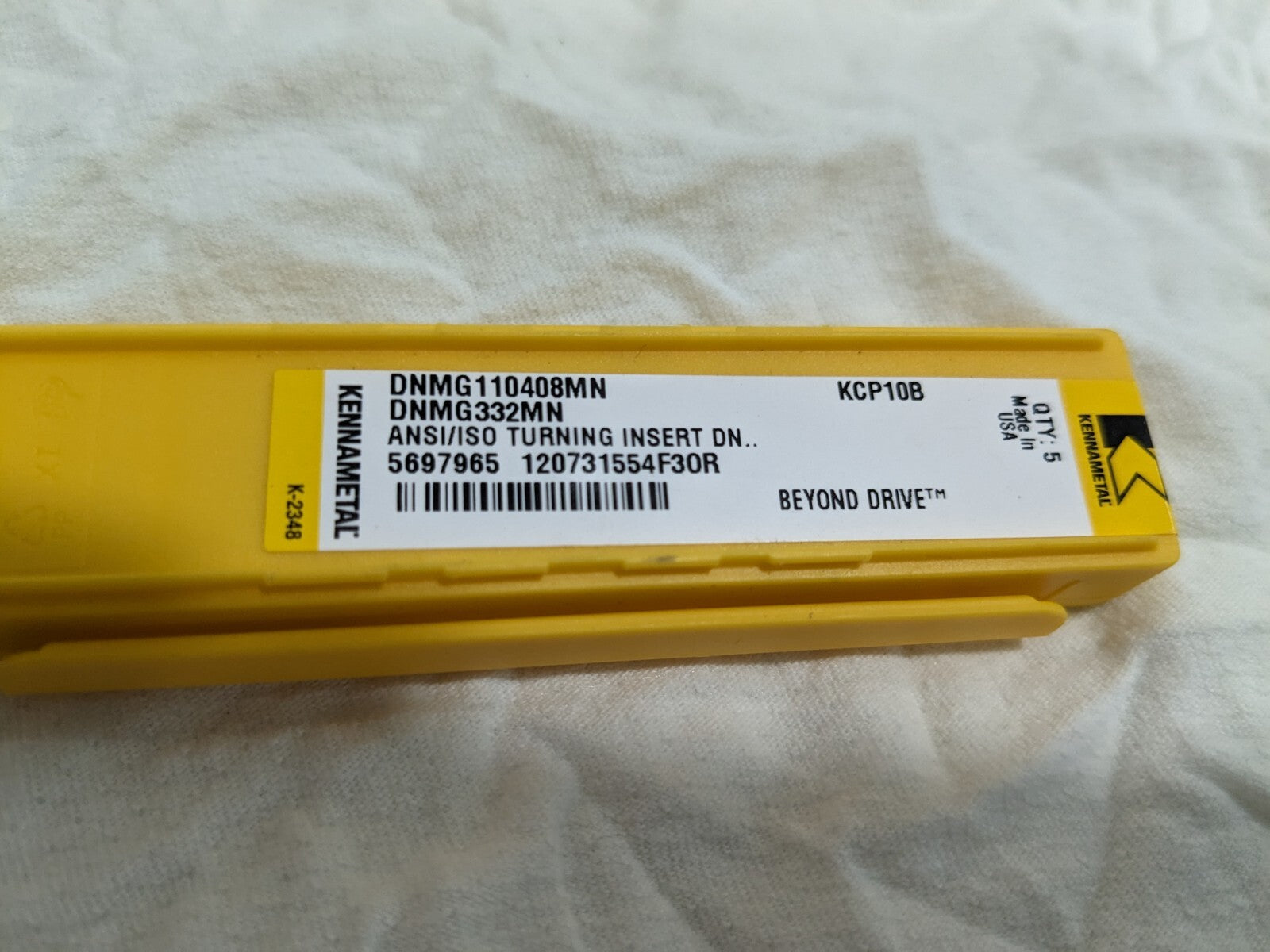

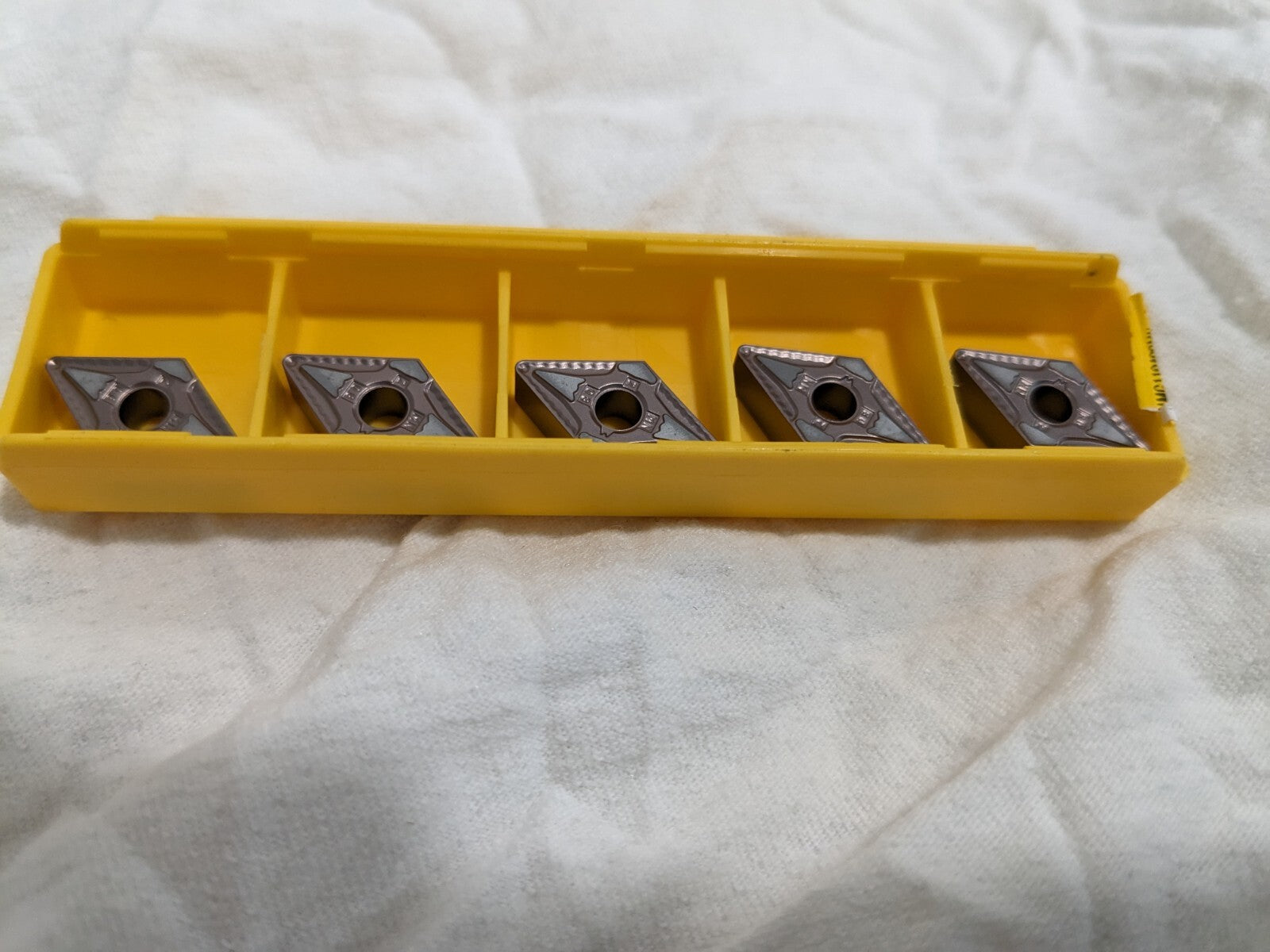

Please review photos, comes as shown.
