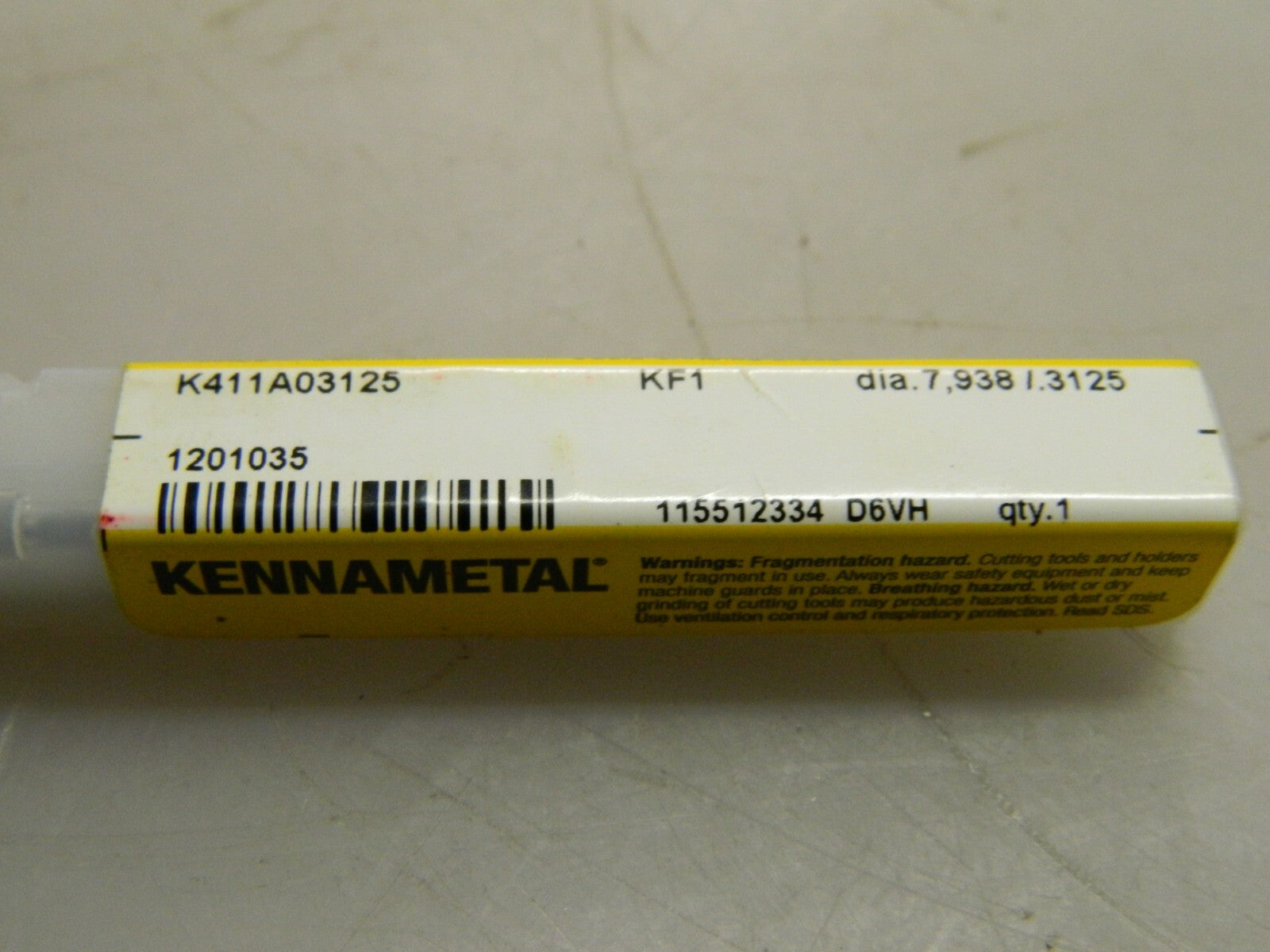

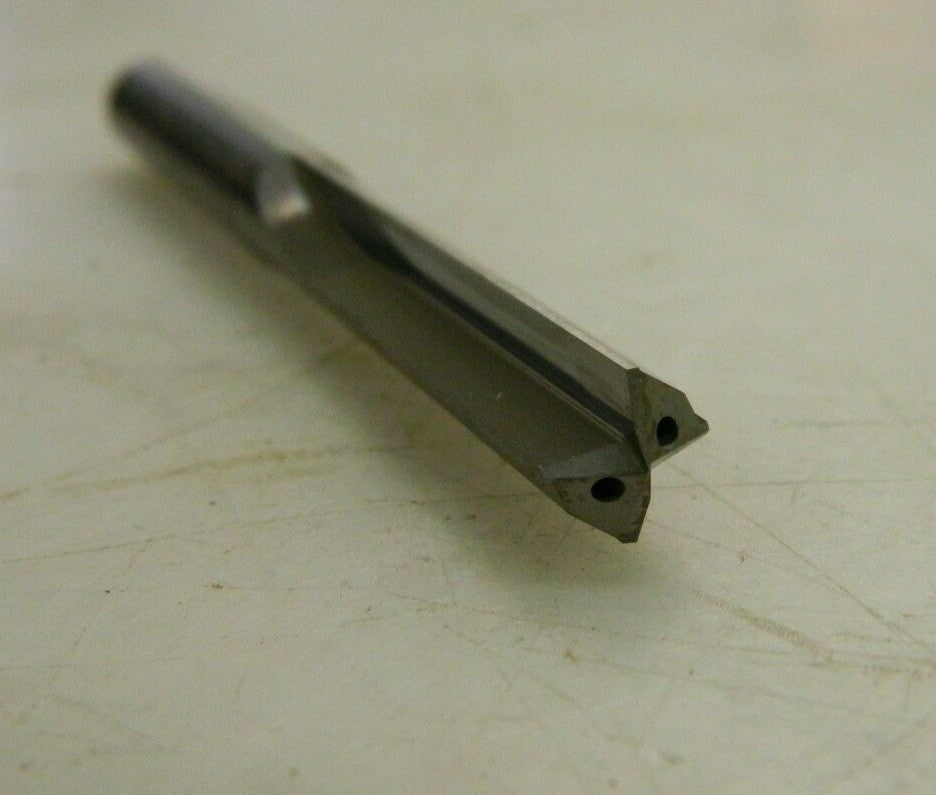

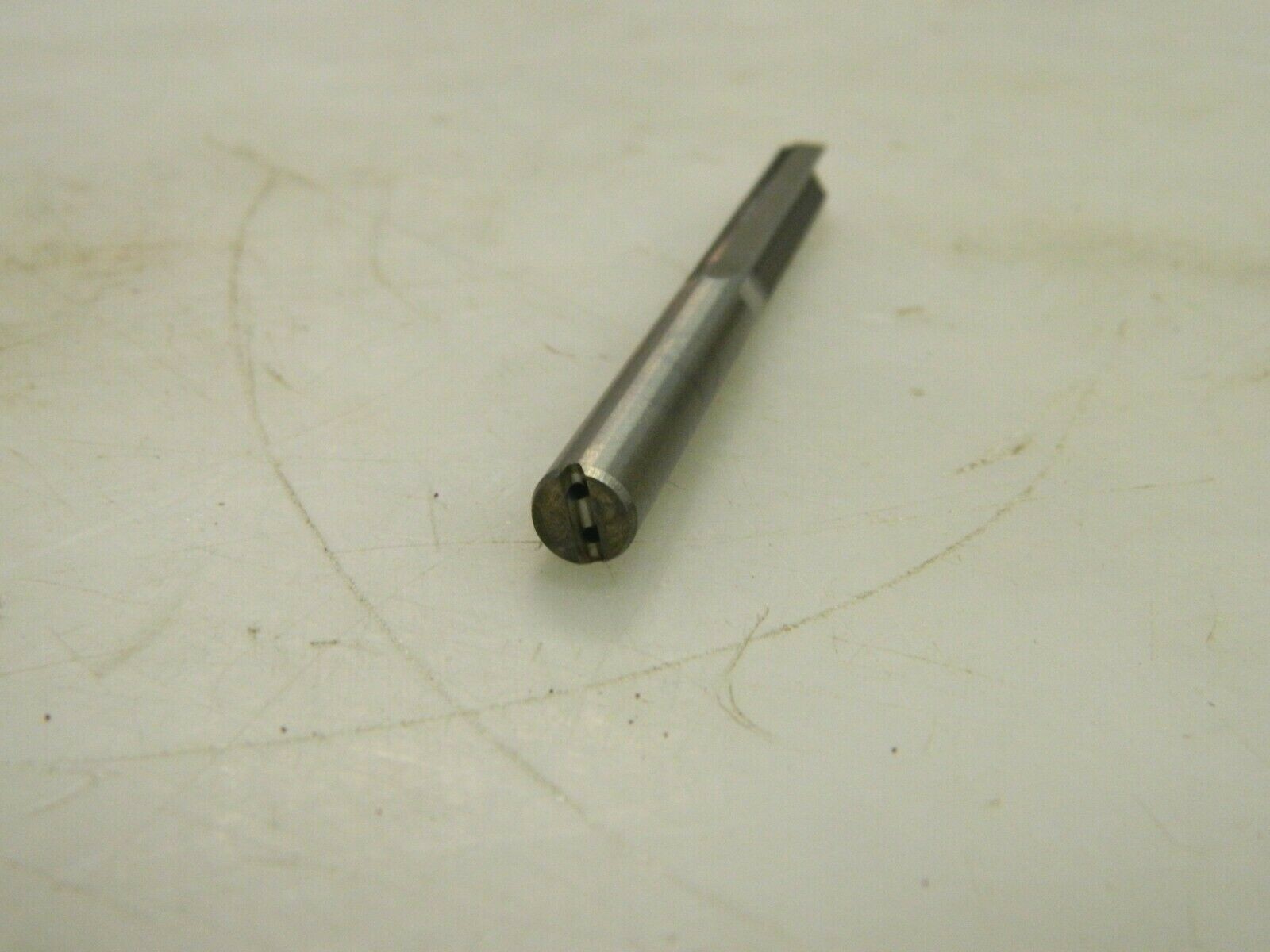

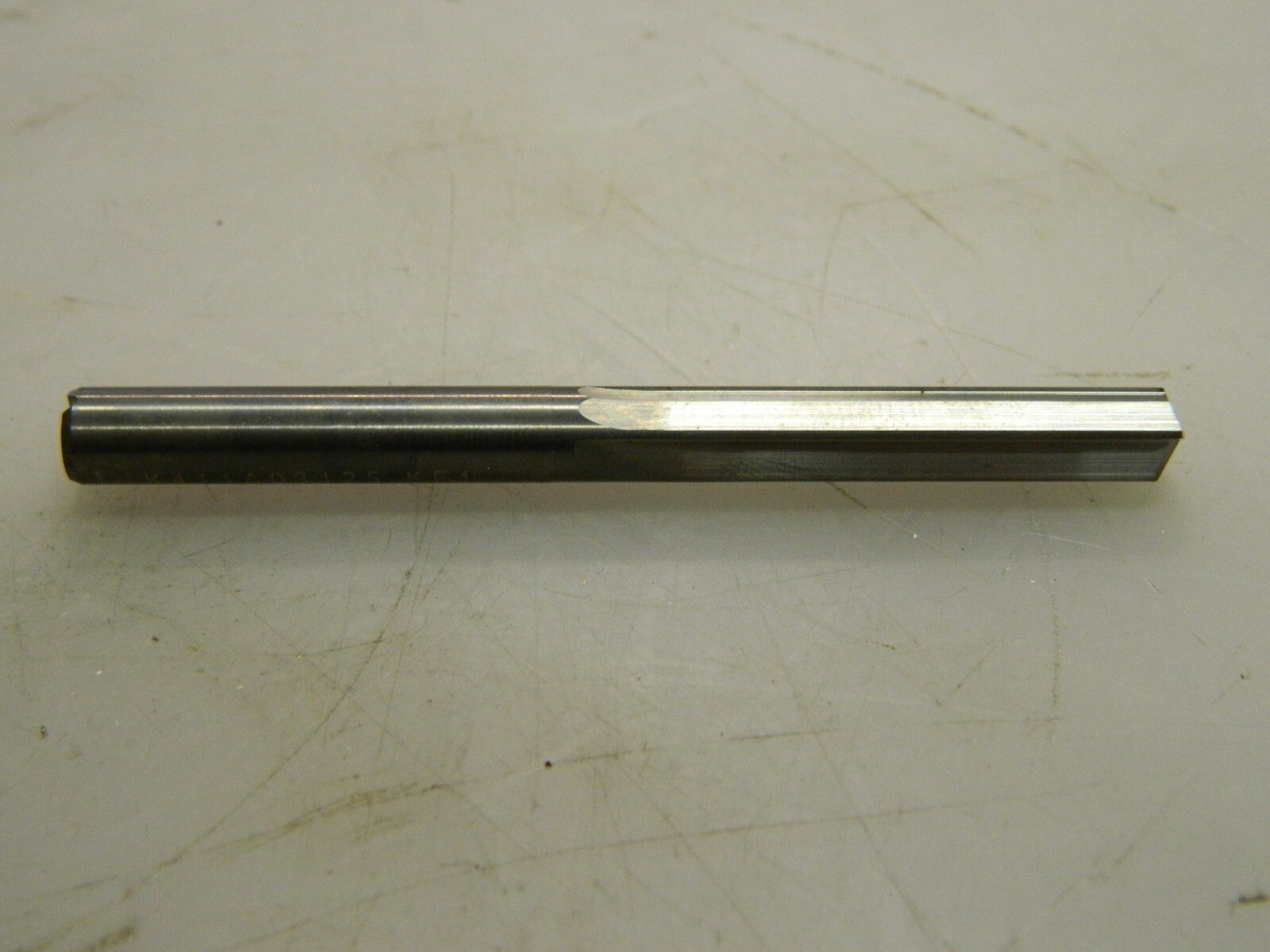

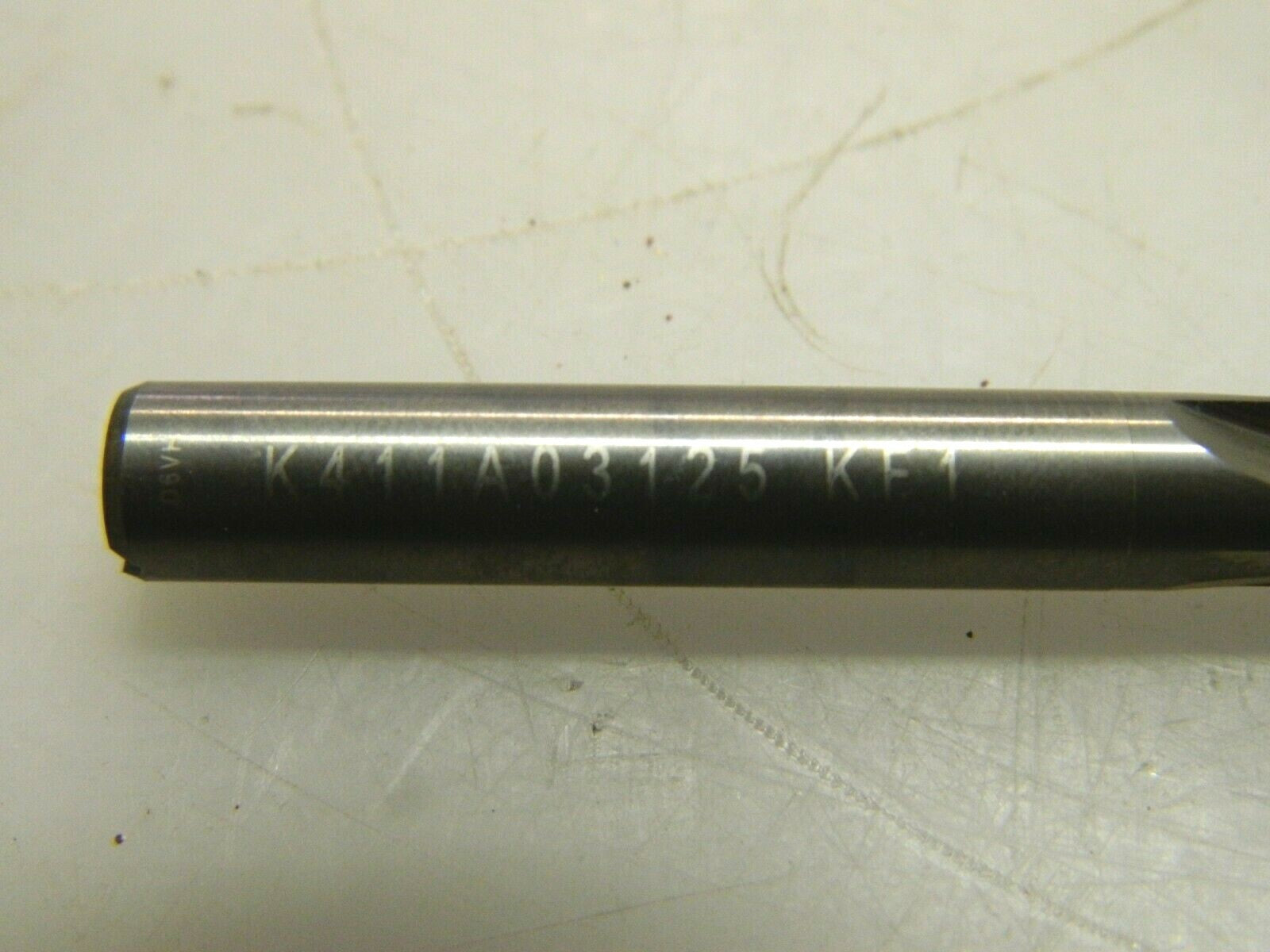

Kennametal Straight Flute Drill Bit 5/16" 130° Point Solid Carbide 1201035
Kennametal Straight Flute Drill Bit 5/16" 130° Point Solid Carbide 1201035
Regular price
$54.25 USD
Regular price
$115.00 USD
Sale price
$54.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $115
Model: 1201035
Description:
Drill Bit Type Straight-Flute Drill Bit
Drill Point Angle 130
Drill Bit Size (mm) 7.94
Drill Bit Size (Inch) 5/16
Drill Bit Size (Decimal) 0.3125
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Bright
Overall Length (Decimal Inch) 3.5830
Through Coolant Yes
Flute Length (Decimal Inch) 1.9900
Shank Diameter (Decimal Inch) 0.3125
Shank Diameter (Inch) 5/16
Number of Flutes 2
Point Type Split Point
Maximum Drilling Depth (Decimal Inch) 1.59
Shank Length (Decimal Inch) 1.5200
Specification Designation DIN
Drill Point Length (Decimal Inch) 0.0730
Cutting Direction Right Hand
Web Thinning Web-Thinned
Coolant-Hole Shape Round
Specification Number DIN 6537L
Series/List K411
This listing is for One Straight-Flute Drill Bit that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
Amanda Feb 19 19
AC4678
CAB Mars BIN 17
