KENNAMETAL Spiral Flute Tap: 3/8-16 UNC, 2 Fl 5689880

KENNAMETAL

 Spiral Flute Tap: 3/8-16 UNC, 2 Fl 5689880
MSRP: $40

• Thread Size (Inch) 3/8-16
• Chamfer Modified Bottoming
• Thread Limit H3
• Class Of Fit 3B
• Number Of Flutes 2
• Material Vanadium High Speed Steel
• Thread Direction Right Hand
• Flute Direction Right Hand
• Coating/Finish C; CrC; TiN
• Coolant Through No
• Thread Length (mm) 19.00
• Overall Length (Decimal Inch) 3.9400
• Overall Length (mm) 100.00
• Thread Standard UNC
• Helix Angle 45
• Shank Diameter (Decimal Inch) 0.3810
• Shank Diameter (mm) 9.68
• Neck Length (Decimal Inch) 0.7900
• Tapping Depth (Decimal Inch) 1.5400
• Tapping Depth (mm) 39.00
• Flute Style Fast
• Material Application Aluminum Wrought Alloy
• Series T682

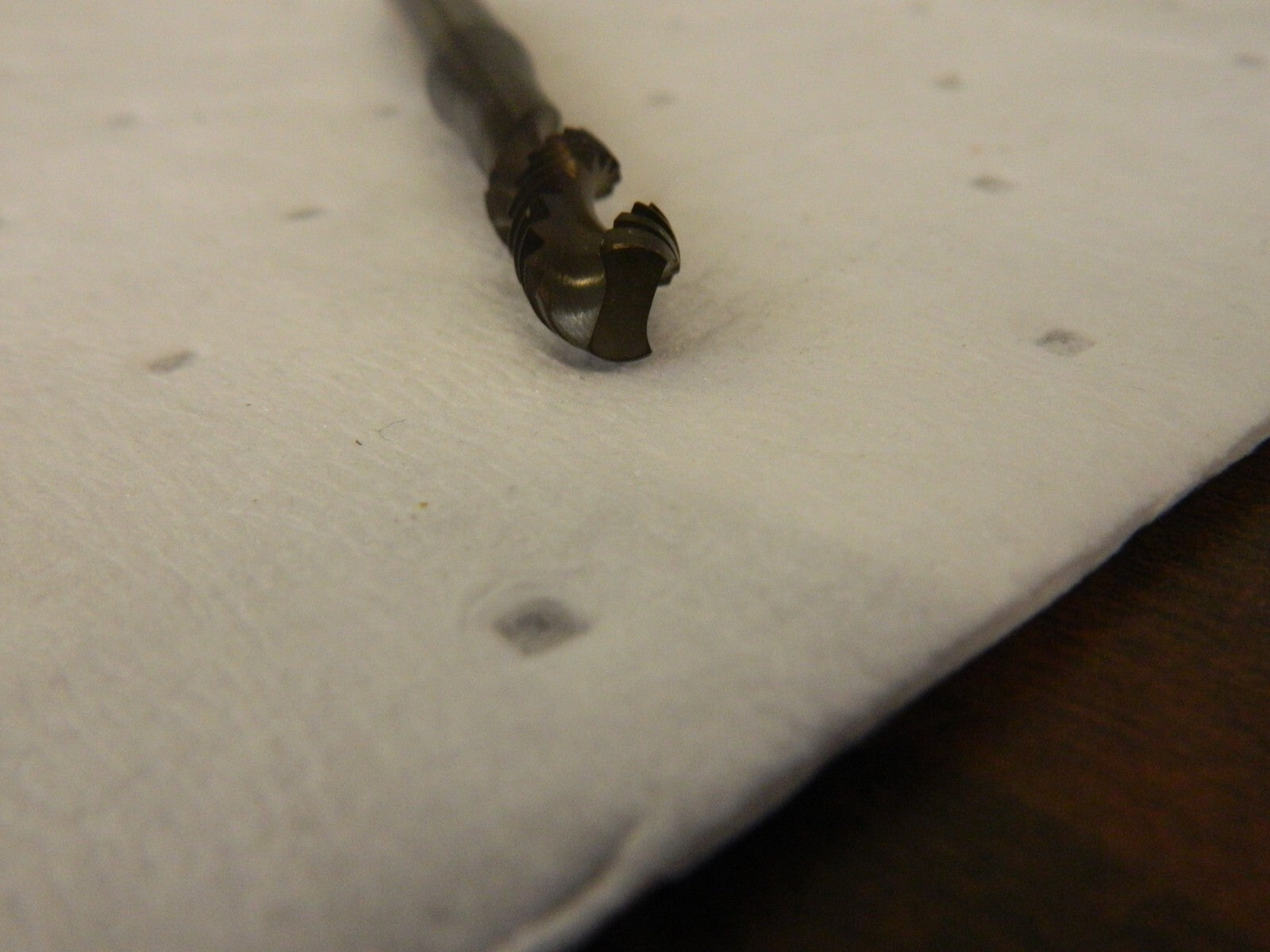

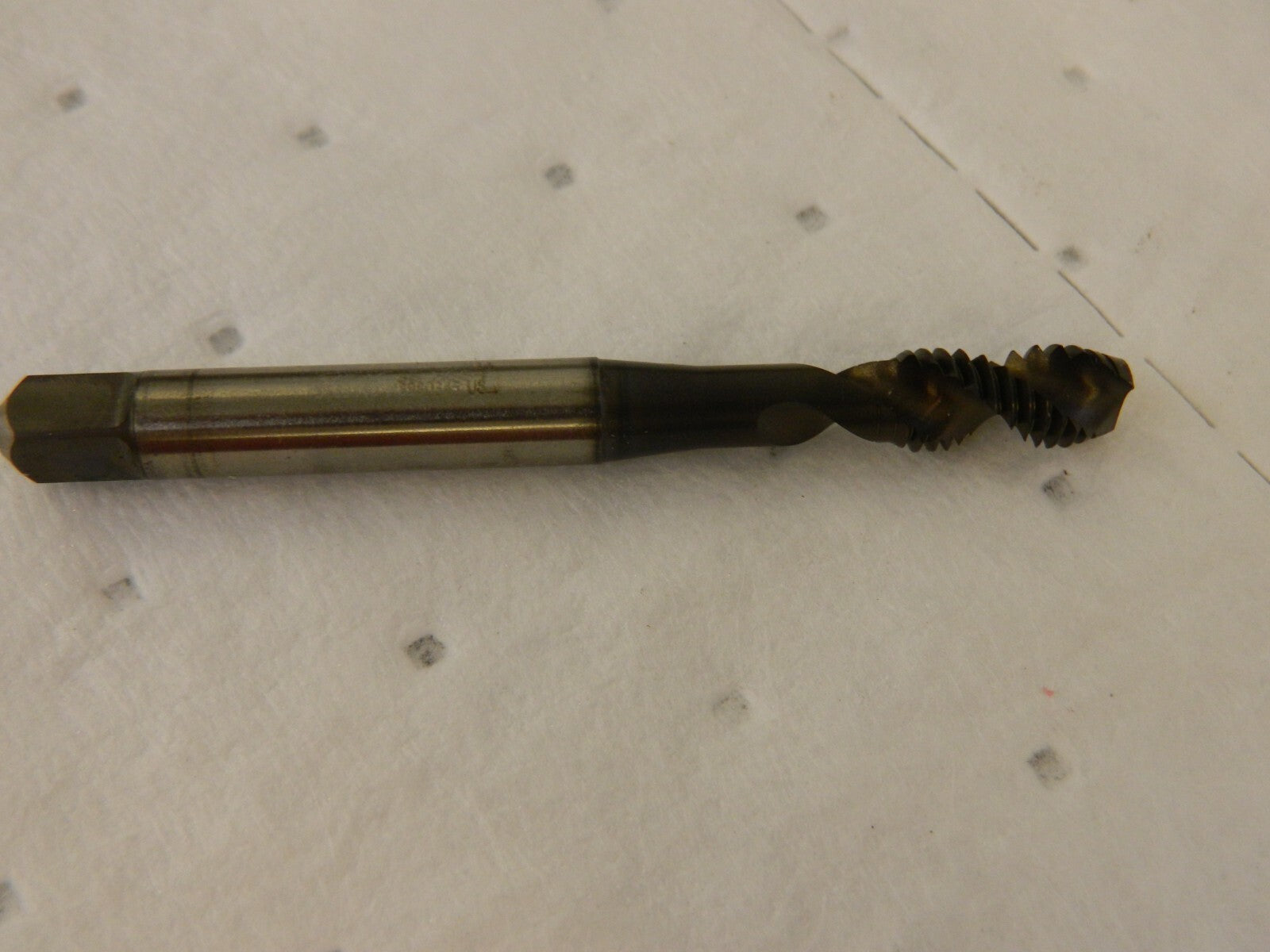

 Please review photos, comes as shown.
