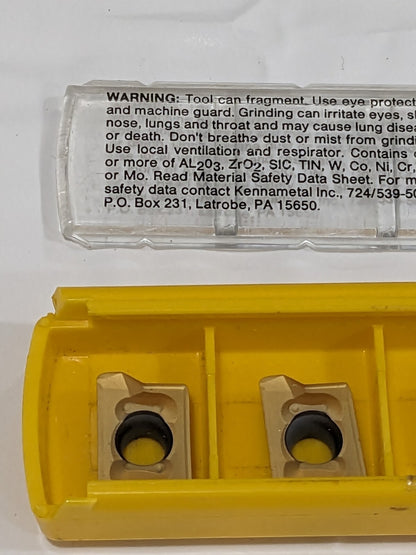

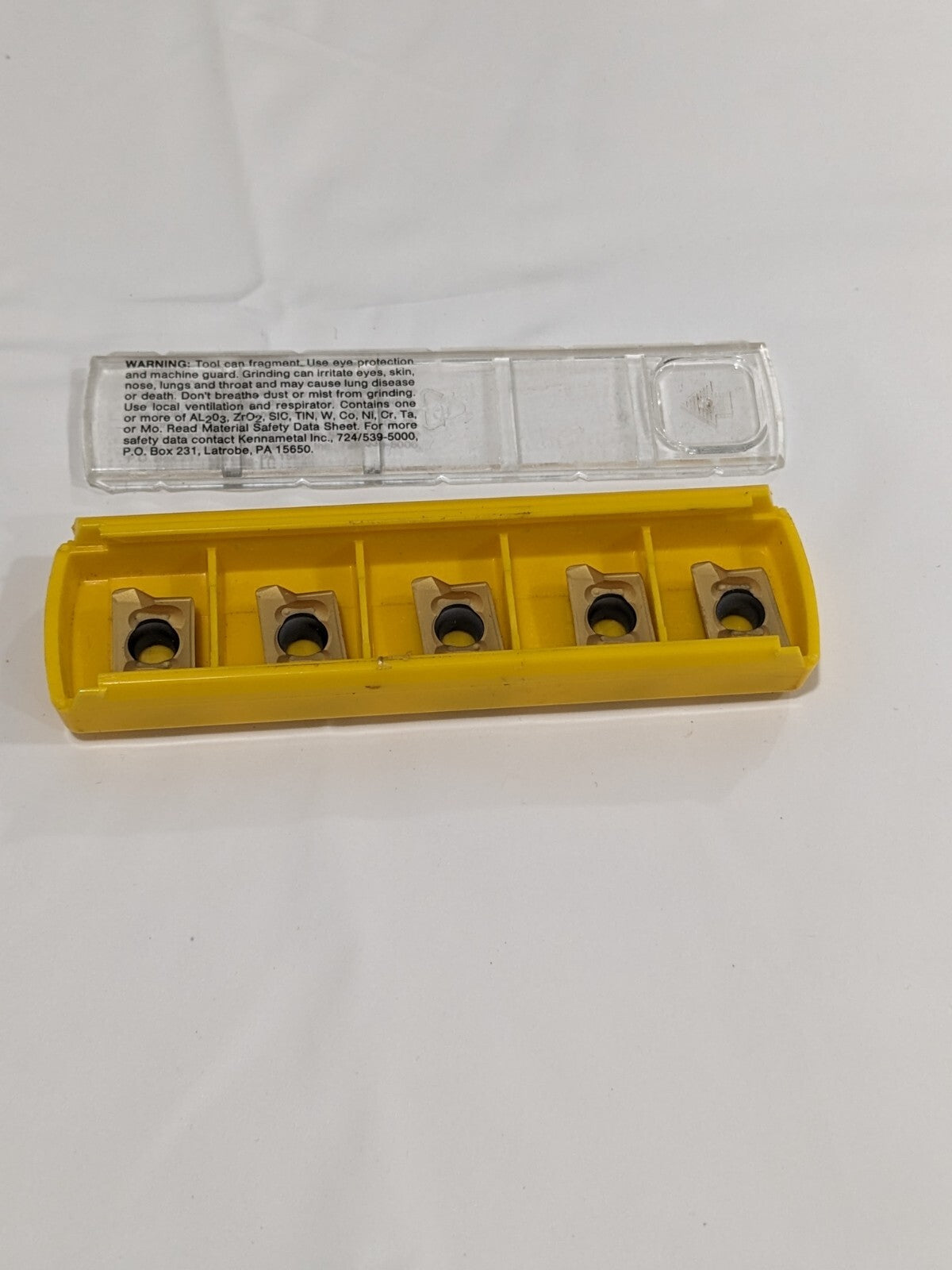

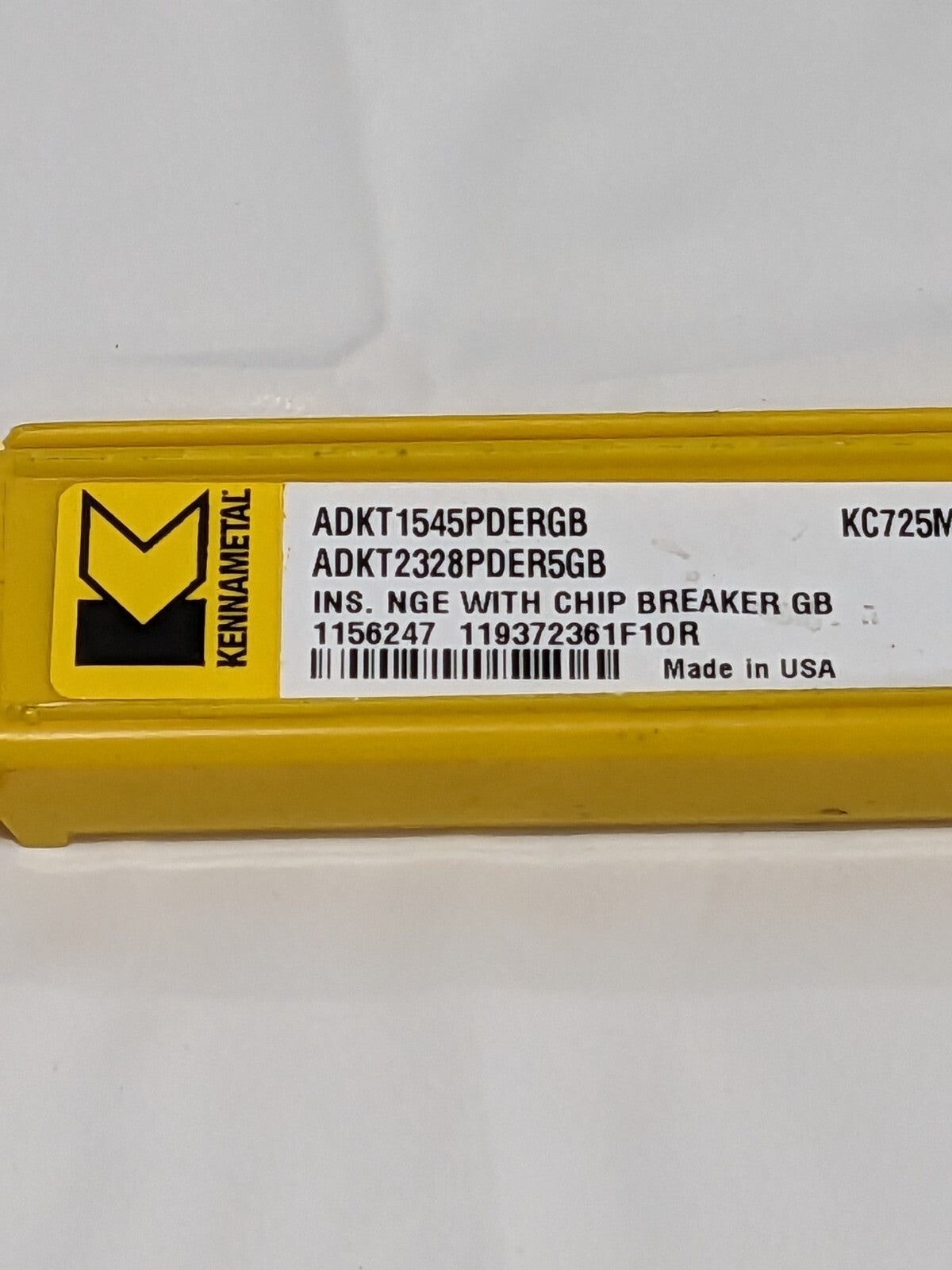

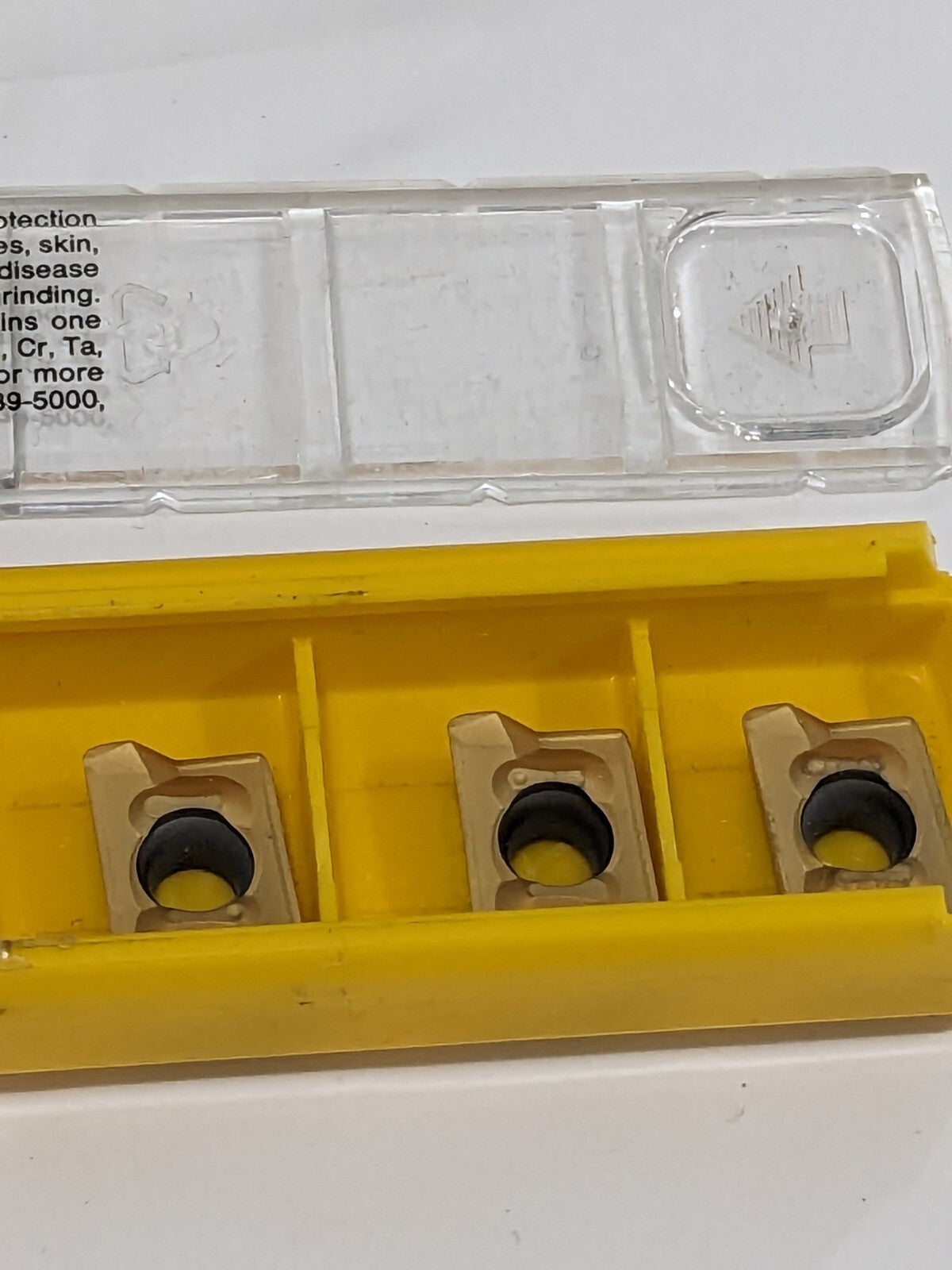

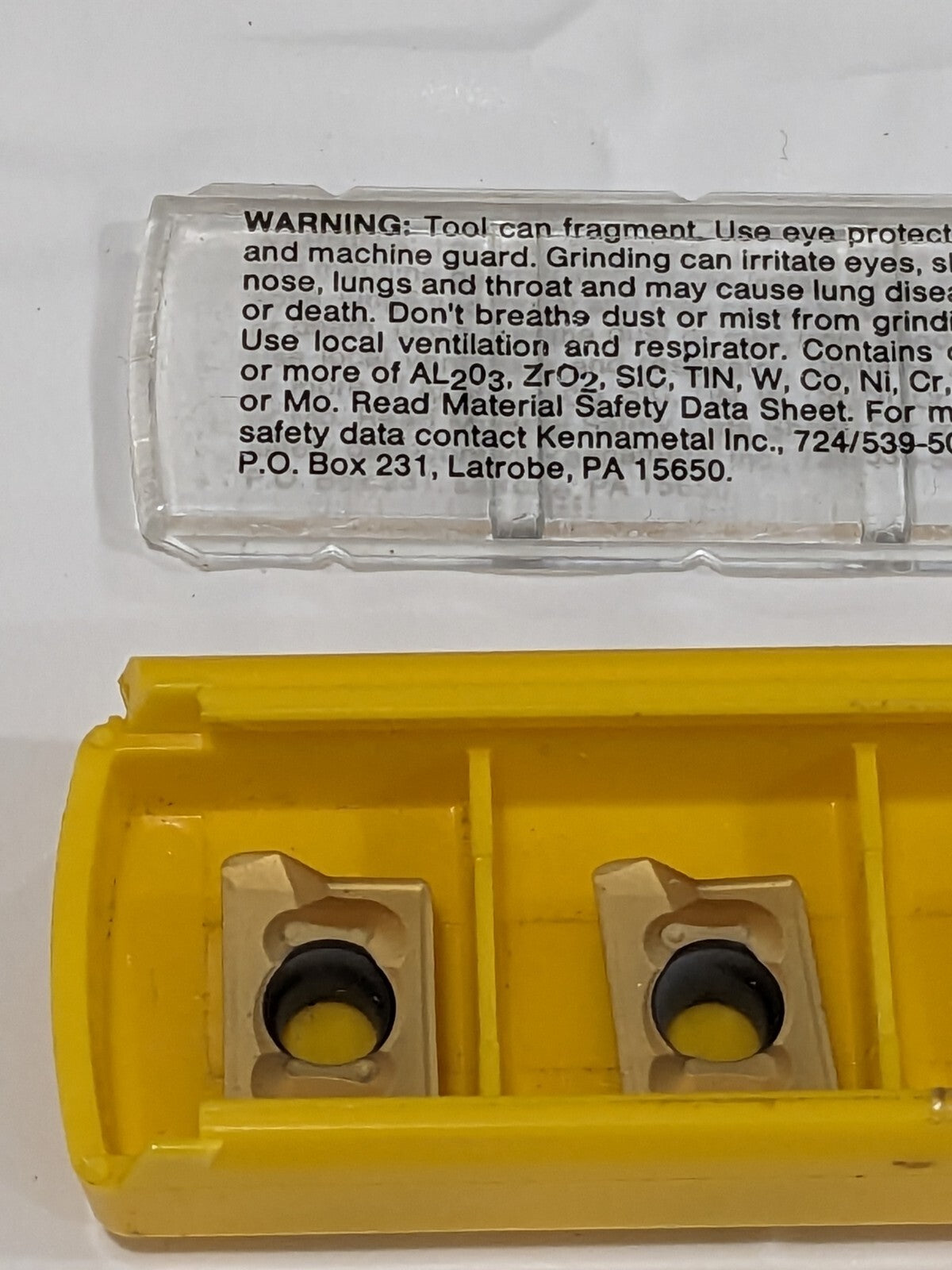

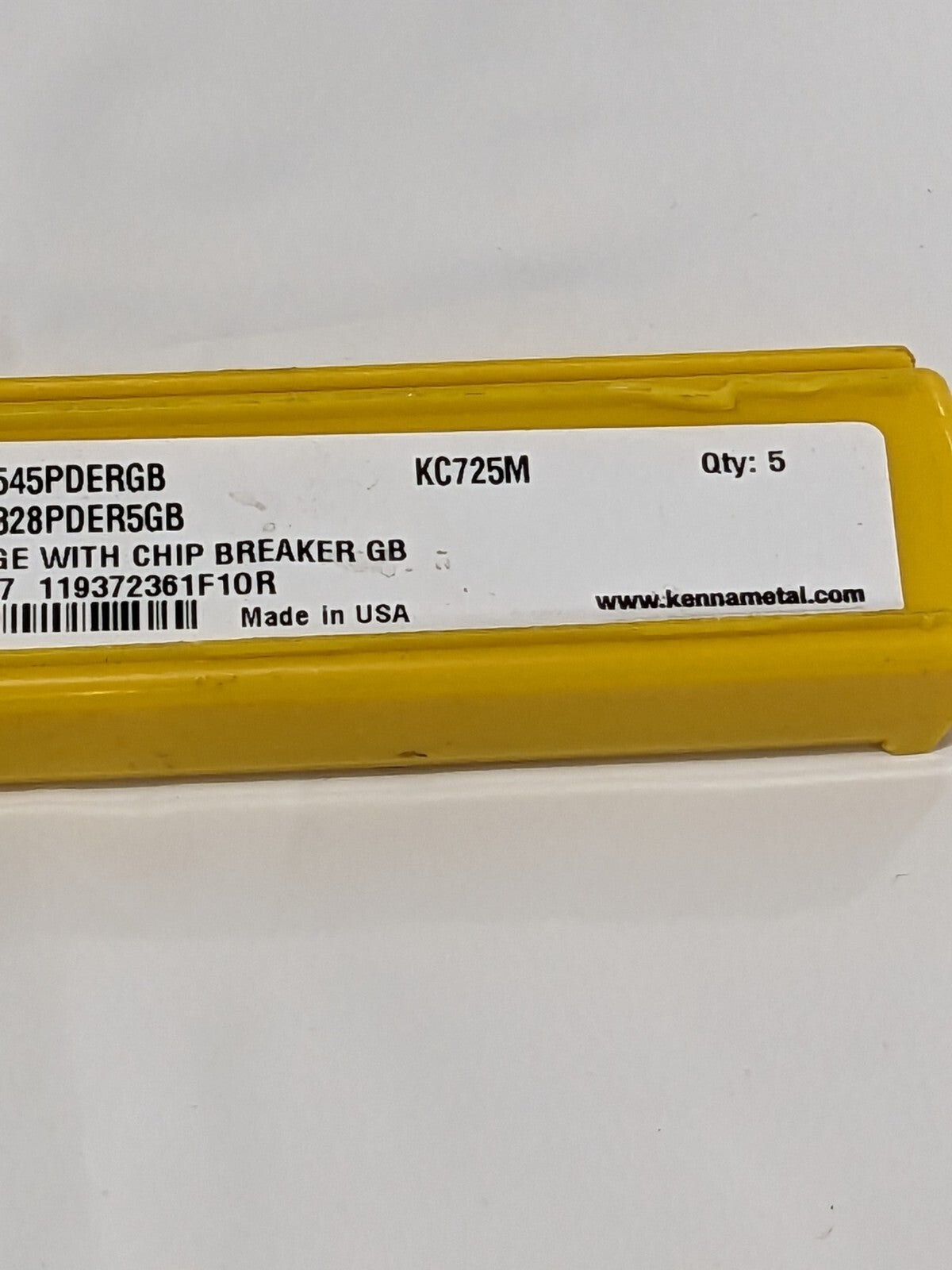

KENNAMETAL Solid Carbide Milling Insert: ADKT1545PDERGB KC725M Qty 5 1156247

Kennametal
1 Lot of 5 Inserts

MSRP: $100.00

• Insert Style ADKT
• Insert Size 23
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade KC725M
• Corner Radius (Decimal Inch) 0.0315
• Corner Radius (mm) 0.80
• Thickness (Decimal Inch - 4 Decimals) 0.1772
• Coating/Finish TiCN; TiN
• Relief Angle 15.00
• Insert Size Code 2328
• Material Grade C5; C6; C7
• Thickness Range (Decimal Inch) 0.1750 to 0.1850
• Corner Radius (Inch) 1/32
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Right Hand
• Series ADKT
• Coating Process PVD
• Hole Diameter (Mm) ( - 0 Decimals) 0.17
• Hole Diameter (Decimal Inch) 0.1732
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; M
• Iso Code ADKT1545PDERGB
• Rake Angle 5
• Manufacturers Catalog Number ADKT1545PDERGB
• Chip Breaker GB
• UNSPSC Code 23291601
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• Insert Holding Method Screw
• Coating Classification PVD
• Included Angle Degree 85
• Width (Decimal Inch - 4 Decimals) 0.3937
• Length (Decimal Inch - 4 Decimals) 0.5906

These items appear to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
