KENNAMETAL Solid Carbide Grooving Inserts NG3178 KCU25 QTY5 4109832

KENNAMETAL
Solid Carbide Grooving Inserts NG3178 KCU25 QTY5 4109832

MSRP: $140

• Insert Style NG
• Insert Size 3178
• Insert Material Solid Carbide
• Material Grade C2; C6
• Manufacturer Grade KCU25
• Cutting Width (Decimal Inch) 0.1780
• Cutting Width (mm) 4.52
• Maximum Depth of Cut (Decimal Inch) 0.1500
• Maximum Depth of Cut (mm) 3.81
• Insert Holding Method Clamp
• Cutting Height (mm) 8.74
• Insert Hand Left Hand
• Maximum Depth Of Cut Range (Decimal Inch) 0.1500 to 0.2000
• Cutting Height (Decimal Inch) 0.3440
• Corner Radius (mm) 0.19
• Corner Radius (Decimal Inch) 0.0075
• Maximum Depth Of Cut Range (mm) 3.00 to 4.00
• Multi-use Tool No
• Series Top Notch
• Coating Process PVD
• Insert Seat Size 3
• MSC/Manufacturer Number NG3178L
• Full Radius No
• Overall Width 4.98
• Overall Width (Decimal Inch - 4 Decimals) 0.1960
• Included Angle Degree 55
• Coating/Finish AlTiN
• Single Or Double End Double

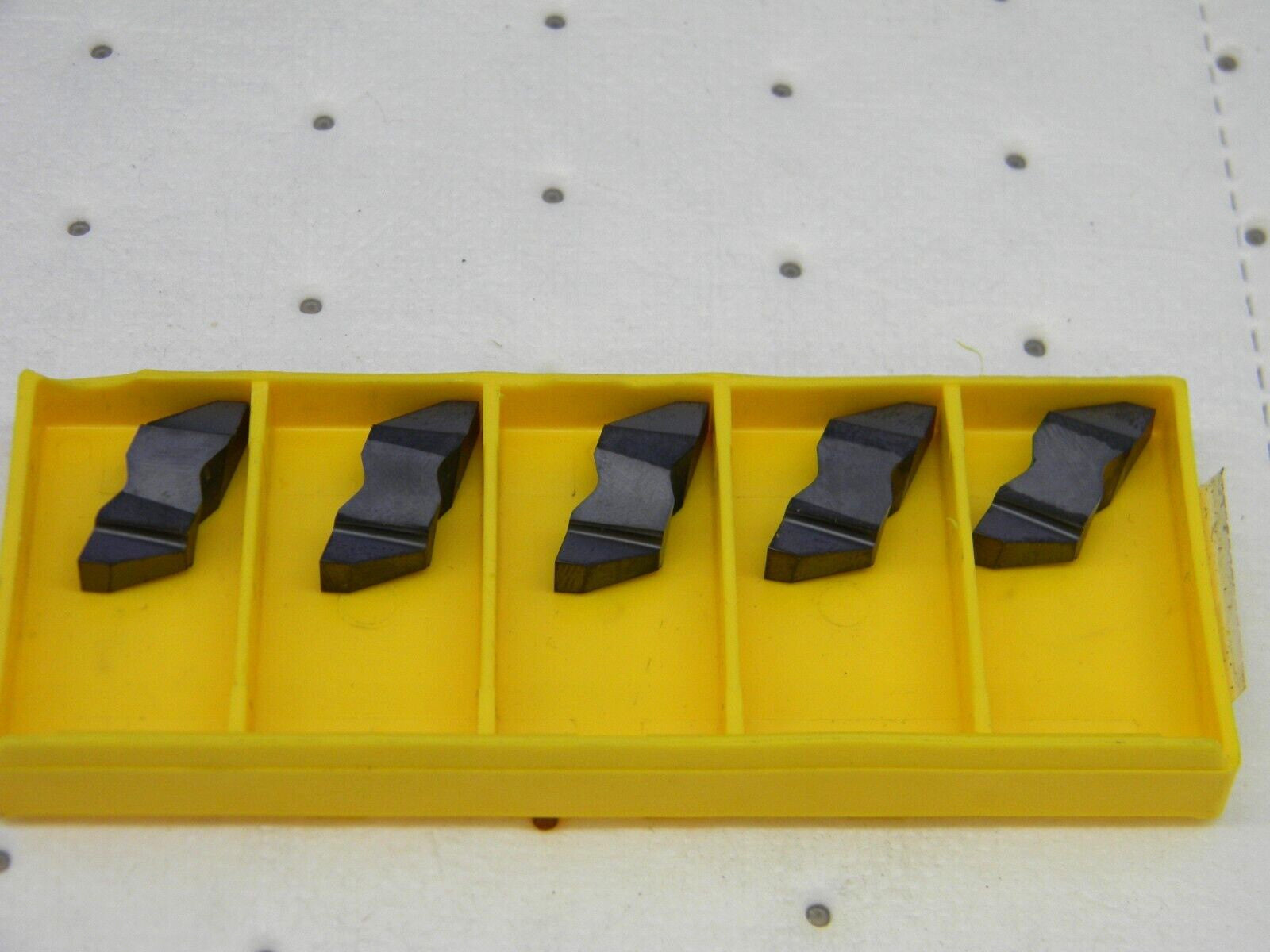

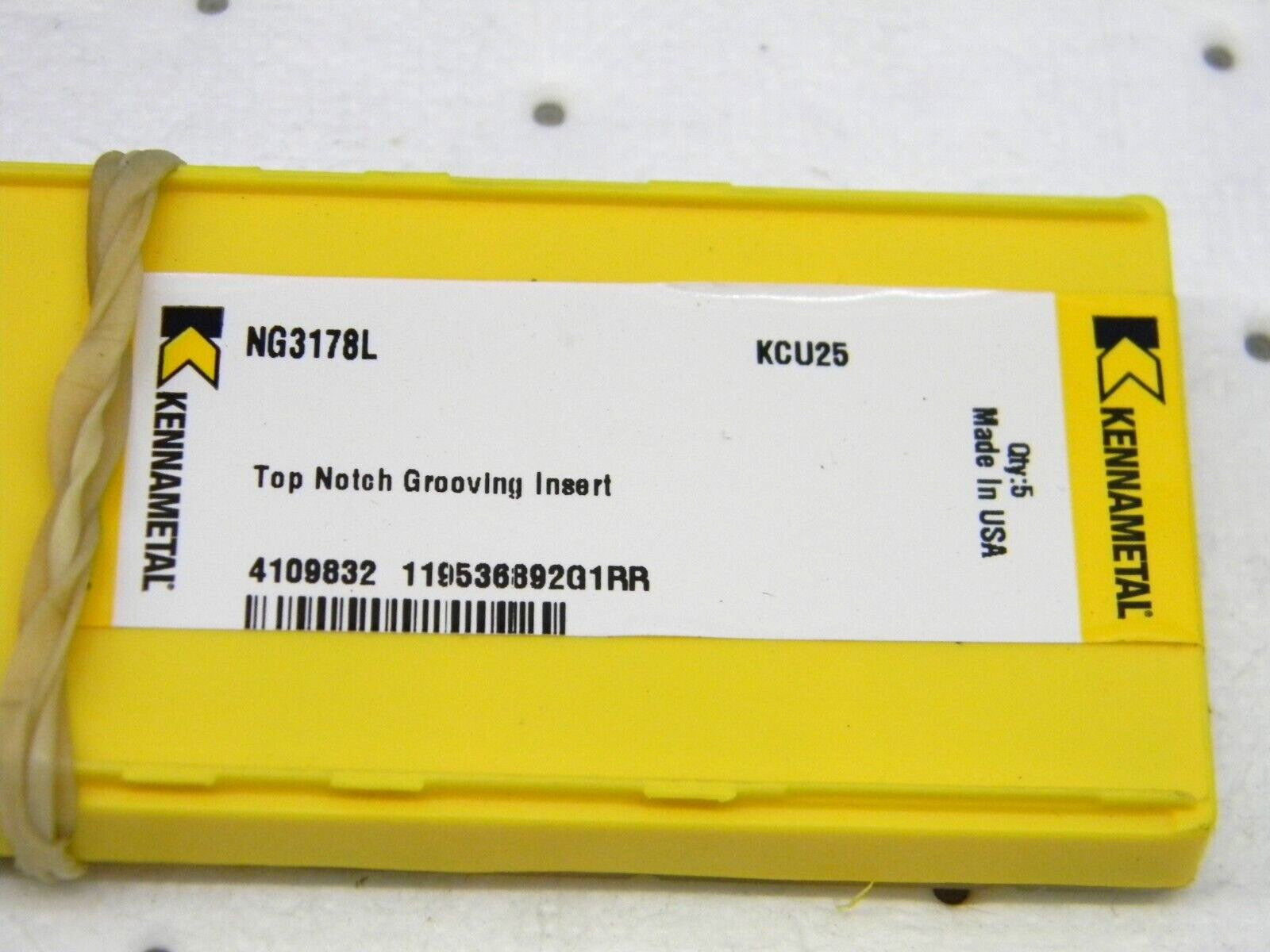

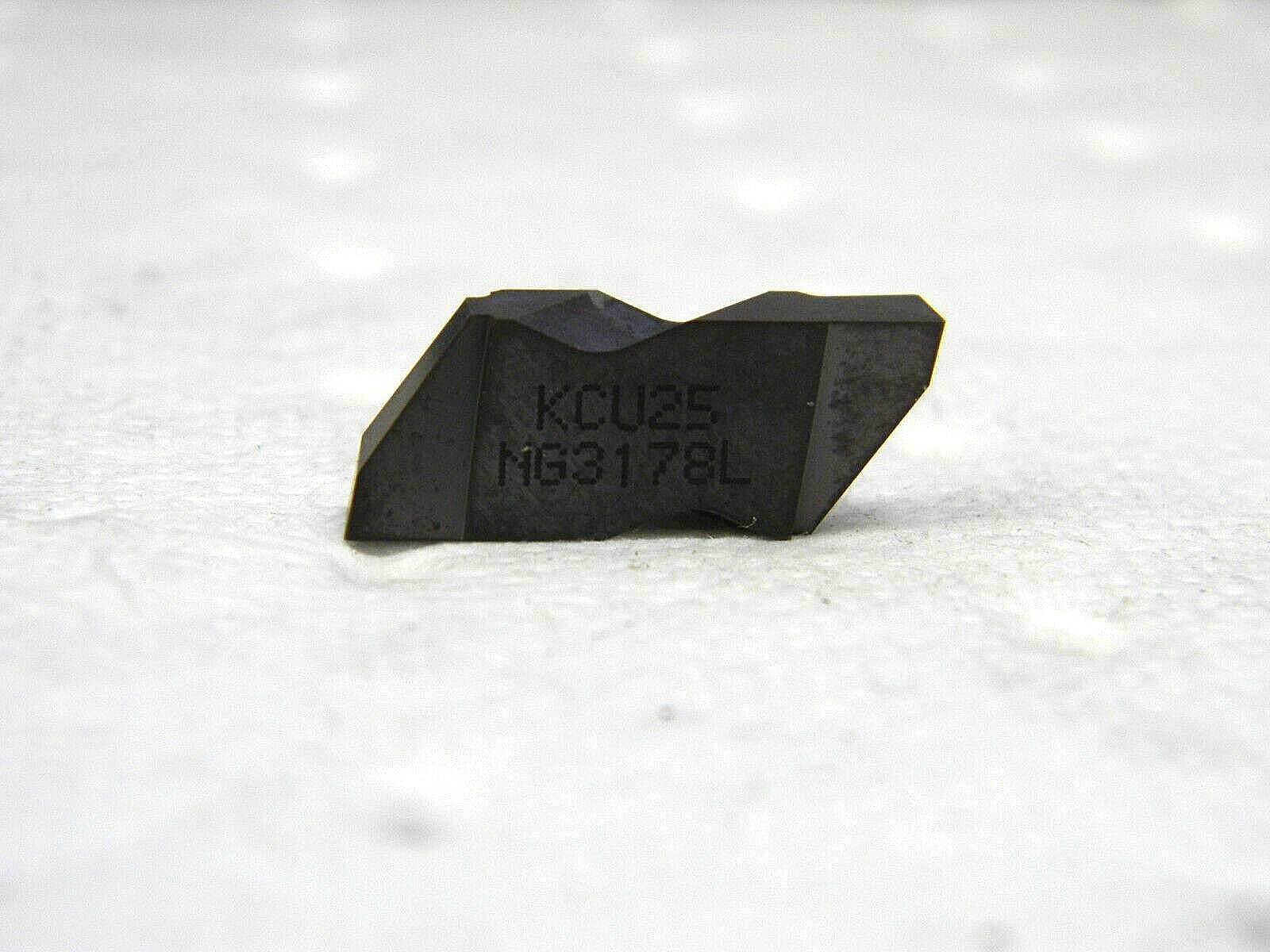

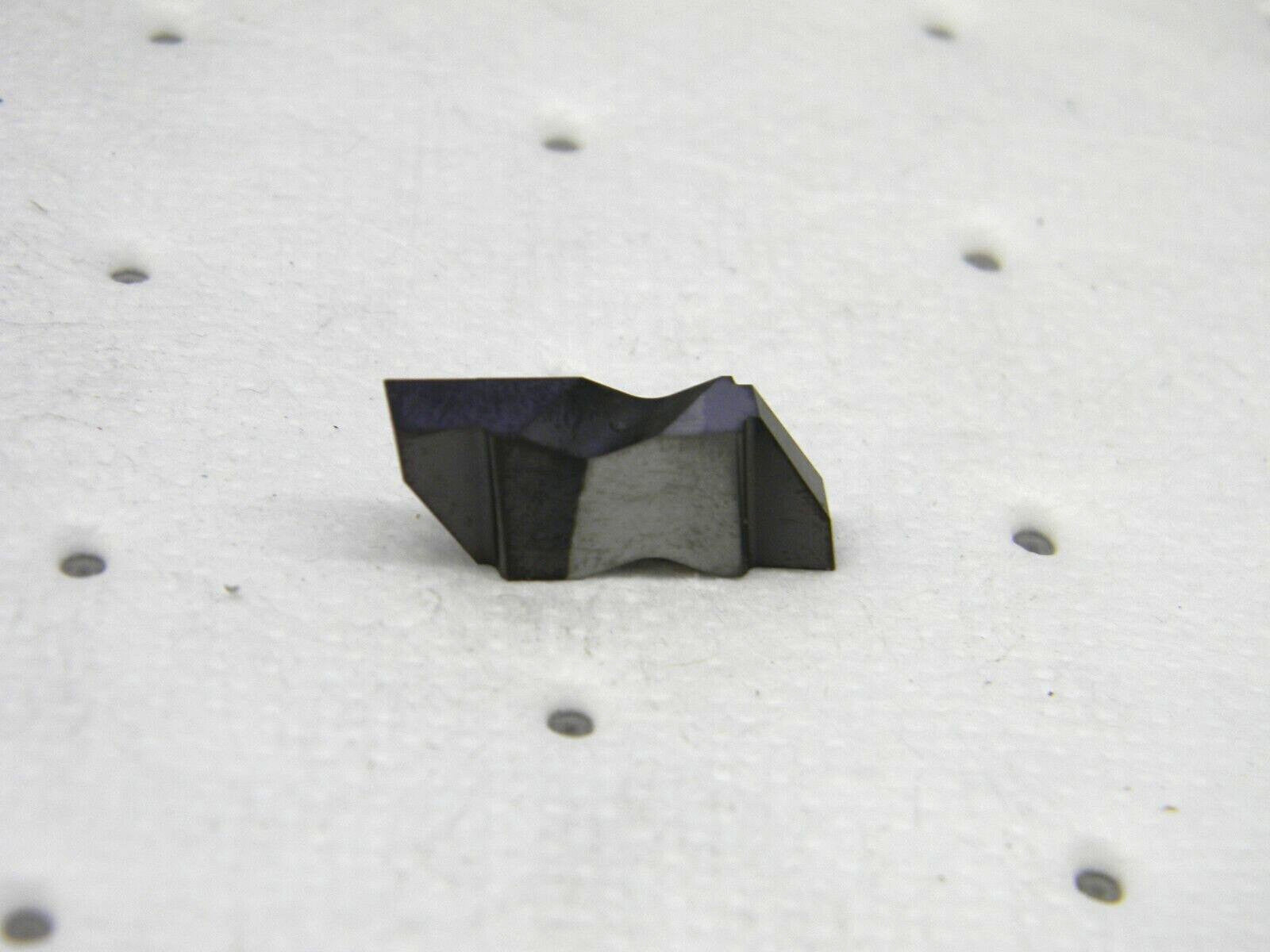

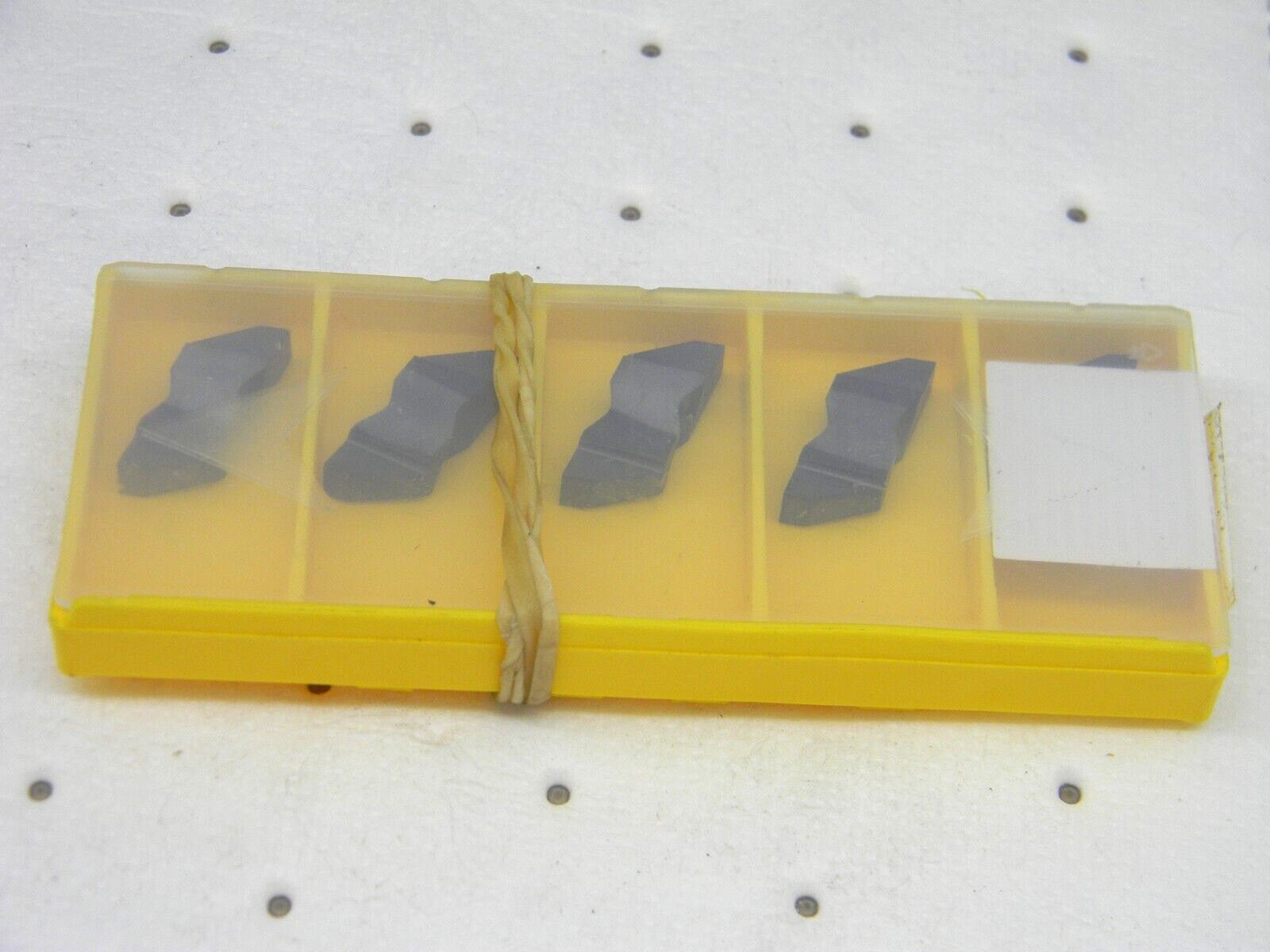

Please review photos, comes as shown.
