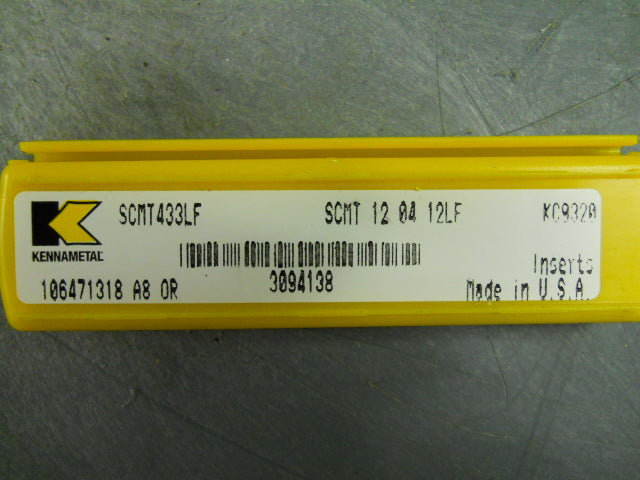

Kennametal SCMT433 LF Grade KC9320 Carbide Turning Insert QTY 5 3094138
Kennametal SCMT433 LF Grade KC9320 Carbide Turning Insert QTY 5 3094138
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $
Model:
Description:
| Insert Style: | SCMT | |
|---|---|---|
| Insert Size: | 433 | |
| Material: | Carbide | |
| Inscribed Circle (Inch) : | 1/2 | |
| Thickness (Inch) : | 3/16 | |
| Corner Radius (Inch) : | 3/64 | |
| Manufacturer's Grade: | KC9320 | |
| Coating: | TiCN/Al2O3 | |
| Material Grade: | C3/C4 | |
| Chip Breaker: | LF | |
| Hole Diameter (mm): | 5.50 | |
| Hole Diameter (Decimal Inch): | 0.2165 | |
| Rake: | Positive | |
| Rake Angle: | 5 | |
| Relief Angle: | 7 | |
| Coating Process: | CVD | |
| Included Angle: | 90 | |
| Series: | Screw-On | |
| Maximum Depth of Cut (mm): | 1.25 | |
| Maximum Depth of Cut (Decimal Inch): | 0.0492 | |
| Insert Holding Method: | Screw | |
| Shape: | Square |

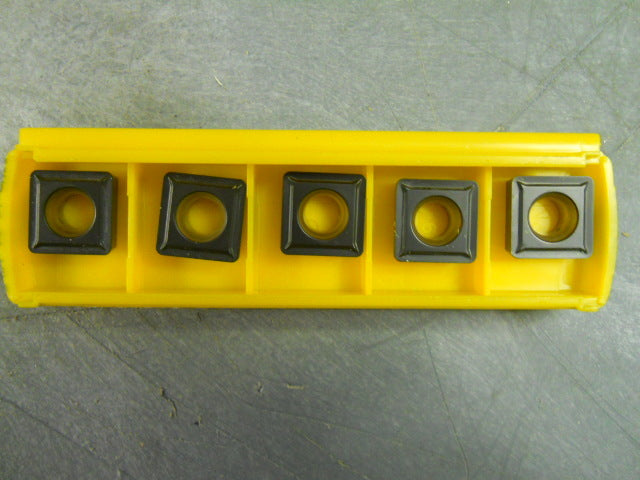

This listing is for One Pack of 5 that is in the picture as well as described. Please ask any questions prior to buying!
