KENNAMETAL SC Screw Machine Length Drill Bit: 0.248″ Dia, 140 ° 4150229

Kennametal
Solid Carbide Screw Machine Length Drill Bit

MSRP: $50.00

• Drill Bit Size (mm) 6.30
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Multilayer TiAlN
• Drill Point Angle 140
• Spiral Type Regular
• Flute Type Spiral
• Point Type Standard
• Coolant Through No
• Shank Type Straight-Cylindrical
• Number Of Flutes 2
• Drill Bit Size (Decimal Inch) 0.2480
• Overall Length (mm) 79.00
• Overall Length (Decimal Inch) 3.1102
• Shank Diameter (mm) 8.00
• Series B041A-CPG
• Web Configuration Tapered
• Drill Length Type Stub
• Maximum Drilling Depth (Decimal Inch) 0.9449
• Maximum Drilling Depth (mm) 24.00
• Shank Length (Decimal Inch) 1.4173
• Shank Length (mm) 36.00
• Drill Point Length (mm) 1.06
• Drill Point Length (Decimal Inch) 0.0416
• Flute By Diameter Ratio 3xD
• Drill Bit Diameter Tolerance -0.0006 to 0.0000 in; -0.015 to 0.000 mm
• Flute Length (Decimal Inch) 1.3386
• Flute Length (mm) 34.00
• Drill Bit Size Range (Decimal Inch) 0.2000 to 0.2500
• Drill Bit Size Range (mm) 5.00 to 6.50
• Specification Number DIN 6537K
• Specification Designation DIN

This item is new and in great condition. SOLD AS IS.

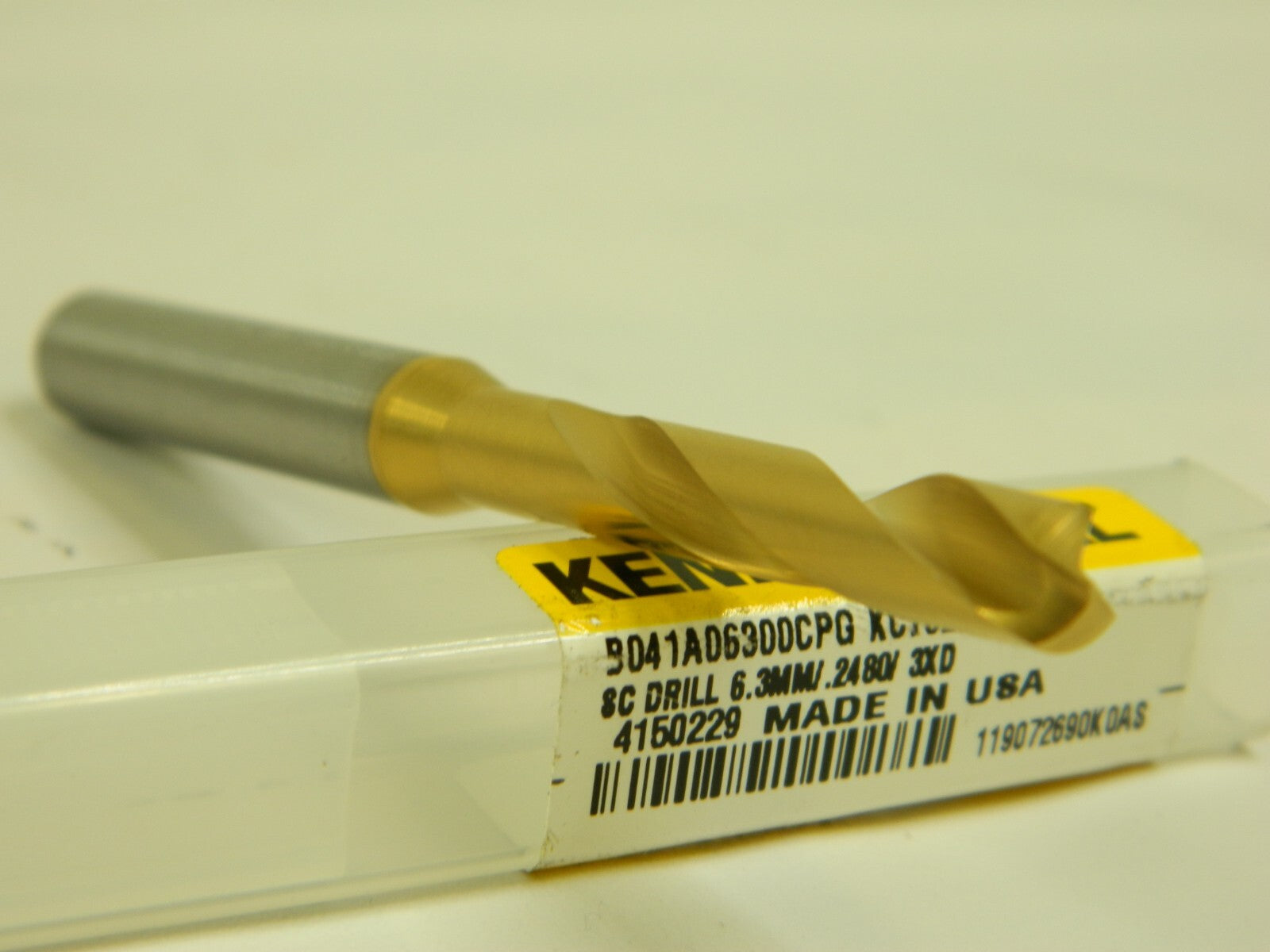

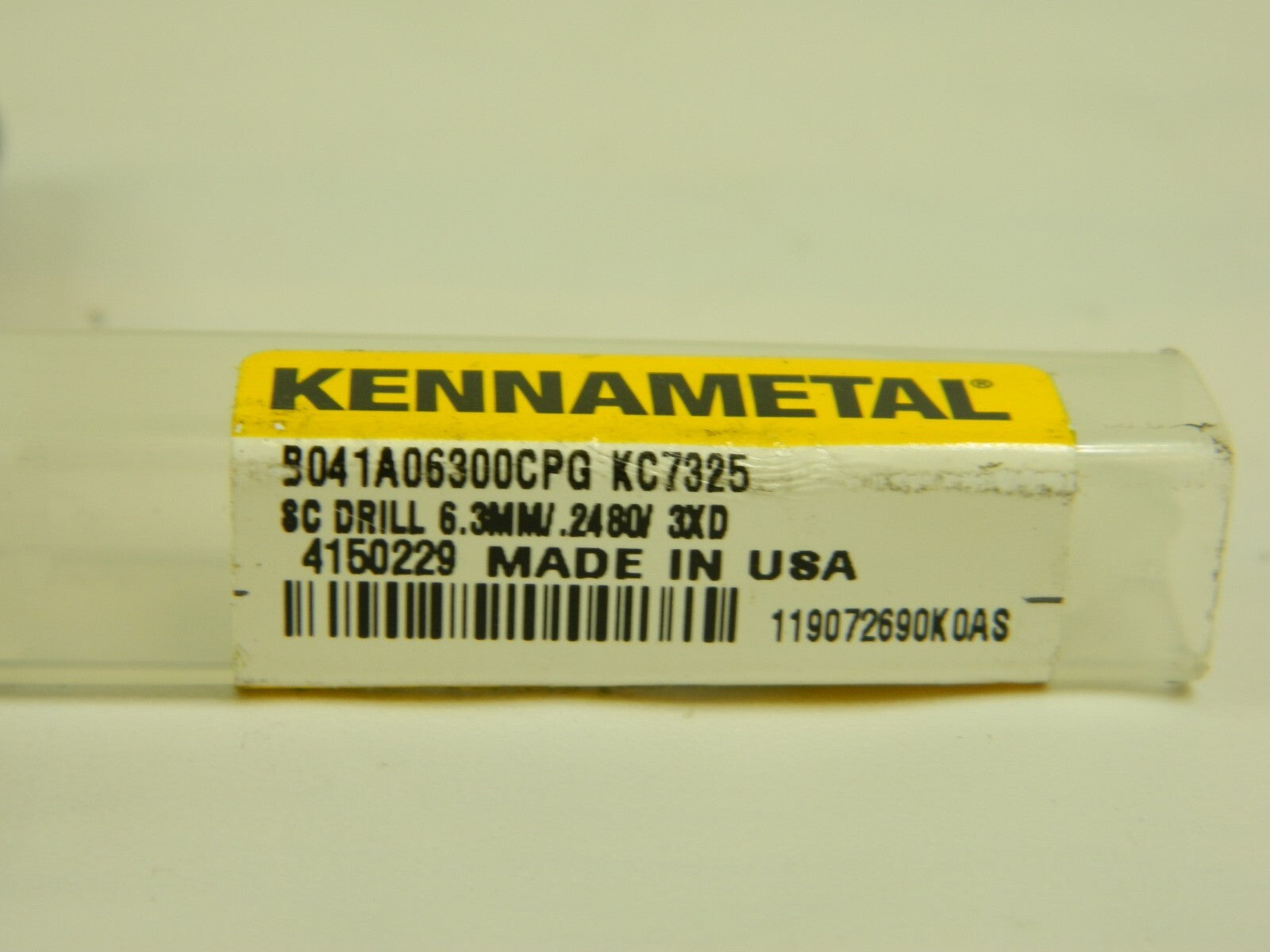

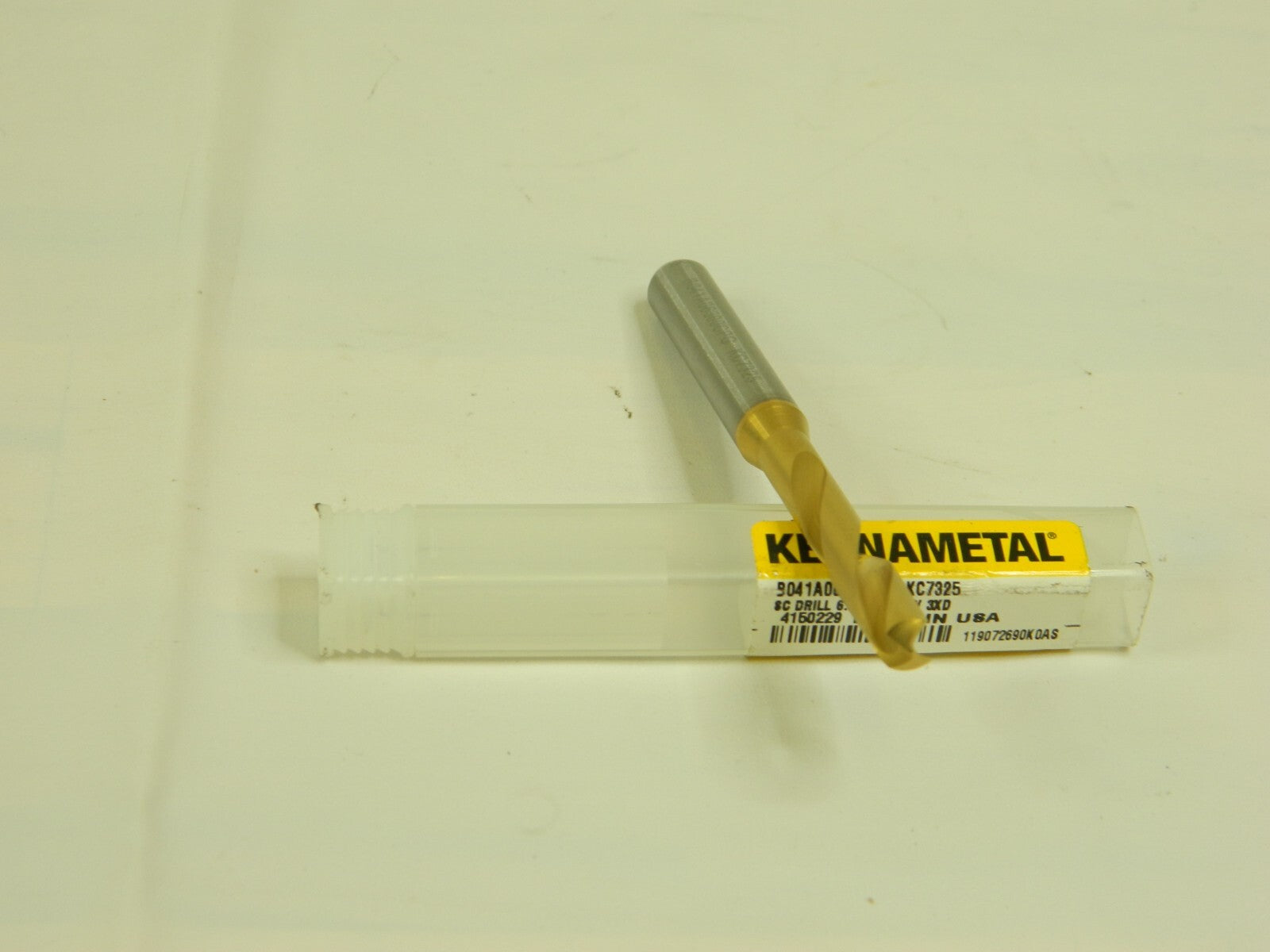

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
