Kennametal

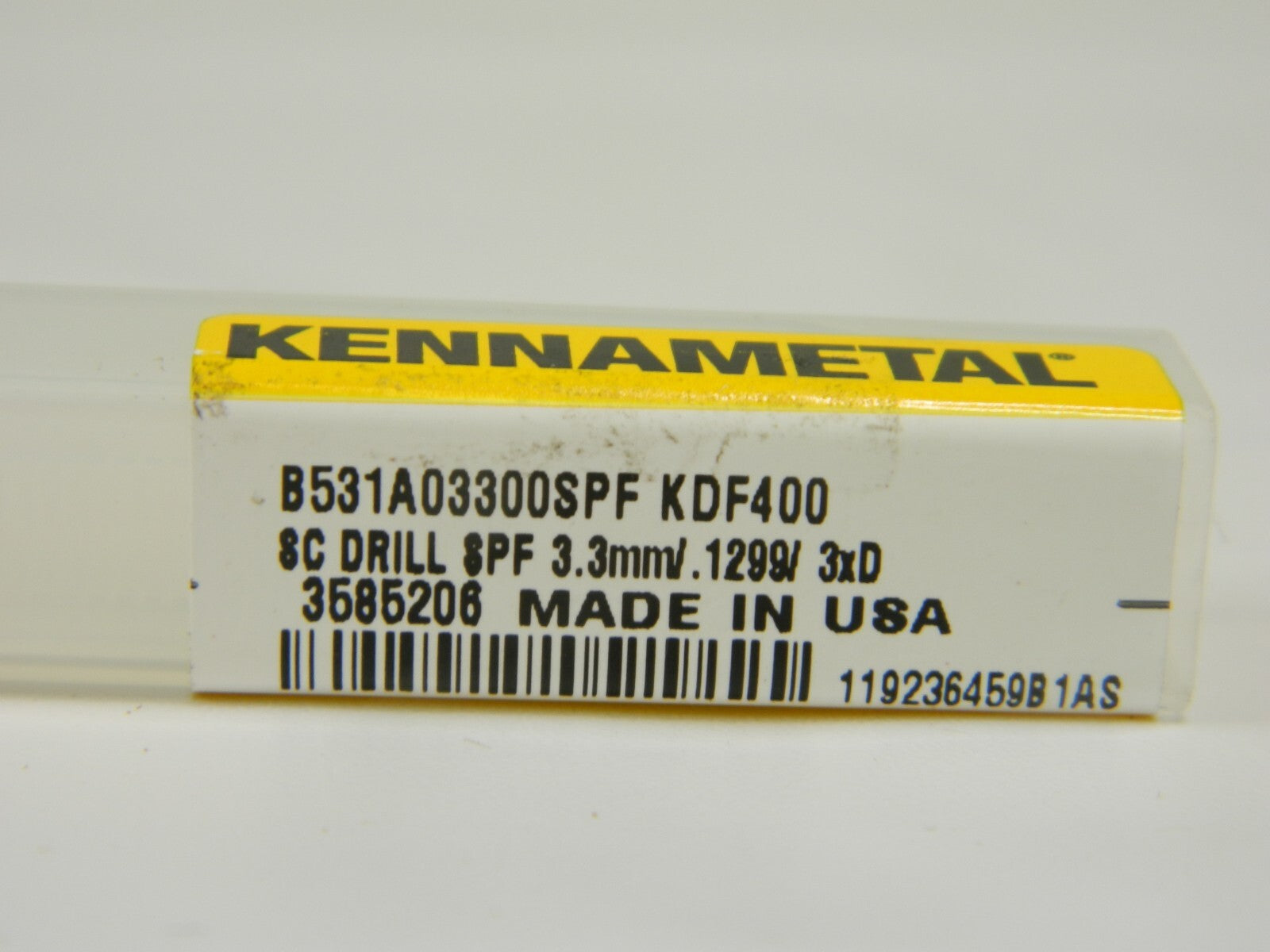

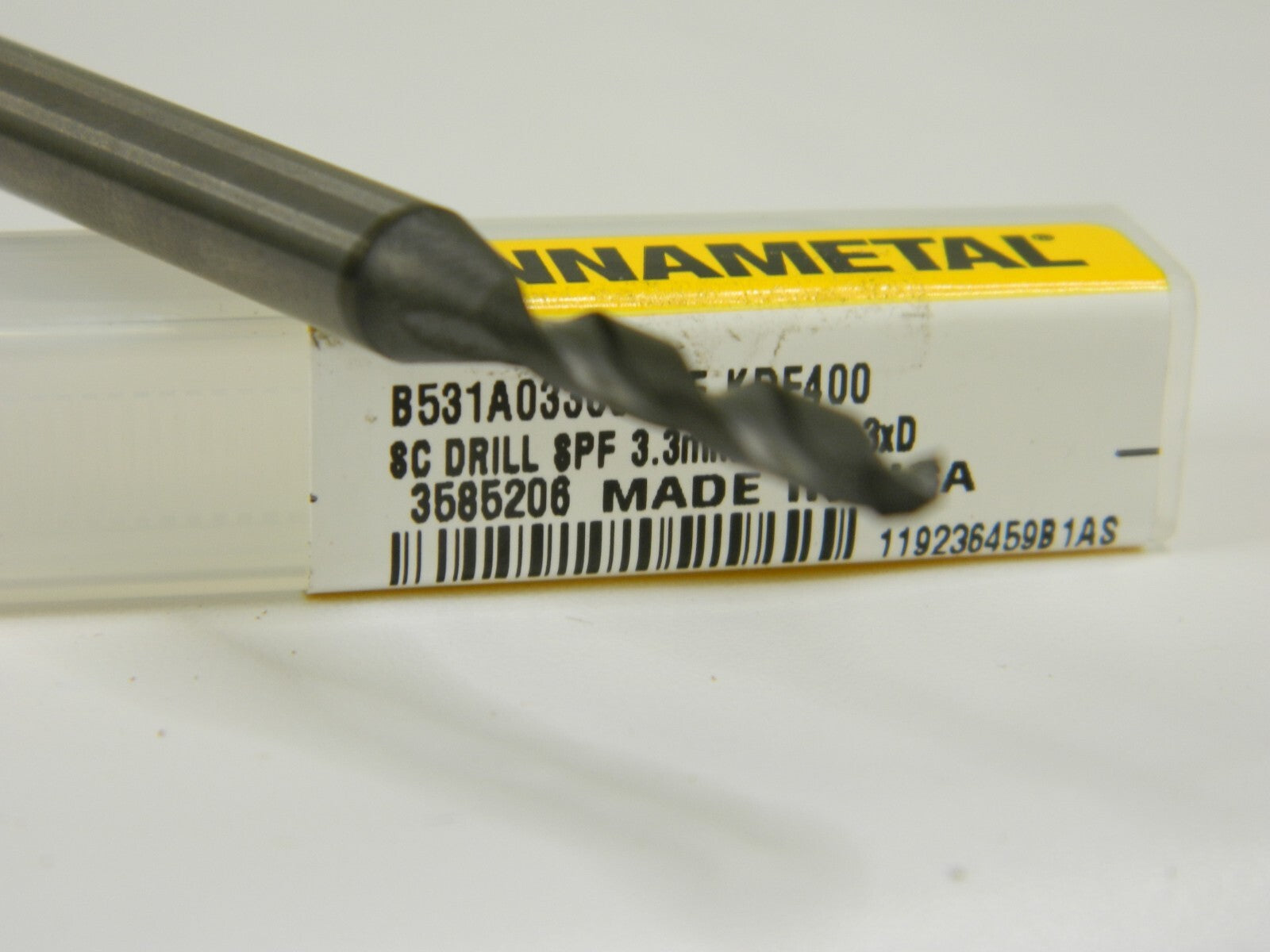

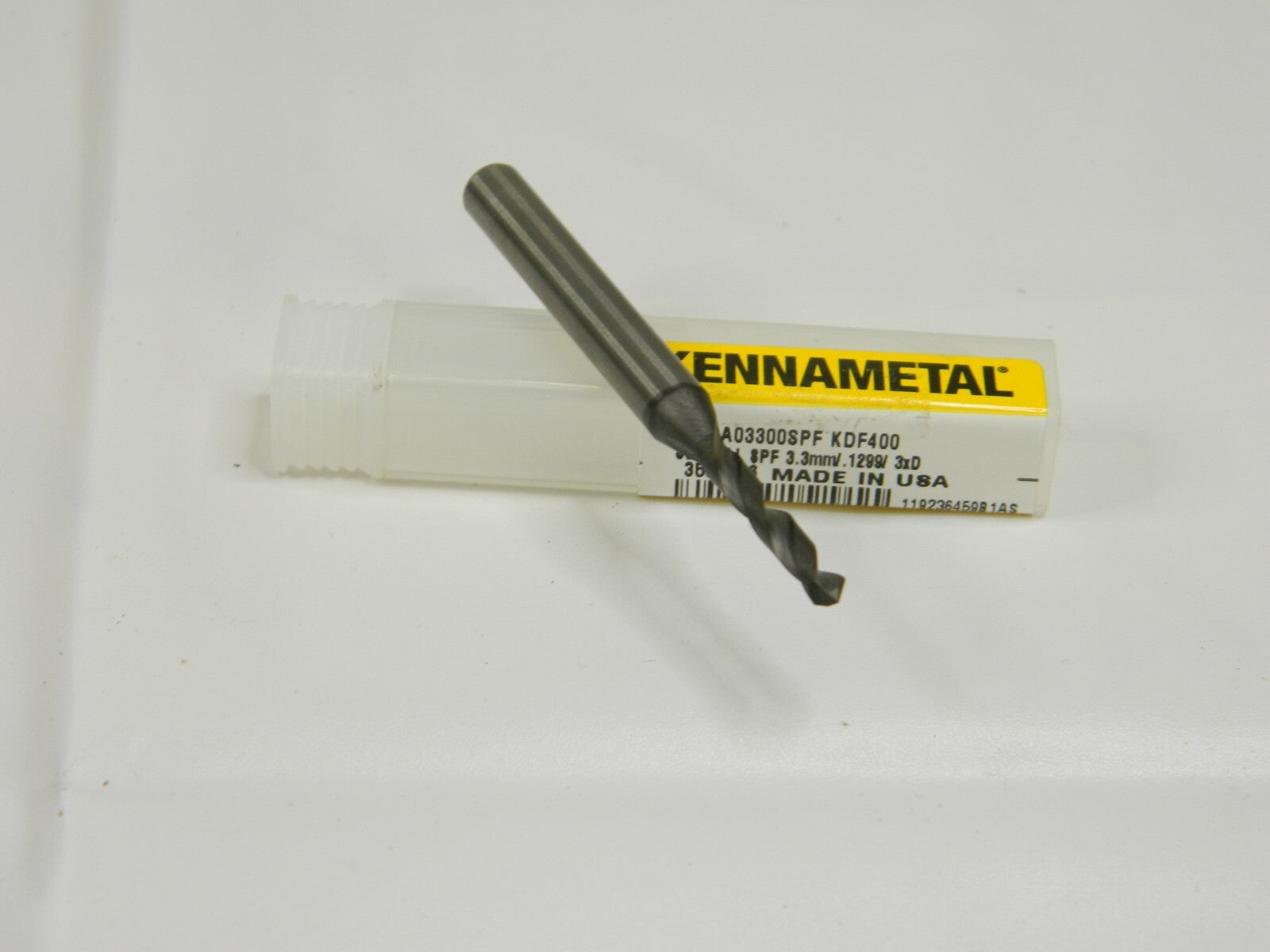

Solid Carbide Screw Machine Length Drill Bit

MSRP: $150.00

• Drill Bit Size (mm) 3.30
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Diamond
• Drill Point Angle 90
• Spiral Type Regular
• Flute Type Spiral
• Point Type Split
• Coolant Through No
• Shank Type Straight-Cylindrical
• Number Of Flutes 2
• Shank Diameter (Decimal Inch) 0.2362
• Drill Bit Size (Decimal Inch) 0.1299
• Overall Length (mm) 62.00
• Overall Length (Decimal Inch) 2.4409
• Shank Diameter (mm) 6.00
• Series B531A-SPF
• Web Configuration Tapered
• Drill Length Type Stub
• Maximum Drilling Depth (Decimal Inch) 0.5512
• Maximum Drilling Depth (mm) 14.00
• Shank Length (Decimal Inch) 1.4173
• Shank Length (mm) 36.00
• Drill Point Length (mm) 1.50
• Drill Point Length (Decimal Inch) 0.0591
• Flute By Diameter Ratio 3xD
• Drill Bit Diameter Tolerance +0.0002 to +0.0006 in; +0.004 to +0.016 mm
• Flute Length (Decimal Inch) 0.7874
• Flute Length (mm) 20.00
• Drill Bit Size Range (Decimal Inch) 0.1000 to 0.1500
• Drill Bit Size Range (mm) 0.00 to 3.50
• Specification Number DIN 6537K
• Specification Designation DIN

This item is new and in great condition. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
