Kennametal Replaceable Tip Drill 3xD 32.94 to 33.94mm Diam 1616099
Kennametal Replaceable Tip Drill 3xD 32.94 to 33.94mm Diam 1616099
Regular price
$283.02 USD
Regular price
$600.00 USD
Sale price
$283.02 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $600
Model: 1616099
Description:
Series KSEM
Minimum Drill Diameter (mm) 32.94
Minimum Drill Diameter (Decimal Inch) 1.2969
Maximum Drill Diameter (mm) 33.94
Maximum Drill Diameter (Decimal Inch) 1.3362
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Decimal Inch) 3.9000
Maximum Drill Depth (mm) 99.06
Shank Diameter (mm) 38.10
Shank Diameter (Inch) 1-1/2
Shank Diameter (Decimal Inch) 1.5000
Insert Style KSEM1297
Insert Seat Size 9
Through Coolant Through Coolant
Coolant Hole Thread Type NPT
Body Side Coolant Hole Thread Size (Inch) 1/8-27
Shank End Coolant Hole Thread Size (Inch) 1/4-18
Shank Type Weldon Flat
Tip Length (Decimal Inch) 0.2000
Flute Length (mm) 154.94
Flute Length (Decimal Inch) 6.1000
Overall Length (mm) 273.05
Overall Length (Decimal Inch) 10.7500
Shank Length (Decimal Inch) 3.7500
ISO KSEM1297R3SSF150
ANSI KSEM1297R3SSF150

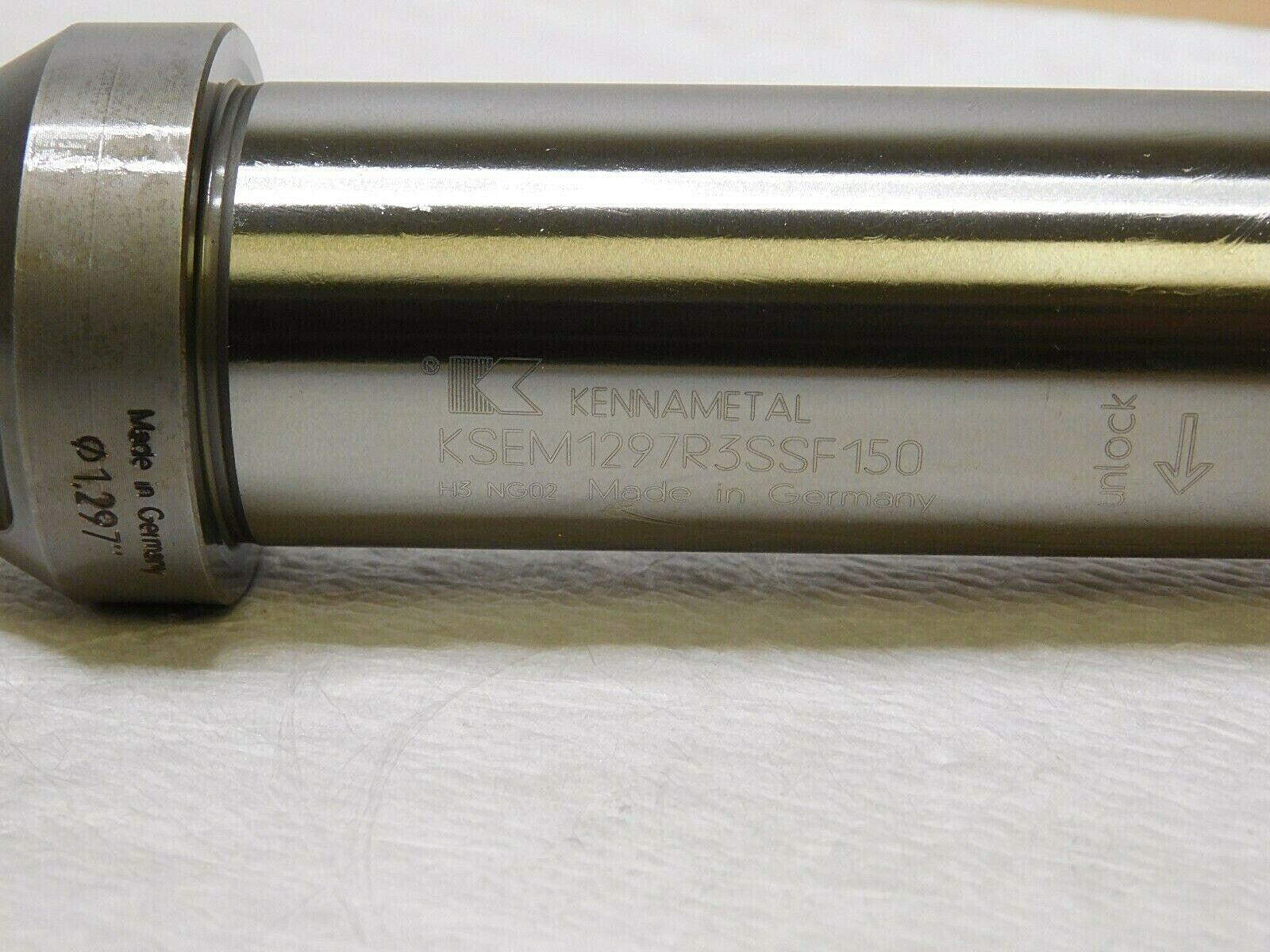

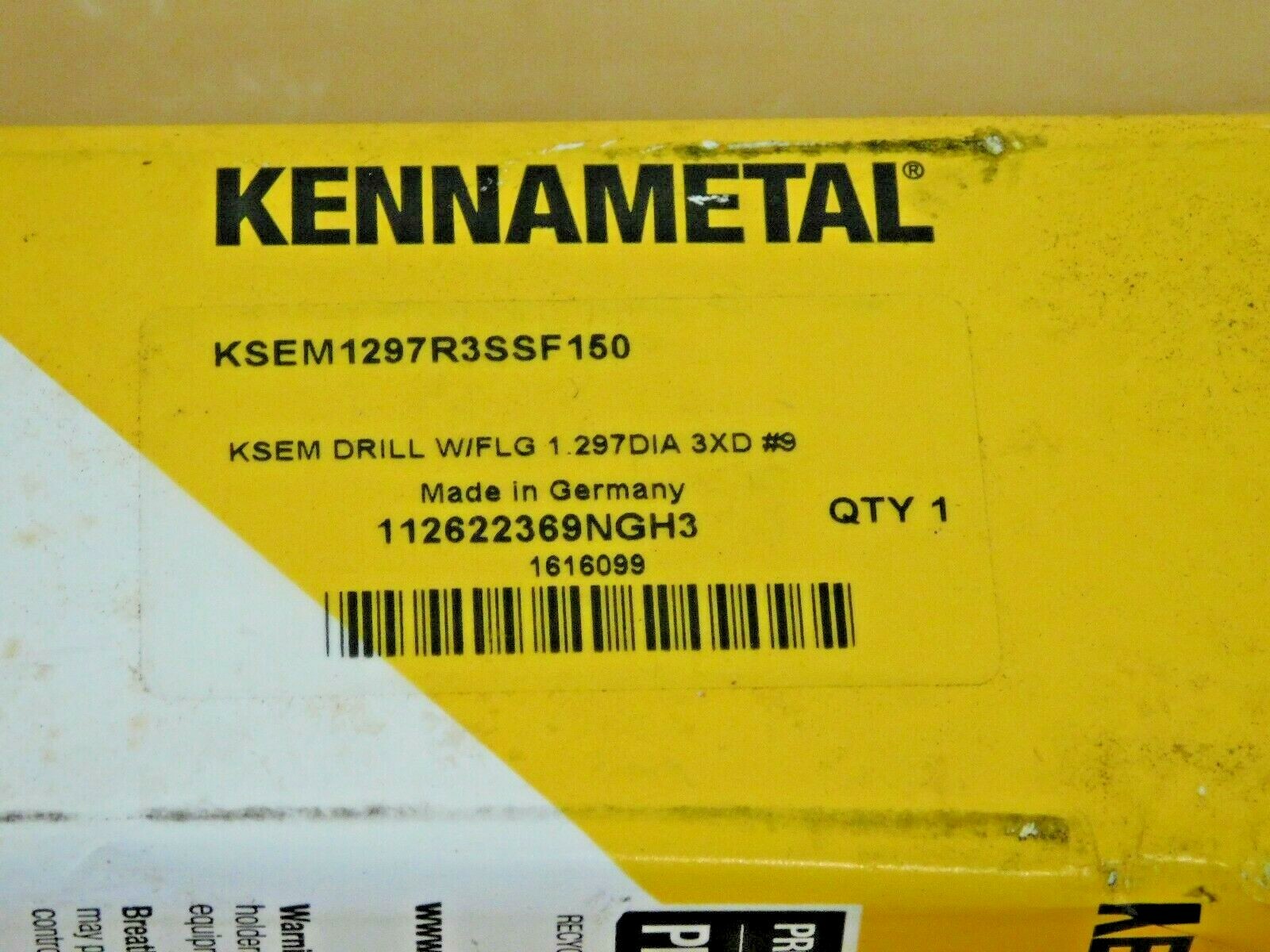

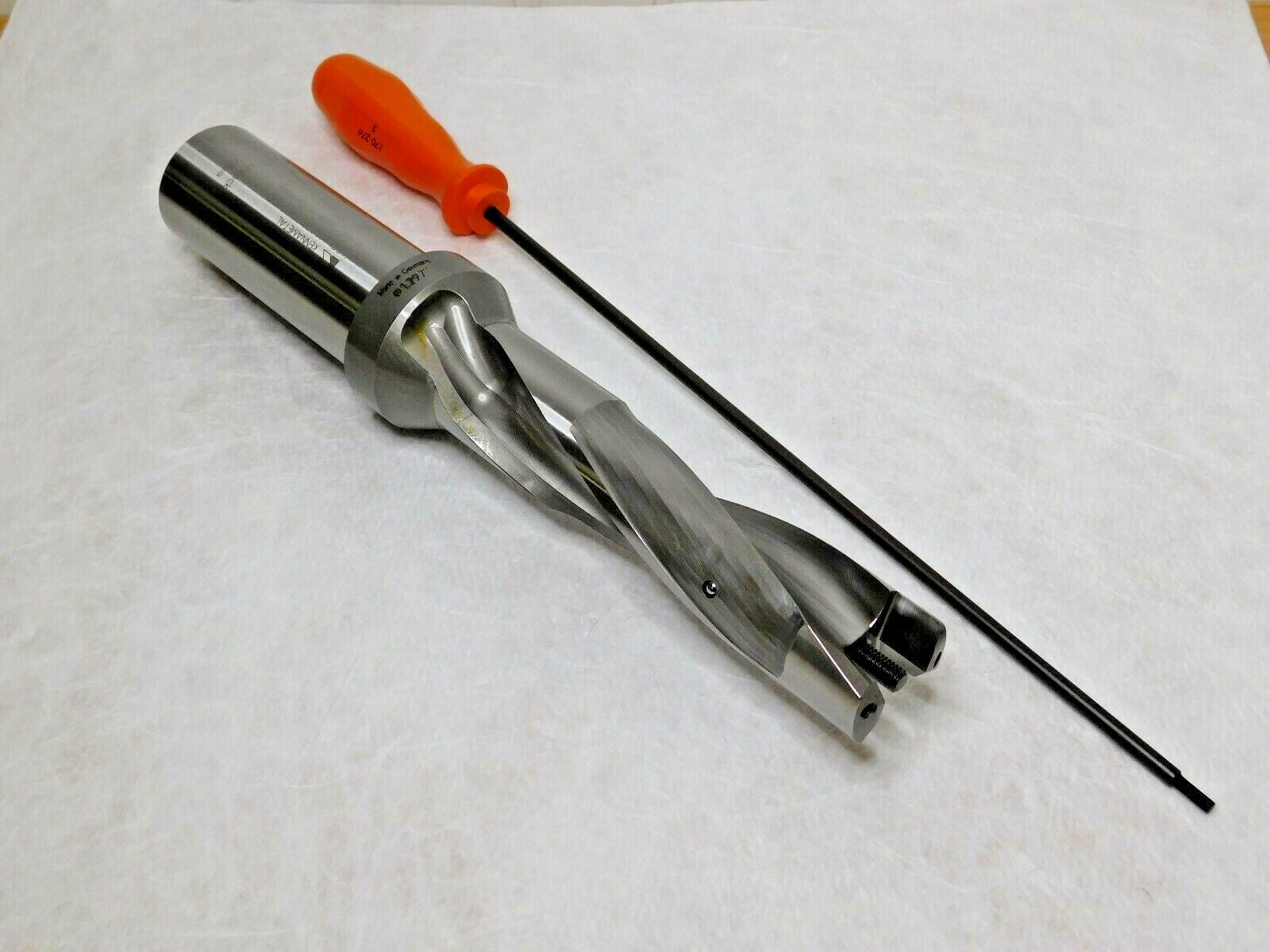

This listing is for One Replaceable Tip Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
