KENNAMETAL Replaceable-Tip Drill: 33.35 to 34.35 mm Dia Weldon Flat Shank1616100

KENNAMETAL

 Replaceable-Tip Drill: 33.35 to 34.35 mm Dia Weldon Flat Shank1616100
MSRP: $600

• Minimum Drill Diameter (Decimal Inch) 1.3130
• Minimum Drill Diameter (mm) 33.35
• Maximum Drill Diameter (mm) 34.35
• Maximum Drill Diameter (Decimal Inch) 1.3524
• Drill Depth by Diameter Ratio 3xD
• Maximum Drill Depth (mm) 102.11
• Maximum Drill Depth (Decimal Inch) 4.0200
• Shank Type Weldon Flat
• Insert Style KSEM1313
• Insert Seat Size 9
• Shank Diameter (mm) 38.10
• Maximum Drill Depth Range (Decimal Inch) 3.5000 to 4.5000
• Maximum Drill Depth Range (mm) 100.00 to 125.00
• Compatible Insert Style KSEM1313
• Overall Length (mm) 276.23
• Overall Length (Decimal Inch) 10.8752
• Series KSEM
• Flute Length (mm) 157.99
• Flute Length (Decimal Inch) 6.2201
• Shank Length (Decimal Inch) 3.7500
• Coolant Hole Thread Type NPT
• Body Side Coolant Hole Thread Size (Inch) 1/8-27
• Shank End Coolant Hole Thread Size (Inch) 1/4-18
• Tip Length (Decimal Inch) 0.2000
• Coolant Through Yes
• Coating Classification Kennametal

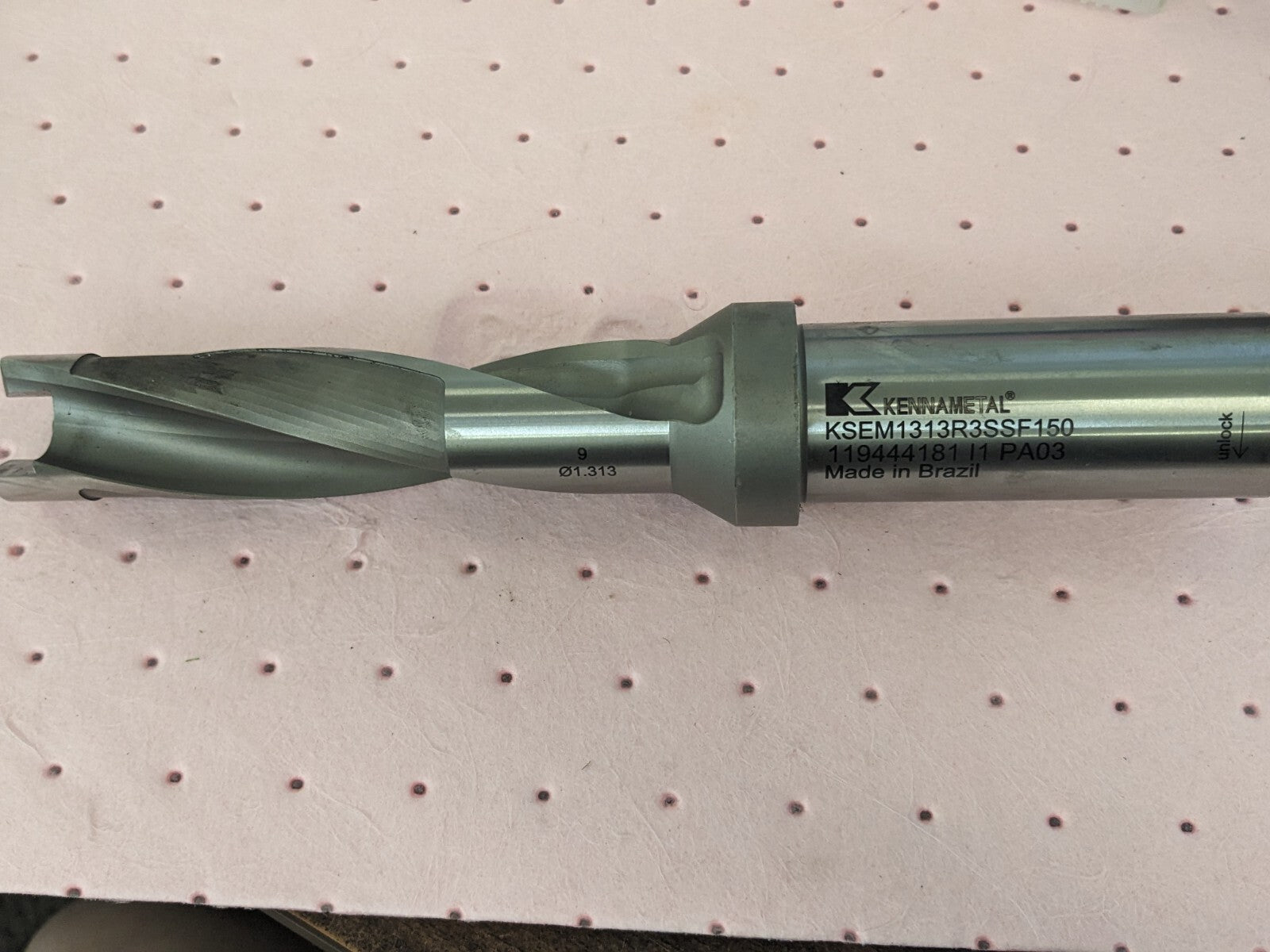

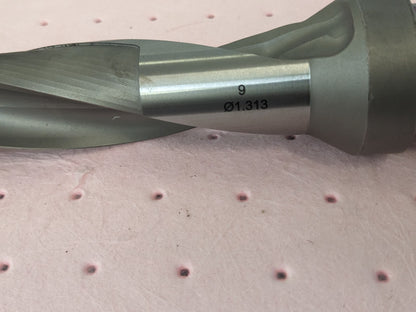

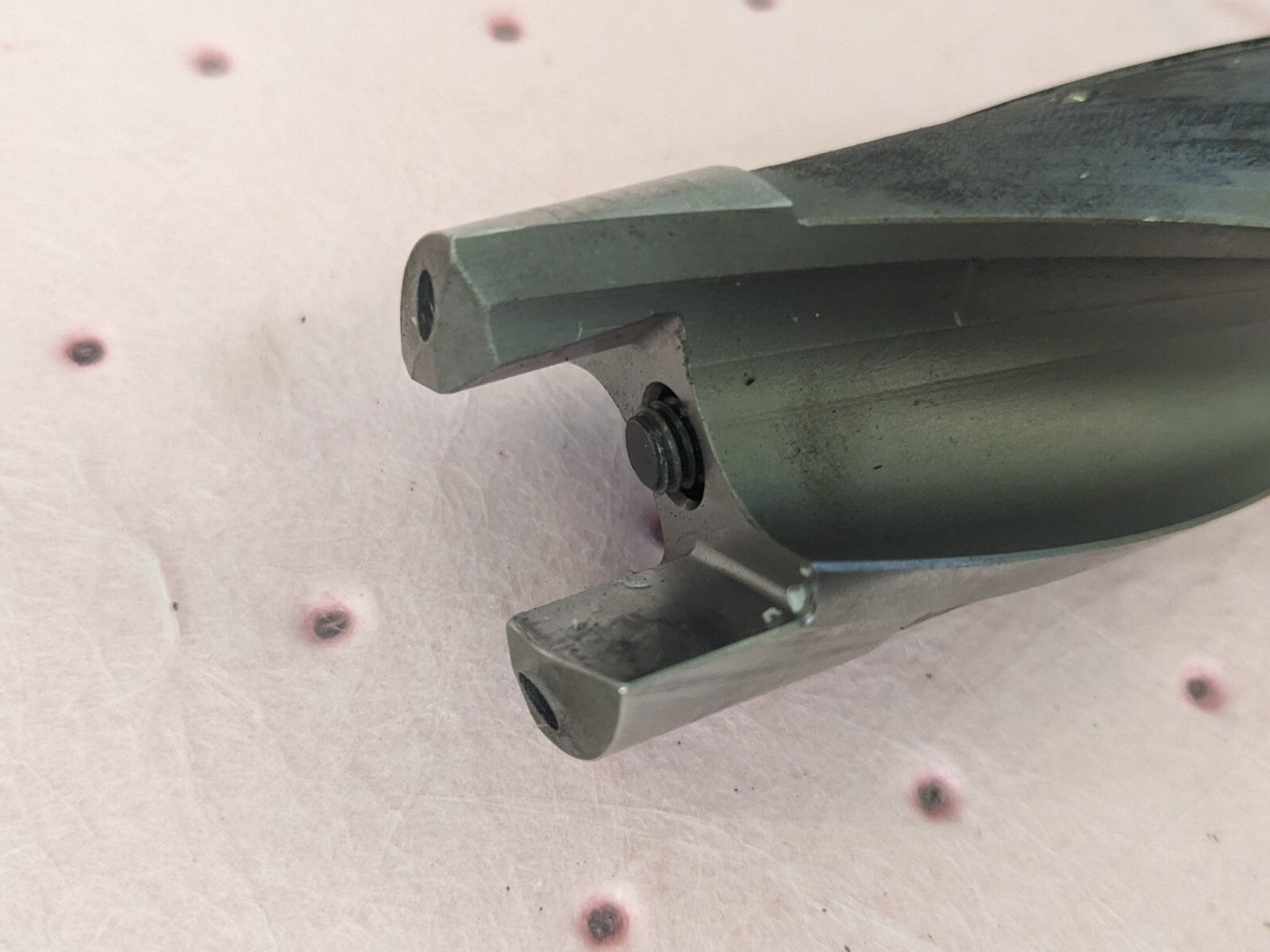

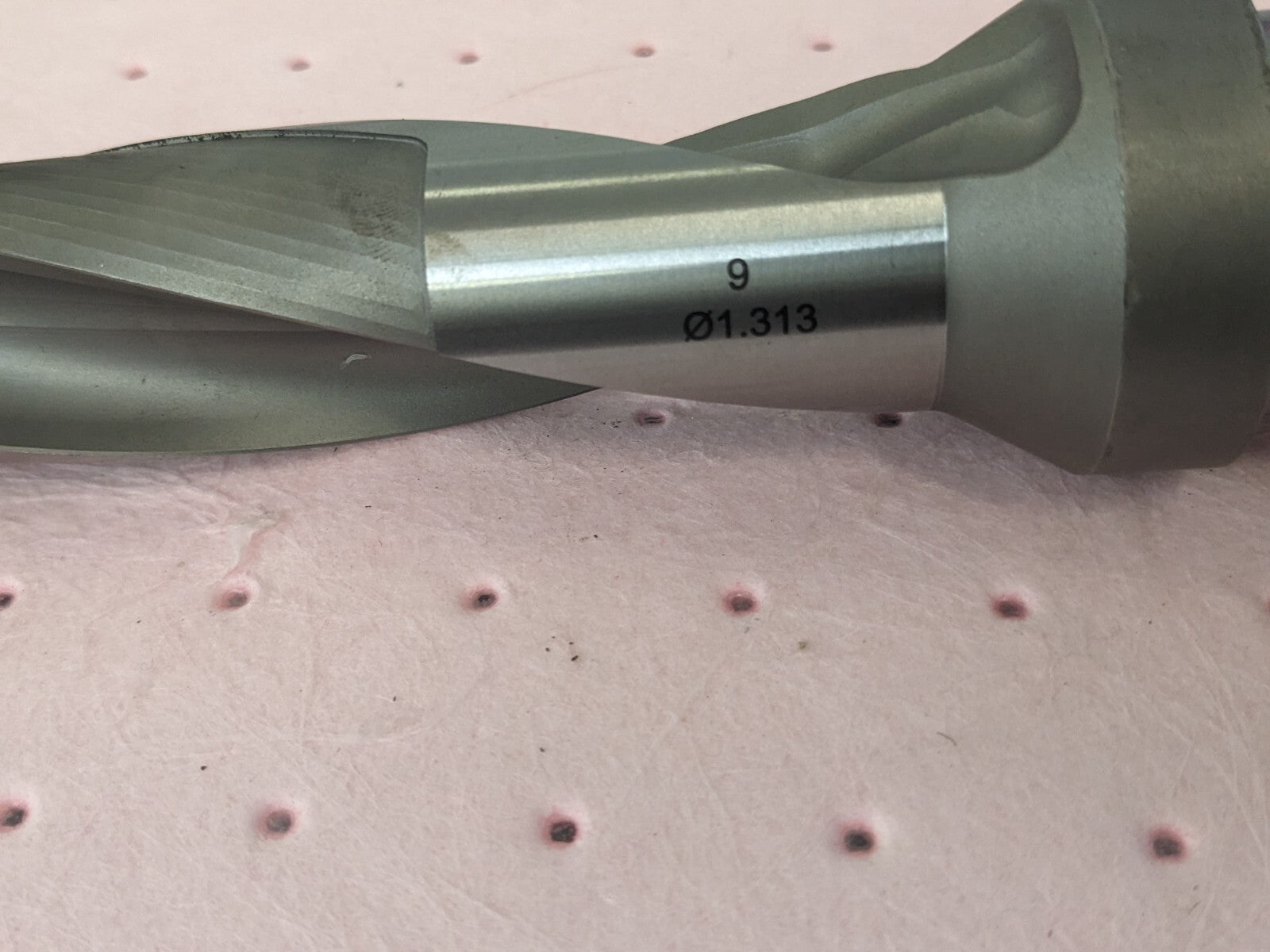

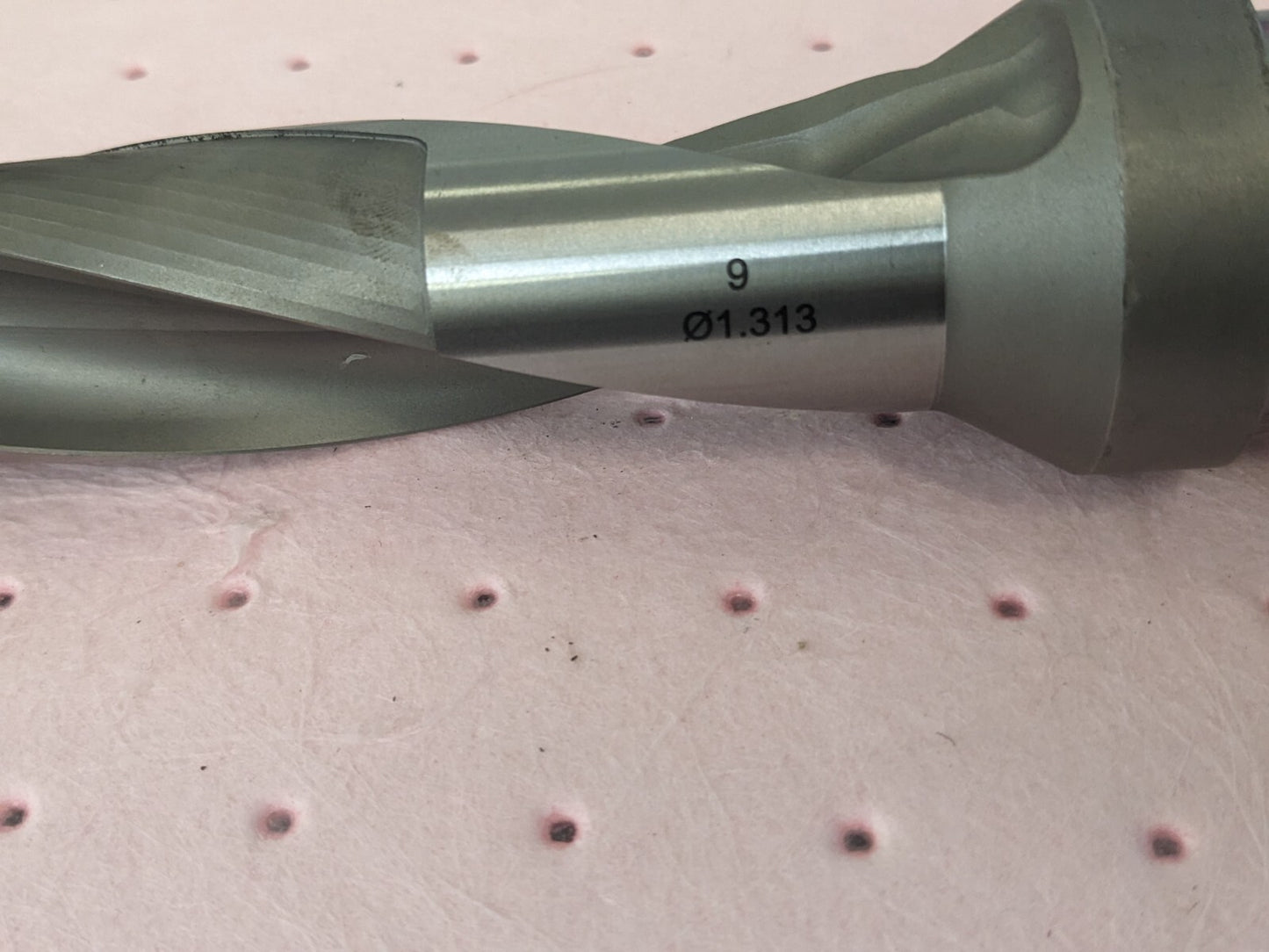

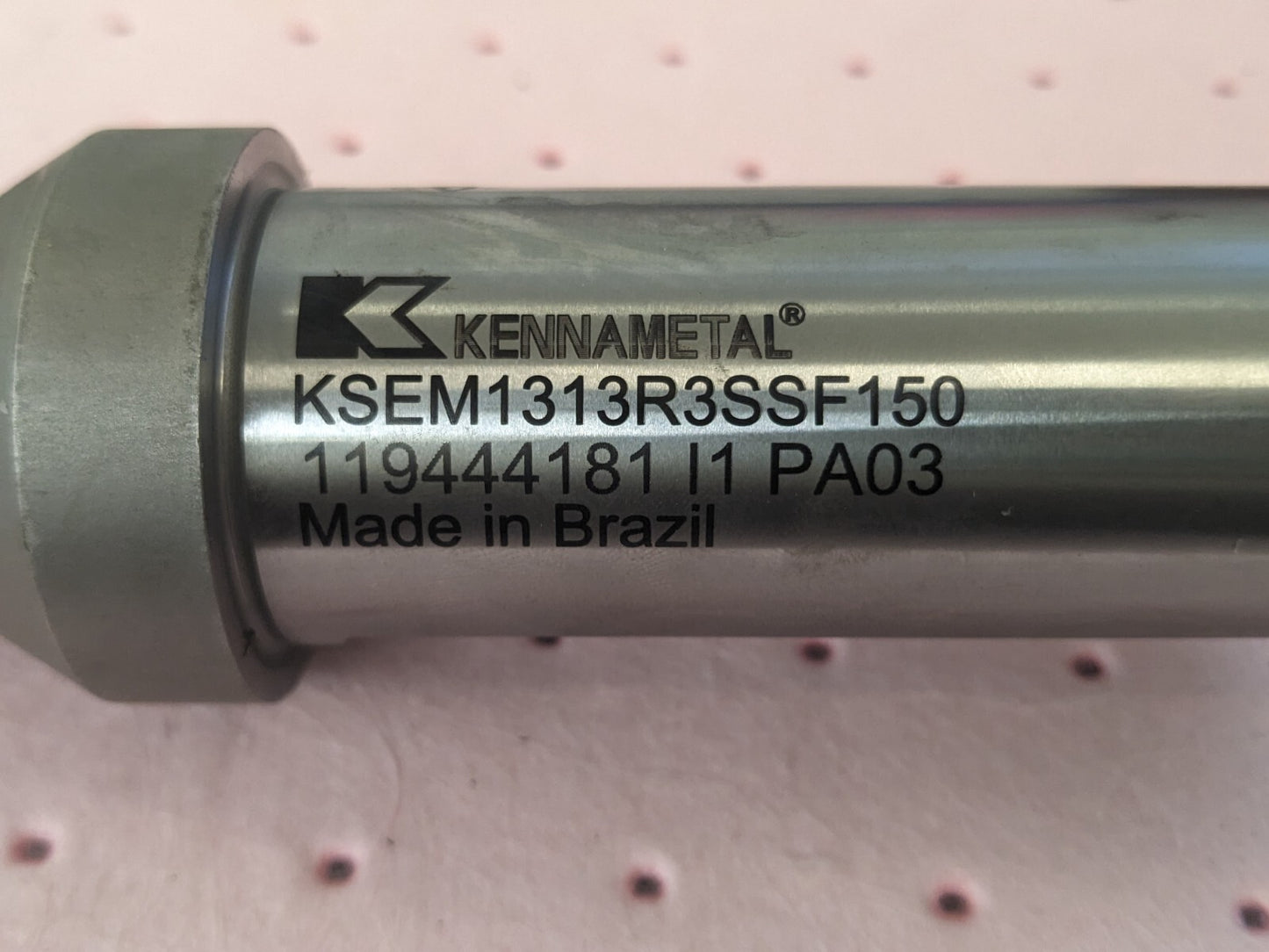

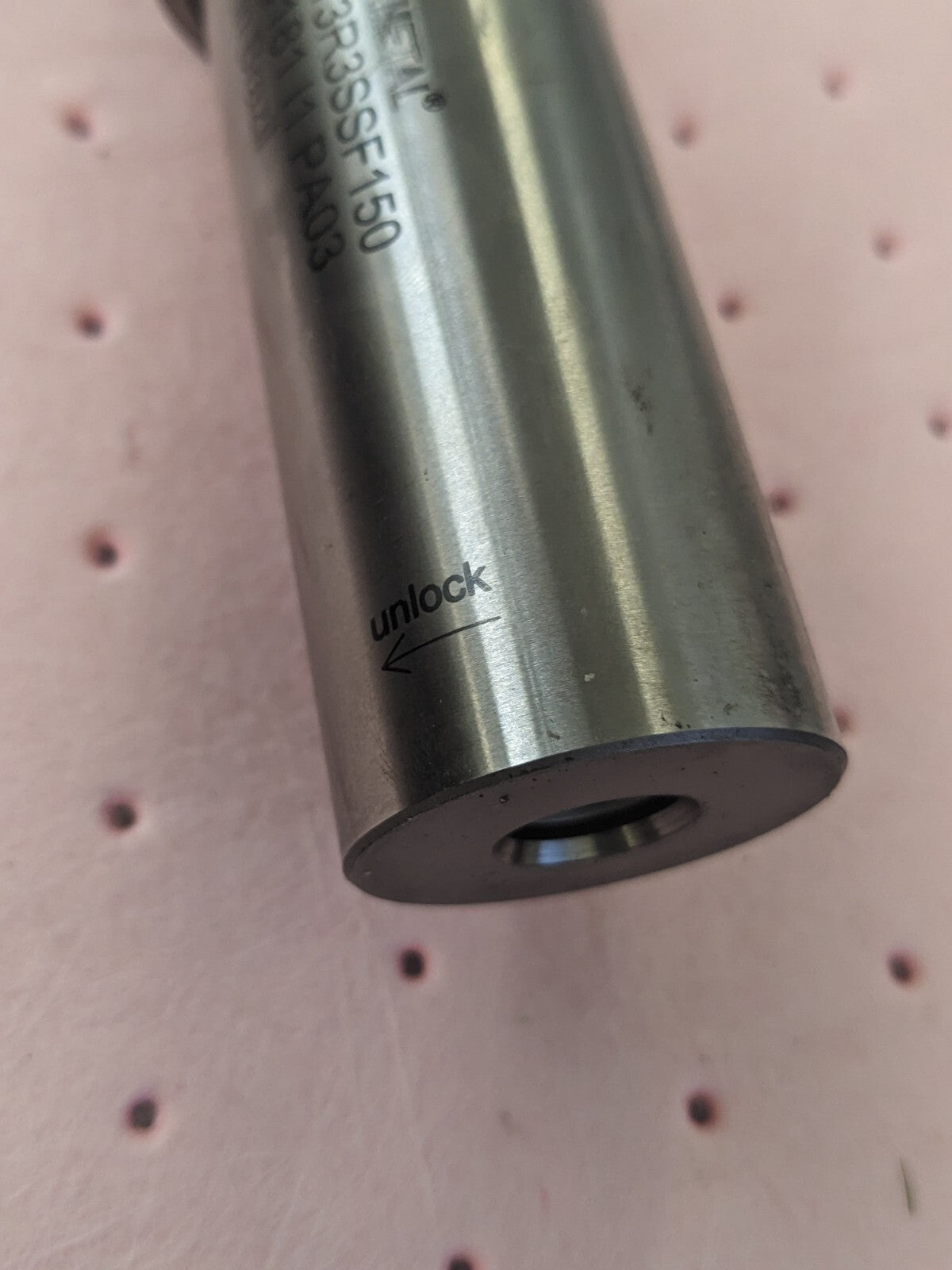

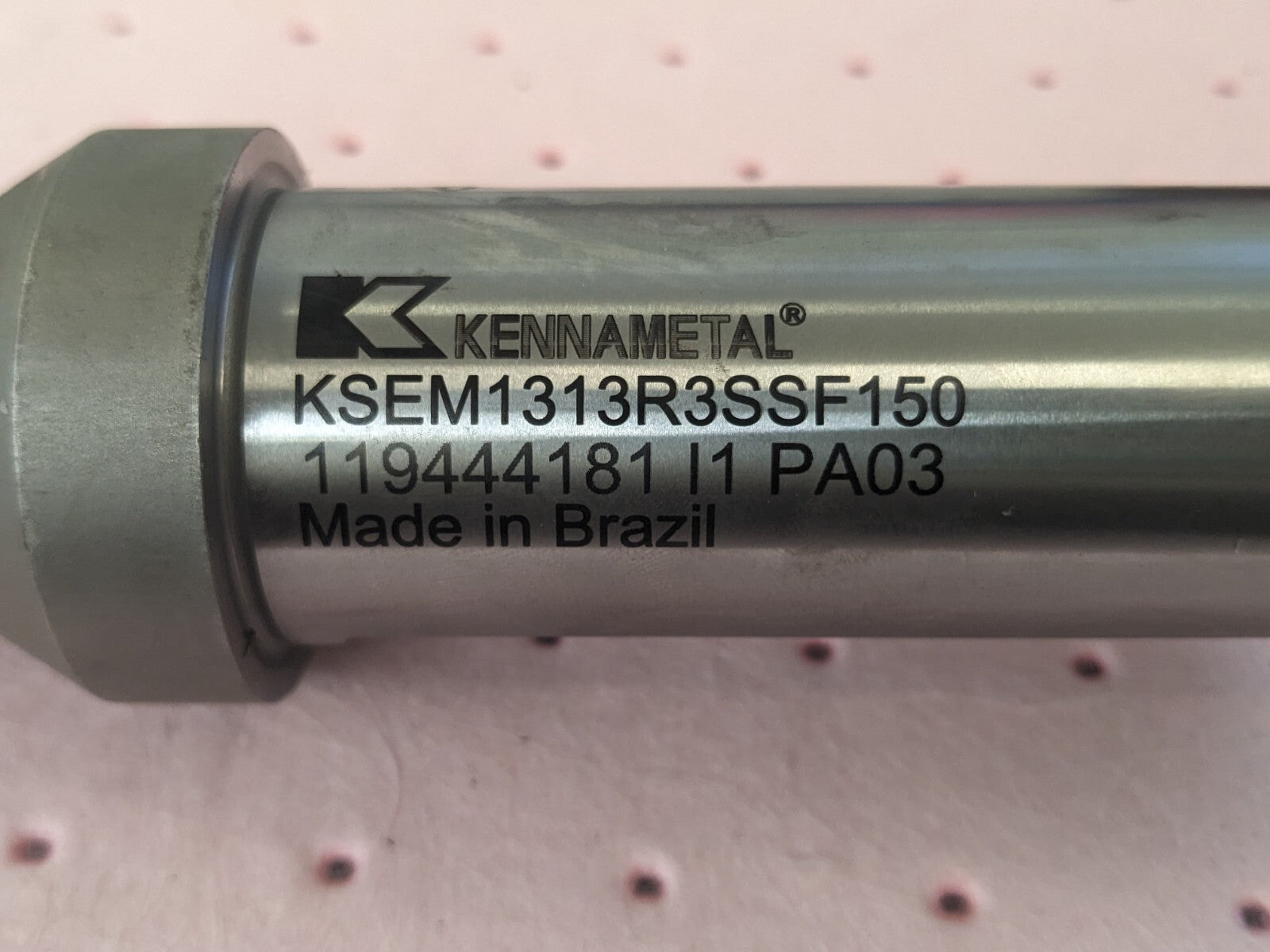

 Please review photos, comes as shown.
