KENNAMETAL Replaceable Tip Drill 28.58 to 29.08 mm Drill Dia 1517255
KENNAMETAL Replaceable Tip Drill 28.58 to 29.08 mm Drill Dia 1517255
Regular price
$283.02 USD
Regular price
$600.00 USD
Sale price
$283.02 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Kennametal
Item
MSRP: $600.00
- specs
Minimum Drill Diameter (Decimal Inch) 1.1252
Minimum Drill Diameter (mm) 28.58
Maximum Drill Diameter (mm) 29.08
Maximum Drill Diameter (Decimal Inch) 1.1449
Drill Depth by Diameter Ratio 8xD
Maximum Drill Depth (mm) 228.60
Maximum Drill Depth (Decimal Inch) 9.0000
Shank Type Weldon Flat
Insert Style KSEM1125
Insert Seat Size 7
Shank Diameter (mm) 31.75
Maximum Drill Depth Range (Decimal Inch) 8.0000+
Maximum Drill Depth Range (mm) 200.00
Compatible Insert Style KSEM1125
Overall Length (mm) 355.60
Series KSEM
Flute Length (mm) 257.34
Flute Length (Decimal Inch) 10.1315
Shank Length (Decimal Inch) 3.2500
Coolant Hole Thread Type NPT
Body Side Coolant Hole Thread Size (Inch) 1/8-27
Shank End Coolant Hole Thread Size (Inch) 1/4-18
Tip Length (Decimal Inch) 0.1700
Coolant Through Yes
Coating Classification Kennametal
(Description).

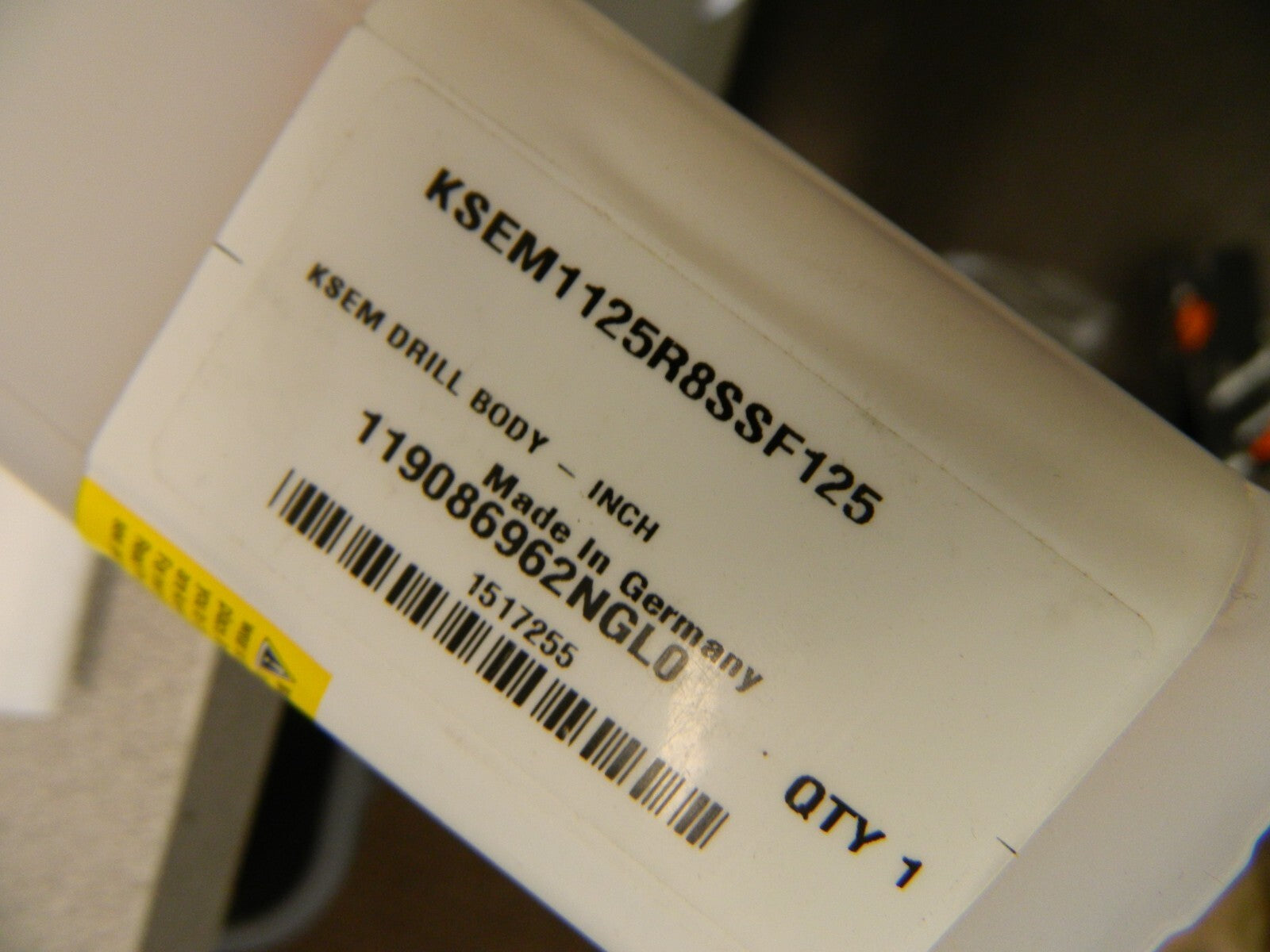

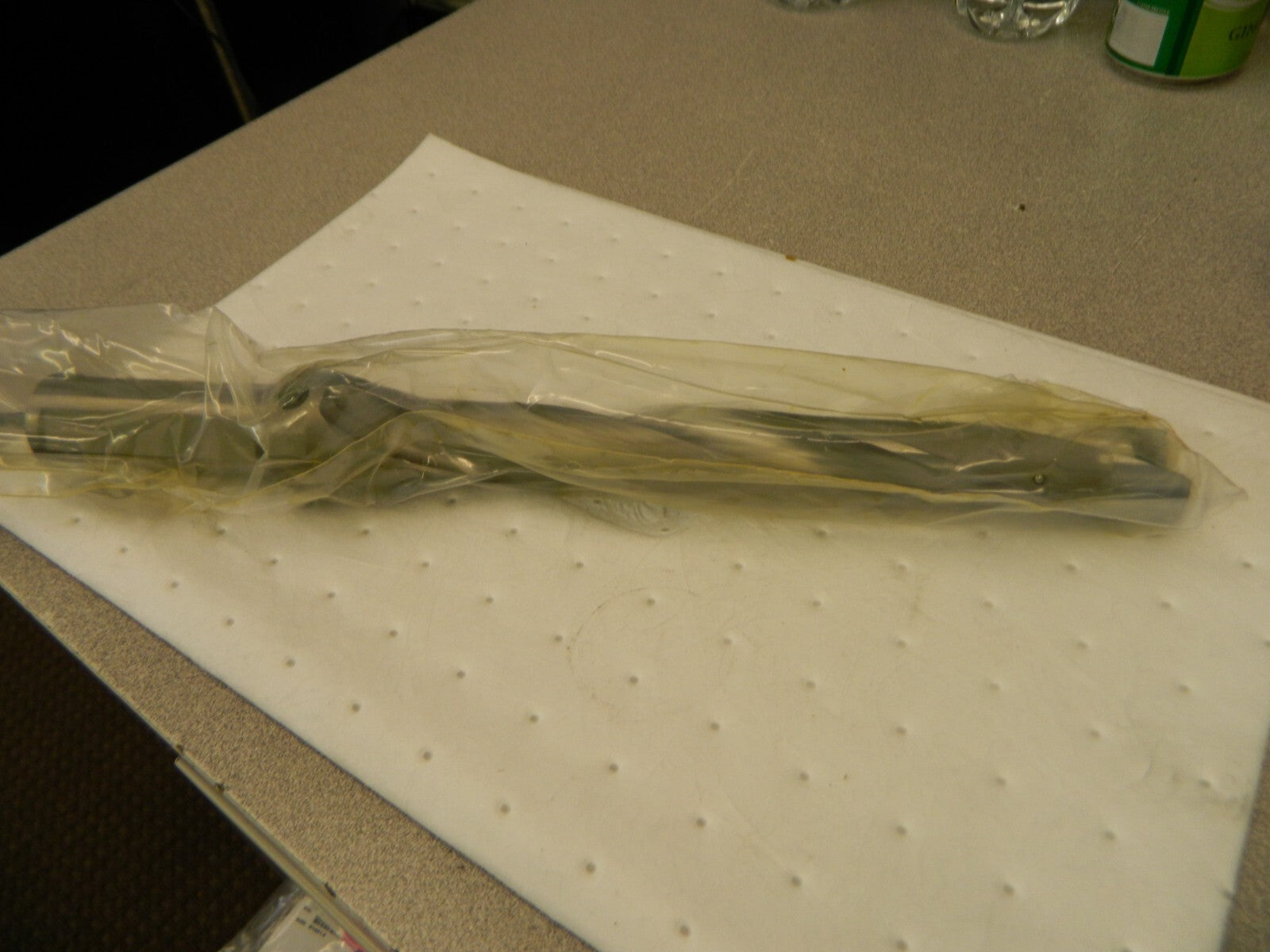

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date March 17 23
Lister#CM 13282
LocTurtle bottom
