KENNAMETAL Replaceable Tip Drill: 28.58 to 29.08 mm 7.88″ OAL 2238563

KENNAMETAL

 Replaceable Tip Drill: 28.58 to 29.08 mm 7.88″ OAL 2238563
MSRP: $450

• Minimum Drill Diameter (Decimal Inch) 1.1252
• Minimum Drill Diameter (mm) 28.58
• Maximum Drill Diameter (mm) 29.08
• Maximum Drill Diameter (Decimal Inch) 1.1449
• Drill Depth by Diameter Ratio 3xD
• Maximum Drill Depth (mm) 85.73
• Maximum Drill Depth (Decimal Inch) 3.3800
• Shank Type Straight-Cylindrical
• Insert Style KSEM1125
• Insert Seat Size 7
• Shank Diameter (mm) 31.75
• Maximum Drill Depth Range (Decimal Inch) 2.5000 to 3.5000
• Maximum Drill Depth Range (mm) 80.00 to 100.00
• Compatible Insert Style KSEM1125
• Overall Length (Decimal Inch) 7.8800
• Series KSEM
• Flute Length (Decimal Inch) 4.4700
• Shank Length (Decimal Inch) 3.2500
• Shank Length (mm) 82.55
• Coolant Hole Diameter (Decimal Inch) 0.1969
• Coolant Hole Diameter (mm) 5.00
• Tip Length (Decimal Inch) 0.1700
• Coolant Through Yes

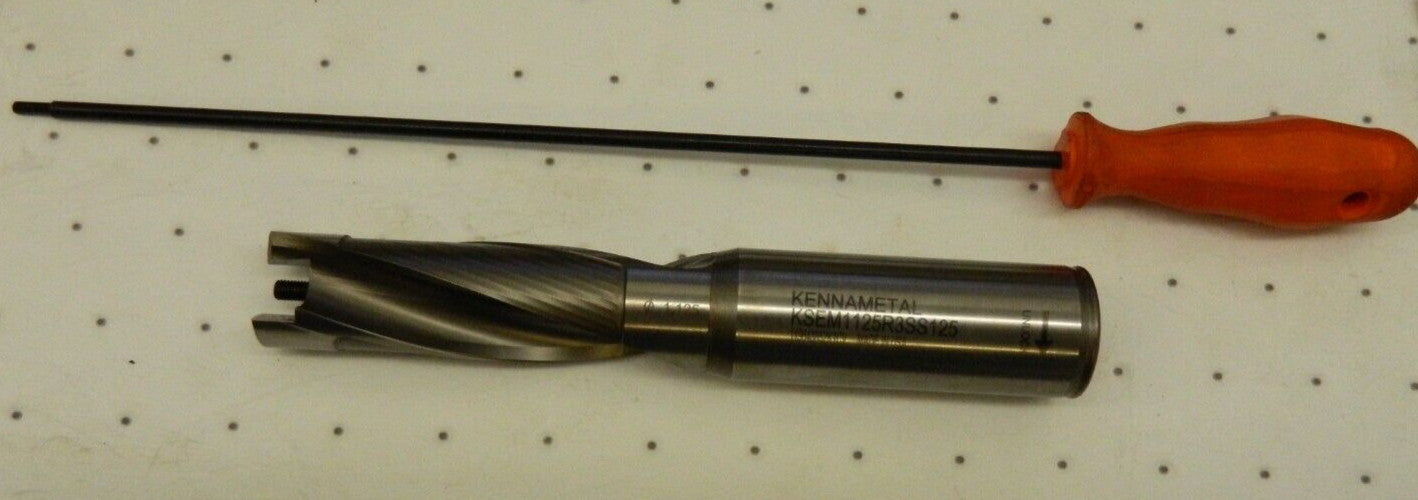

 Please review photos, comes as shown.
