KENNAMETAL Replaceable Tip Drill 15.88-16.38 mm Weldon Flat Shank 1505138

KENNAMETAL

 Replaceable Tip Drill 15.88-16.38 mm Weldon Flat Shank 1505138
MSRP: $370

• Minimum Drill Diameter (Decimal Inch) 0.6252
• Minimum Drill Diameter (mm) 15.88
• Maximum Drill Diameter (mm) 16.38
• Maximum Drill Diameter (Decimal Inch) 0.6449
• Drill Depth by Diameter Ratio 5xD
• Maximum Drill Depth (mm) 80.00
• Maximum Drill Depth (Decimal Inch) 3.1500
• Shank Type Weldon Flat
• Insert Style KSEM0625
• Insert Seat Size 1
• Shank Diameter (mm) 19.05
• Maximum Drill Depth Range (Decimal Inch) 2.5000 to 3.5000
• Maximum Drill Depth Range (mm) 80.00 to 100.00
• Compatible Insert Style KSEM0625
• Overall Length (mm) 171.45
• Overall Length (Decimal Inch) 6.7500
• Series KSEM
• Flute Length (mm) 99.19
• Flute Length (Decimal Inch) 3.9051
• Shank Length (Decimal Inch) 2.0000
• Coolant Hole Thread Type NPT
• Body Side Coolant Hole Thread Size (Inch) 1/8-27
• Shank End Coolant Hole Thread Size (Inch) 1/8-27
• Tip Length (Decimal Inch) 0.1000
• Coolant Through Yes
• Coating Classification Kennametal

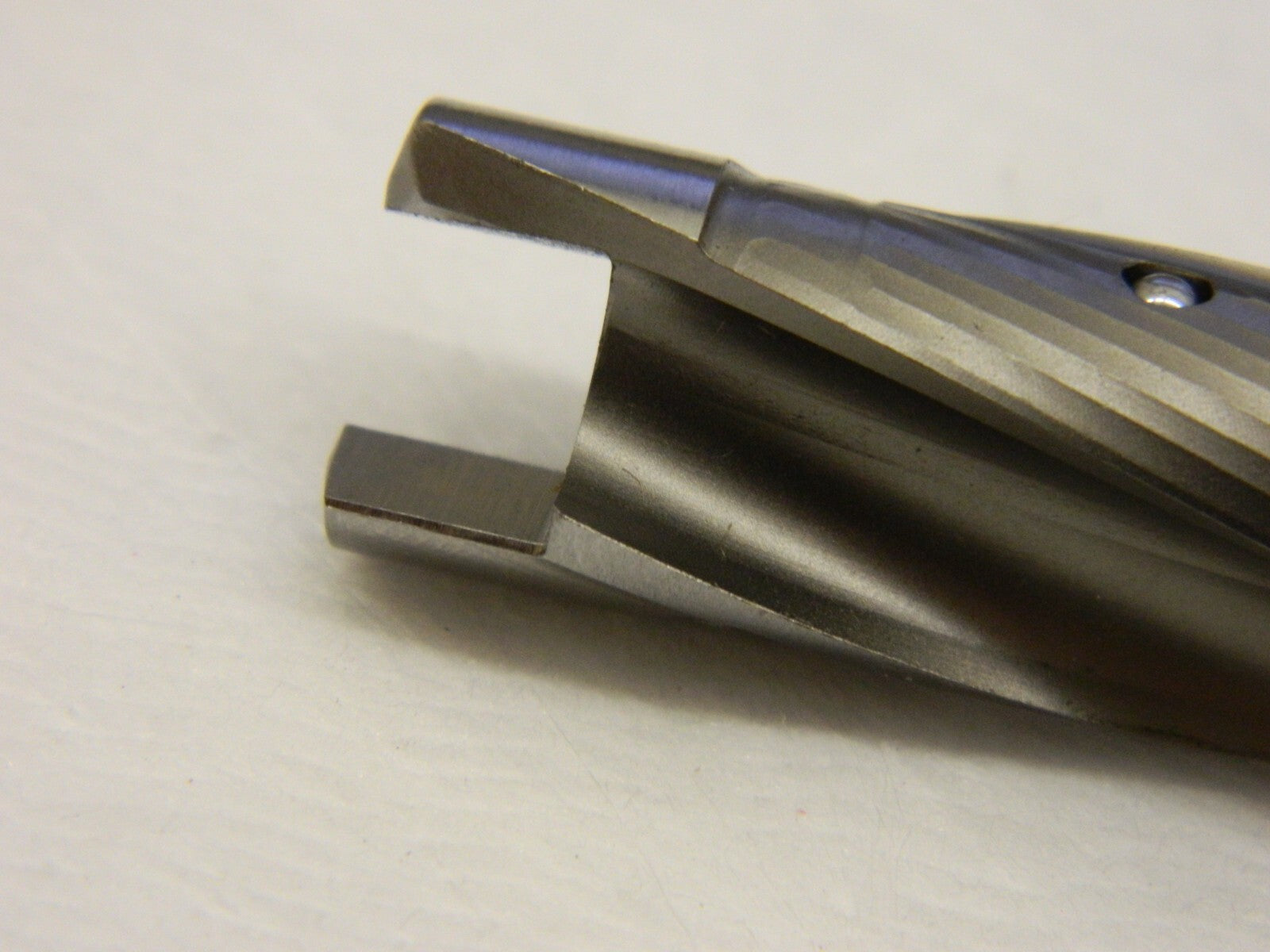

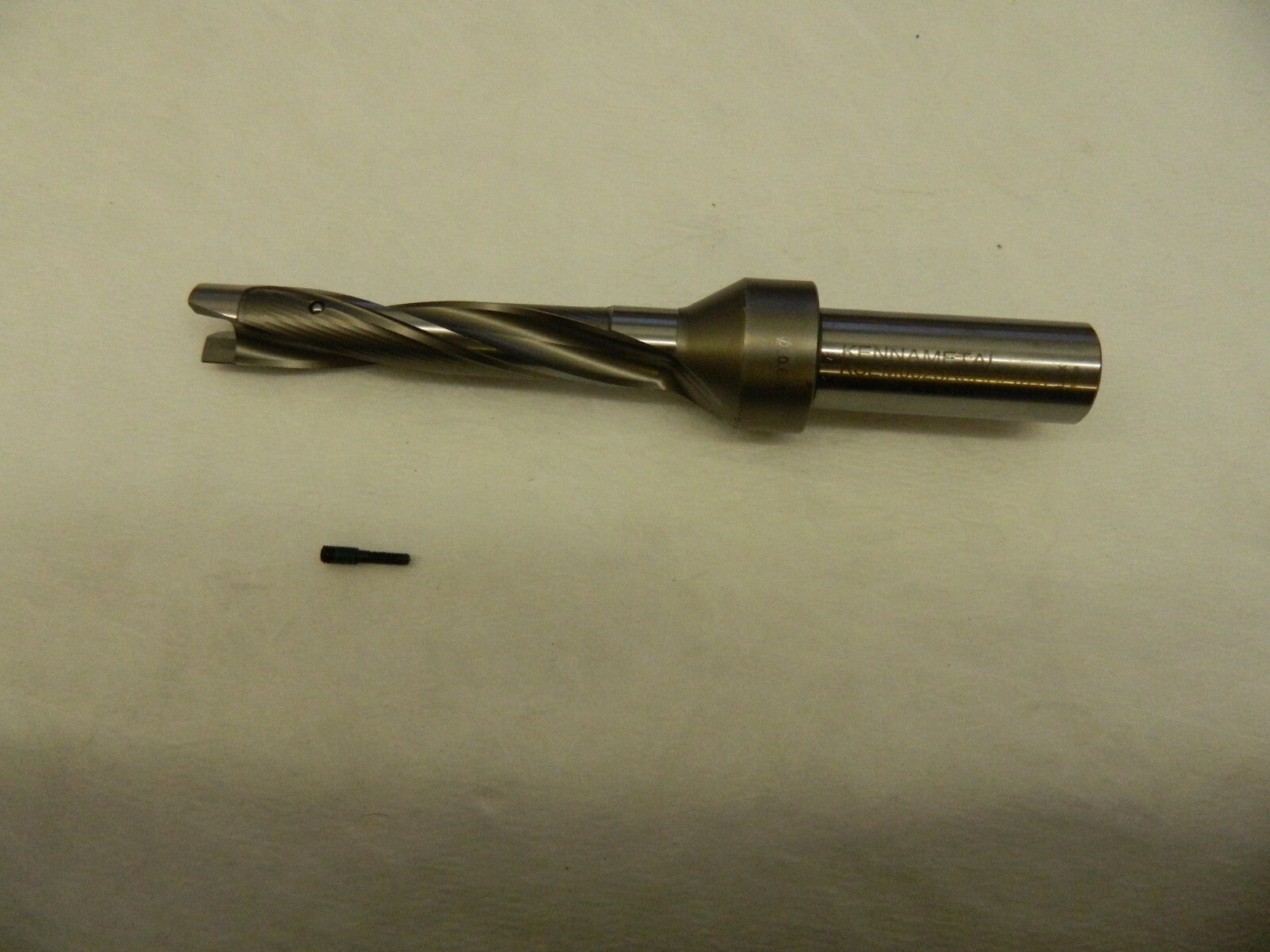

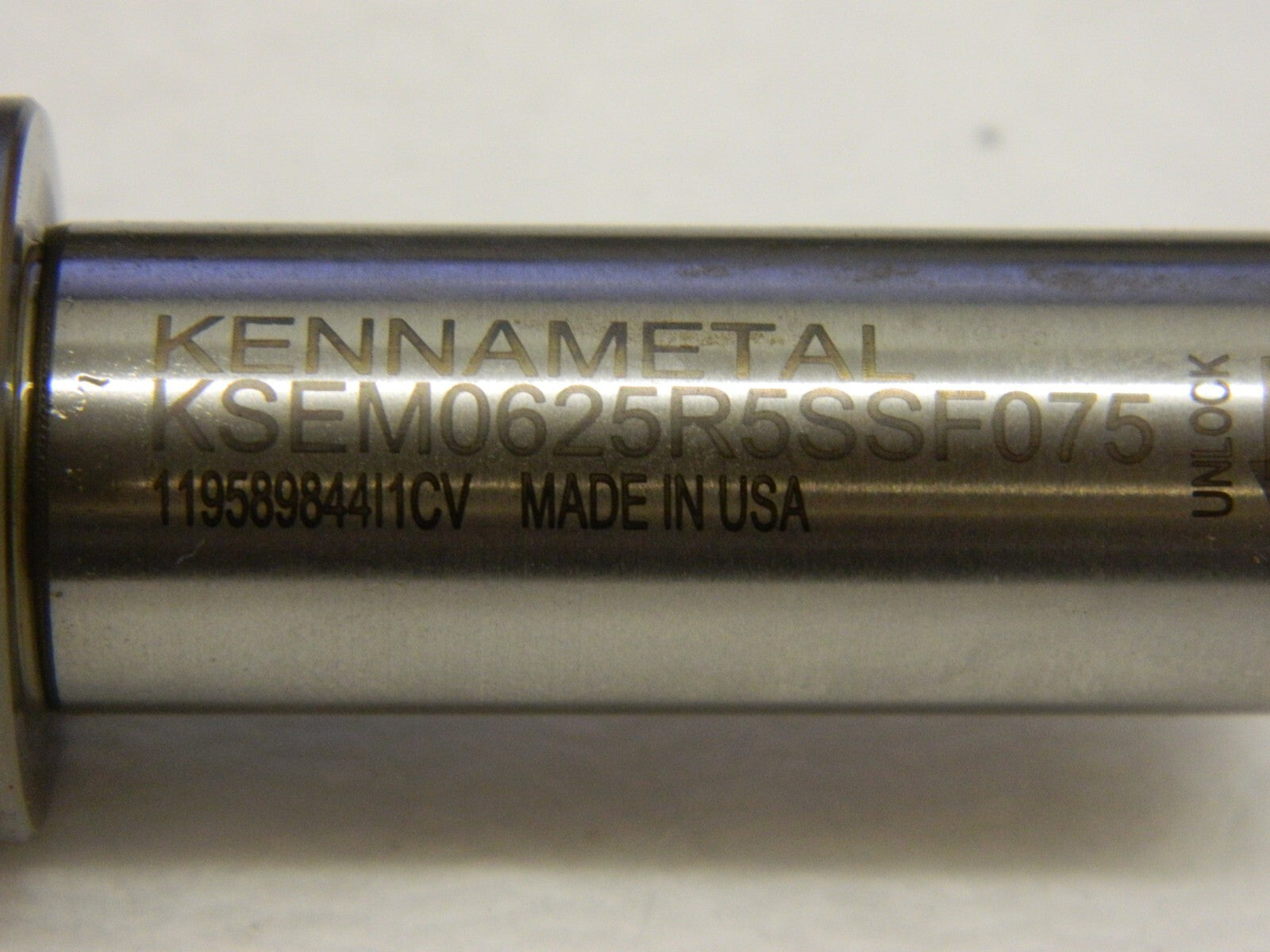

 Please review photos, comes as shown.
