KENNAMETAL Replaceable Tip Drill: 11.11 to 11.49 mm Weldon Flat Shank 5307706

KENNAMETAL

 Replaceable Tip Drill: 11.11 to 11.49 mm Weldon Flat Shank 5307706
MSRP: $250

• Minimum Drill Diameter (Decimal Inch) 0.4375
• Minimum Drill Diameter (mm) 11.11
• Maximum Drill Diameter (mm) 11.49
• Maximum Drill Diameter (Decimal Inch) 0.4524
• Drill Depth by Diameter Ratio 5xD
• Maximum Drill Depth (mm) 57.40
• Maximum Drill Depth (Decimal Inch) 2.2600
• Shank Type Weldon Flat
• Shank Diameter (Inch) 5/8
• Shank Diameter (Inch - 0 Decimals) 0.6250
• Shank Diameter (Decimal Inch) 0.6250
• Insert Seat Size L
• Shank Diameter (mm) 15.88
• Tool Material Steel
• Maximum Drill Depth Range (Decimal Inch) 1.5000 to 2.5000
• Maximum Drill Depth Range (mm) 40.00 to 60.00
• Overall Length (mm) 127.25
• Overall Length (Decimal Inch) 5.0100
• Series KenTIP
• Toolholder Style KTIP
• Flute Length (Decimal Inch) 2.9100
• Shank Length (Decimal Inch) 1.8900
• Tip Length (Decimal Inch) 0.0760
• Coolant Through Yes

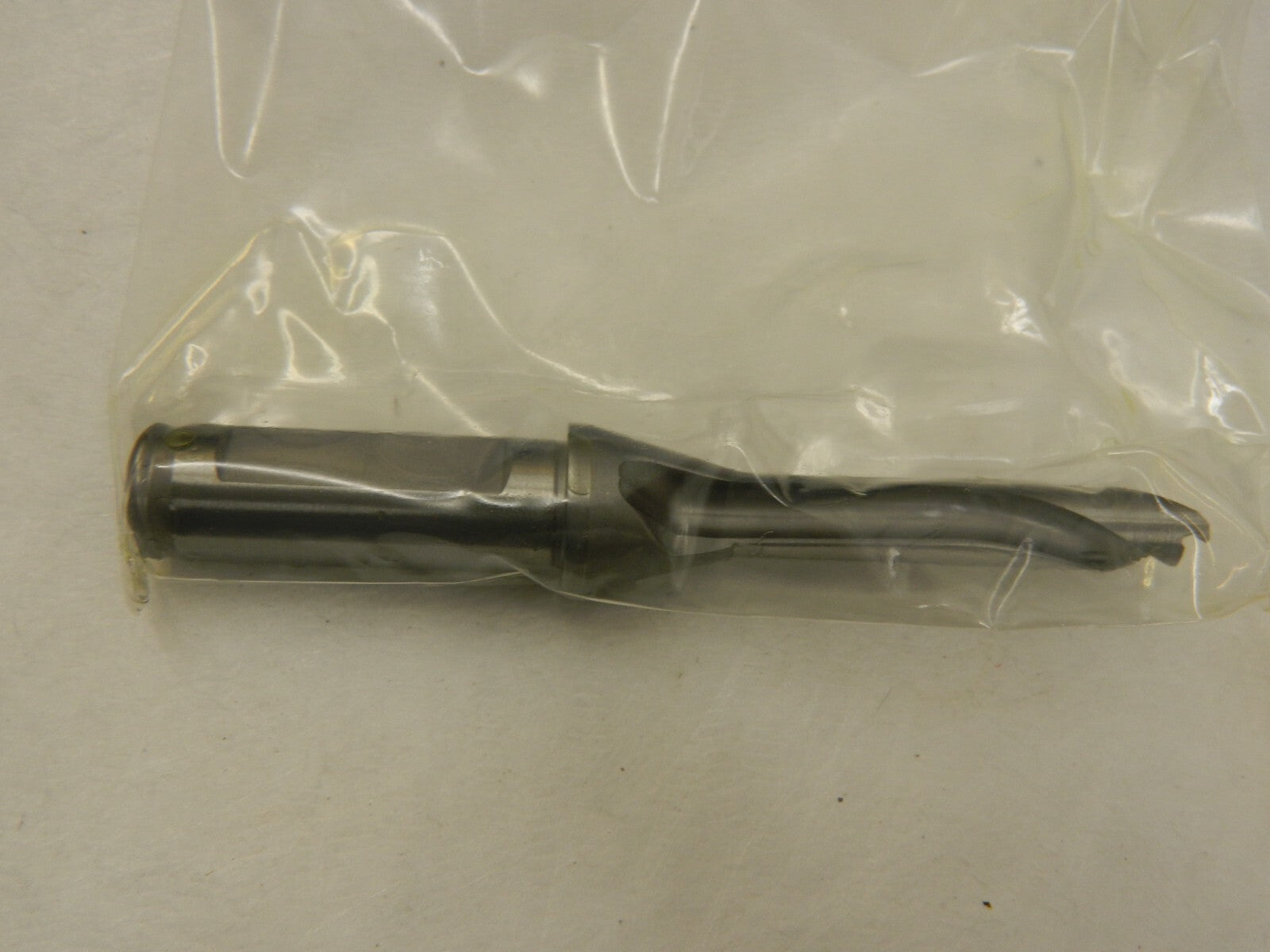

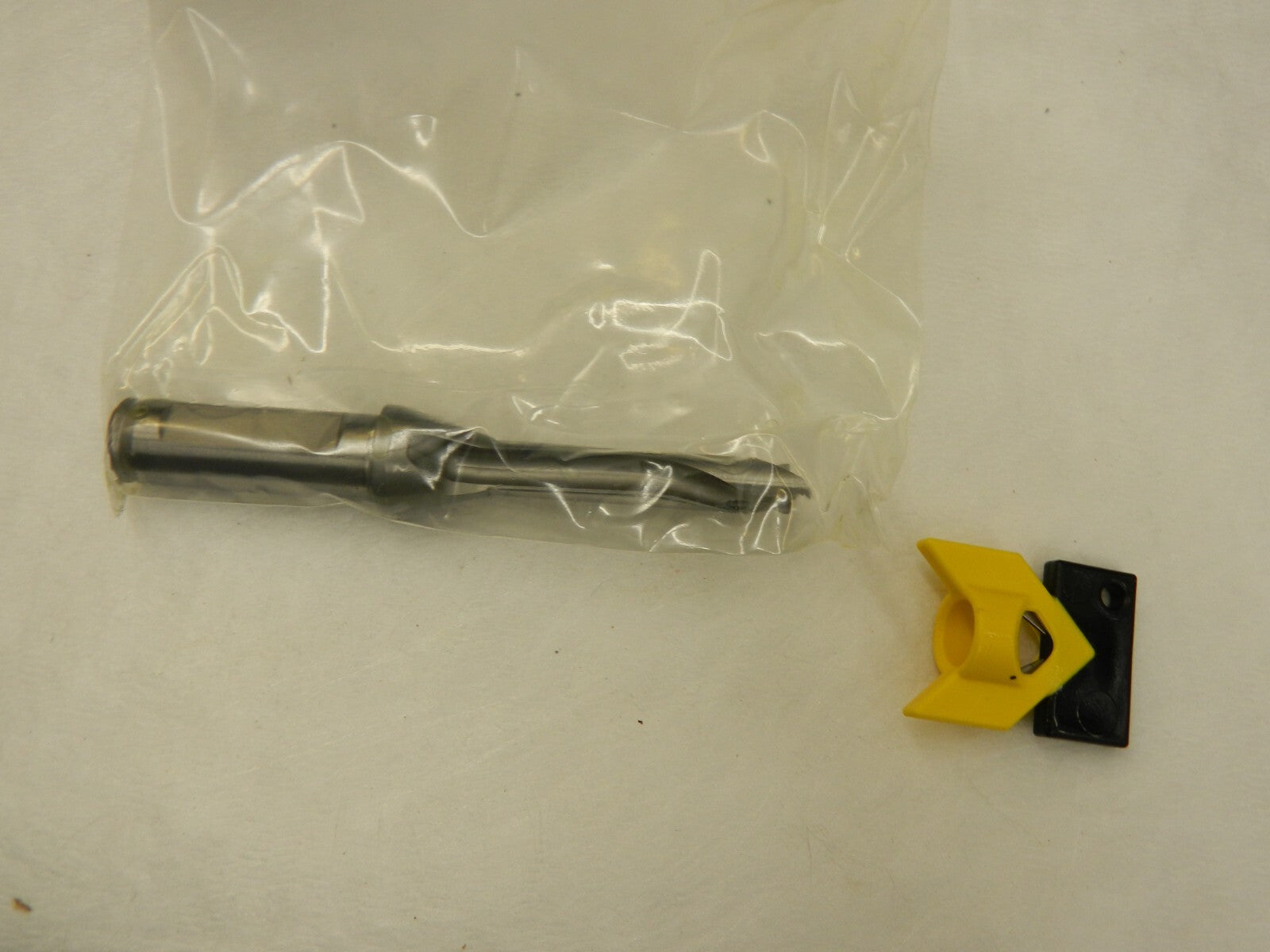

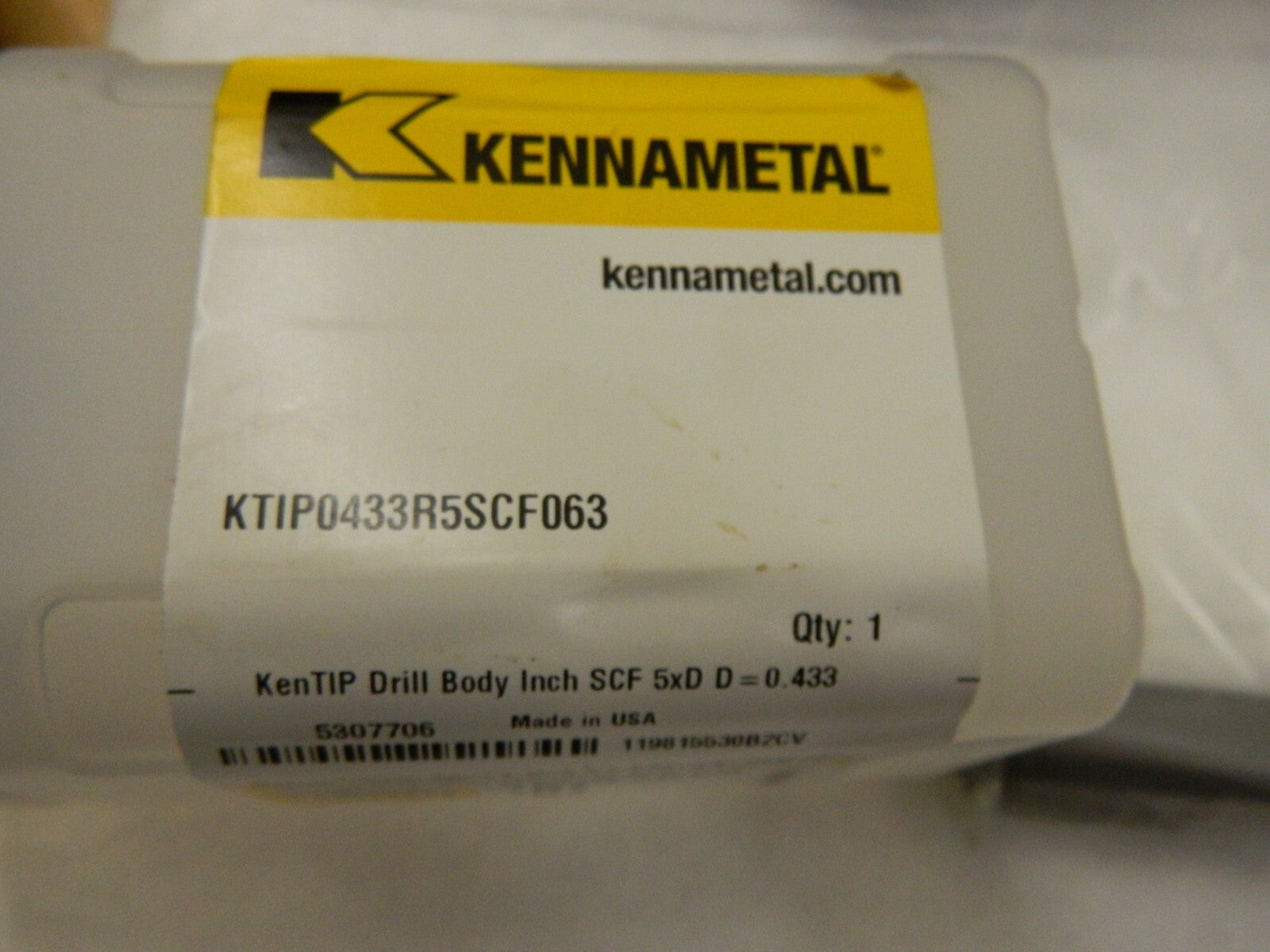

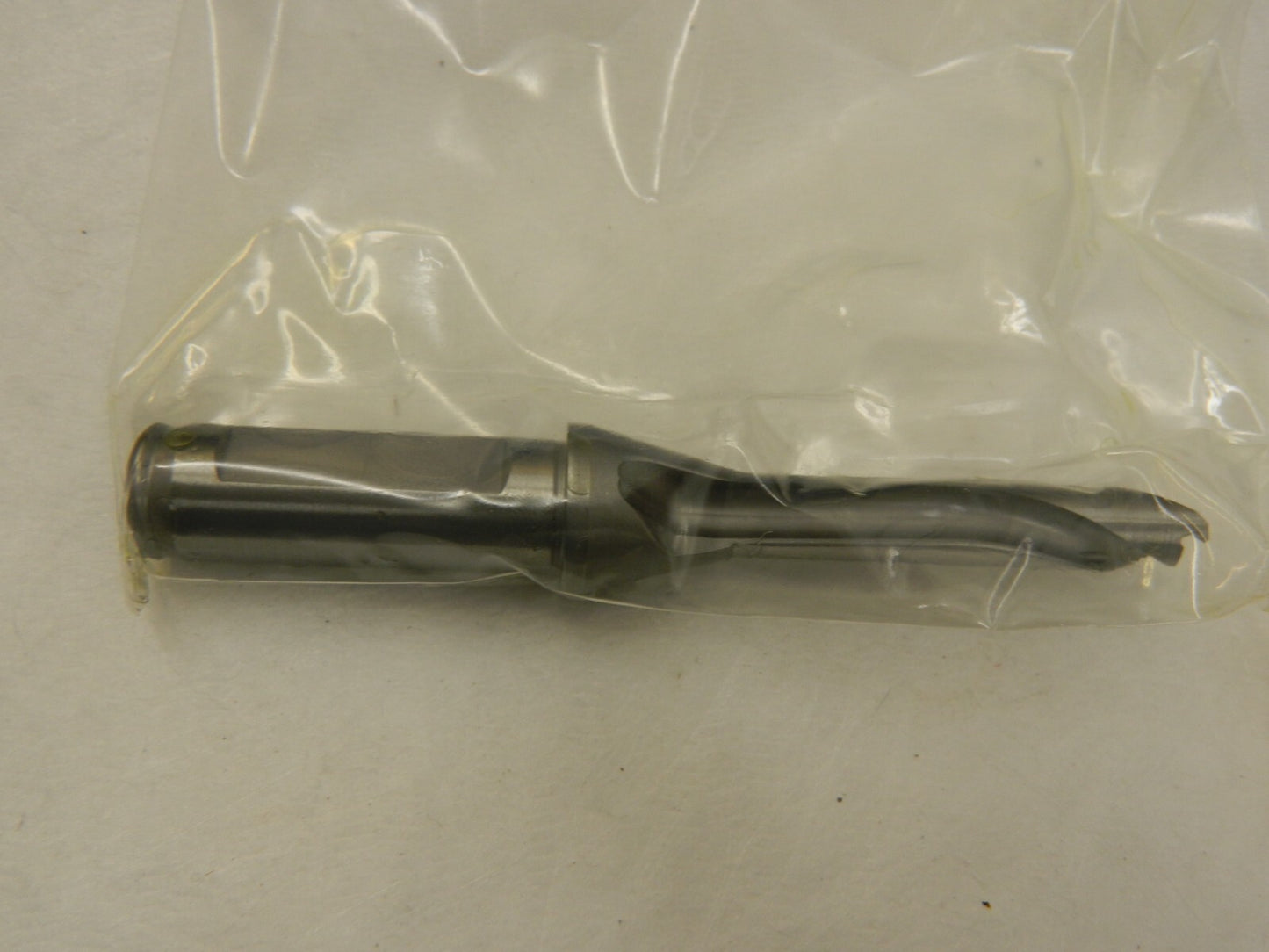

 Please review photos, comes as shown.
