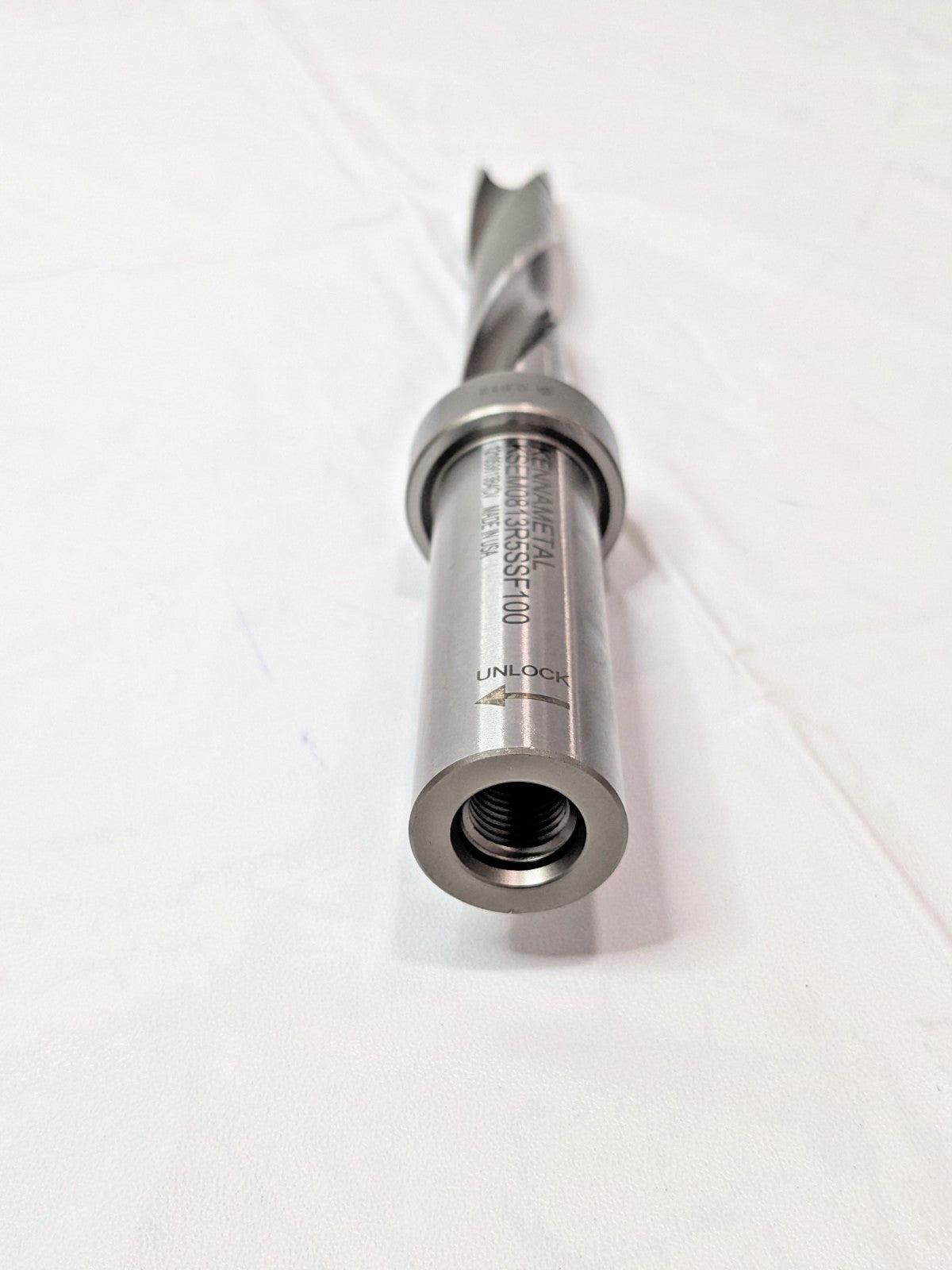

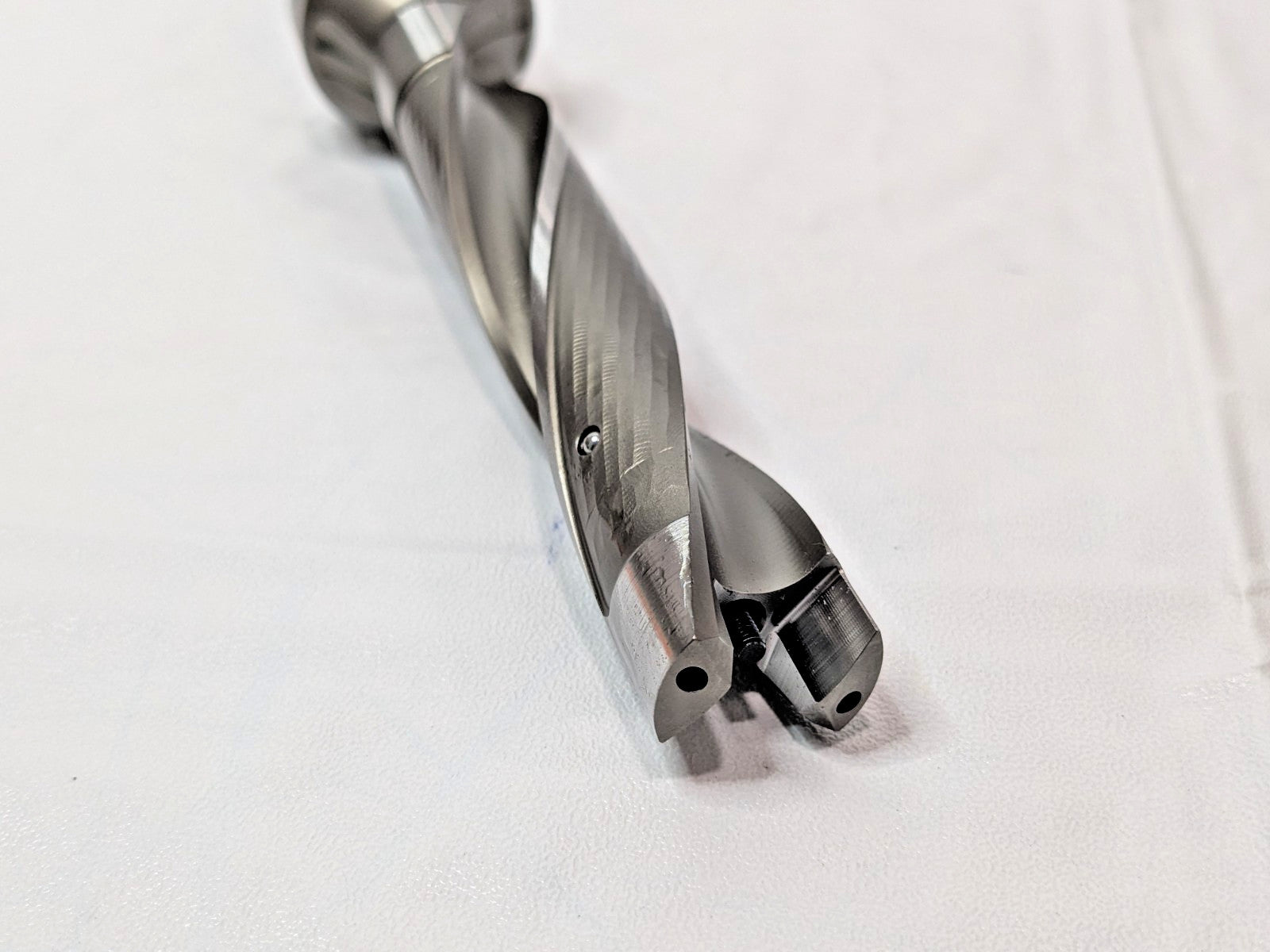

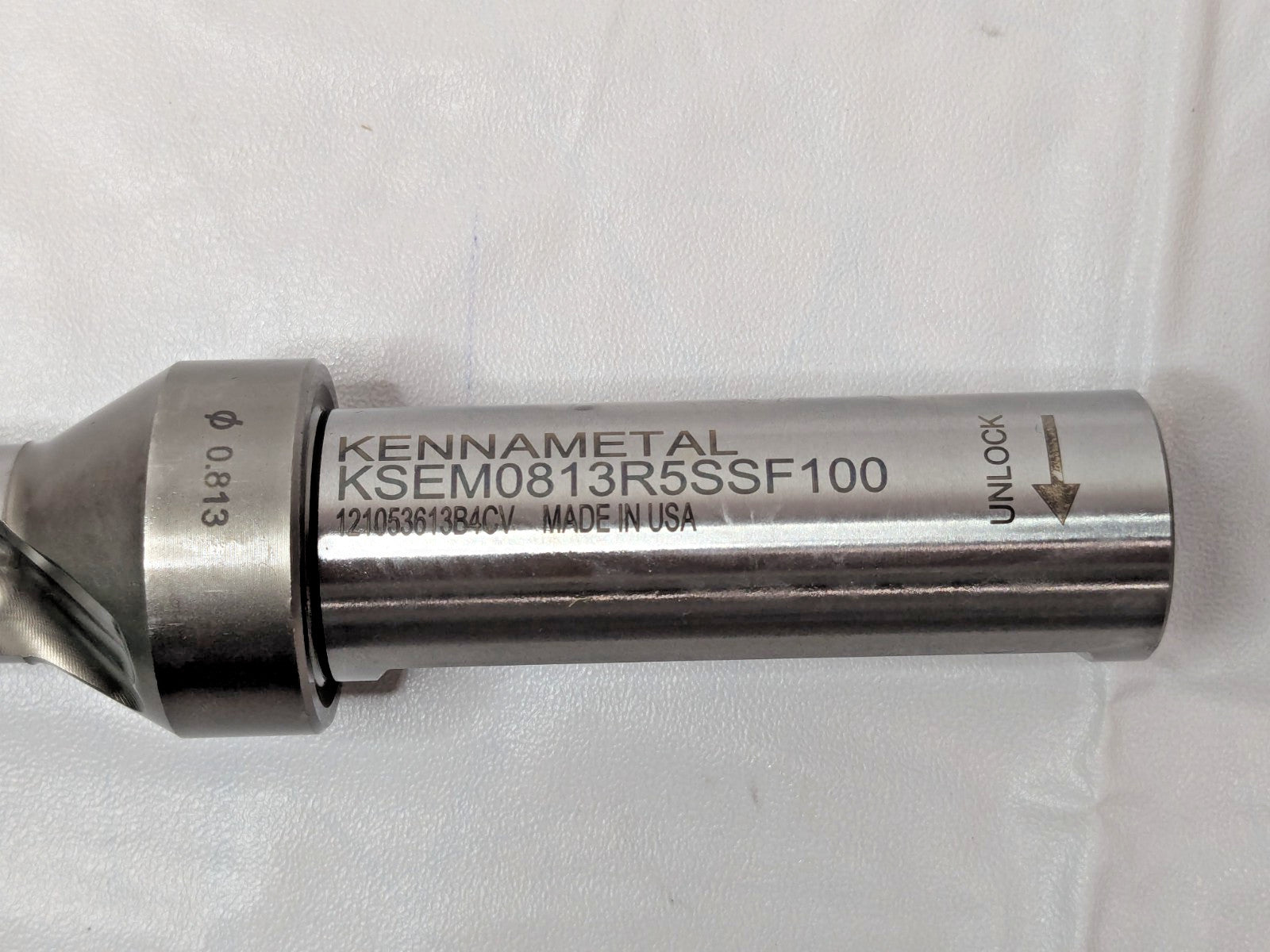

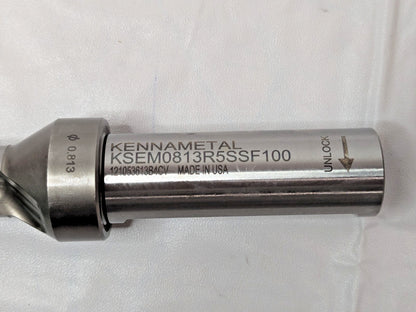

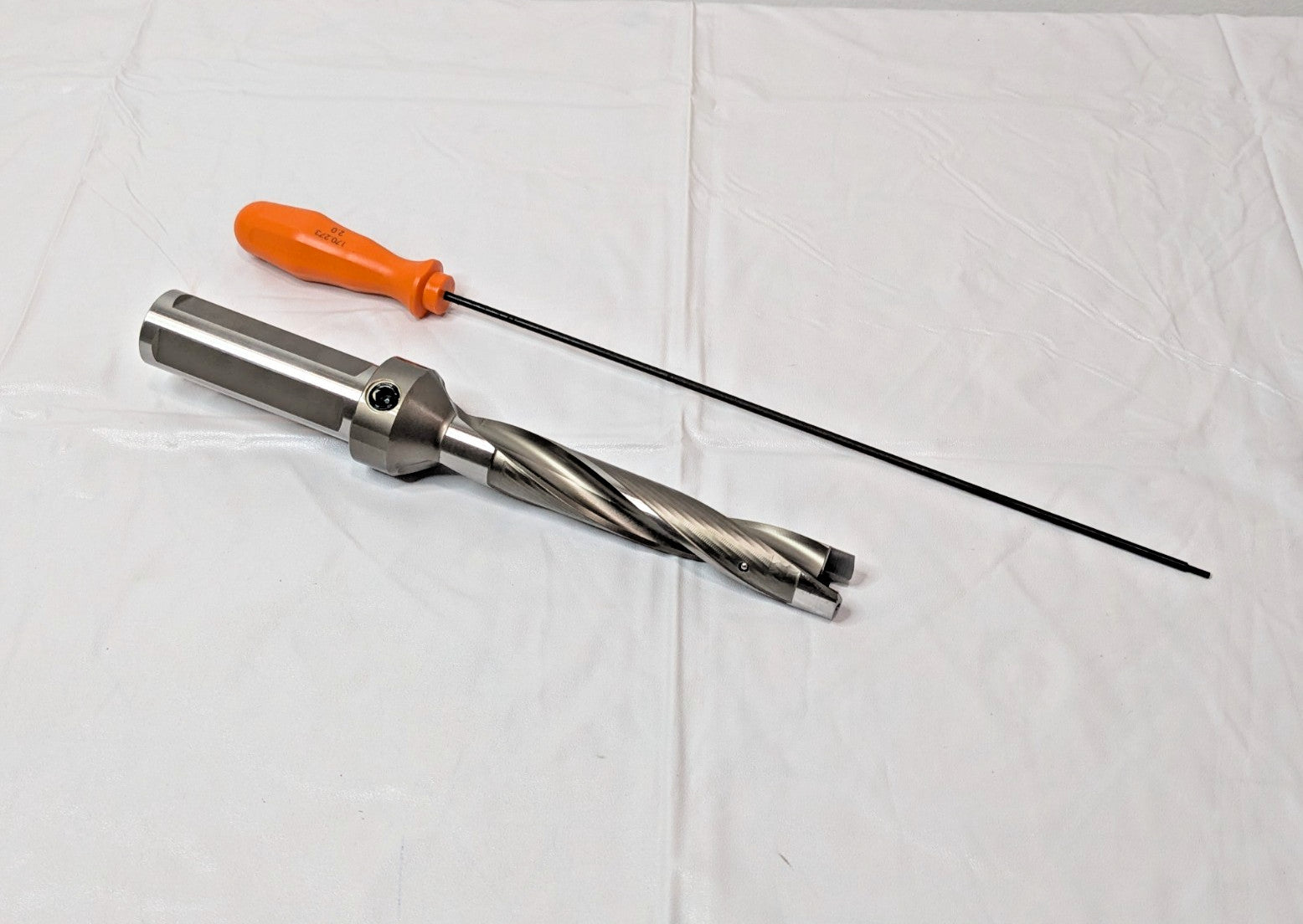

Kennametal Replaceable-Tip Drill 0.813" Dia 5XD Seat #3 KSEM0813R5SSF100 1505179

Kennametal
Replaceable-Tip Drill

MSRP: $580

• Minimum Drill Diameter (Decimal Inch): 0.8126
• Minimum Drill Diameter (mm): 20.64
• Maximum Drill Diameter (mm): 21.14
• Maximum Drill Diameter (Decimal Inch): 0.8323
• Drill Depth by Diameter Ratio: 5xD
• Maximum Drill Depth (mm): 110.00
• Maximum Drill Depth (Decimal Inch): 4.3300
• Shank Type: Weldon Flat
• Insert Seat Size: 3
• Shank Diameter (mm): 25.40
• Maximum Drill Depth Range (Decimal Inch): 3.5000 to 4.5000
• Maximum Drill Depth Range (mm): 100.00 to 125.00
• Compatible Insert Style: KSEM0813
• Overall Length (mm): 234.95
• Overall Length (Decimal Inch): 9.25
• Series: KSEM
• Flute Length (mm): 136.53
• Flute Length (Decimal Inch): 5.3752
• Shank Length (Decimal Inch): 3.0000
• Coolant Hole Thread Type: NPT
• Body Side Coolant Hole Thread Size (Inch): 1/8-27
• Shank End Coolant Hole Thread Size (Inch): 1/4-18
• Coolant Through: Yes
• UNSPSC Code: 23291502

*NIB*

Please review photos, comes as shown.
