Kennametal Replaceable Drill Tip KSEM1746HPLM/KSEM0688HPL KCMS15 3381133

Kennametal
Replaceable Drill Tip

MSRP: $160

• Cutting Diameter (Inch) 11/16
• Cutting Diameter (Decimal Inch) 0.6874
• Cutting Diameter (mm) 17.46
• Tip Material Solid Carbide
• Manufacturer Grade KCMS15
• Material Grade Fine Grain
• Series KSEM
• Coating Process PVD
• Insert Geometry HPL
• Insert Seat Size 1
• Functional Length (Decimal Inch) 0.3438
• Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K; M; N
• Height (Decimal Inch) 0.3438
• Overall Length/Projection (Decimal Inch) 0.3438
• Drill Point Angle 140
• Flute Type Helical
• Insert Holding Method Clamp
• ISO Number KSEM0688HPL
• Coolant Through No
• Flute Length (mm) 9.00
• Point Type Standard
• Spiral Type Regular Spiral
• Height (Inch) 11/32
• Style KSEM
• UNSPSC Code 23242105
• Applications Drilling; ToolDimensions:2flute/2margin/coolant; Drilling:InclinedExit; Drilling:StackedPlates
• Coating/Finish AlTiN
• Included Angle Degree 140
• Number Of Flutes 2

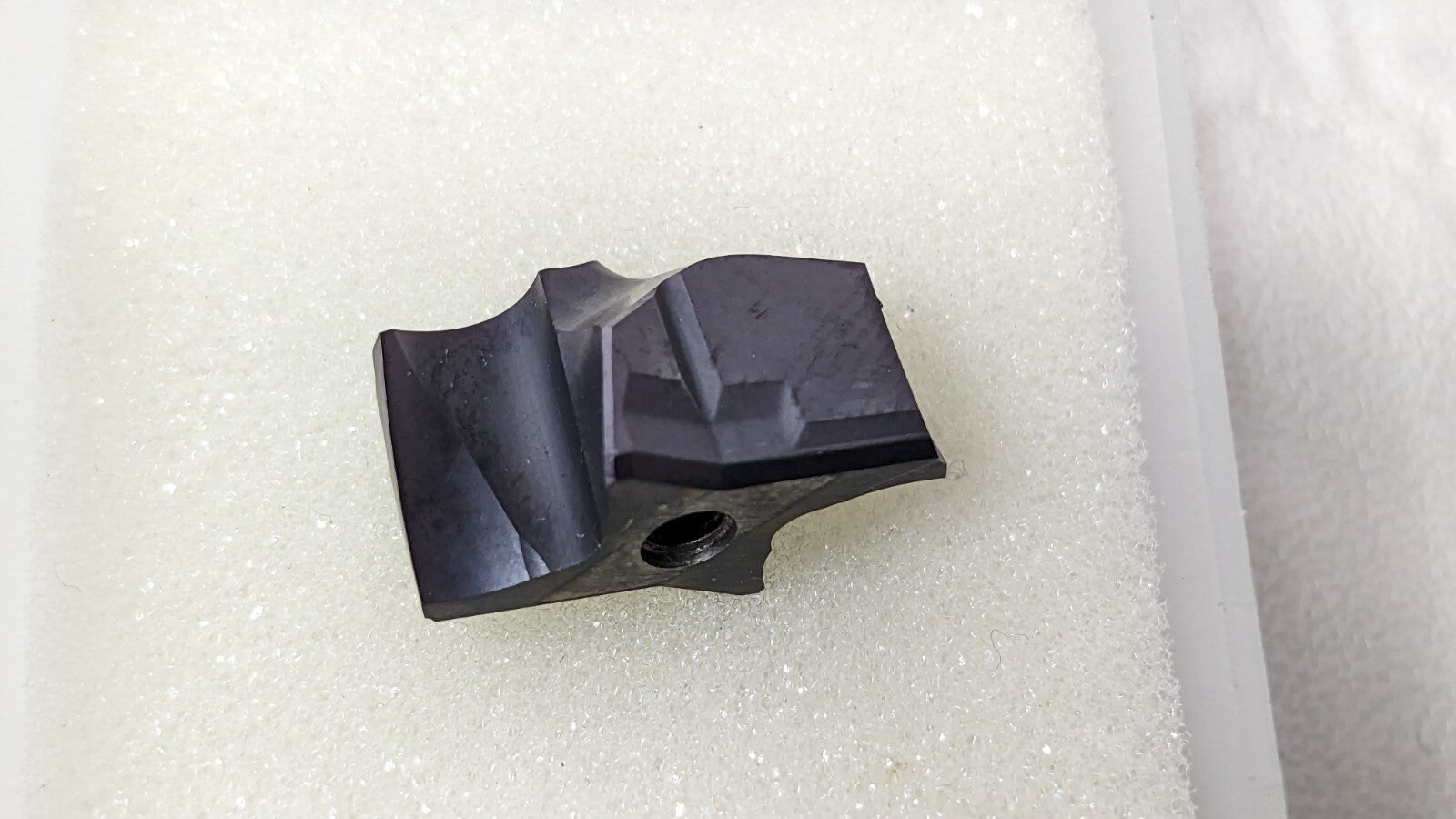

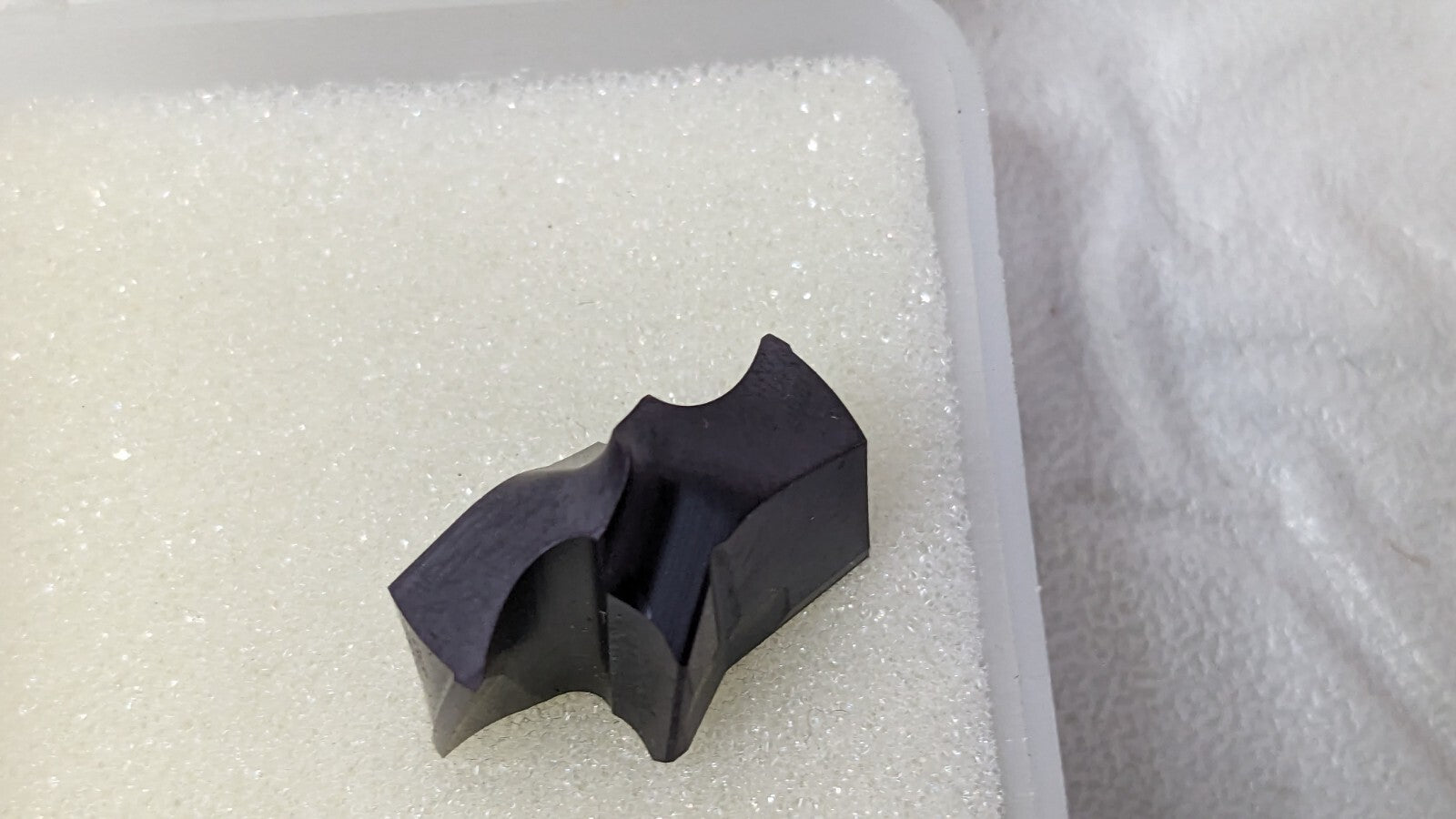

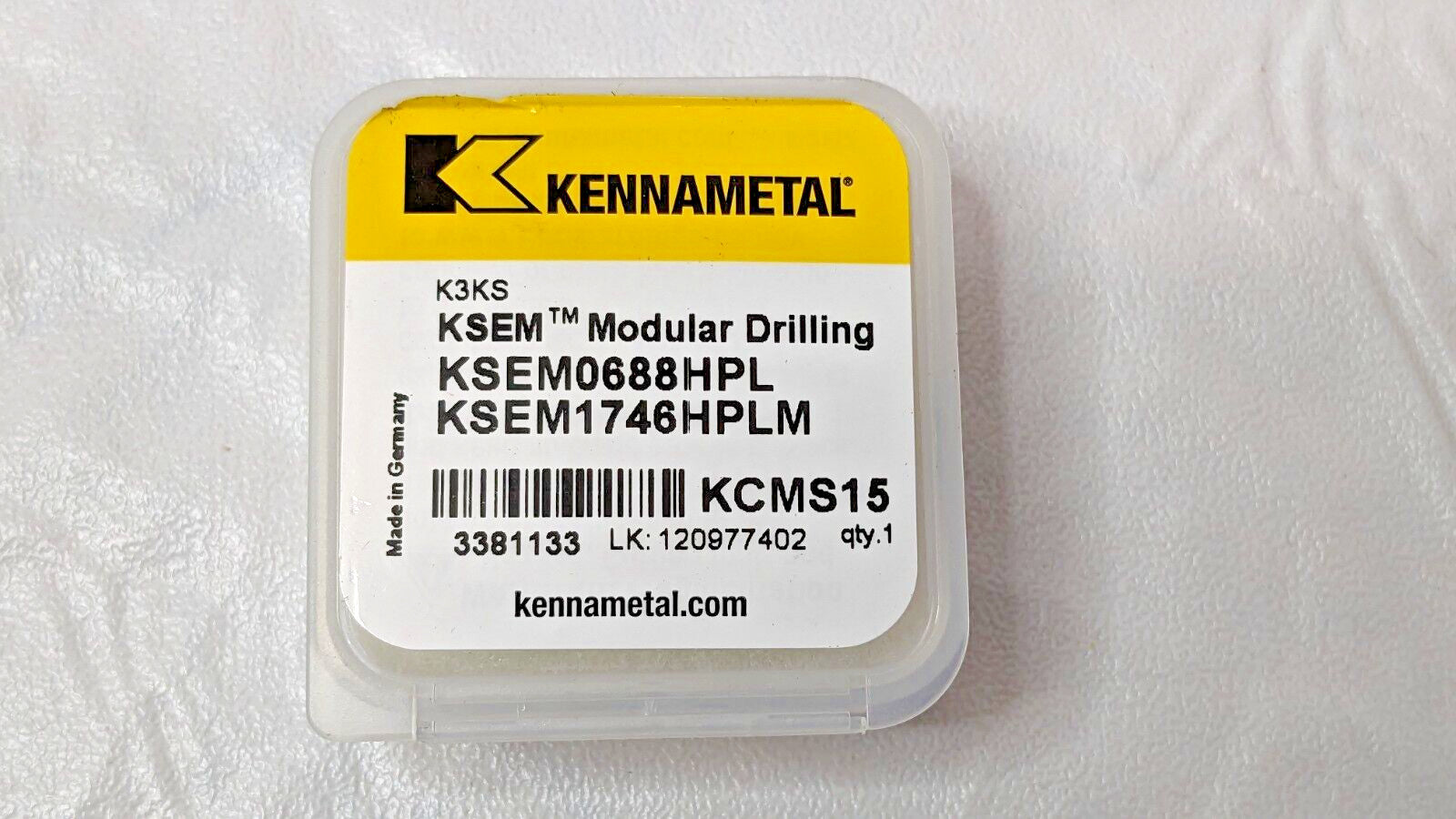

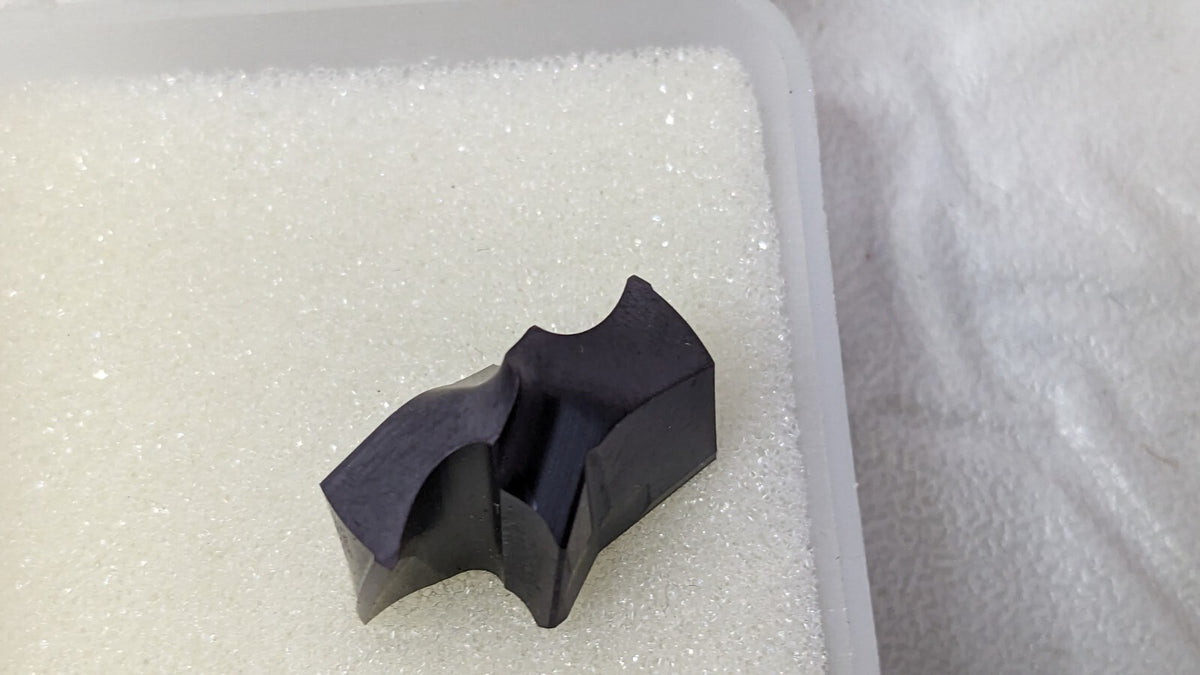

Please review photos, comes as shown.
