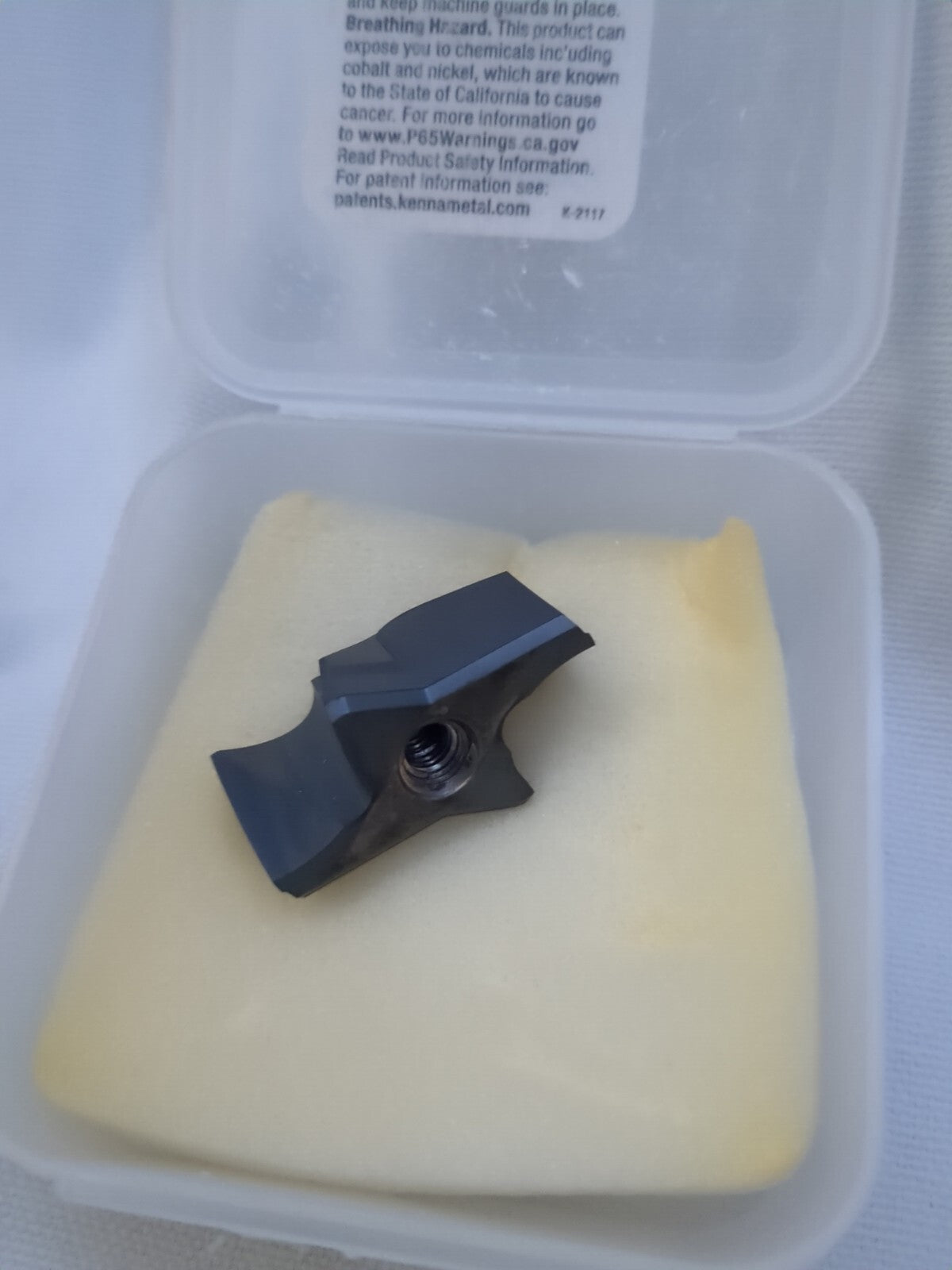

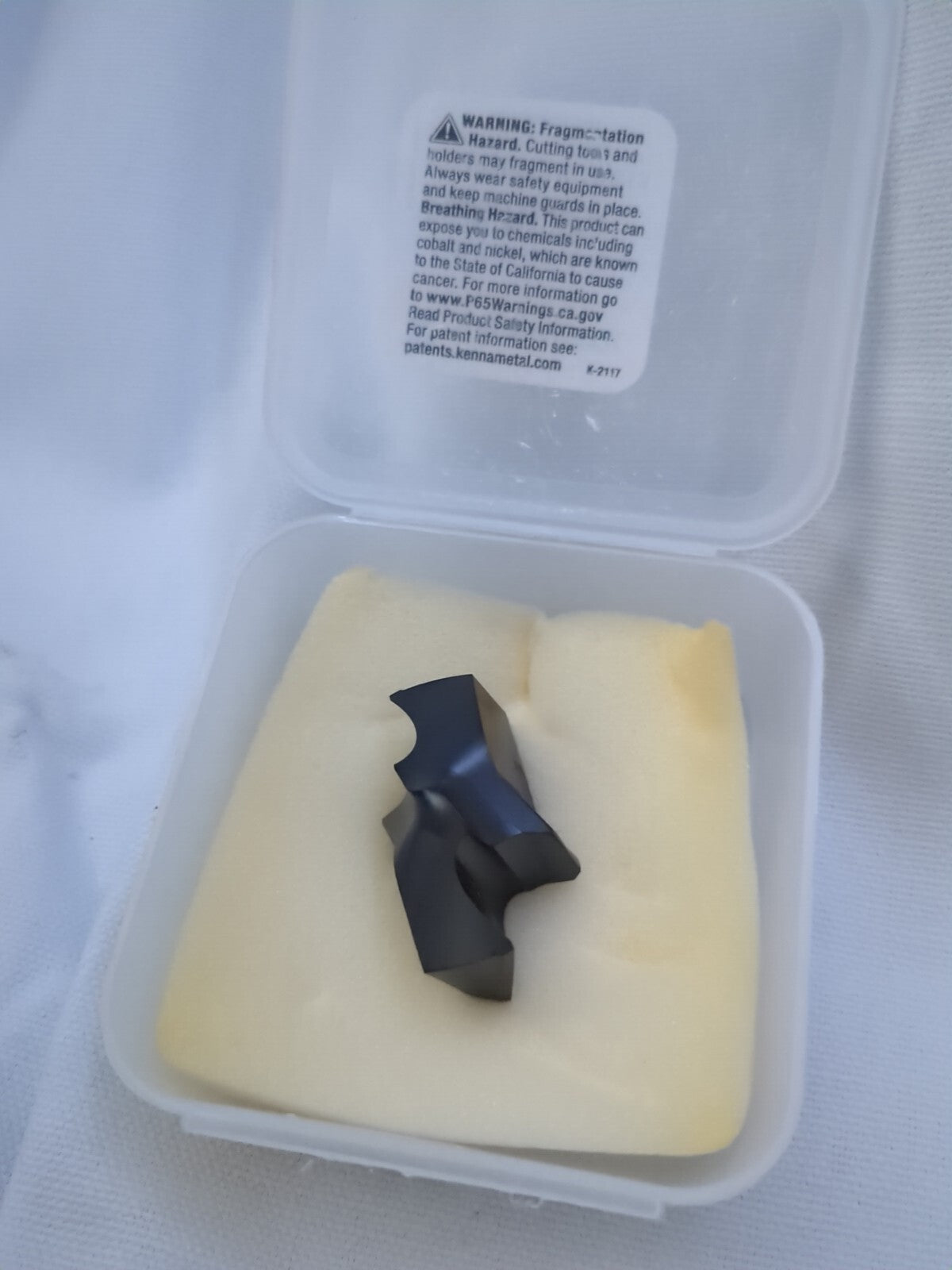

KENNAMETAL Replaceable Drill Tip: KSEM1514HPL KC7320 3381199

MSRP: $280

• Cutting Diameter (Decimal Inch) 1.5142
• Cutting Diameter (mm) 38.00
• Tip Material Solid Carbide
• Manufacturer Grade KCMS15
• Material Grade Fine Grain
• Series KSEM
• Coating Process PVD
• Insert Geometry HPL
• Insert Seat Size 10
• Functional Length (Decimal Inch) 0.7570
• Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K; M; N
• Height (mm) 19.00
• Overall Length/Projection (Decimal Inch) 0.7570
• Drill Point Angle 140
• Flute Type Helical
• Insert Holding Method Clamp
• ISO Number KSEM1514HPL
• Coolant Through No
• Flute Length (mm) 19.00
• Point Type Standard
• Spiral Type Regular Spiral
• Style KSEM
• UNSPSC Code 23242105
• Applications Drilling; ToolDimensions:2flute/2margin/coolant; Drilling:InclinedExit; Drilling:StackedPlates
• Coating/Finish AlTiN
• Included Angle Degree 140
• Number Of Flutes 2

(Description).

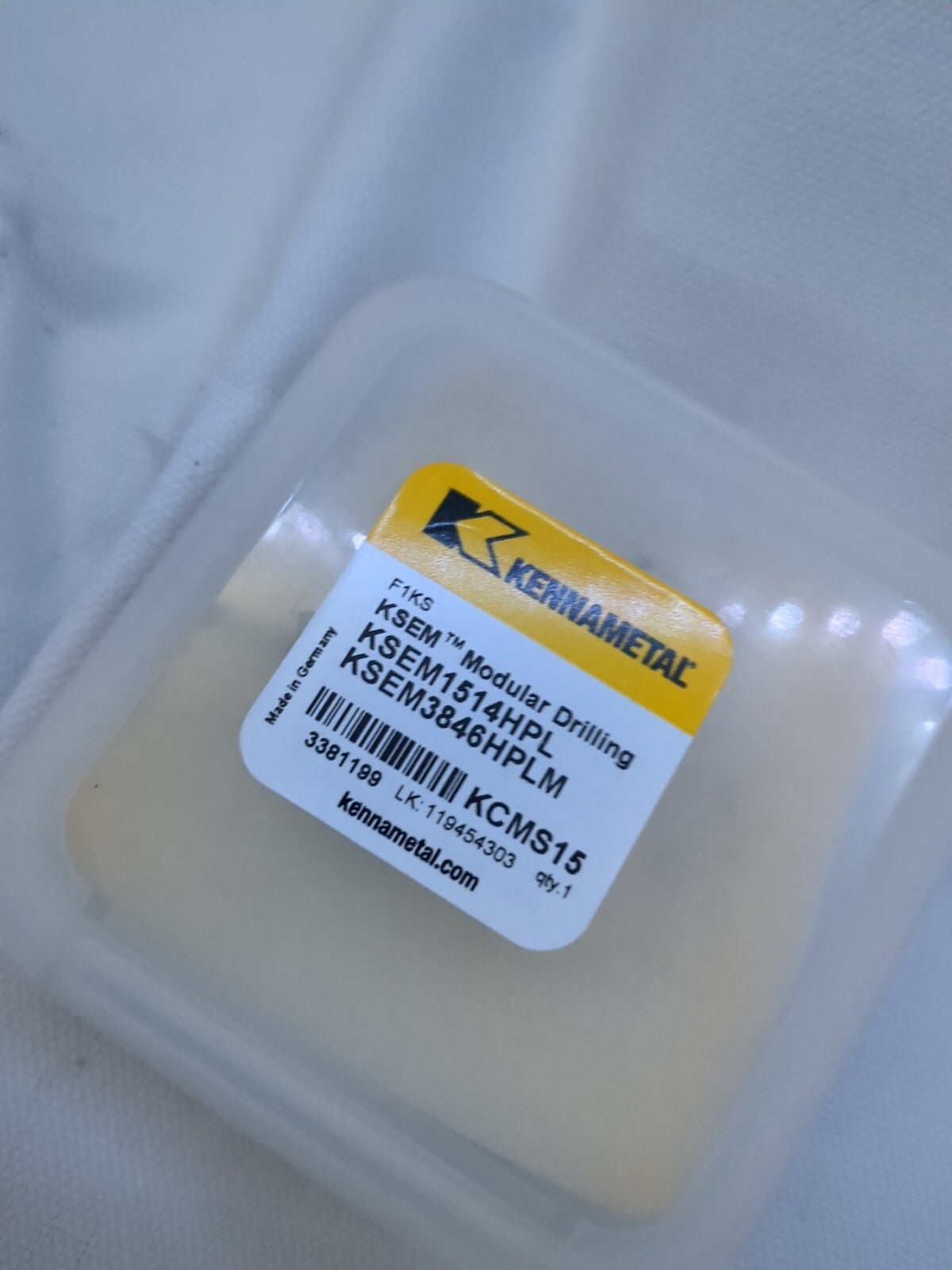

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
