Kennametal Milling Inserts XPPT Solid Carbide Square 4 Qty 6185769

Kennametal
4 Pack of Milling Insert

MSRP: $115.00

• Insert Style: XPPT
• Insert Size: 06
• Insert Material: Solid Carbide
• Insert Shape: Square
• Manufacturer Grade: KCSM40
• Corner Radius (Decimal Inch): 0.0313
• Number Of Cutting Edges: 4
• Thickness (Decimal Inch - 4 Decimals): 0.1250
• Coating/Finish: TiN; TiAlN
• Relief Angle: 11.000
• Insert Size Code: 060308
• Thickness (Inch): 1/8
• Inscribed Circle (Decimal Inch): 0.2760
• Inscribed Circle (mm): 7.00
• Thickness Range (Decimal Inch): 0.1250 to 0.1500
• Corner Radius (Inch): 1/32
• Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000
• Length Range (Decimal Inch): 0.0000 to 0.3200
• Insert Hand: Right Hand
• Series: XPPT
• Coating Process: PVD
• Rake: Positive
• Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel Primary Workpiece Material Code: P; S; M
• Ansi Code: XPPT060308ERD41
• Iso Code: XPLT060308ERD41
• Standards: ISO; ANSI
• Cutting Edge Style: Honed
• Manufacturers Catalog Number: XPLT060308ERD41
• Cutter Series Compatibility: 7792VXP06
• Chip Breaker: D41
• UNSPSC Code: 23291601
• Material Application: Stainless Steel; Superalloys & Titanium; Steel
• Insert Holding Method: Screw
• Coating Classification: PVD
• Single or Double Sided Insert: Single
• Included Angle Degree: 90
• Length (mm): 7.00
• Width (Decimal Inch - 4 Decimals): 0.2760
• Width (mm - 2 Decimals): 7.00
• Multi-Use Tool: Yes
• Length (Decimal Inch - 4 Decimals): 0.2760

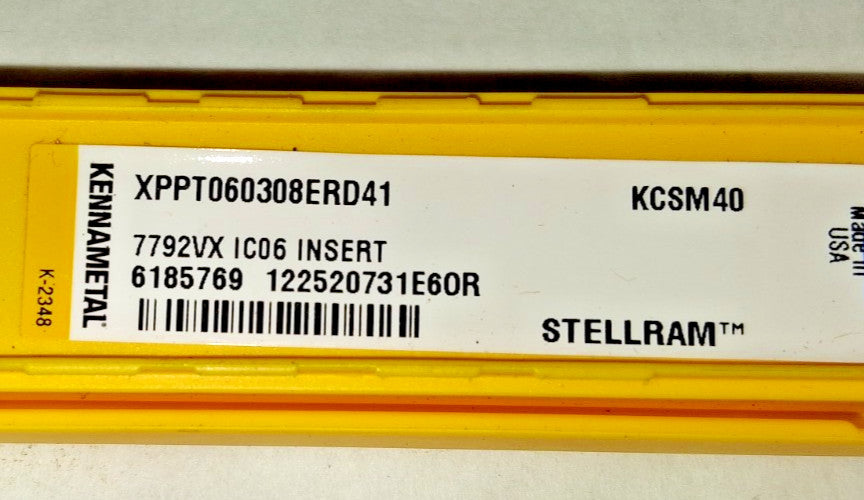

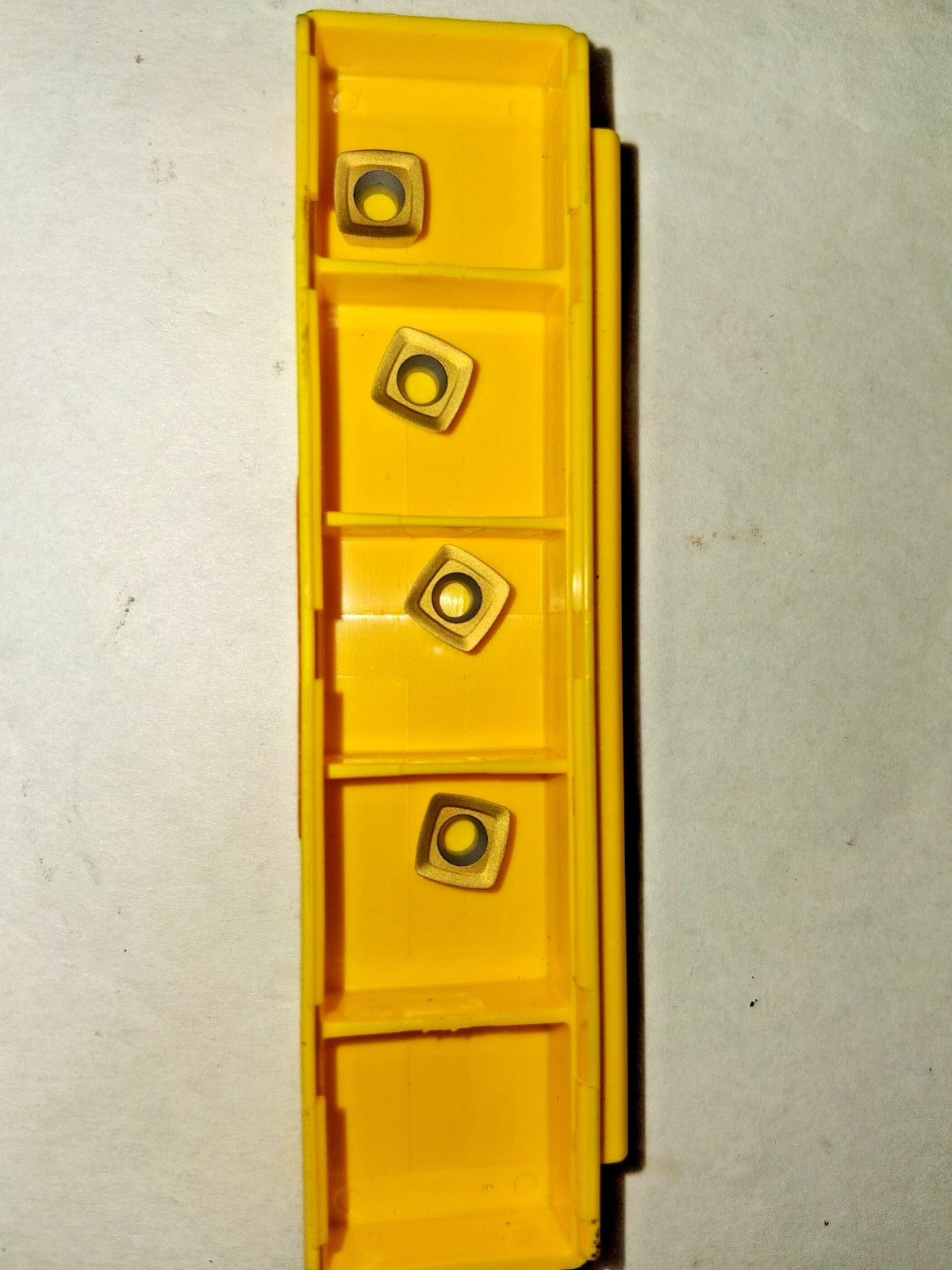

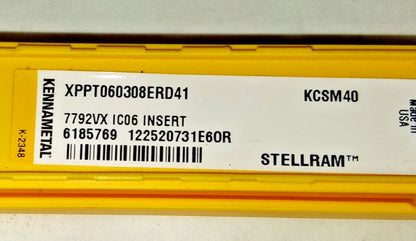

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
