KENNAMETAL

Milling Inserts qty 5: HNPJ0905ANSNHD, KCK15, Solid Carbide 3763185
MSRP: $110

• Insert Style HNPJ
• Insert Size 535
• Insert Material Solid Carbide
• Material Grade C1
• Manufacturer Grade KCK15
• Inscribed Circle (Decimal Inch) 0.6252
• Thickness Range (Decimal Inch) 0.2000 to 0.2200
• Corner Radius (Decimal Inch) 0.0472
• Corner Radius (mm) 1.20
• Inscribed Circle Range (Decimal Inch) 0.6000 to 0.7000
• Length Range (Decimal Inch) 0.3200 to 0.4000
• Relief Angle 0.00
• Coating Process CVD
• Iso Code HNPJ0905ANSNHD
• Rake Angle 15.00
• Chip Breaker HD
• Shape Hexagon
• Coating/Finish TiN/TiCN/Al2O3
• Included Angle Degree 120
• Thickness (Decimal Inch - 4 Decimals) 0.2150
• Length (Decimal Inch - 4 Decimals) 0.3382

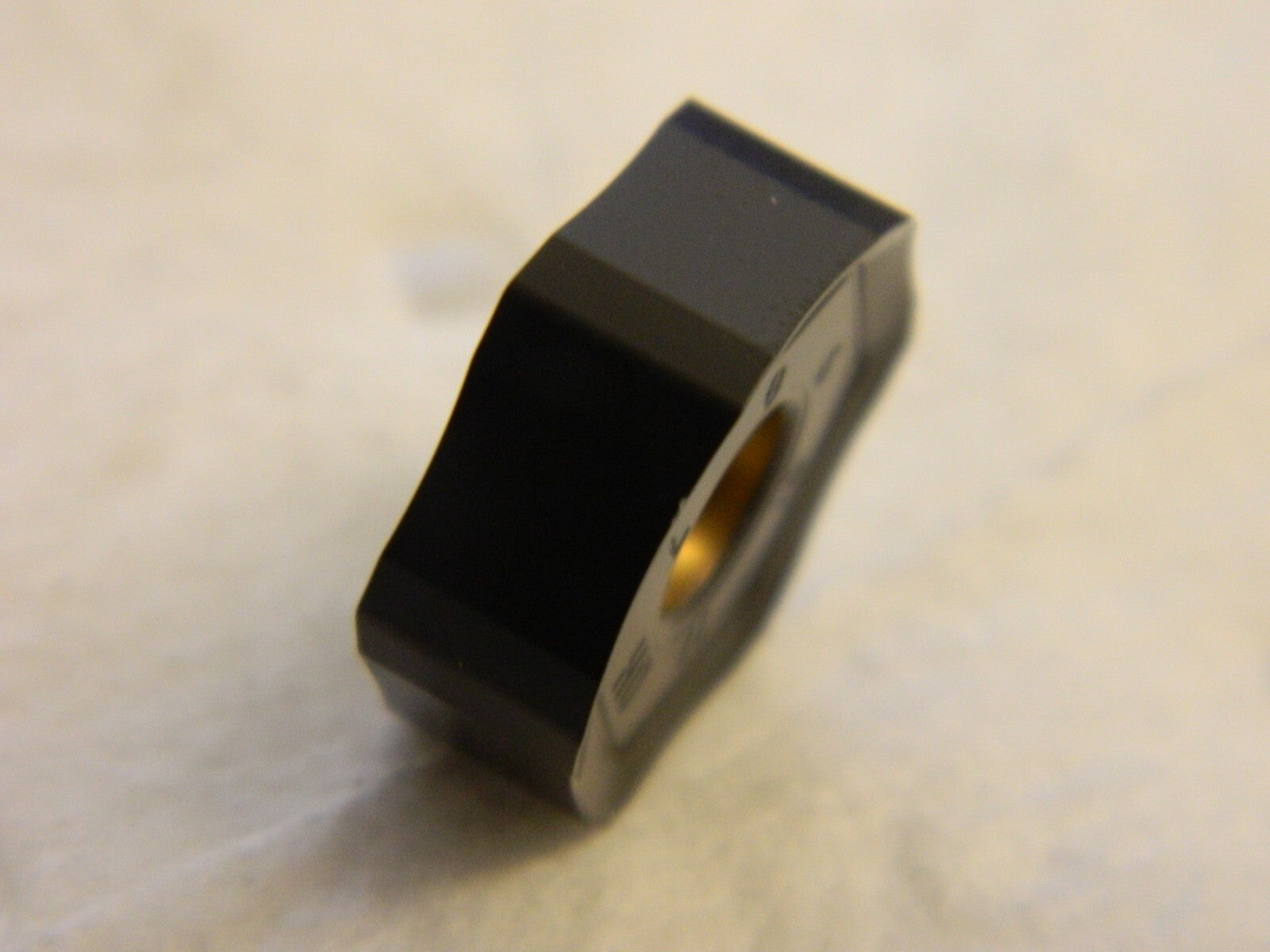

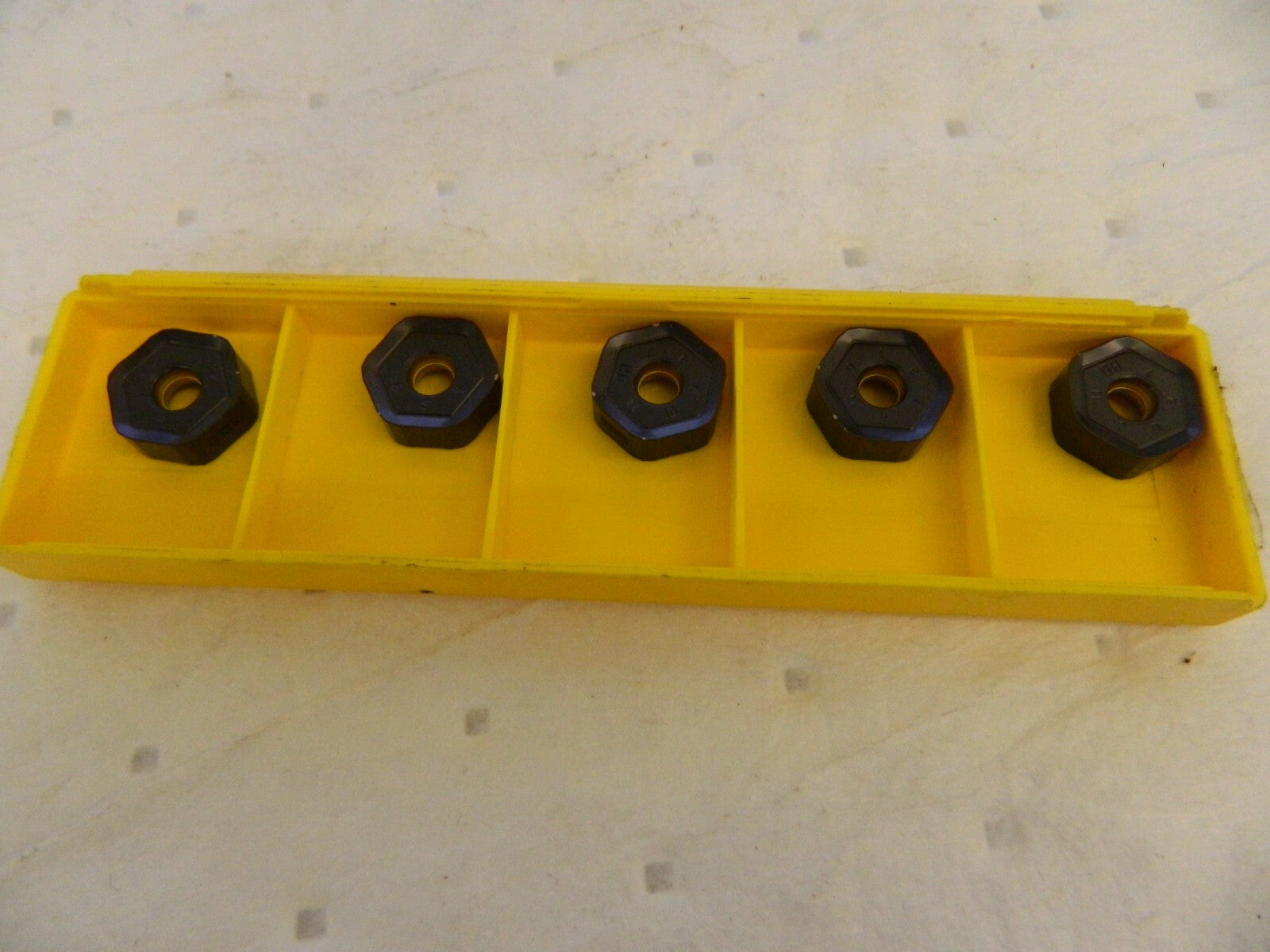

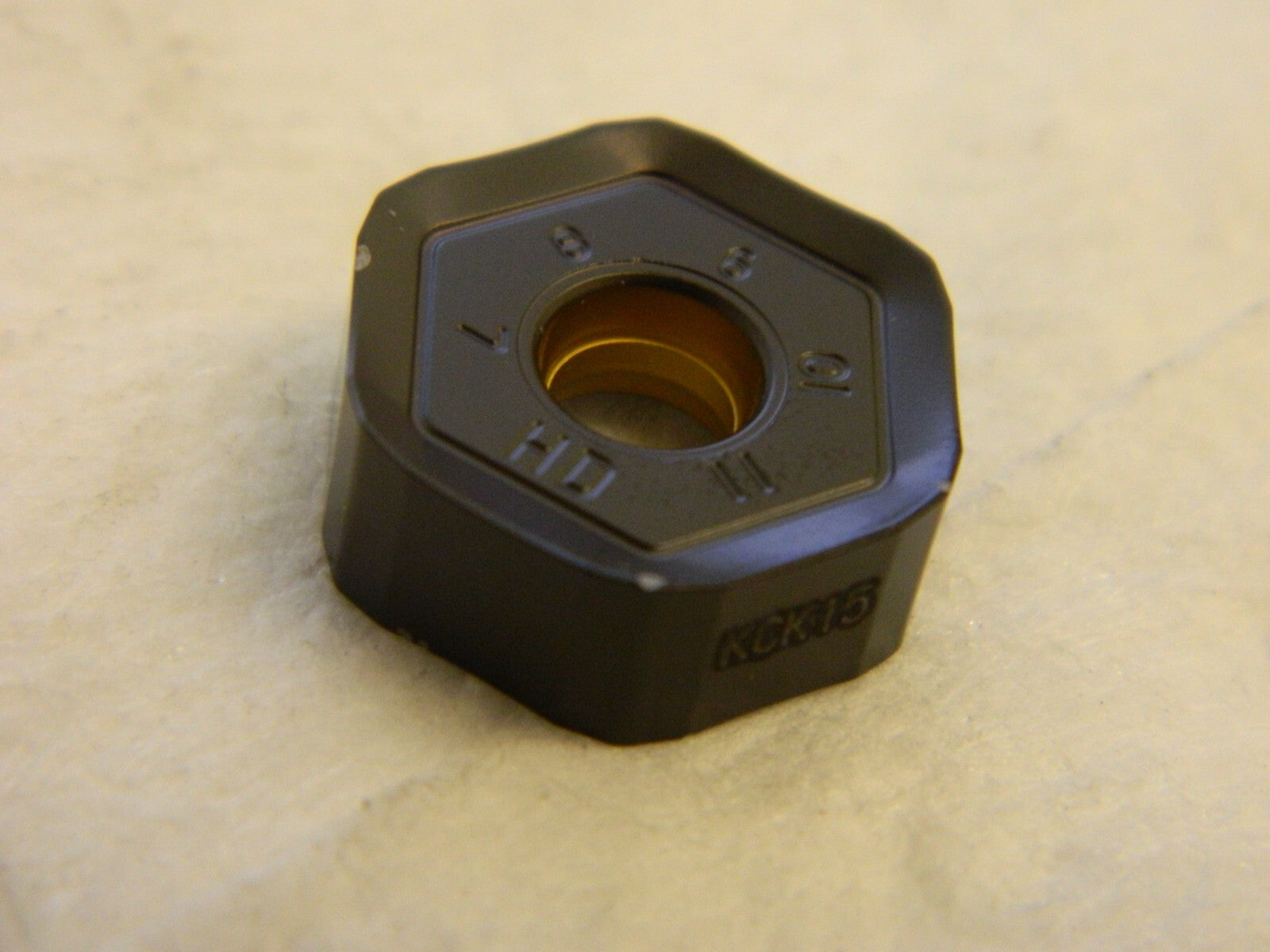

 Please review photos, comes as shown.
