KENNAMETAL Milling Insert: SNPJ120608SNGD KCK15, Solid Carbide Pack of 5
KENNAMETAL Milling Insert: SNPJ120608SNGD KCK15, Solid Carbide Pack of 5
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Kennametal
Item Pack of 5
MSRP: $120.00
- specs
Insert Style SNPJ
Insert Size 4
Insert Material Solid Carbide
Insert Shape Square
Inscribed Circle (Inch) 1/2
Manufacturer Grade KCK15
Corner Radius (Decimal Inch) 0.0310
Corner Radius (mm) 0.80
Number Of Cutting Edges 8
Thickness (Decimal Inch - 4 Decimals) 0.1780
Coating/Finish TiCN; TiN; Al2O3
Relief Angle 0.00
Maximum Depth of Cut (Decimal Inch) 0.5000
Insert Size Code 442
Material Grade C1
Width (Inch) 1/2
Length (Inch) 1/2
Inscribed Circle (Decimal Inch) 0.5000
Thickness Range (Decimal Inch) 0.1750 to 0.1850
Corner Radius (Inch) 1/32
Inscribed Circle Range (Decimal Inch) 0.5000 to 0.5100
Length Range (Decimal Inch) 0.5000 to 0.6000
Insert Hand Neutral
Series SNPJ
Coating Process MTCVD
Hole Diameter (Mm) ( - 0 Decimals) 0.20
Hole Diameter (Decimal Inch) 0.1969
Rake Negative
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Ansi Code SNPJ442SNGD
Iso Code SNPJ120608SNGD
Standards ISO; ANSI
Cutting Edge Style Honed; Chamfered
Manufacturers Catalog Number SNPJ120608SNGD
Cutter Series Compatibility KSSM
Chip Breaker GD
Material Application Cast Iron
UNSPSC Code 23291601
Insert Holding Method Screw
Coating Classification CVD
Single or Double Sided Insert Double
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.5000
System Of Measurement Decimal Inch
(Description).

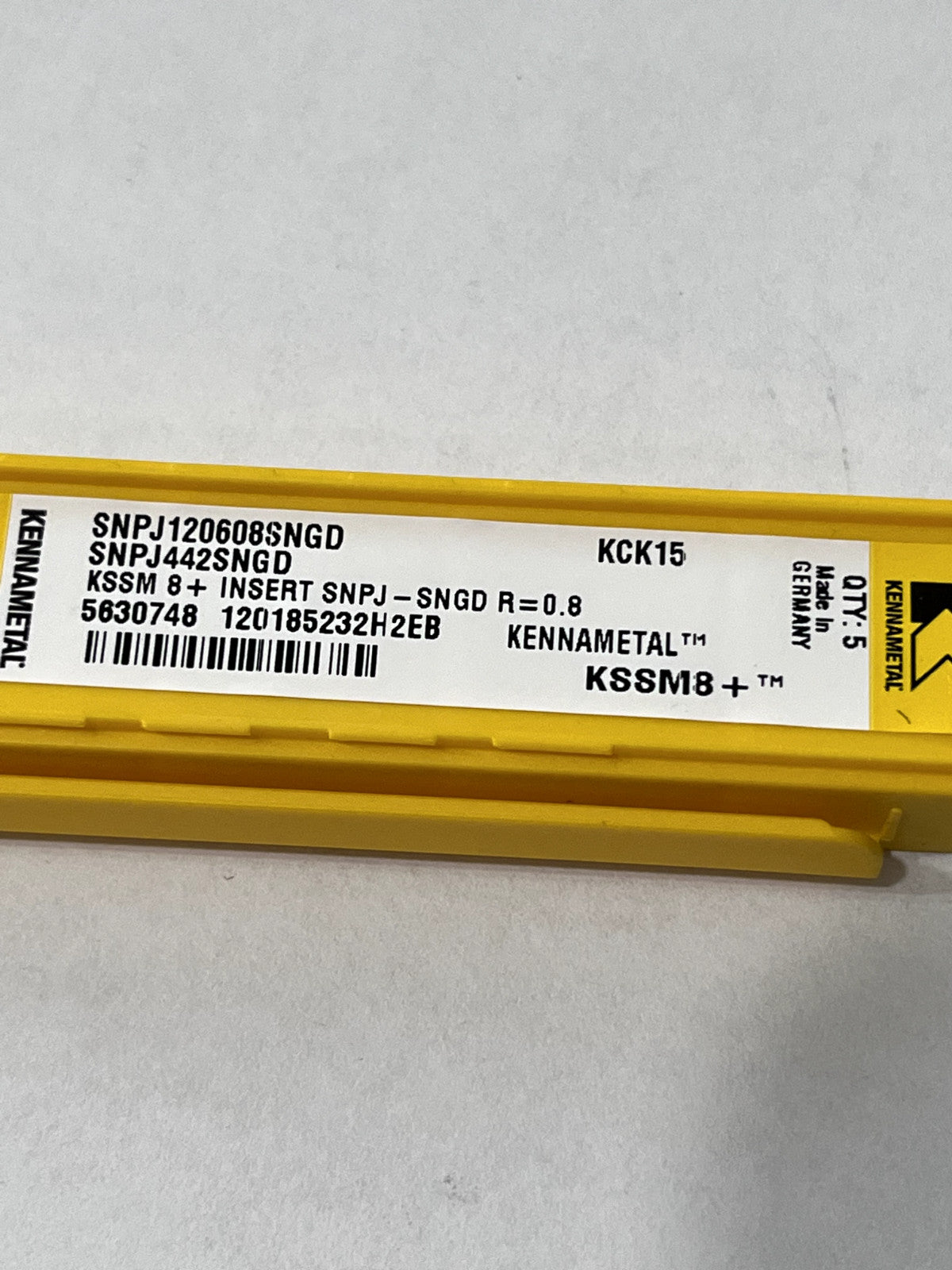

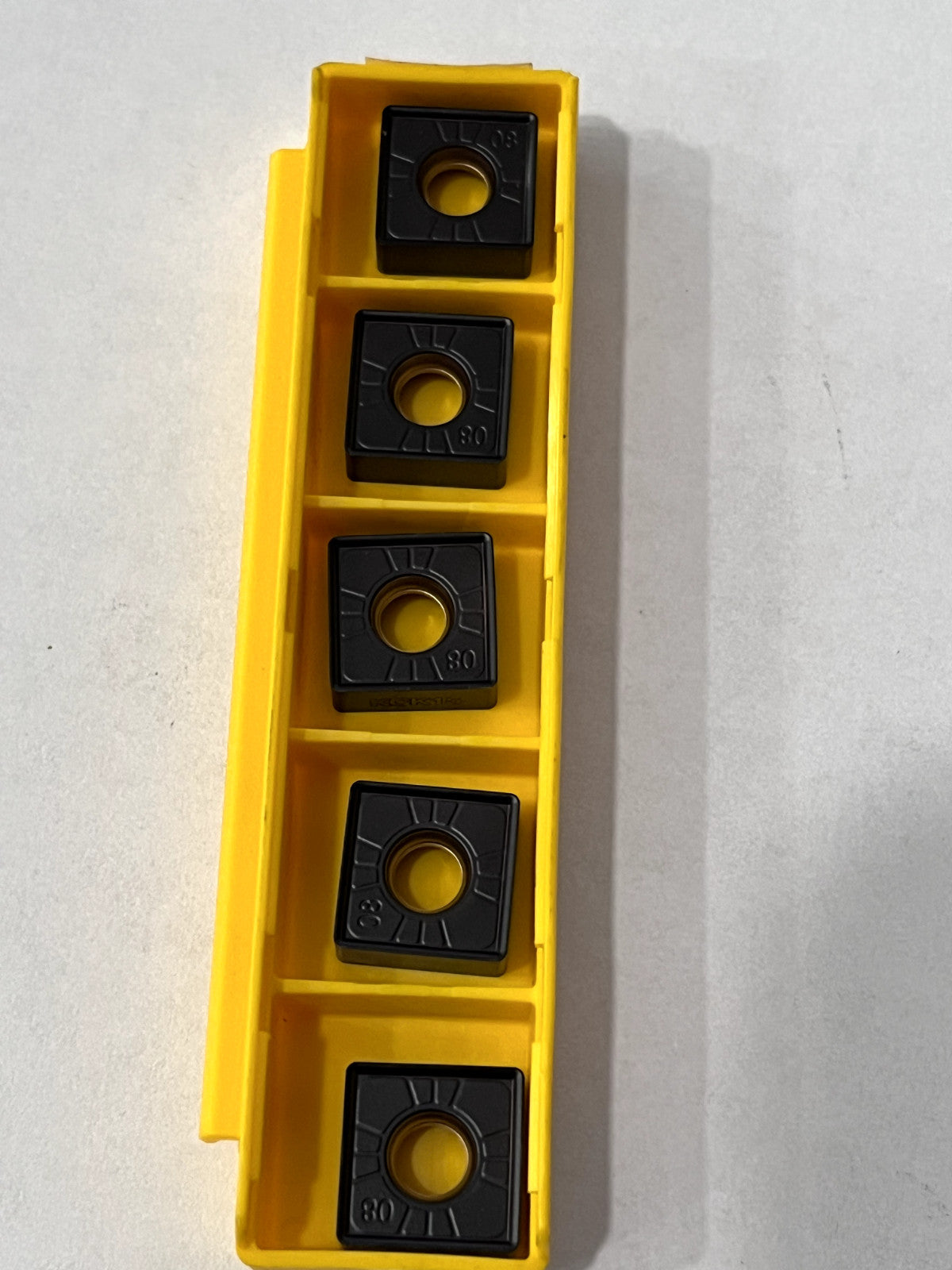

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
