KENNAMETAL Milling Insert 5pc: SECW1404AEENGNW KC725M 1990689

KENNAMETAL Milling Insert 5pc: SECW1404AEENGNW KC725M 1990689

MSRP: $150

• Insert Style SECW
• Insert Size 4
• Insert Material Solid Carbide
• Insert Shape Square
• Manufacturer Grade KC725M
• Corner Radius (Decimal Inch) 0.0630
• Corner Radius (mm) 1.60
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.1875
• Coating/Finish TiAlN
• Relief Angle 20.00
• Maximum Depth of Cut (Decimal Inch) 0.2950
• Insert Size Code 443
• Material Grade C5; C6; C7
• Thickness (Inch) 3/16
• Inscribed Circle (Decimal Inch) 0.5512
• Inscribed Circle (mm) 14.00
• Thickness Range (Decimal Inch) 0.1850 to 0.2000
• Corner Radius (Inch) 1/16
• Inscribed Circle Range (Decimal Inch) 0.5100 to 0.6000
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Neutral
• Series SECW
• Coating Process PVD
• Hole Diameter (Mm) ( - 0 Decimals) 0.17
• Hole Diameter (Decimal Inch) 0.1732
• Rake Positive
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; M
• Ansi Code SECW443AEEN22GNW
• Iso Code SECW1404AEENGNW
• Standards ISO; ANSI
• Rake Angle 0
• Cutting Edge Style Wiper
• Manufacturers Catalog Number SECW1404AEENGNW
• Cutter Series Compatibility KSSM
• Chip Breaker GN
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• UNSPSC Code 23291601
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.5512
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.5512
• System Of Measurement Decimal Inch

(Description).

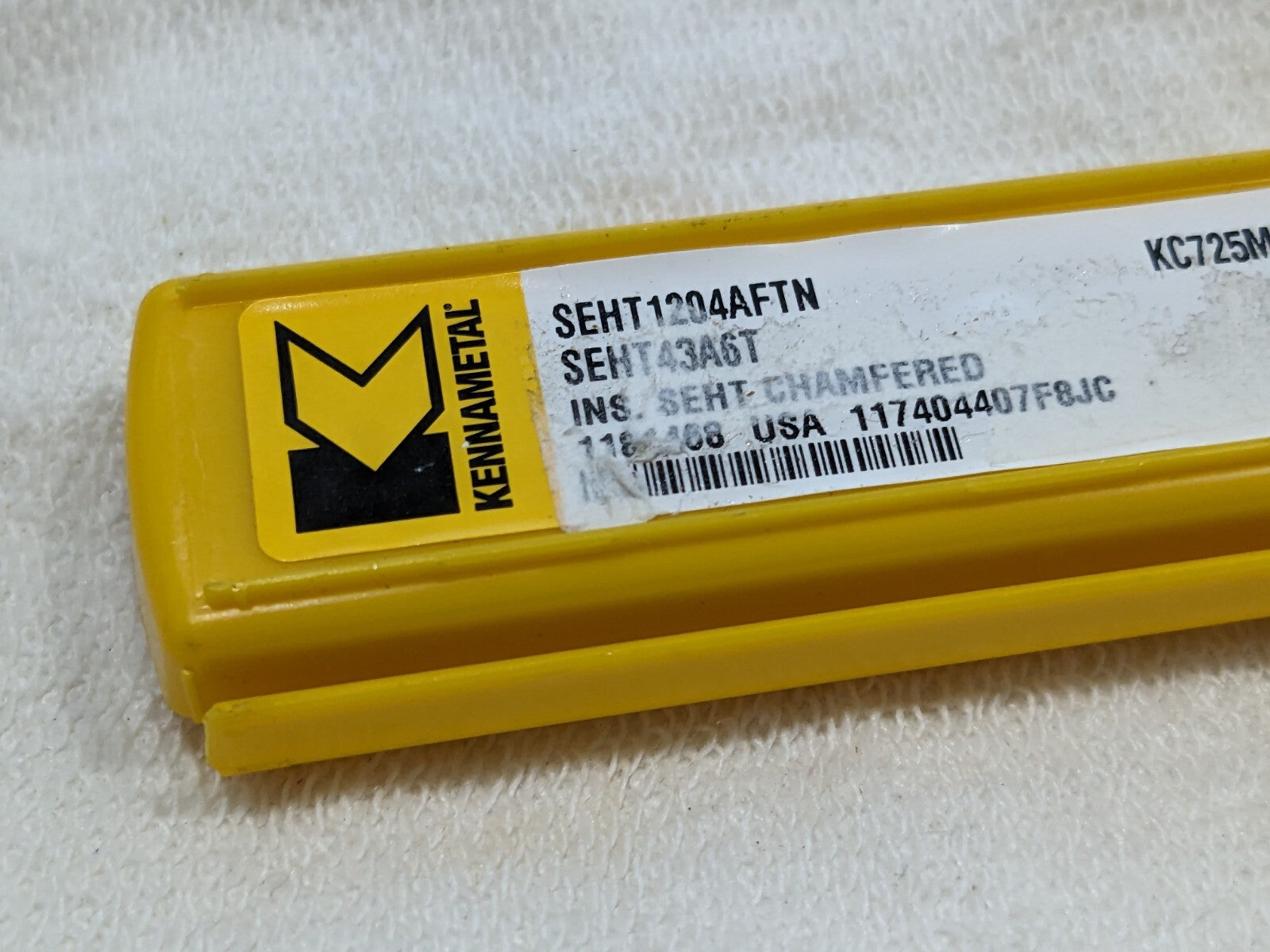

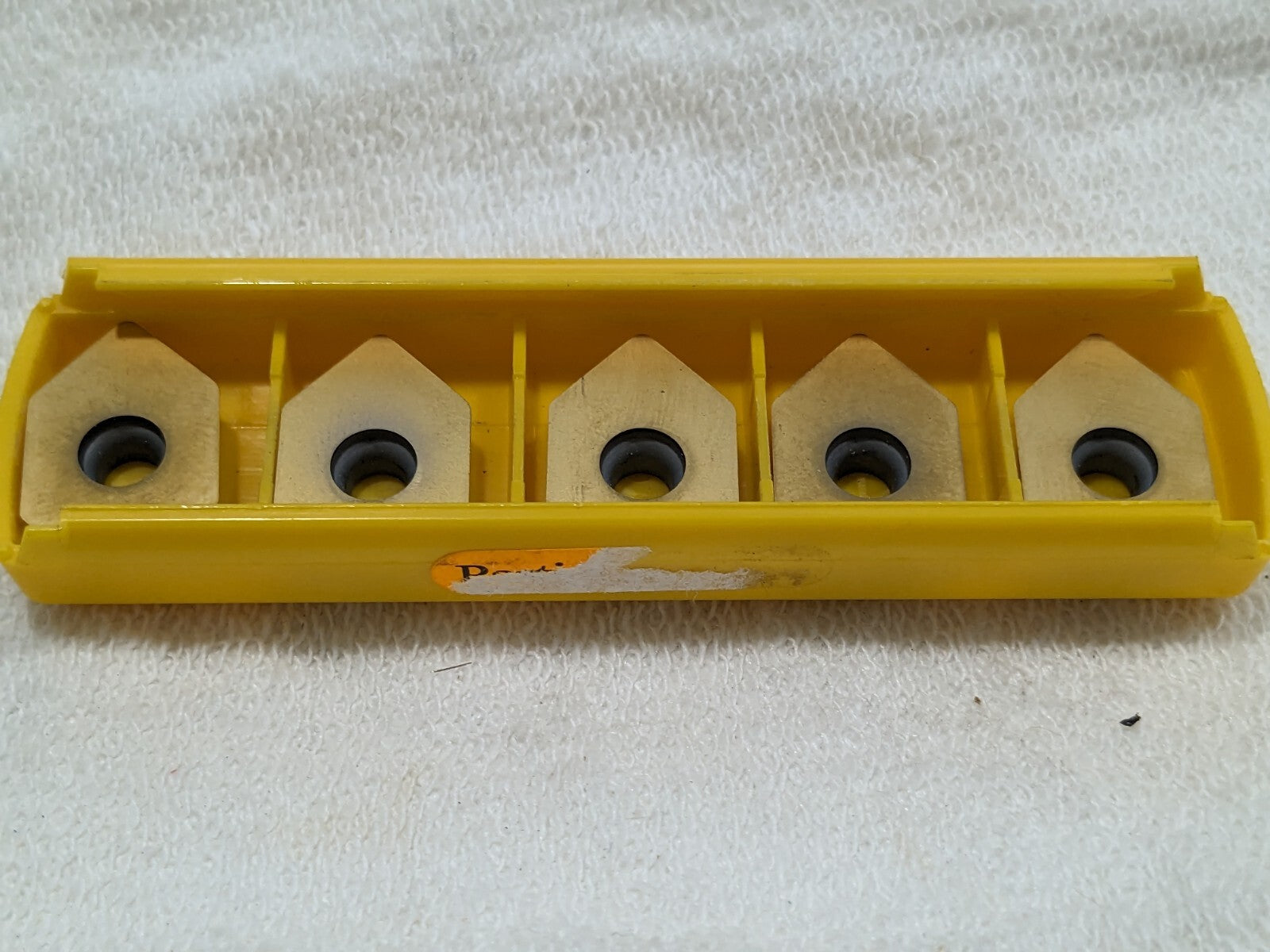

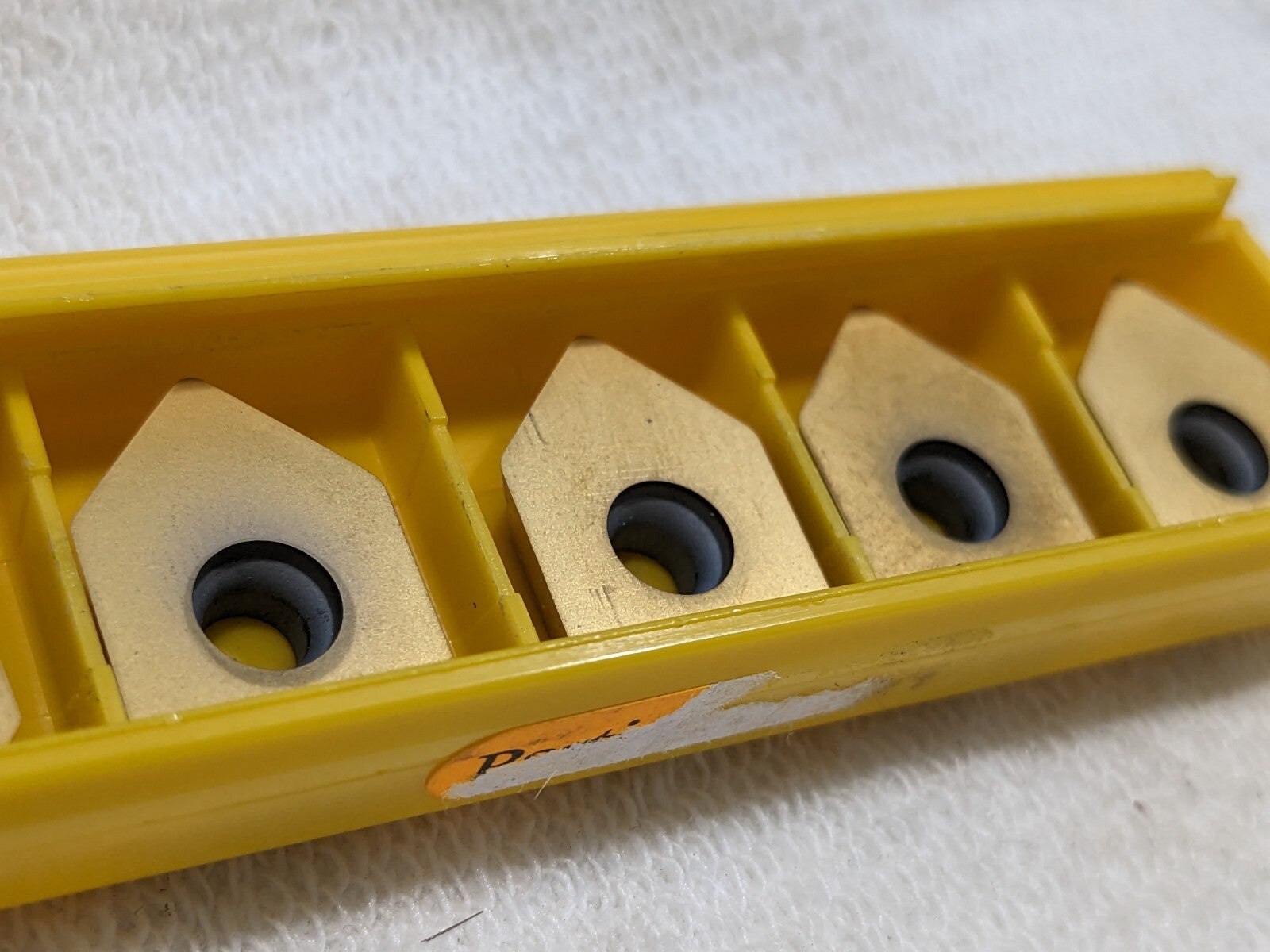

Please review photos, comes as shown.
