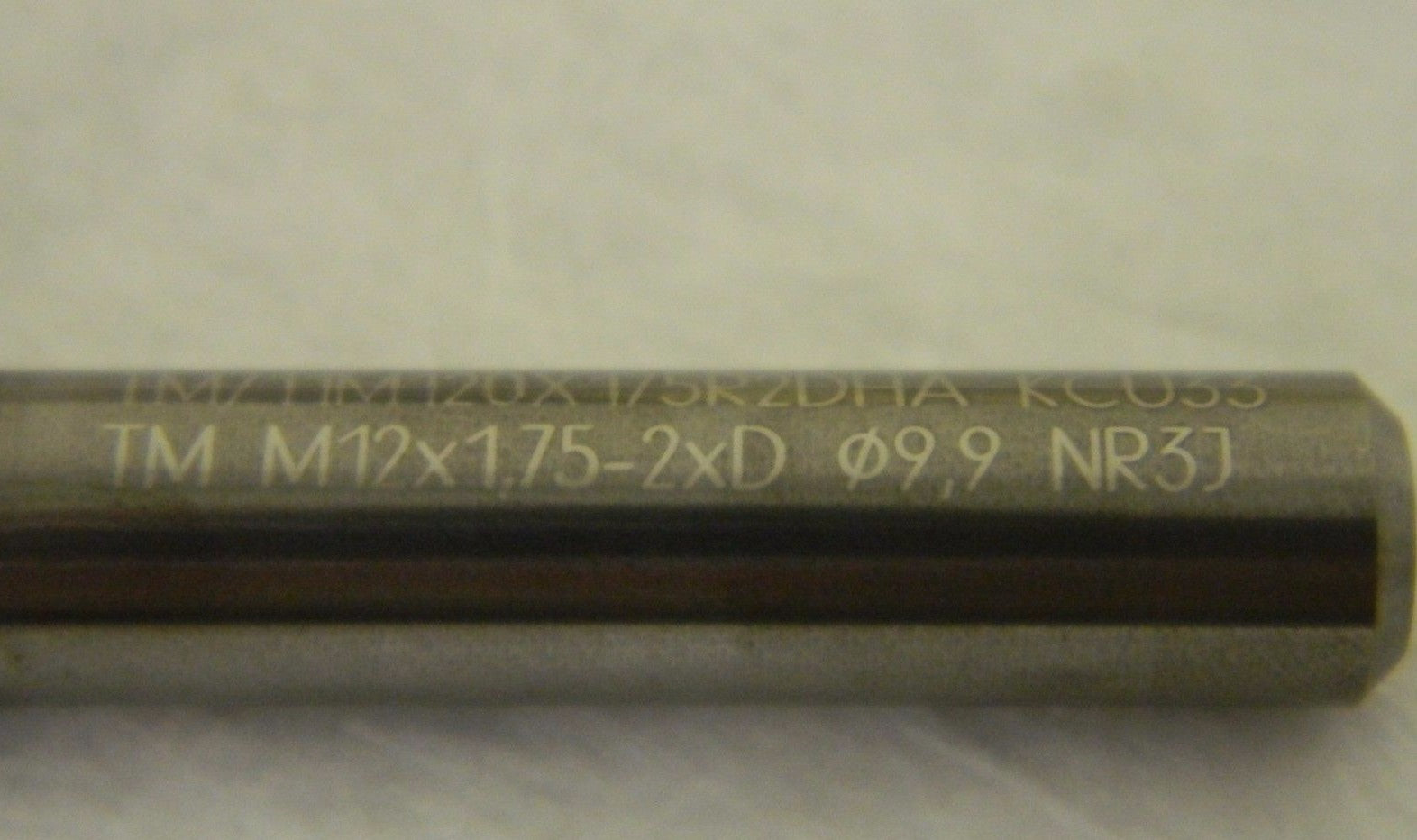

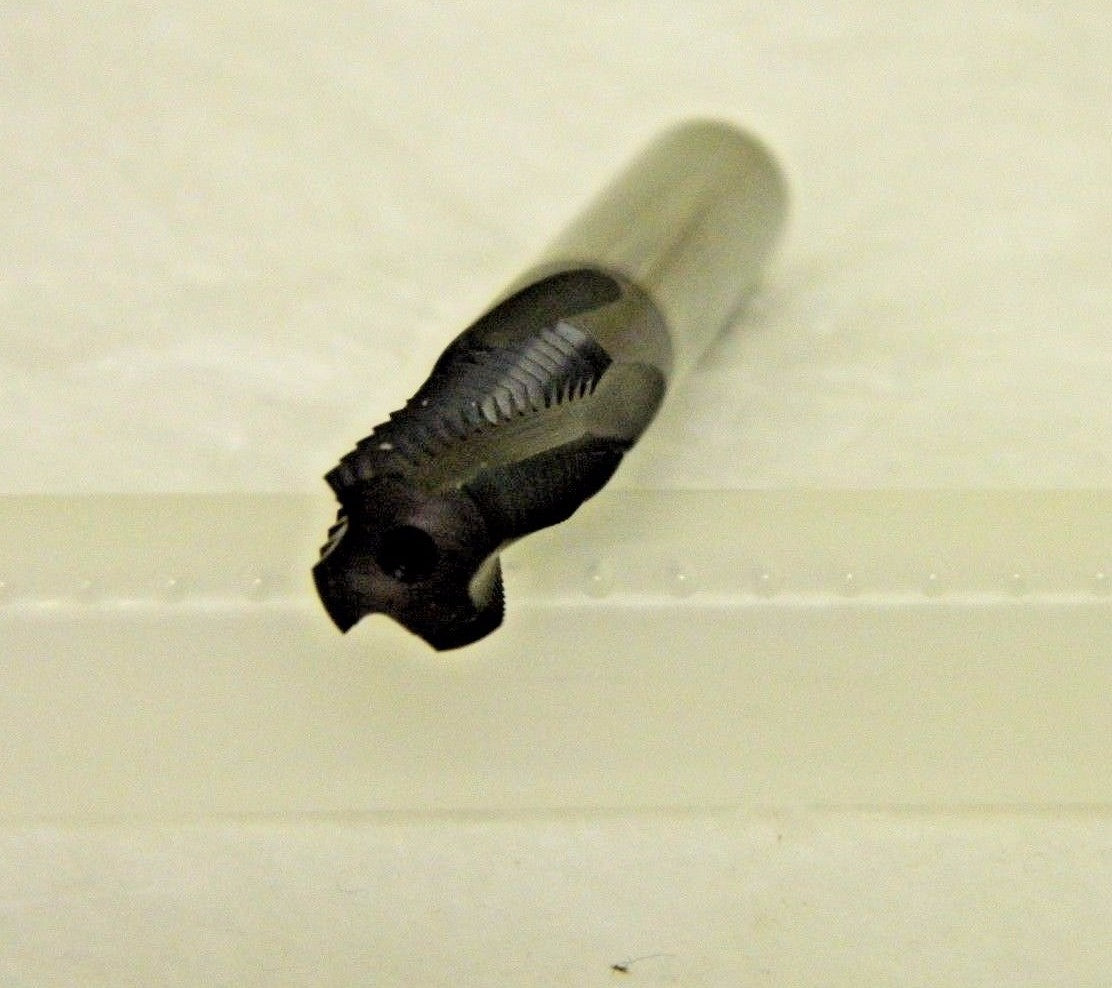

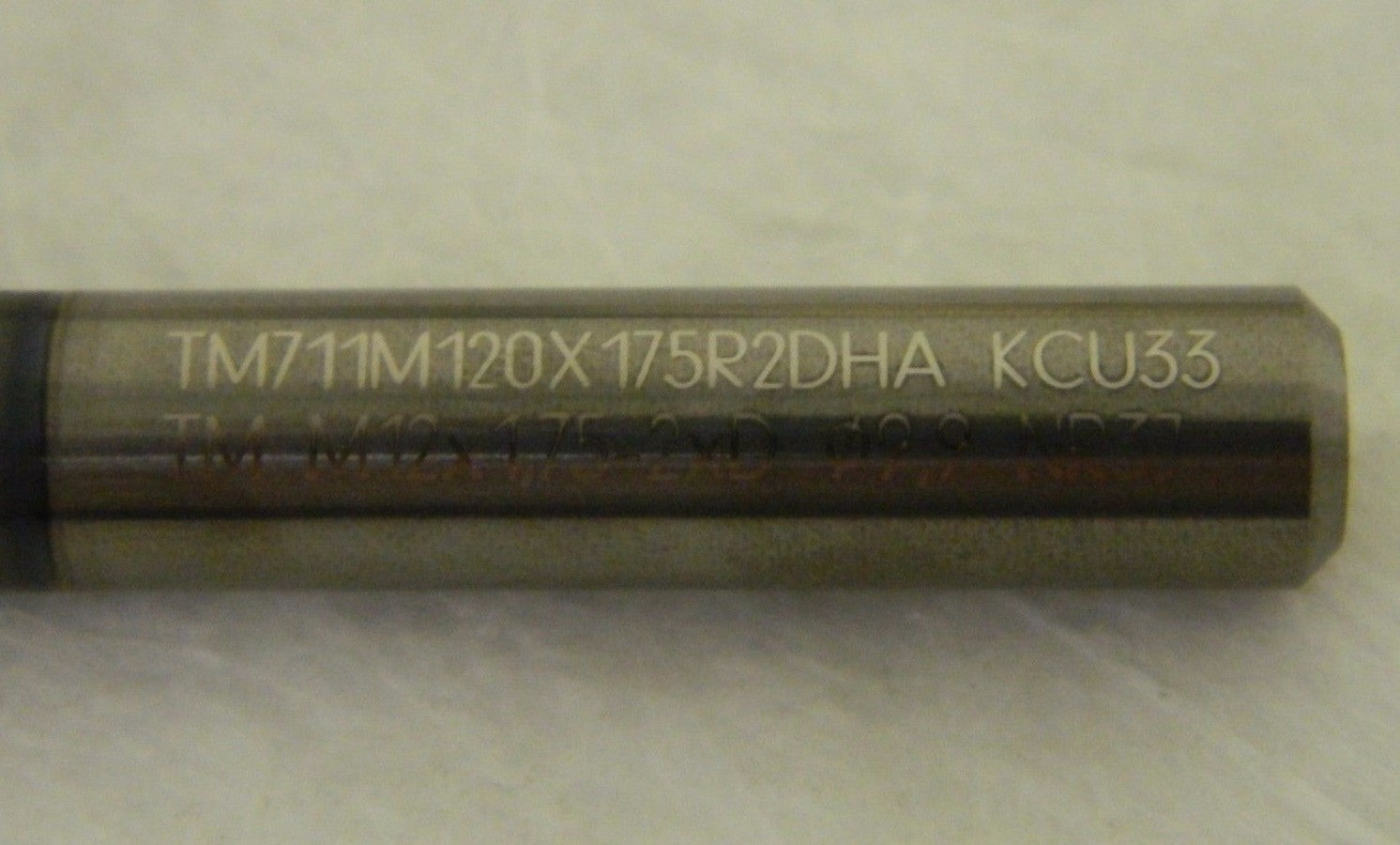

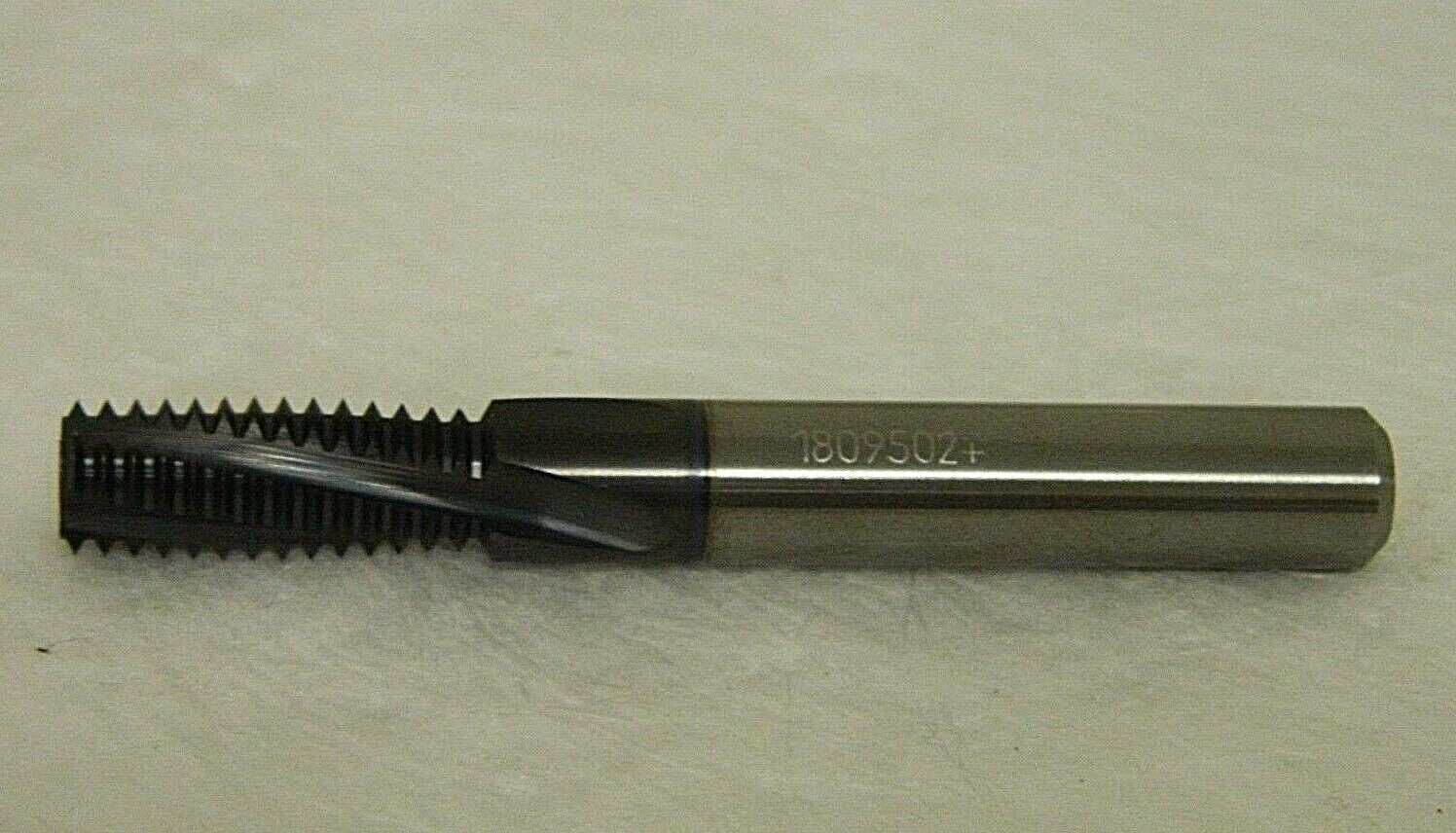

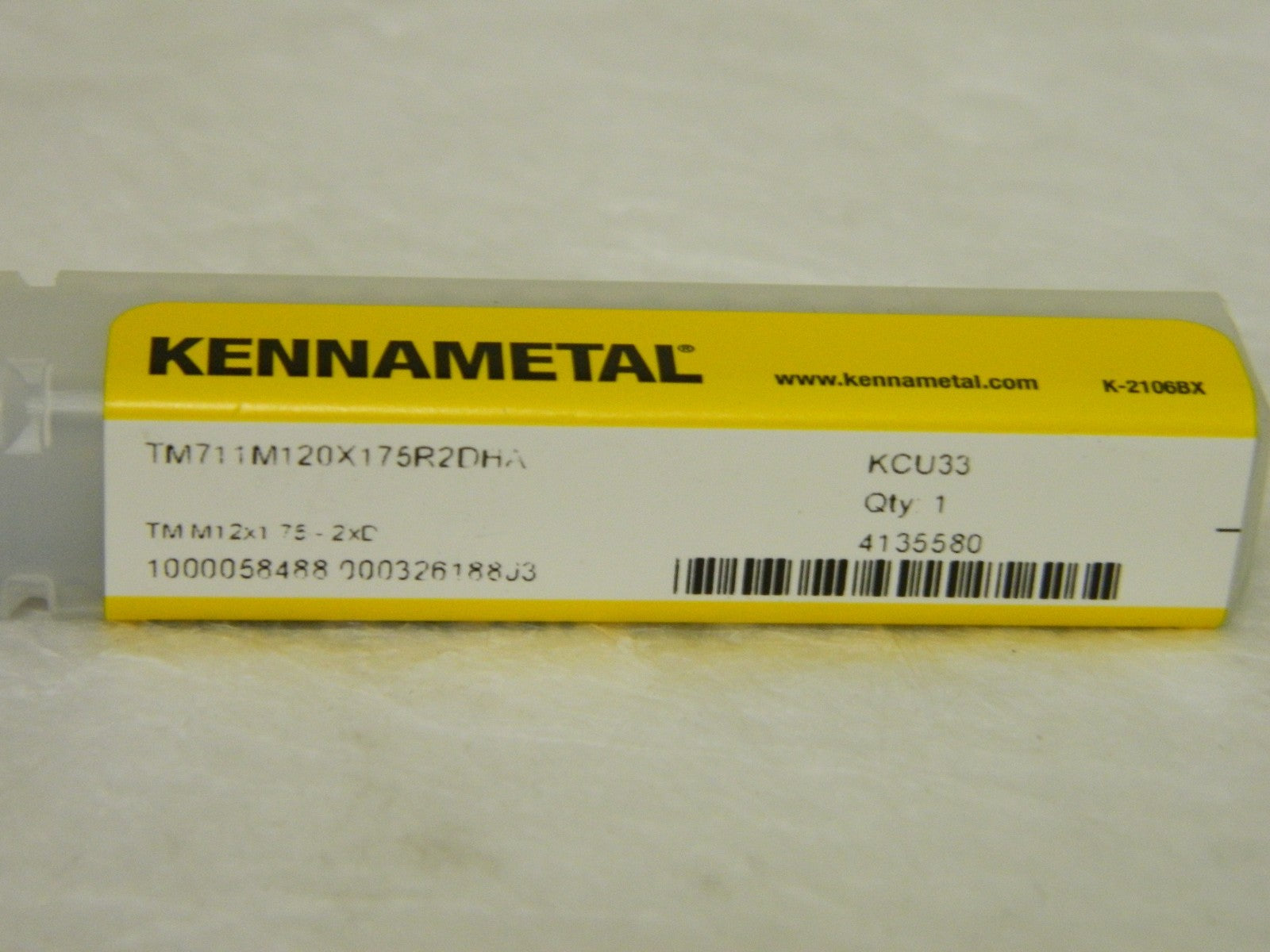

Kennametal M12x1.75 Internal 4-Flute Solid Carbide Helical Flute Thread 4135580
Kennametal M12x1.75 Internal 4-Flute Solid Carbide Helical Flute Thread 4135580
Regular price
$103.77 USD
Regular price
$220.00 USD
Sale price
$103.77 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $220.00
Description:
Pitch (mm) 1.75
Material Solid Carbide
Thread Size (mm) M12x1.75
Thread Type Internal
Shank Diameter (mm) 10
Number of Flutes 4
Cutting Diameter (Decimal Inch) 0.3898
Cutting Diameter (mm) 9.90
Length of Cut (Decimal Inch) 0.9976
Length of Cut (mm) 25.34
Finish/Coating TiAlN
Through Coolant Through Coolant
Minimum Nominal Diameter 12mm
Minimum Nominal Diameter (mm) 12.00
Minimum Nominal Diameter (Decimal Inch) 0.4724
Overall Length (Decimal Inch) 3.1496
Overall Length (mm) 80
Shank Length (Decimal Inch) 1.5748
Thread Standard Metric Coarse
Flute Direction Right Hand
This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
