Kennametal KTIP-Drill-Body Round Shank 1.5 x D 4129459

Kennametal
KTIP-Drill-Body Round Shank

MSRP: $460.00

•

• Adapter Style Machine Side Straight-Cylindrical
• Adapter/Shank/Bore Diameter Decimal 0.7087"
• Adapter/Shank/Bore Diameter Metric 18.00 mm
• Brand Kennametal
• Clamping Length Decimal 1.9291"
• Clamping Length Metric 49.00 mm
• Clamping LG Machine Side Decimal 1.9291"
• Clamping LG Machine Side Metric 49.00 mm
• Coolant Supply Yes
• Drill Diameter Max Decimal 0.7086"
• Drill Diameter Max Metric 17.999 mm
• Drill Diameter Min Decimal 0.6693"
• Drill Diameter Min Metric 17.00 mm
• Drill Point Length Decimal 0.1142"
• Drill Point Length Metric 2.90 mm
• Flute Length Decimal 1.8900"
• Flute Length Metric 48.00 mm
• Functional Length Decimal 3.8230"
• Functional Length Metric 97.10 mm
• Hand of Tool R - Right
• Insert/Blade Seat Size V
• Length/Diameter Ratio 1.5
• Material Steel
• Max Drill Depth Decimal 1.0630"
• Max Drill Depth Metric 27.00 mm
• Tool Assembly Length Decimal 1.8939"
• Tool Assembly Length Metric 48.10 mm
• Number of Flutes 2
• Shank Length Metric 49.00 mm
• Overall Length Metric 100.00 mm
• Product Type Modular Drill
• Shank Length Decimal 1.9291"
• Overall Length Decimal 3.9370"
• Protruding Length Metric 100.00 mm
• Protruding Length Decimal 3.9370"

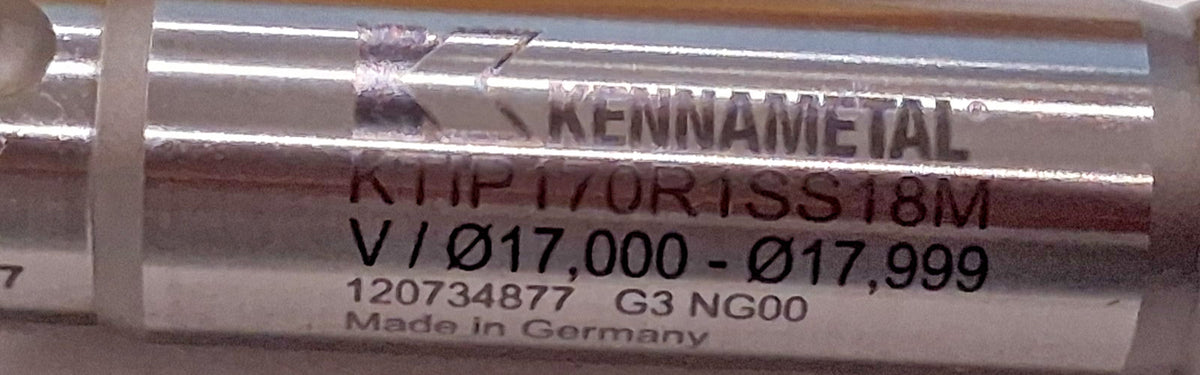

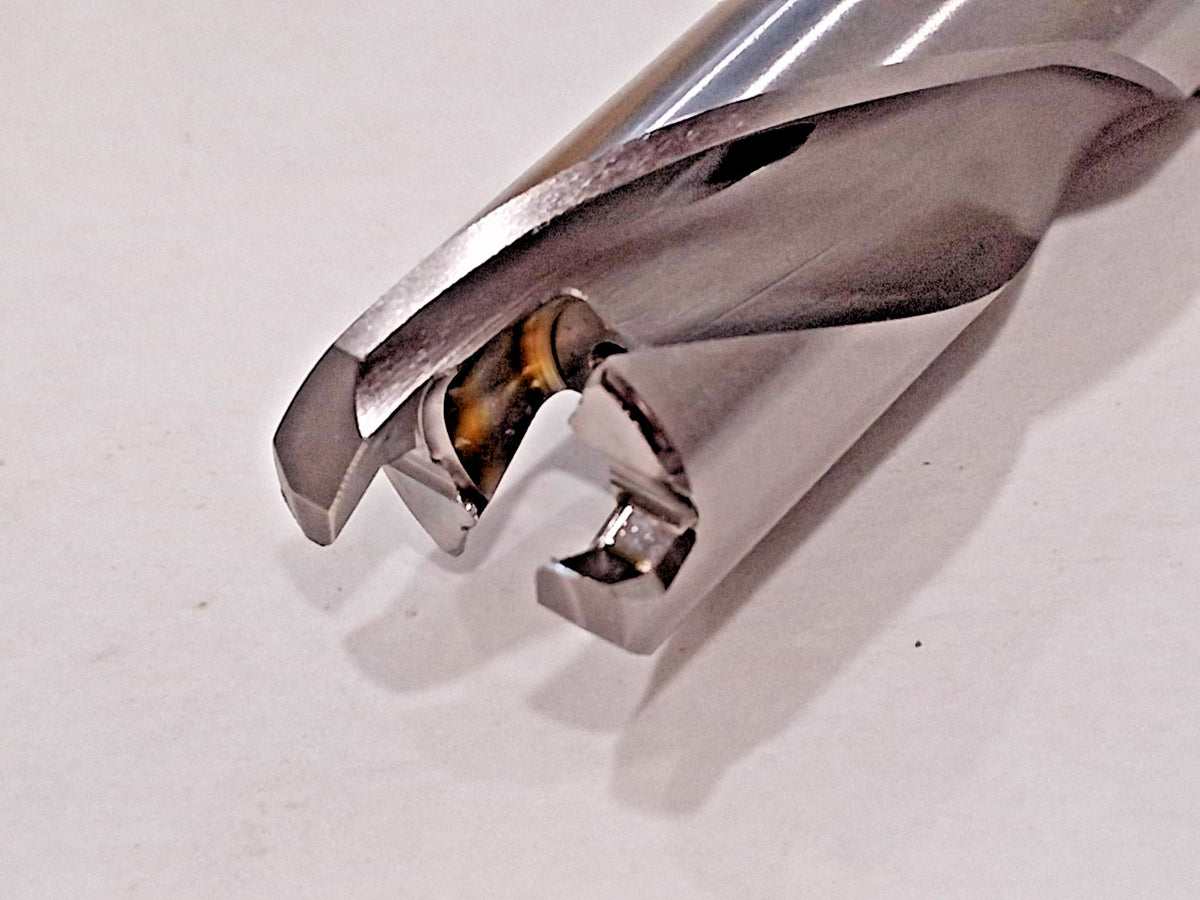

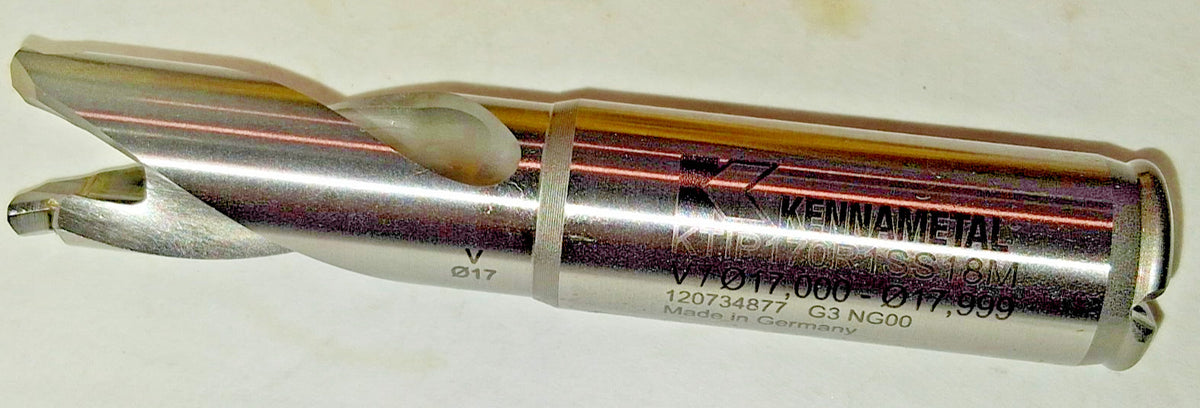

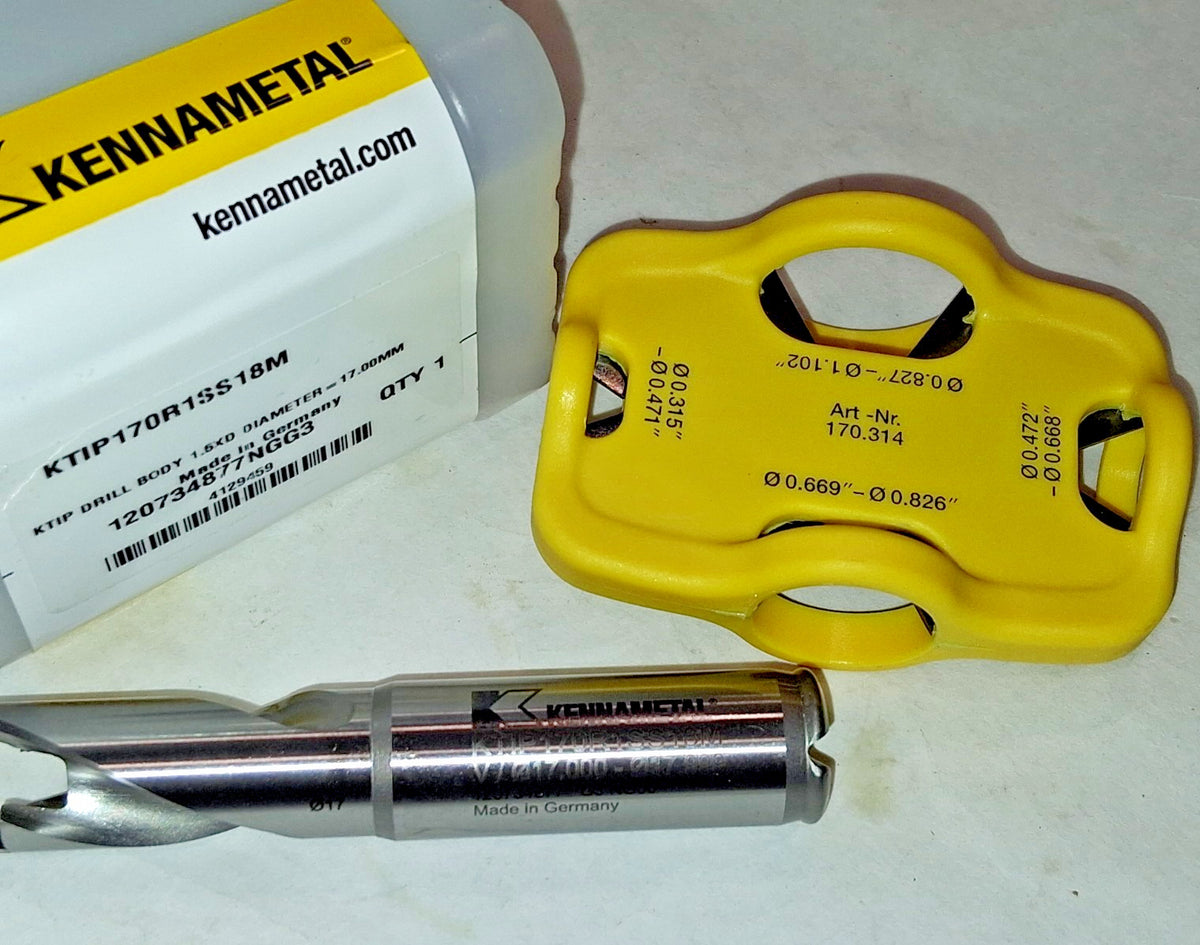

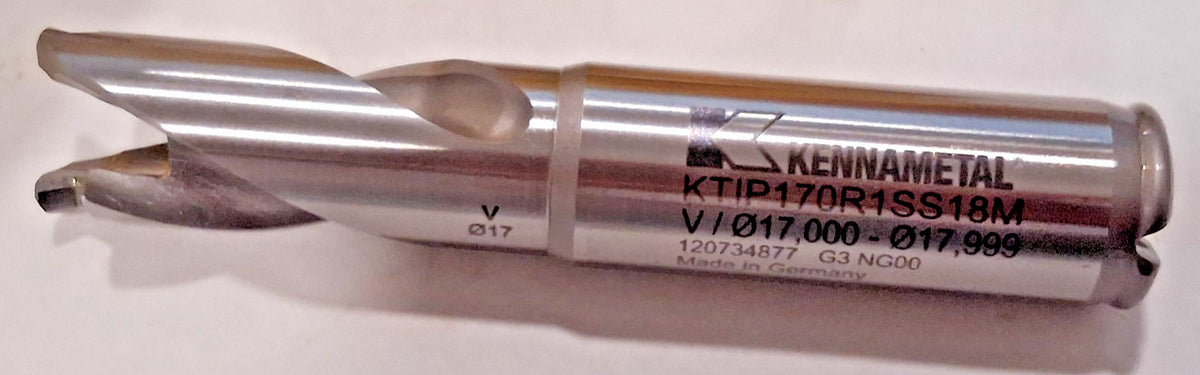

Please review photos, comes as shown.
