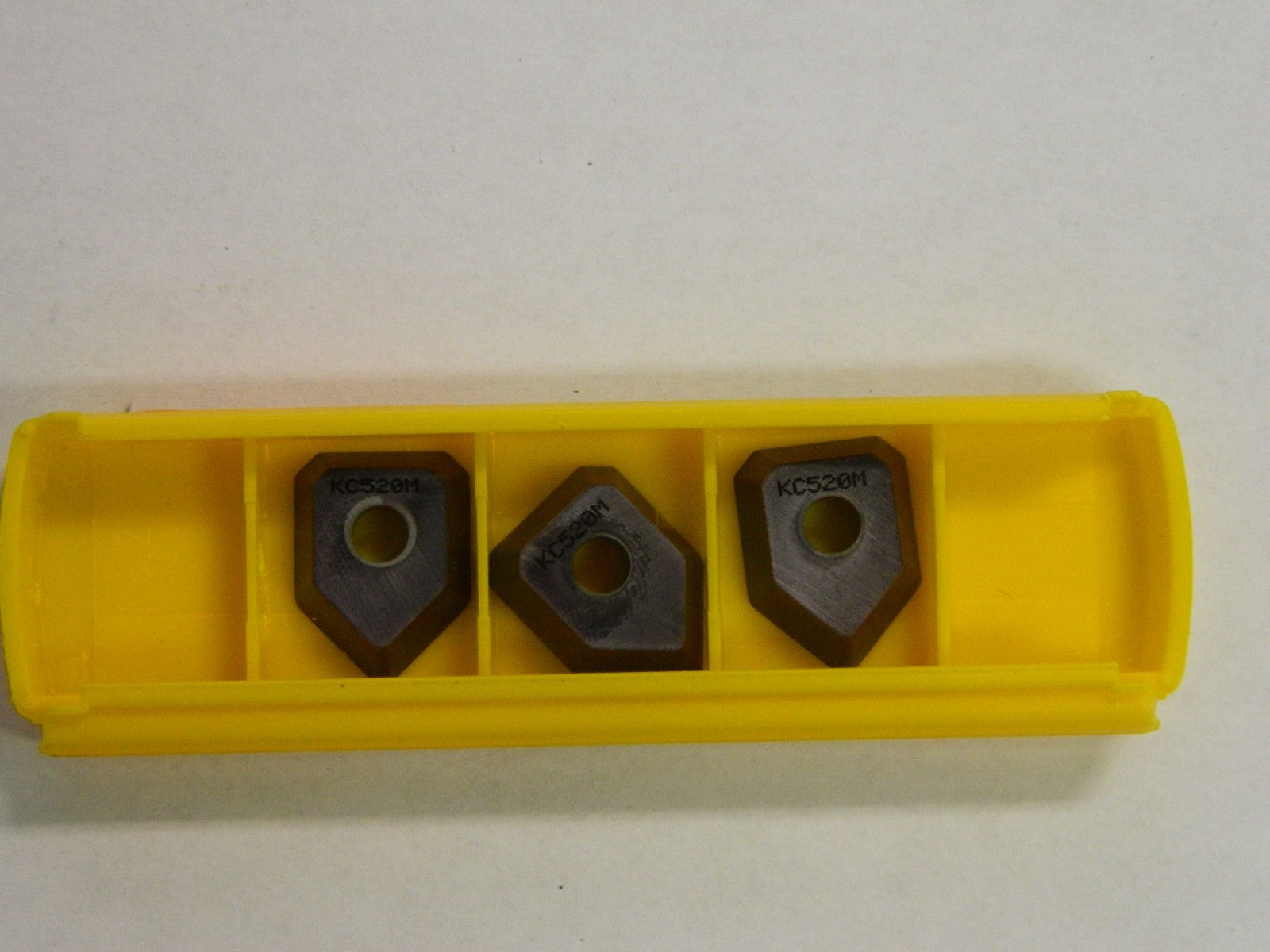

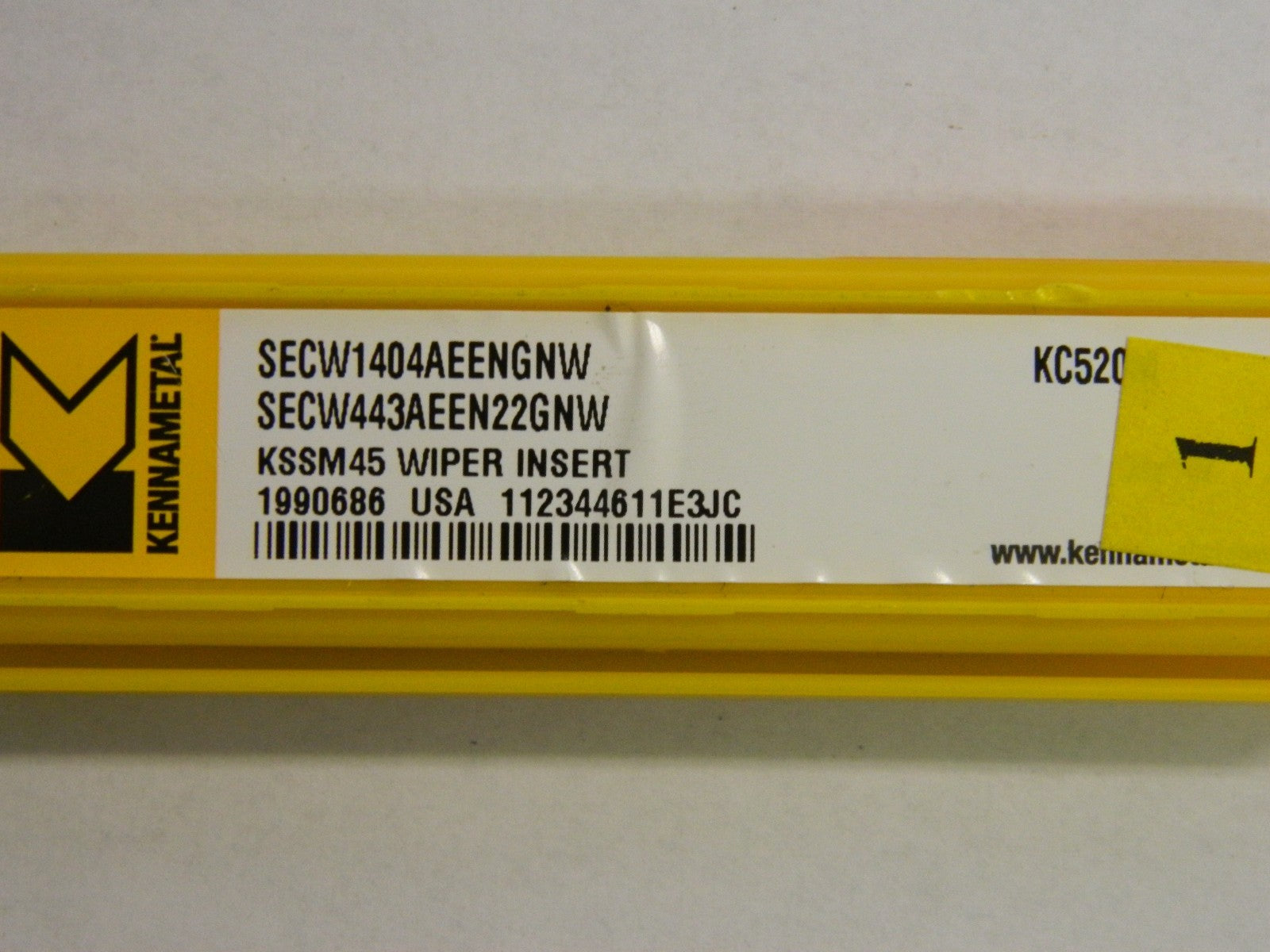

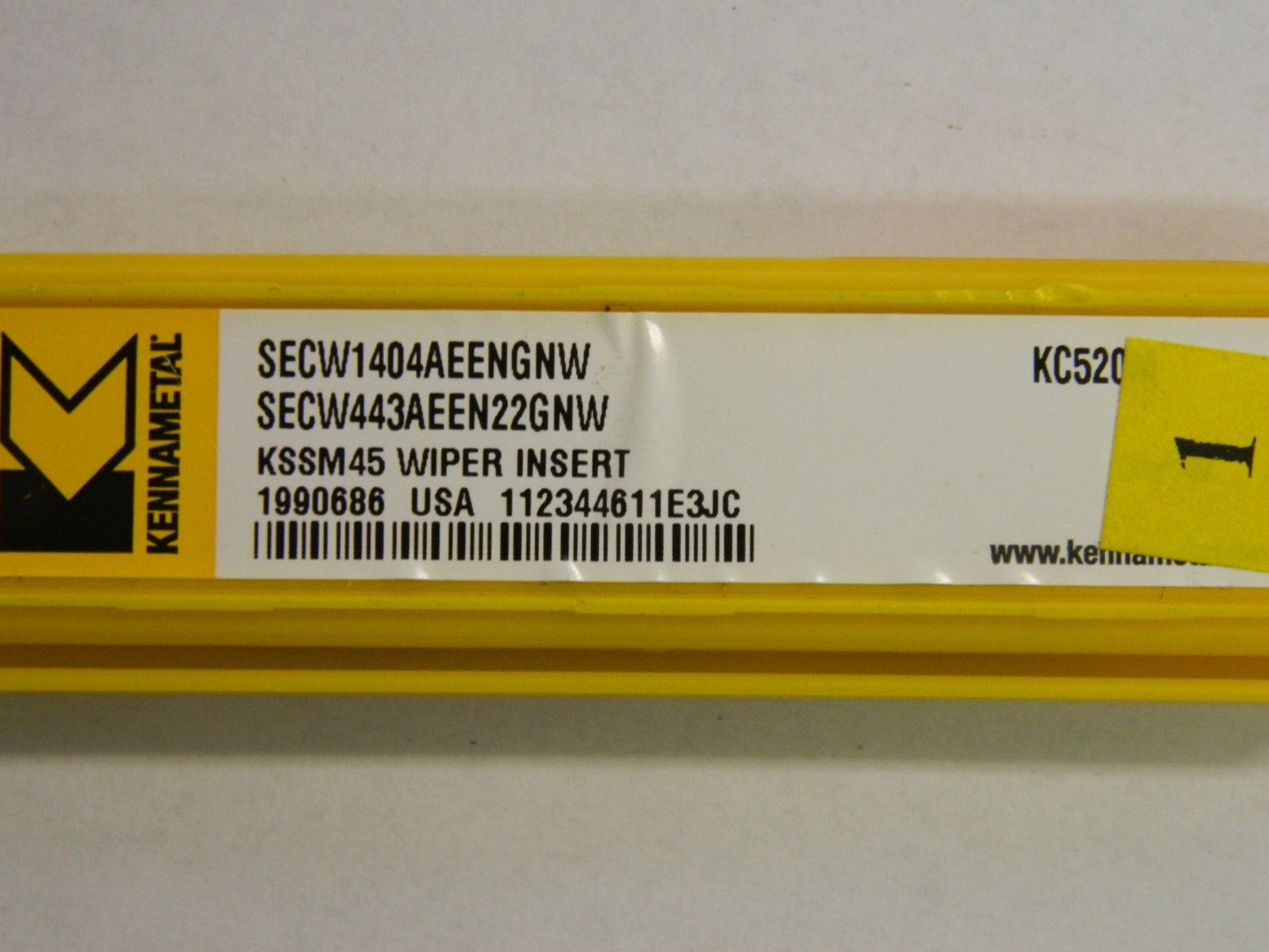

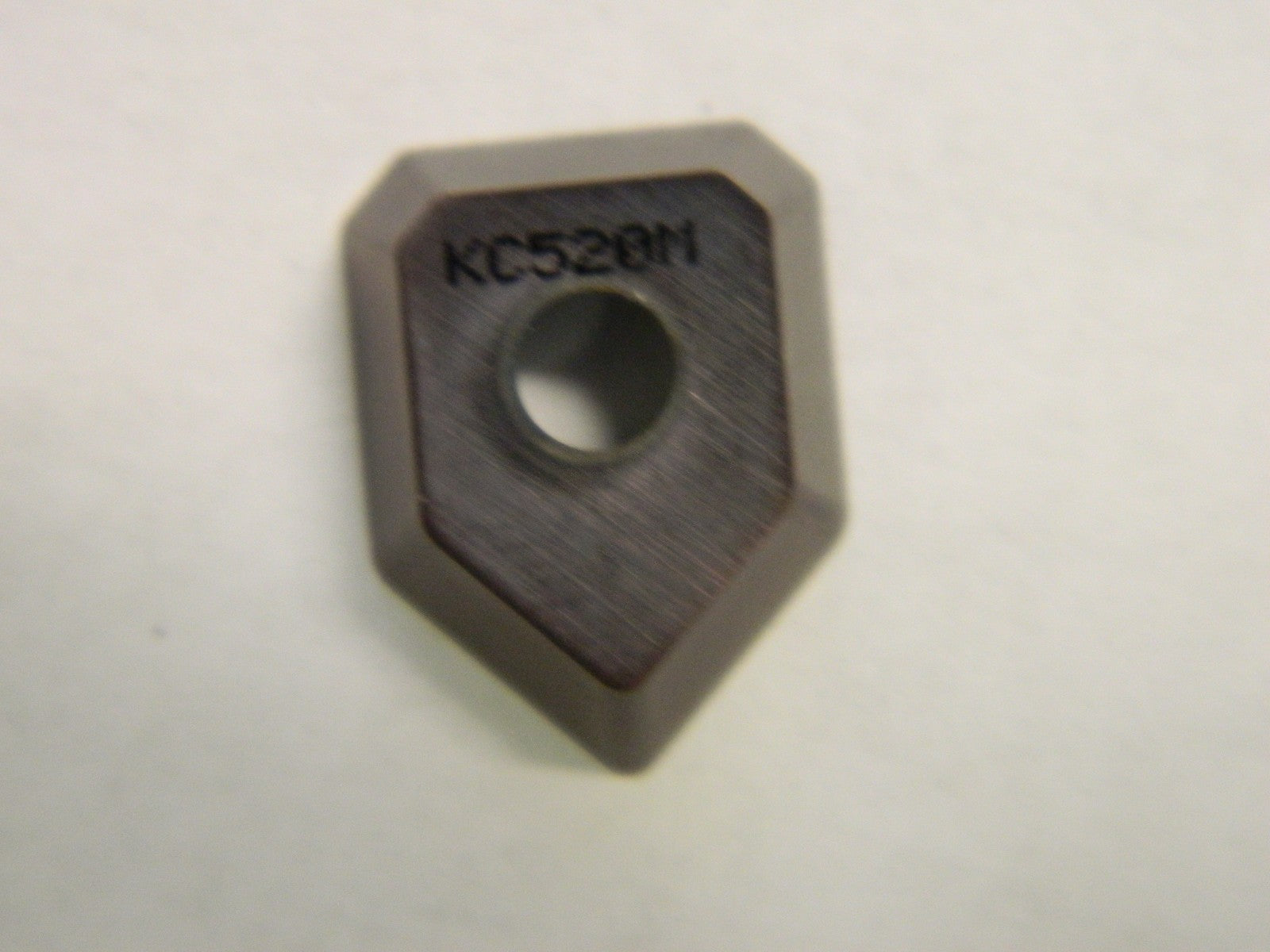

Kennametal Kc520m Carbide Milling Inserts QTY 3 1990686

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Specs

Insert Style

SECW

Insert Size

443

Material

Carbide

Material Grade

C1/C2

Manufacturer's Grade

KC520M

Coating

TiAlN

Width (mm)

14.00

Inscribed Circle (mm)

14.00

Inscribed Circle (Decimal Inch)

0.5512

Thickness (Inch)

3/16

Thickness (Decimal Inch)

0.1875

Corner Radius (Decimal Inch)

0.0630

Corner Radius (mm)

1.60

Hole Diameter (mm)

4.40

Hole Diameter (Decimal Inch)

0.1732

Relief Angle ( )

20

Coating Process

PVD

Included Angle ( )

90

Insert Hand

Neutral
