KENNAMETAL Jobber Length Drill Bit: 12.2 mm Dia, 140 ° Carbide 2049489

KENNAMETAL

 Jobber Length Drill Bit: 12.2 mm Dia, 140 ° Carbide 2049489

MSRP: $250

• Drill Bit Size (mm) 12.20
• Drill Bit Size (Decimal Inch) 0.4803
• Drill Bit Material Solid Carbide
• Cutting Direction Right Hand
• Spiral Type Regular
• Flute Type Spiral
• Point Type Standard
• Drill Point Angle (Degrees) 140
• Coolant Through Yes
• Shank Type Straight-Cylindrical
• Drill Bit Finish/Coating TiAlN
• Shank Diameter (Decimal Inch) 0.5512
• Overall Length (mm) 124.00
• Flute Length (mm) 77.00
• Shank Diameter (mm) 14.00
• Maximum Drilling Depth (mm) 60.00
• Shank Length (mm) 45.00
• Shank Length (Decimal Inch) 1.7717
• Drill Point Length (mm) 2.10
• Drill Bit Diameter Tolerance +0.007 to +0.025 mm
• Web Thinning Web-Thinned
• Web Configuration Parallel
• Specification Number DIN 6537L
• Drill Bit Grade High Performance
• Drill Bit Size Range (Decimal Inch) 0.4000 - 0.5000
• Drill Bit Size Range (mm) 10.00 - 12.50
• Specification Designation DIN
• UNSPSC Code 23241634

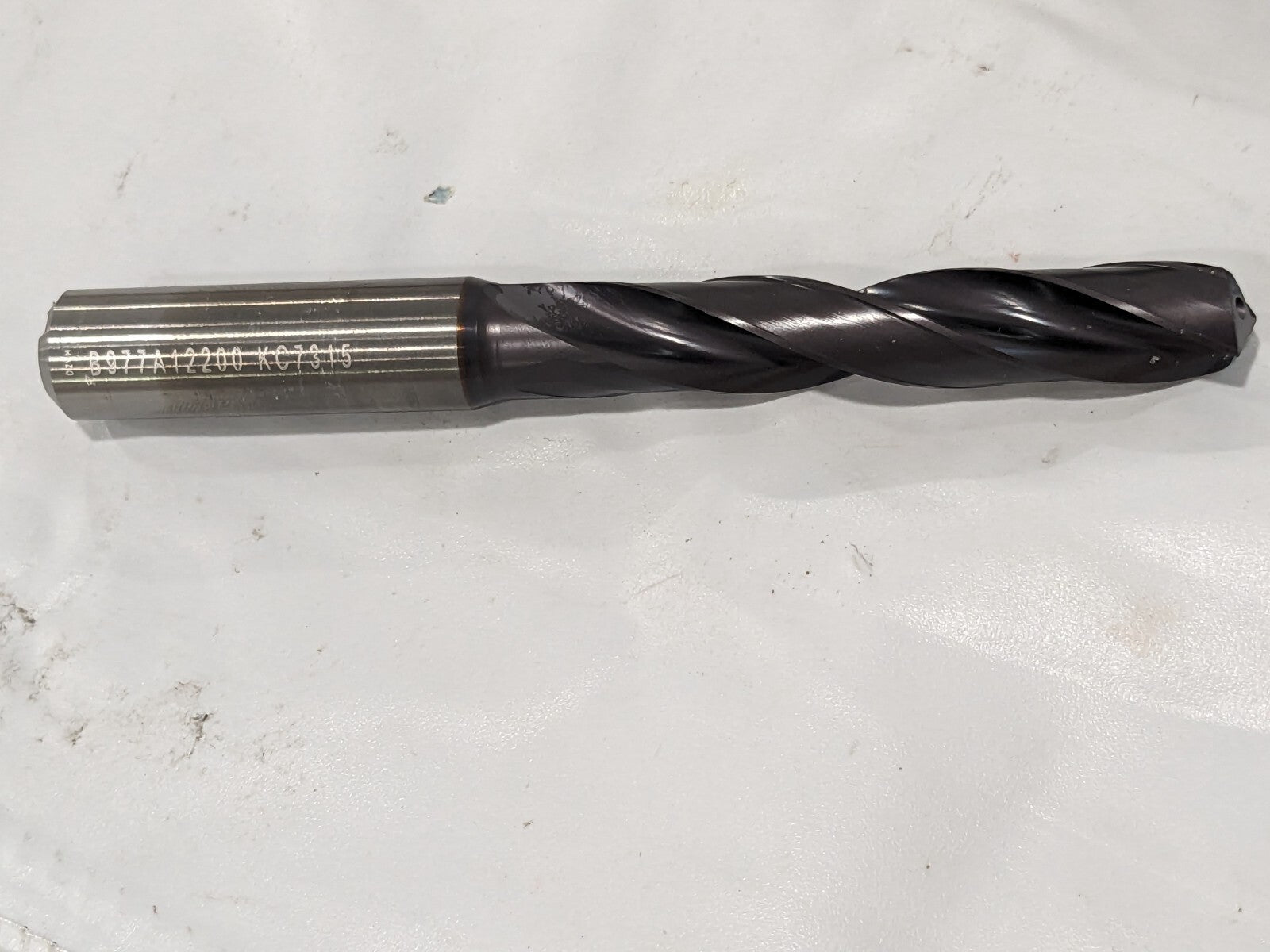

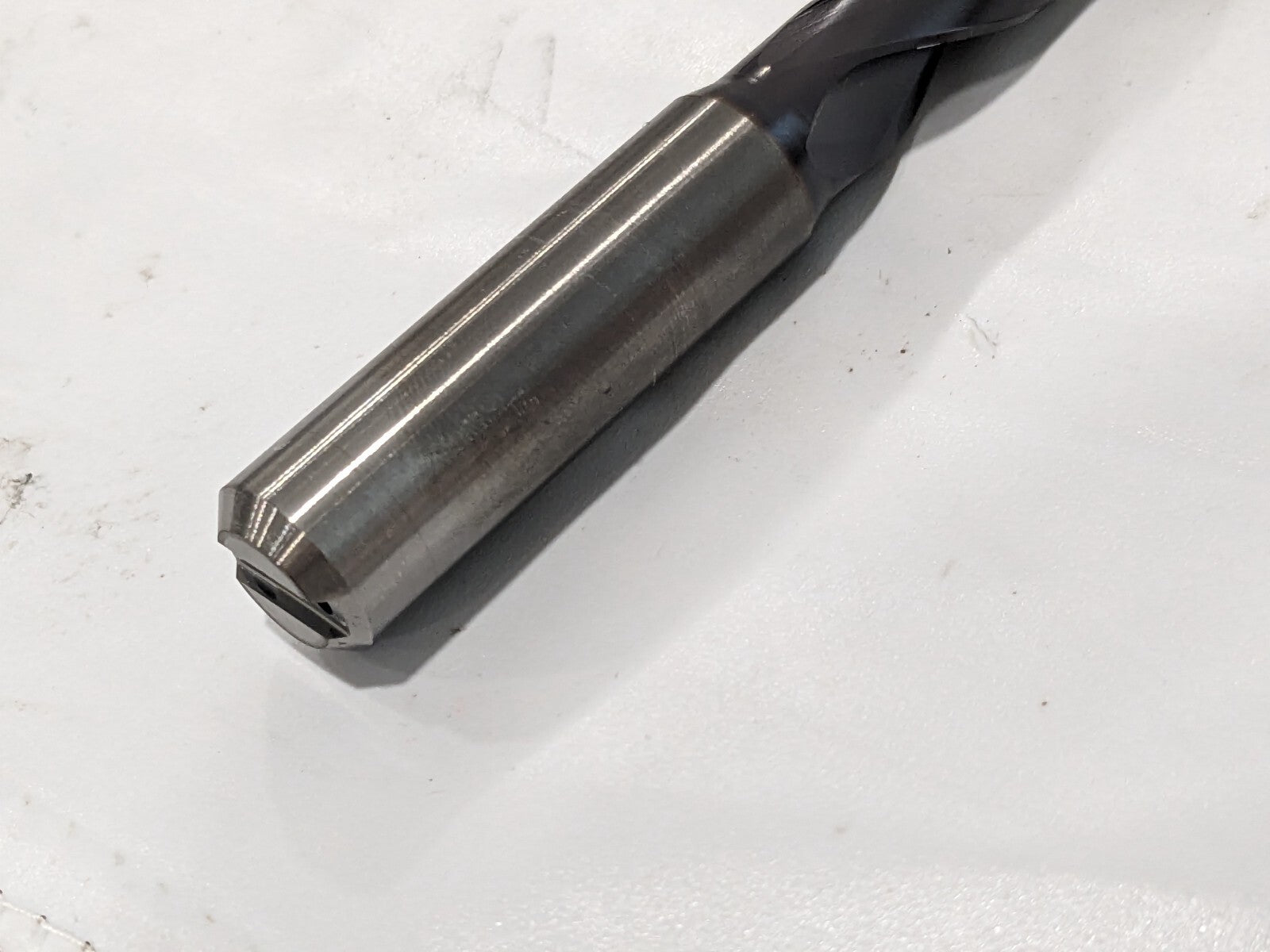

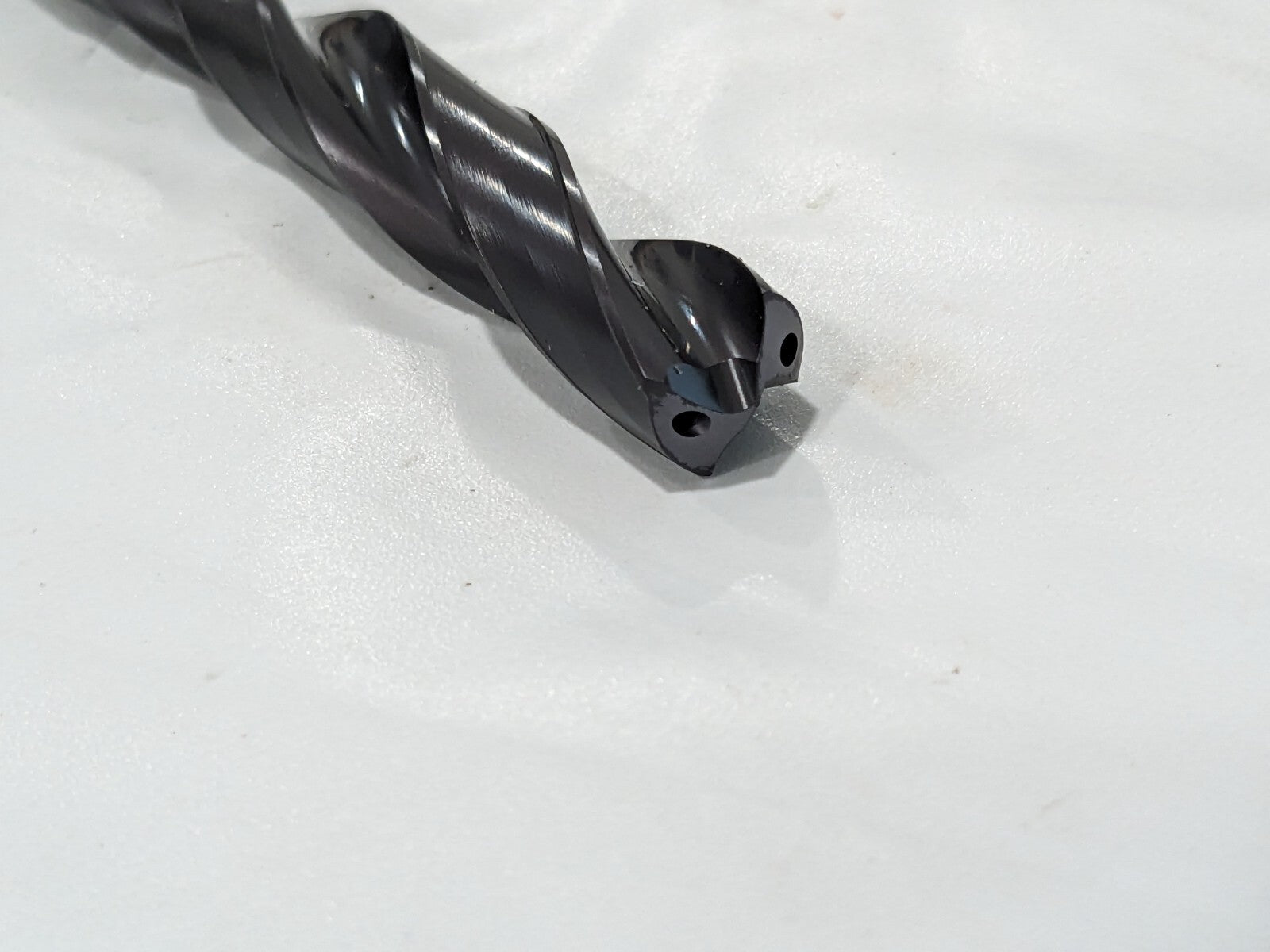

 Please review photos, comes as shown.
